Lantronix C3220 Series ION Managed Gigabit NID Modules
The C3220 Series is the ION chassis card version of Lantronix's managed Gigabit NID, converting 10/100/1000 copper to fiber in a central office or hub and managing remote S3220 units over that fiber.
From $1,034.00
Overview
About the Lantronix C3220 Series
The C3220 (Lantronix ION C3220) is a slide-in module for the ION chassis platform that terminates Gigabit fiber links at the provider or hub end. Each card is a managed Network Interface Device, so it does more than convert media: it monitors the link, supports OAM testing and can manage the stand-alone S3220 at the far end in-band, over the same fiber, removing the need for an IP address at the customer site.
Cards can be managed individually by IP or through the ION Management Module in a managed chassis. Carrier features include MEF 9, 14 and 21 certification, IEEE 802.3ah Link OAM, remote loopback, Far-End-Fault and transparent link pass through. 802.1Q VLANs with double tagging, 802.1p and DiffServ QoS, bandwidth profiling, 802.1X and 10,240-byte frames support business Ethernet and mobile backhaul services.
Each card draws 4.5 W, measures 22 x 165 x 86 mm and takes its power and environmental rating from the ION chassis it is installed in, with a 0°C to 50°C operating range. Management options include web, CLI, SSH, SNMP v1/v2c/v3 and Focal Point.
Key capabilities
- Manages remote S3220 units
- From the chassis, each C3220 manages its paired stand-alone S3220 in-band over the fiber, centralizing control of customer-site NIDs.
- High-density ION platform
- As a slide-in card it shares chassis power and the ION Management Module, so many links terminate in one shelf instead of many power bricks.
- Link OAM and loopback
- IEEE 802.3ah Link OAM, remote loopback and Far-End-Fault let operators test and isolate fiber faults without a truck roll to the far end.
- MEF 9, 14 and 21
- MEF certification and double VLAN tagging with 4096 VIDs support standards-based carrier Ethernet service delivery.
- Low 4.5 W draw
- Each card consumes 4.5 W, keeping heat and power budgets low in a fully populated ION chassis.
How to choose the right C3220 Series part number

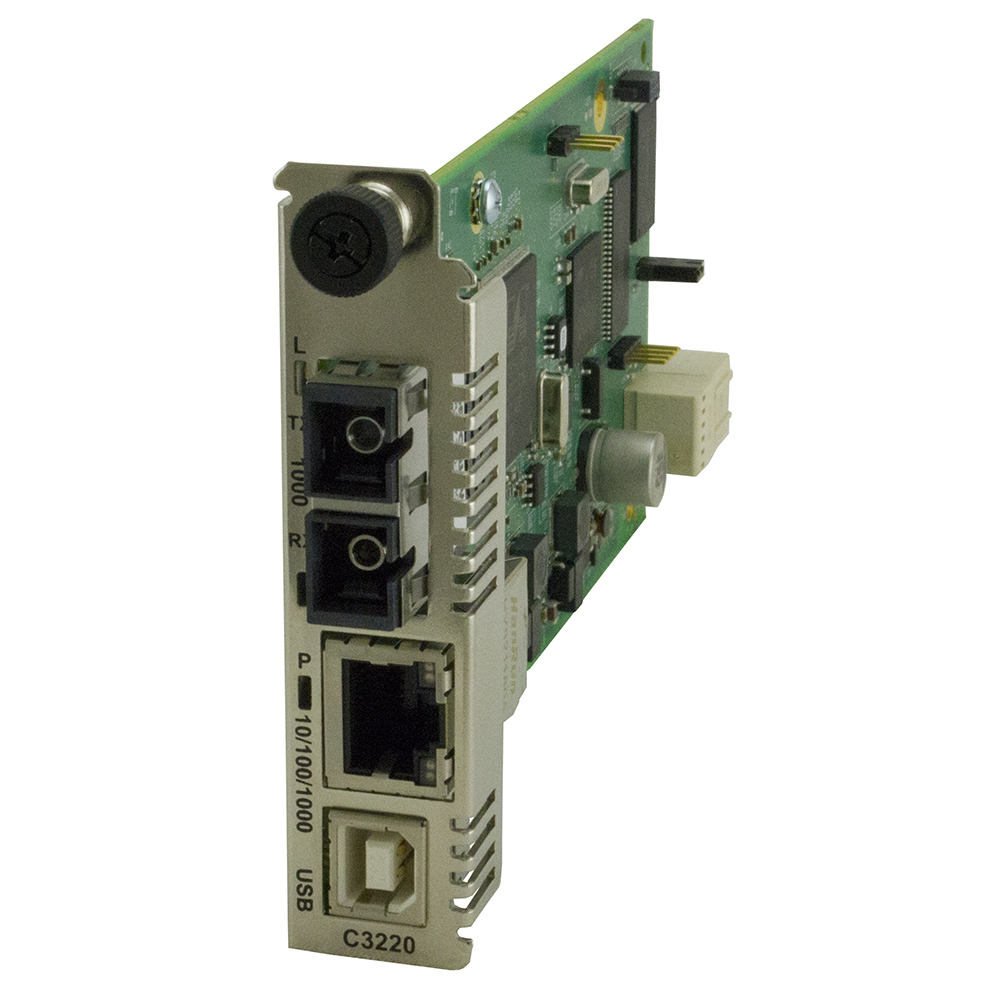

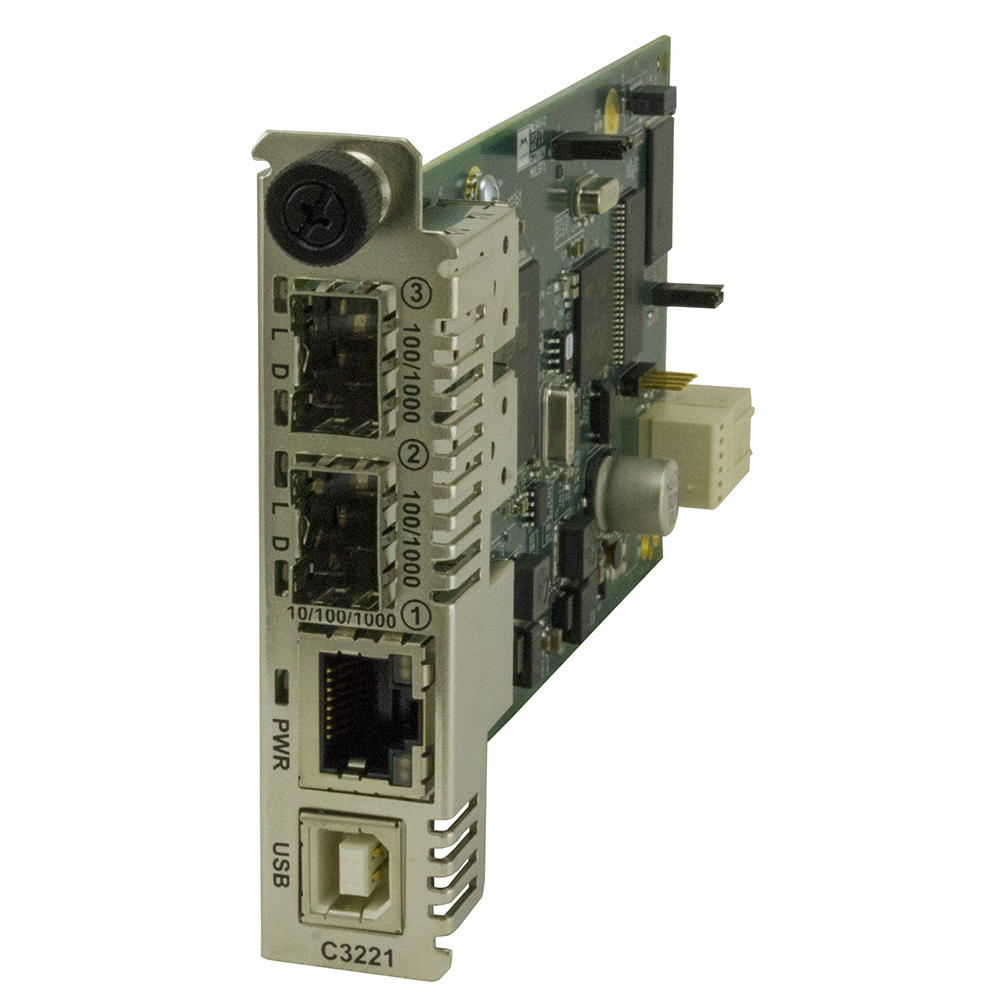

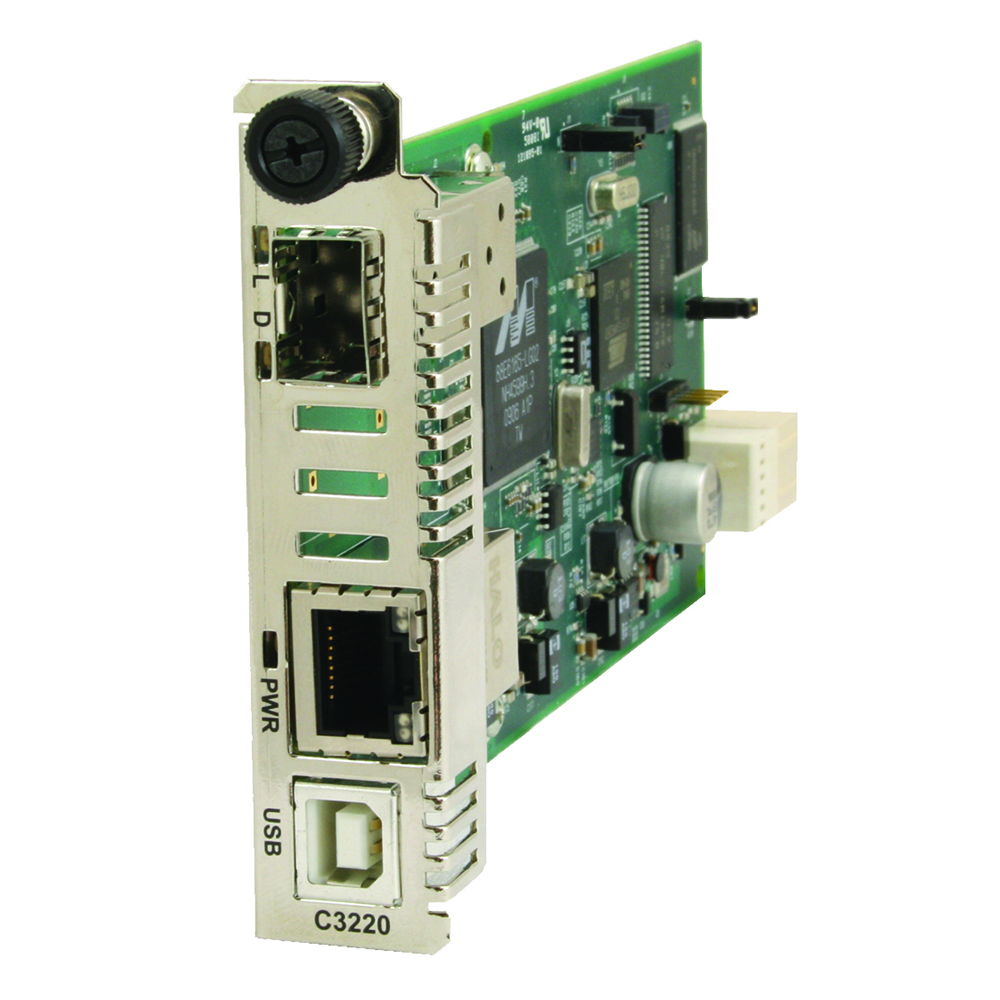

All three cards have one 10/100/1000Base-T RJ-45 port and differ on the fiber side. C3220-1014 has fixed 1000Base-LX 1310 nm single-mode optics on SC connectors for 10 km with a 10.5 dB link budget. C3220-1040 has one empty 100/1000Base-X SFP slot, letting you choose multimode or single-mode reach with the SFP. C3221-1040 has two empty SFP slots. Each card needs an ION chassis such as the ION106 or ION219, and an ION Management Module for chassis-based management.
Configure & order
Find your C3220 Series part number
Every orderable C3220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
C3220-1014
$1,299.00
Ships on backorder
C3220-1040
$1,034.00
Ships on backorder
C3221-1040
$1,087.00
Ships on backorder
Where the C3220 Series is used
- Central office termination of business Ethernet fiber circuits
- Hub-site management of customer-premises S3220 NIDs
- Mobile backhaul aggregation in ION chassis shelves
- Carrier networks using MEF-certified Ethernet services
C3220 Series datasheets & documentation
- Product BriefPDF
- C3220 Series Product Brief (A4)PDF
- C3220 Series Datasheet (223.81 KB)PDF
- ION Media Conversion PlatformPDF
- C2220, S2220, C3220, S3220 Series User Guide Rev KPDF
- C2220, S2220, C3220, S3220, C3230, S3230 Series Installation Guide Rev DPDF
- C2220, S2220, C3220, S3220 Series CLI Reference Guide Rev HPDF
- CLI initial Set-up Procedure (PDF 802.33 KB)PDF
C3220 Series FAQ
What is the difference between the C3220 and the S3220?
They share the same NID feature set. The C3220 is a slide-in card for an ION chassis, typically at the central office or hub, while the S3220 is a stand-alone unit for the remote site. A C3220 can manage its linked S3220 in-band over the fiber.
Which chassis does the C3220 module fit?
The C3220 is an ION platform module and installs in an ION chassis, such as the 6-slot ION106 or the 19-slot ION219. Its environmental specifications depend on the chassis chosen.
Does the C3220 need an ION Management Module?
It can be managed individually via its own IP address. Installed in a managed ION chassis, it can also be managed by the ION Management Module alongside the other cards in that chassis.
How much power does a C3220 card use?
Each C3220 card consumes 4.5 W, drawn from the ION chassis power supply. The card measures 0.86 x 6.5 x 3.4 inches and weighs 1 lb.
What SFP modules can I use in the C3220-1040?
The C3220-1040 and C3221-1040 have empty 100/1000Base-X SFP slots, so you can install 100 Mbps or Gigabit SFPs for multimode or single-mode fiber. DMI optical management reports diagnostics from the installed SFP.
