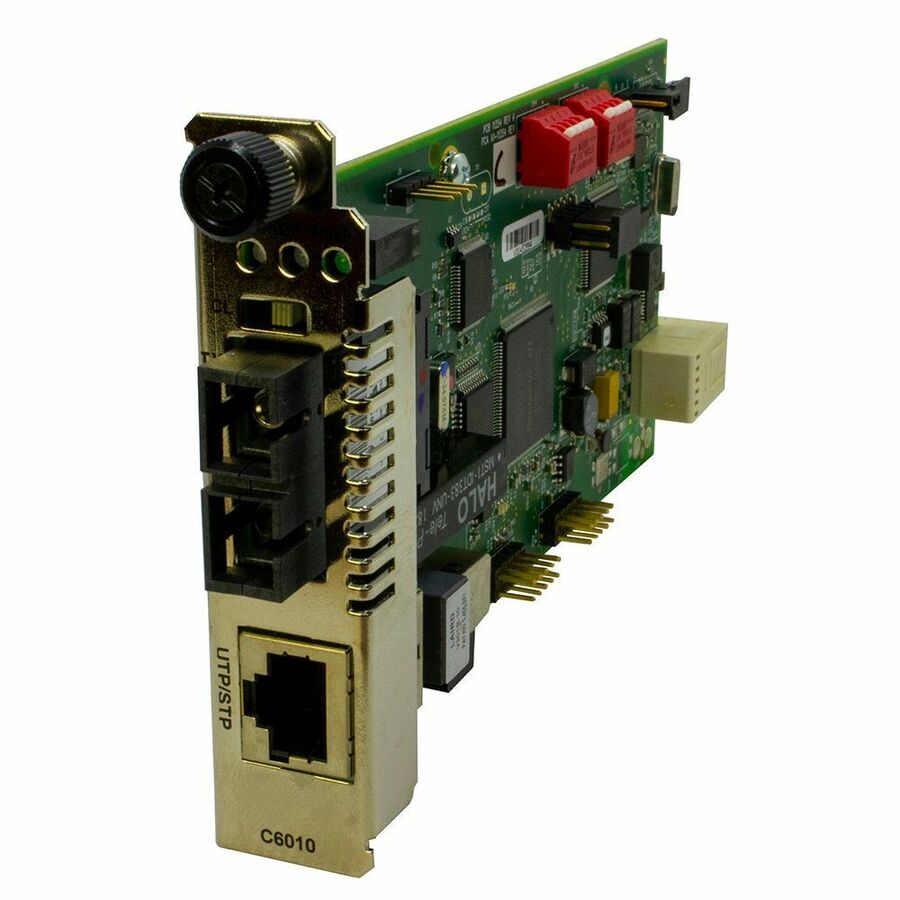

Lantronix C6010-1014 — T1/E1 to Fiber Media Converter
$620.49$924.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1310nm single mode (SC) fiber connection for 20 km/12.4 mi
- Twisted Pair (RJ-48) connection for 1.5 km/0.9 mi
- 16.0 dB link budget for the RJ-48-to-SC configuration
- T1/E1 data rates with T1 = 1.544 Mbit/s and E1 = 2.048 Mbit/s
- Remote in-band management for managed C6010 deployments
- Local or Remote Loopbacks for copper or fiber
- SNMP management when used with an ION chassis and management module
The Lantronix C6010 Series is a managed media converter for extending T1/E1 or PRI connections over fiber optic cabling. C6010-1014 connects Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to 1310nm single mode (SC) fiber [20 km/12.4 mi.] with a 16.0 dB link budget. C6010 Series T1/E1 converters must be used in pairs, one on each end of the fiber link. Typical installations include a chassis card installed in a centrally located managed ION chassis, linked over fiber to a S6010 stand-alone converter at the remote location. The series supports remote in-band management, Local or Remote Loopbacks for copper or fiber, remote firmware upgrade, and LEDs for immediate visual status. SNMP management is supported when used with an ION chassis and management module.
Ideal For
- Extending T1/E1 connections over fiber optic cabling
- Extending PRI over fiber
- Linking a managed ION chassis to a S6010 stand-alone converter at a remote location
- Using Local or Remote Loopbacks for copper or fiber
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBD-217F); Greater than 687,000 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Operating | 0°C to 50°C |
| Standards | ANSI T1.102; T1.402; T1.408; ITU I.431; G.703; G.736; G.775; G.823; ETSI 300-166; ETSI 300-233; TBR12/12 |
| Link Budget | 16.0 dB |
| E1 Data Rate | 2.048 Mbit/s |
| T1 Data Rate | 1.544 Mbit/s |
| Certifications | EN55035/55032 Class A, FCC Class A, CE, UKCA |
| Fiber Connection | 1310nm single mode (SC) [20 km/12.4 mi.] |
| Copper Connection | Twisted Pair (RJ-48) [1.5 km/0.9 mi.] |
| Power Consumption | 2.6 Watts |
Frequently Asked Questions
Does the C6010-1014 need to be used in pairs?▾
Yes. The C6010 Series T1/E1 converters must be used in pairs, one on each end of the fiber link.
What connection and distance does C6010-1014 provide?▾
C6010-1014 is a Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to 1310nm single mode (SC) [20 km/12.4 mi.] configuration with a 16.0 dB link budget.
How is the C6010 Series managed?▾
The C6010 Series supports remote in-band management, remote firmware upgrade, and SNMP management when used with an ION chassis and management module.
What T1 and E1 data rates are supported?▾
The C6010 Series supports T1 = 1.544 Mbit/s and E1 = 2.048 Mbit/s.
