Lantronix C6010 Series ION T1/E1 over Fiber Converter Modules
The C6010 Series are managed ION chassis modules that extend T1, E1 or PRI circuits over fiber, converting an RJ-48 twisted-pair connection to multimode, single-mode or SFP-based fiber, used in pairs with a remote converter.
From $801.00
Overview
About the Lantronix C6010 Series
The ION C6010 (also written C-6010) is a T1/E1 network interface device module for carrying 1.544 Mbit/s T1 or 2.048 Mbit/s E1 circuits, including ISDN PRI, beyond the reach of copper. It slides into a managed ION chassis at a central site and links over fiber to an S6010 stand-alone converter at the remote location. The converters must always be used in pairs, one at each end of the fiber link.
The copper side is an RJ-48 twisted-pair port, rated to 1.5 km, and is switch selectable for T1 or E1. Fiber options are 1300 nm multimode SC to 2 km with a 12.0 dB budget (C6010-1013), 1310 nm single-mode SC to 20 km with 16.0 dB (C6010-1014), or an open SFP slot (C6010-1040) that takes standard 100Base-X/OC-3 SFPs, including single-fiber and CWDM optics to add capacity to existing fiber. The module complies with ANSI T1.102, T1.408, ITU G.703, G.823 and ETSI 300-166 among other standards.
With an ION chassis and management module, the C6010 supports SNMP, remote in-band management of the far-end stand-alone unit by its local peer, local or remote copper and fiber loopbacks, and remote firmware upgrades. Front-panel LEDs show power and copper and fiber signal detect. Each module draws 2.6 W and operates from 0°C to 50°C, depending on the chassis.
Key capabilities
- T1, E1 and PRI
- A switch selects T1 at 1.544 Mbit/s or E1 at 2.048 Mbit/s, and the module also extends ISDN PRI connections.
- Remote unit managed in-band
- The chassis card manages its paired S6010 stand-alone converter across the fiber, so the remote end needs no separate management link.
- Loopback testing
- Local or remote loopbacks on the copper or fiber side help isolate circuit faults without dispatching a technician.
- CWDM SFP support
- The SFP version accepts CWDM optics, letting several circuits share one fiber pair, as well as single-fiber modules.
- 20 km single-mode reach
- C6010-1014 carries T1/E1 over 1310 nm single-mode fiber to 20 km with a 16.0 dB link budget.
How to choose the right C6010 Series part number
All C6010 modules have an RJ-48 T1/E1 port and fit a managed ION chassis; the suffix sets the fiber side. C6010-1013 is 1300 nm multimode SC to 2 km, 12.0 dB. C6010-1014 is 1310 nm single-mode SC to 20 km, 16.0 dB. C6010-1040 has an empty SFP slot for 100Base-X/OC-3 SFPs, including single-fiber and CWDM types. Every link needs a matching converter at the far end, typically an S6010 stand-alone, with compatible optics.
Configure & order
Find your C6010 Series part number
Every orderable C6010 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

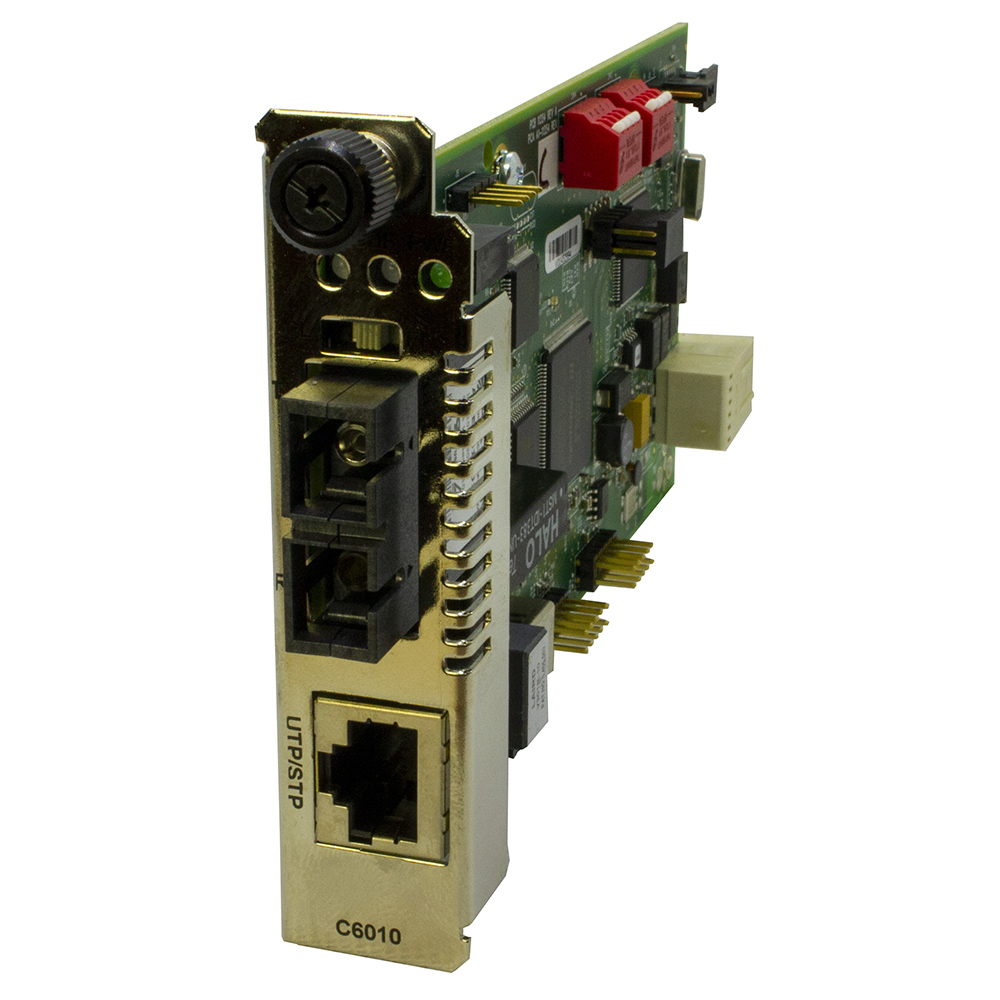

C6010-1013
$801.00
Ships on backorder

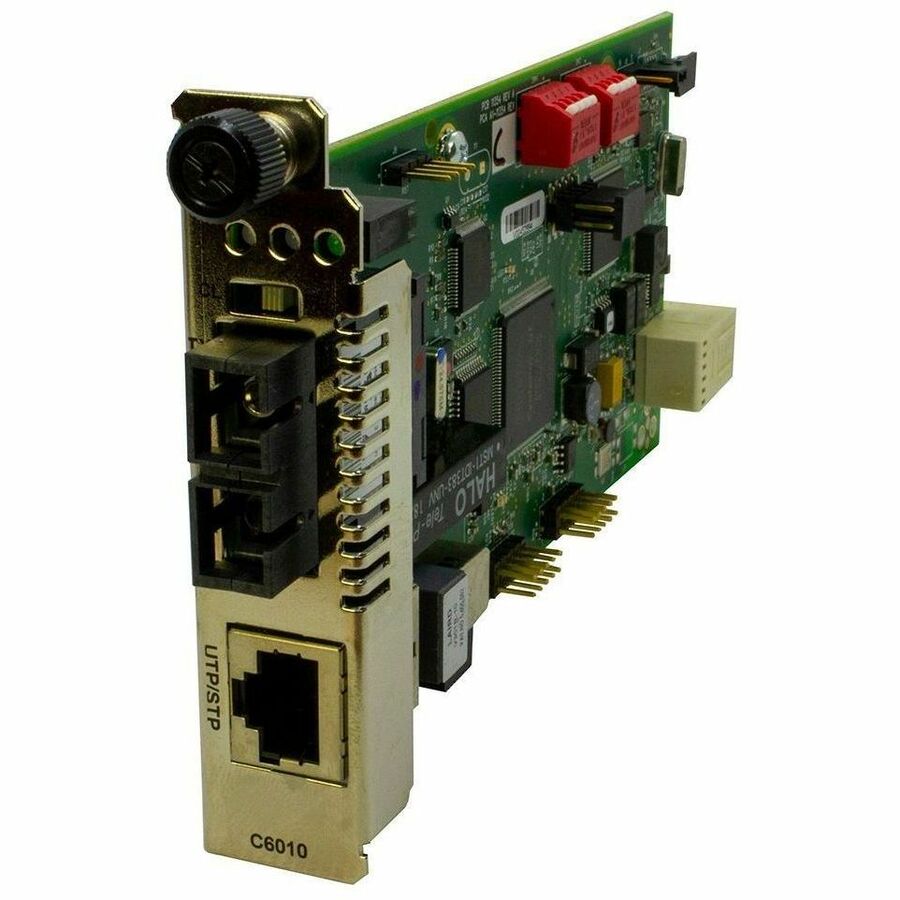

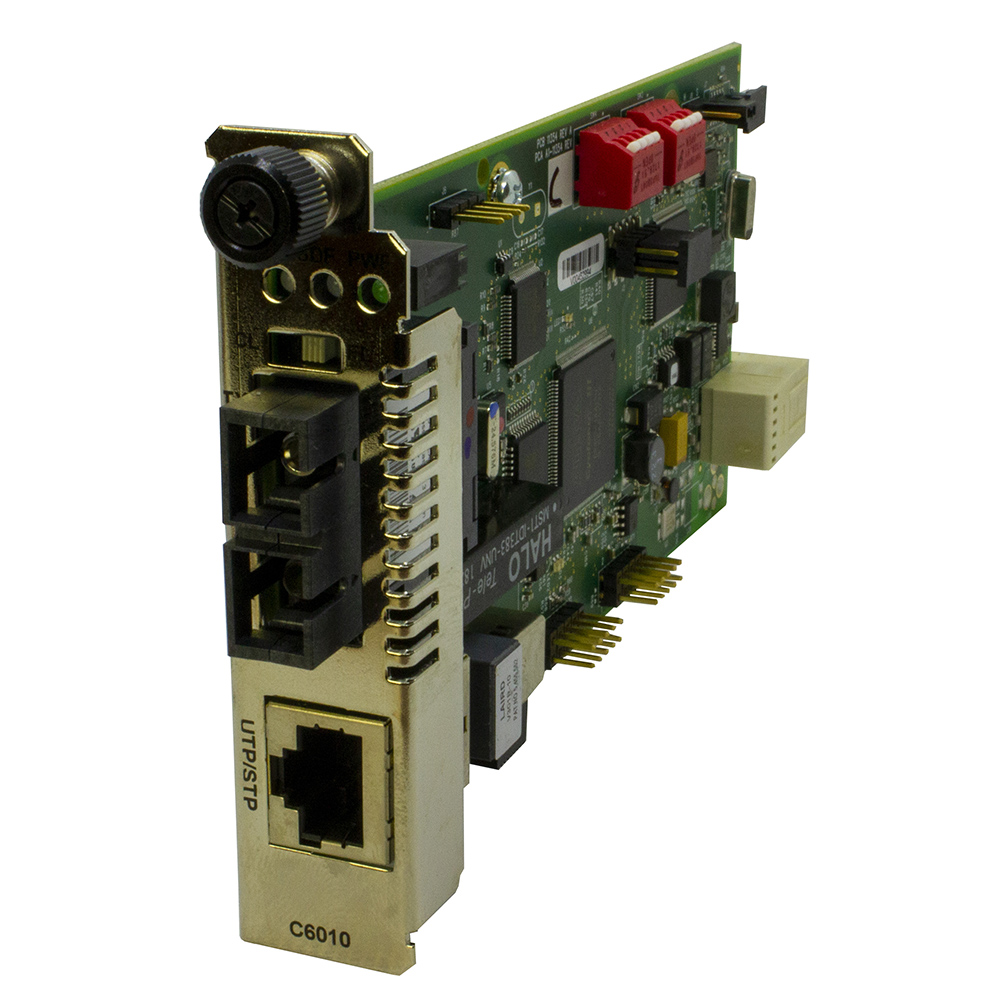

C6010-1014
$924.00
Ships on backorder

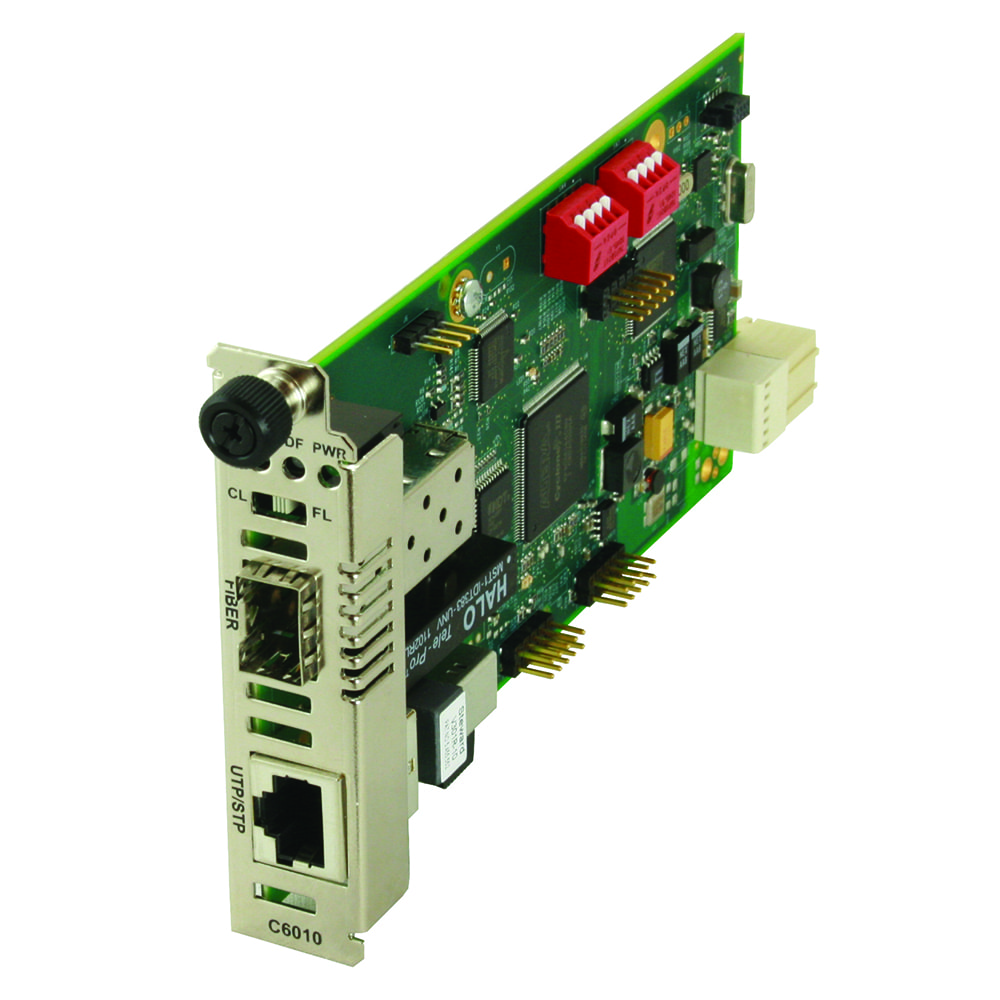

C6010-1040
$812.00
Ships on backorder
Where the C6010 Series is used
- Extending T1 or E1 circuits between buildings over fiber
- Carrying ISDN PRI to remote PBX locations
- Managing remote T1/E1 extensions from a central ION chassis
- Adding T1/E1 circuits to existing fiber with CWDM optics
C6010 Series datasheets & documentation
C6010 Series FAQ
Does the C6010 need a converter at the other end?
Yes. T1/E1 converters must be used in pairs, one at each end of the fiber. A typical installation pairs a C6010 card in a central managed ION chassis with an S6010 stand-alone converter at the remote site.
Can the C6010 carry E1 as well as T1?
Yes. It is switch selectable for T1 at 1.544 Mbit/s or E1 at 2.048 Mbit/s, and it complies with ITU G.703, G.823, ETSI 300-166 and related E1 standards as well as ANSI T1 standards. It can also extend PRI connections.
How far can the C6010 extend a T1 line?
Up to 2 km over multimode fiber with the C6010-1013, or 20 km over single-mode fiber with the C6010-1014. The C6010-1040 reach depends on the SFP installed. The RJ-48 copper side is rated to 1.5 km.
What SFPs work in the C6010-1040?
Standard 100Base-X/OC-3 SFPs with LC connectors. Lantronix states the series supports dual or single fiber, multimode and single-mode at a variety of distances, and CWDM SFPs to increase fiber capacity.
