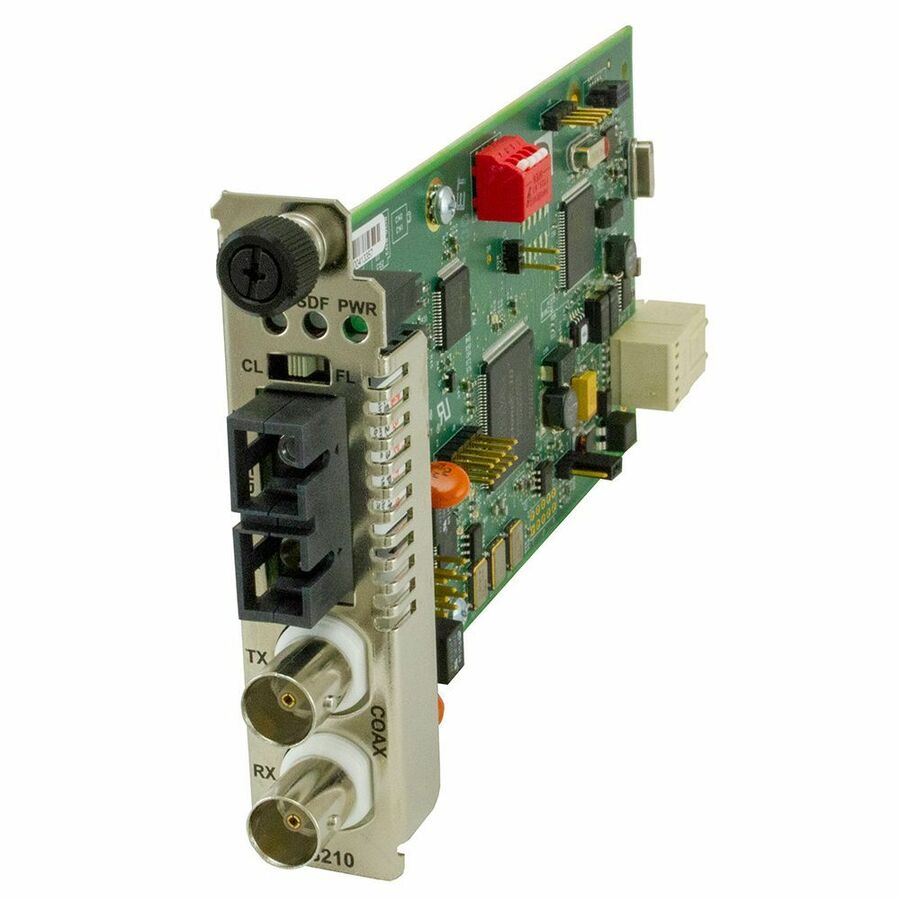

Lantronix C6210-3014 — DS3/T3/E3 Coax-to-Fiber Module
$620.16$924.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 2 Coax (BNC) to 1310nm single mode (SC) fiber configuration
- 20 km/12.4 mi. fiber distance with 16.0 dB link budget
- DS3/T3 or E3 switch-selectable operation
- AIS (Alarm Indication Signal) and Coax Line Build Out
- Coax and fiber loopback for link testing
- SNMP management when used with ION chassis and management module
- Remote firmware upgrade support
The Lantronix C6210 Series is a managed media converter module for extending DS3-T3/E3 connections over fiber. C6210-3014 provides (2) Coax (BNC) to 1310nm single mode (SC) fiber with a 20 km/12.4 mi. distance and a 16.0 dB link budget. The module is switch selectable for DS3/T3 or E3 and includes AIS, Coax Line Build Out, coax and fiber loopback, remote firmware upgrade, and LEDs for immediate visual status. C6210 DS3-T3/E3 converters must be used in pairs. A typical installation includes a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.
Ideal For
- Extending DS3-T3/E3 connections over fiber
- Linking a managed ION chassis to a stand-alone S6210 in a remote location
- Using SNMP management with an ION chassis and management module
- Deploying 1310nm single mode SC fiber for 20 km/12.4 mi. links
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBD-217F); Greater than 687,000 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | DS3/T3 = 44.7 Mbps; E3 = 34.4 Mbps |
| Standards | ANSI; ITU-TS; ETSI; G.823 for jitter tolerance; G.755 for loss of signal |
| Link Budget | 16.0 dB |
| Status Leds | Power, Coax link status, coax loopback status, AIS on coax link; Fiber link status, fiber loopback status, AIS on fiber link |
| Configuration | (2) Coax (BNC) to 1310nm single mode (SC) |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark |
| Fiber Distance | 20 km/12.4 mi. |
| Coax Connectors | 75 ohm coax |
| SFP+ Fixed Optics | ST or SC connector |
| Power Consumption | 2.5 Watts |
| Fiber Connectors SFP+ | LC connector Uses standard 100Base-X/OC-3 |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does C6210-3014 support DS3/T3 and E3?▾
It is switch selectable for DS3/T3 or E3. The listed data rates are DS3/T3 = 44.7 Mbps and E3 = 34.4 Mbps.
Does this module need to be used in pairs?▾
Yes. C6210 DS3-T3/E3 converters must be used in pairs.
What fiber configuration does C6210-3014 use?▾
C6210-3014 is listed as (2) Coax (BNC) to 1310nm single mode (SC) with a 20 km/12.4 mi. distance and a 16.0 dB link budget.
Can this module be managed with SNMP?▾
SNMP management is supported when used with an ION chassis and management module.
