Lantronix C6210-3040 — DS3-T3/E3 Media Converter
$545.55$812.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- (2) Coax (BNC) to empty SFP slot for DS3-T3/E3 coax over fiber
- Switch-selectable DS3/T3 or E3 operation
- 44.7 Mbps DS3/T3 and 34.4 Mbps E3 data rates
- Coax and fiber loopback
- AIS (Alarm Indication Signal) and Coax Line Build Out
- SNMP management when used with ION chassis and management module
- Status LEDs for power, coax link, coax loopback, AIS on coax link, fiber link, fiber loopback and AIS on fiber link

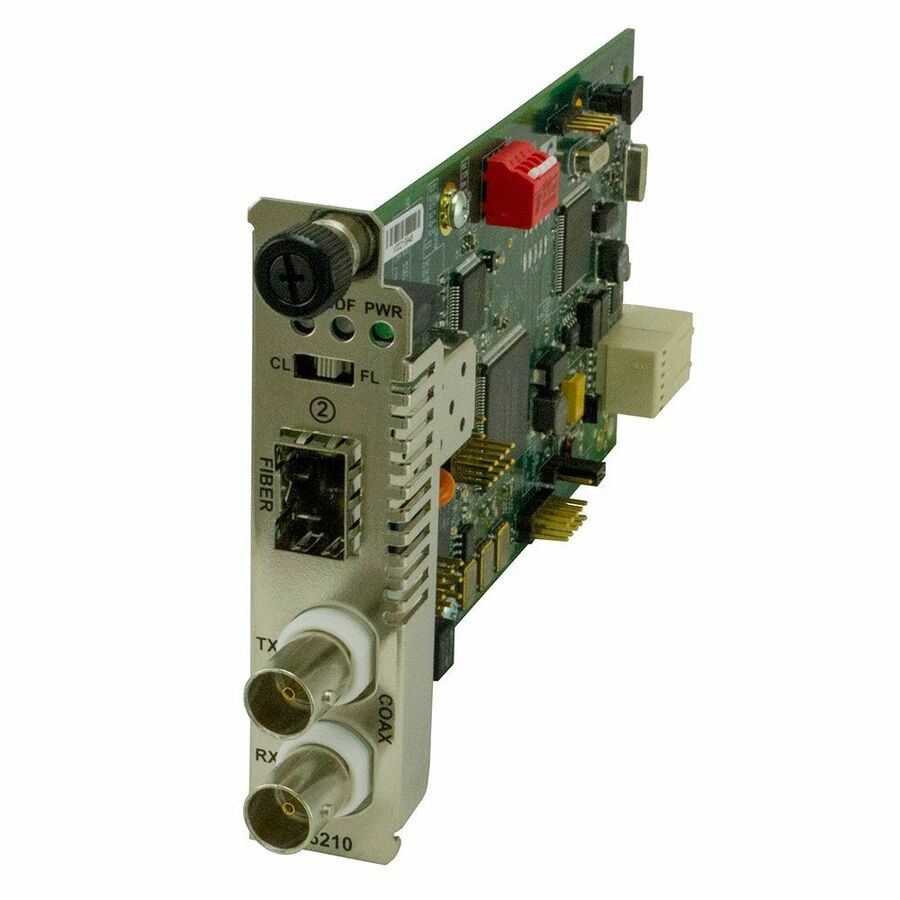

The Lantronix C6210-3040 is an ION C6210 Series managed media converter module for users that need to extend DS3-T3/E3 connections over fiber. This SKU provides (2) Coax (BNC) connections to an empty SFP slot. The C6210 Series supports fixed fiber connector versions and SFP fiber modules for a variety of fiber types, distances and wavelengths. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. C6210 DS3-T3/E3 converters must be used in pairs. A typical installation includes a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.
Ideal For
- Extending DS3/T3 coax connections over fiber
- Extending E3 coax connections over fiber
- Managed ION chassis installations linked over fiber to a remote stand-alone S6210
- Deployments that require dual or single fiber support
Specifications
| Series | C6210 Series |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | DS3/T3 = 44.7 Mbps; E3 = 34.4 Mbps |
| Standards | ANSI; ITU-TS; ETSI; G.823 for jitter tolerance; G.755 for loss of signal |
| Dimensions | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Status Leds | Power, Coax link status, coax loopback status, AIS on coax link; Fiber link status, fiber loopback status, AIS on fiber link |
| MTBF Bellcore | Greater than 687,000 hours |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark |
| Coax Interface | (2) Coax (BNC) |
| Coax Connectors | 75 ohm coax |
| Fiber Interface | SFP slot (empty) |
| Power Consumption | 2.5 Watts |
| MTBF Mil-hdbd-217f | Greater than 250,000 hours |
| Fiber Connectors SFP+ | LC connector Uses standard 100Base-X/OC-3 |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does C6210-3040 include an SFP module?▾
No. The part-table description lists this SKU as (2) Coax (BNC) to *SFP slot (empty).
Does the C6210-3040 need to be used in pairs?▾
Yes. The C6210 DS3-T3/E3 converters must be used in pairs.
Which DS3/T3 and E3 data rates does it support?▾
It is switch selectable for DS3/T3 or E3. The listed data rates are DS3/T3 = 44.7 Mbps and E3 = 34.4 Mbps.
How is the module managed?▾
SNMP management is supported when the module is used with an ION chassis and management module.
