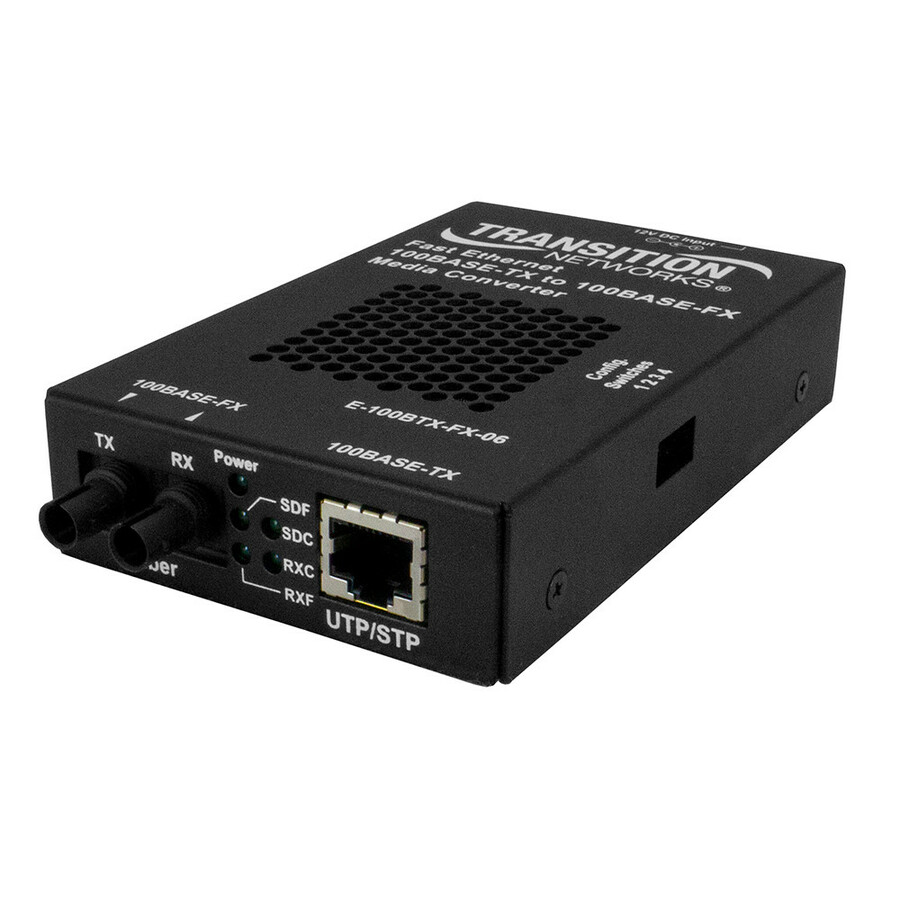

Lantronix E-100BTX-FX-06 stand-alone Fast Ethernet media converter

Lantronix E-100BTX-FX-06-NA — 100Base-TX to 100Base-FX ST Media Converter

Name: Lantronix E-100BTX-FX-06-NA — 100Base-TX to 100Base-FX Media Converter
Brand: Lantronix
SKU: E-100BTX-FX-06-NA
Price: 173.78 USD
Availability: InStock

Lantronix|

MPN: E-100BTX-FX-06-NA

UPC: 648177043675

Low Stock (6 left)

$173.78$258.00

Ships from and sold by A5 IT

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day ShippingArrives by Monday, Oct 19

New, with full manufacturer warranty

Key Features

100Base-TX to 100Base-FX conversion for integrating fiber optic cabling into 100Base-TX copper environments
100Base-TX RJ-45 copper interface listed for 100 m/328 ft
100Base-FX 1300nm multimode ST fiber interface listed for 2 km/1.2 mi
Layer 1 design that passes data through the converter at line speed
Auto-negotiation and Auto-MDI/MDIX for copper-side setup
Active link pass through, Far-End-Fault (FEF), Pause, and automatic link restoration
External AC/DC power supply with 9-14VDC power input
Bridge copper and fiber networks using 100BASE-TX to 100BASE-FX conversion

Lantronix E-100BTX-FX-06 is a stand-alone Fast Ethernet media converter that provides an interface between 100Base-TX ports and 100Base-FX ports. This SKU connects 100Base-TX RJ-45 to 100Base-FX 1300nm multimode ST fiber. It operates at Layer 1, the physical layer, and passes data through the converter at line speed. The design is made for applications where low latency is essential. The E-100BTX Series includes auto-negotiation, Auto-MDI/MDIX, active link pass through, Far-End-Fault (FEF), Pause, and automatic link restoration. It can be used in pairs or as a single unit to integrate fiber into a 100base copper environment.

Ideal For

Integrating fiber optic cabling into 100Base-TX copper environments
Connecting 100Base-TX RJ-45 copper segments to 100Base-FX 1300nm multimode ST fiber
Using a pair of converters to link copper Ethernet environments over fiber
Deploying a Layer 1 media converter where low latency is essential

Specifications

MTBF	Greater than 46,768 hours (MIL‐HDBK‐217F); Greater than 123,861 hours (Bellcore7 V5.0)
Depth	4.7” [119 mm]
Width	3″ [76 mm]
Height	1″ [25 mm]
Weight	2 lbs. [0.90 kg]
Altitude	0 – 10,000 ft
Humidity	5% to 95% (non-condensing)
Switch 1	Auto-Negotiation On/Off
Switch 2	Pause TX On/Off
Switch 3	Active Link Pass Through On/Off
Switch 4	Far-End-Fault (FEF) On/Off
Warranty	Lifetime
Standards	IEEE 802.3
Port Count	2 ports
Regulatory	FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark
Status LED	PWR (Power); SDF or LKF (Link Fiber); SDC or LKC (Link Copper); RXF (Receive Fiber); RXC (Receive Copper)
Form Factor	Standalone media converter
Link Budget	11.0 dB
Power Input	9-14VDC
Power Supply	External AC/DC required:120-240VAC input, 12VDC Output; unregulated, standard
Fiber Interface	100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.]
Copper Interface	100Base-TX (RJ-45) [100 m/328 ft.]
Power Consumption	1.75 Watts
Network Technology	100BASE-TX to 100BASE-FX
Ethernet Technology	Fast Ethernet
Fiber Mode Supported	Multi-mode
Operating Temperature	0°C to 50°C

Documentation

Manufacturer Brochure

User Manual

Product Brief

E-100BTX User Guide Rev D

Frequently Asked Questions

What does the E-100BTX-FX-06 convert?▾

It provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments.

Which fiber connector does this SKU use?▾

The Lantronix part table lists this SKU as 100Base-FX 1300nm multimode with an ST fiber interface.

Can this media converter be used as a single unit?▾

The series features state that it can be used in pairs or as a single unit to integrate fiber into a 100base copper environment.

Is this a Layer 1 media converter?▾

It operates at Layer 1, the physical layer, and passes data through the converter at line speed.
