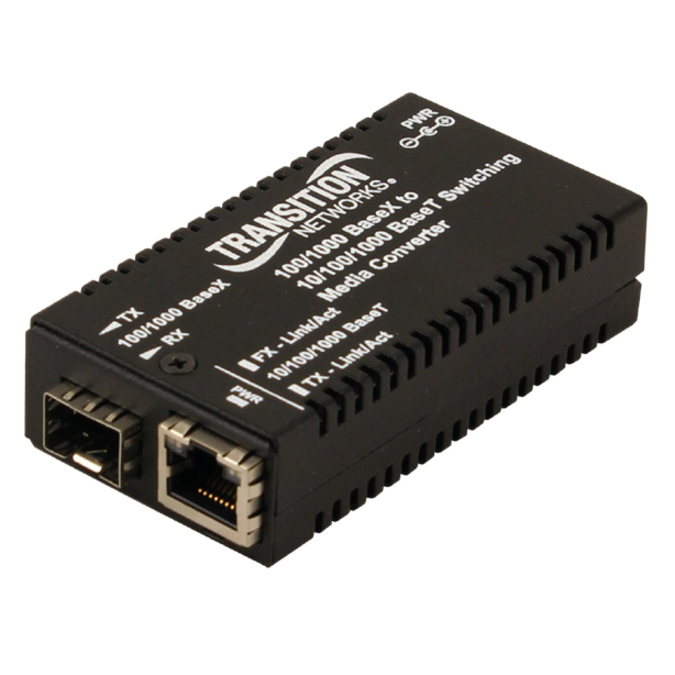

Lantronix M/GE-PSW-SFP-01-NA — Mini Gigabit Ethernet Media Converter (North America)
$236.69$352.00
Ships from and sold by A5 IT
&mpn=M%2FGE-PSW-SFP-01-NA&price=23669&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1027970901.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 13h 1m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T RJ-45 copper interface
- 100/1000Base-X SFP slot, empty
- 100 m/328 ft. listed RJ-45 copper reach
- 1 Gbps data rate
- Auto-Negotiation and Auto-MDI/MDIX
- Active Link Pass Through and Automatic Link Restoration
- Wall, DIN rail, rack, or standalone mounting
- Bridge copper and fiber segments using 10/100/1000BSE-T to 100/1000BSE-X conversion
Lantronix M/GE-PSW-SFP-01-NA is a Mini Gigabit Ethernet Media Converter for connecting 10/100/1000Base-T RJ-45 copper to a 100/1000Base-X SFP slot. The SFP slot is empty, giving the deployment a pluggable fiber interface instead of a fixed optic. The Lantronix part table lists the copper side at 100 m/328 ft. Etilize data lists Gigabit Ethernet, 1000 Mbit/s operation, one RJ-45 network port, one SFP slot, and an AC adapter. Operational features include Unit & Port LEDs, Auto-Negotiation, fixed full-duplex on fiber, Auto-MDI/MDIX, Active Link Pass Through, Automatic Link Restoration, and jumbo frames up to 10,240 bytes. The feed lists wall mountable, DIN rail mountable, rack-mountable, and standalone installation options.
Ideal For
- Connecting 10/100/1000Base-T RJ-45 copper links to 100/1000Base-X SFP fiber infrastructure
- Using an empty SFP slot where a fixed SX or LX optic is not specified in the converter
- Mounting a mini media converter on a wall, DIN rail, rack, or standalone surface
- Connecting existing 10/100 Mbps devices to 1000 Mbps devices
Specifications
| Depth | 3.3" |
| Height | 0.9" |
| Mounting | Wall Mountable; DIN Rail Mountable; Rack-mountable; Standalone |
| Data Rate | 1000 Mbit/s |
| Compliance | TAA Compliant |
| Form Factor | Mini SFP |
| Jumbo Frame | Up to 10,240 Bytes |
| Network Port | 1 x Network (RJ-45) |
| Power Source | AC Adapter |
| Expansion Slot | 1 x SFP Slots |
| Copper Distance | 100 m/328 ft |
| Limited Warranty | Lifetime |
| Network Technology | 10/100/1000Base-T to 100/1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Environmental Compliance | WEEE; RoHS; REACH |
Frequently Asked Questions
What media does M/GE-PSW-SFP-01-NA convert?▾
It converts 10/100/1000Base-T RJ-45 copper to a 100/1000Base-X SFP slot. The SFP slot is empty.
What is the listed copper distance?▾
The Lantronix part table lists the RJ-45 copper side at 100 m/328 ft.
How can this media converter be mounted?▾
The feed lists wall mountable, DIN rail mountable, rack-mountable, and standalone form factors.
Is this SKU TAA compliant?▾
Yes. The feed lists TAA Compliant for this SKU.
