Lantronix SGFEB1019-130-NA — Sgfeb Series Media Converter
$539.66$803.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 1000Base-LX conversion for copper-to-fiber Gigabit Ethernet links
- 1 RJ-45 network port and 1 LC port for fixed copper and fiber handoff
- Single-mode fiber support with LC connector type
- Auto Negotiation and Auto-MDI/MDIX for copper-side link setup
- Link Pass Through, Far End Fault (FEF), and Remote Fault Detect for link fault visibility
- IEEE 802.3az Energy Efficient Ethernet support
- 7.5 to 24 VDC power input provided by a wide input AC Wall Mount Adapter
- Convert copper Ethernet to fiber using 10/100/1000Base-T to 1000Base-LX media conversion

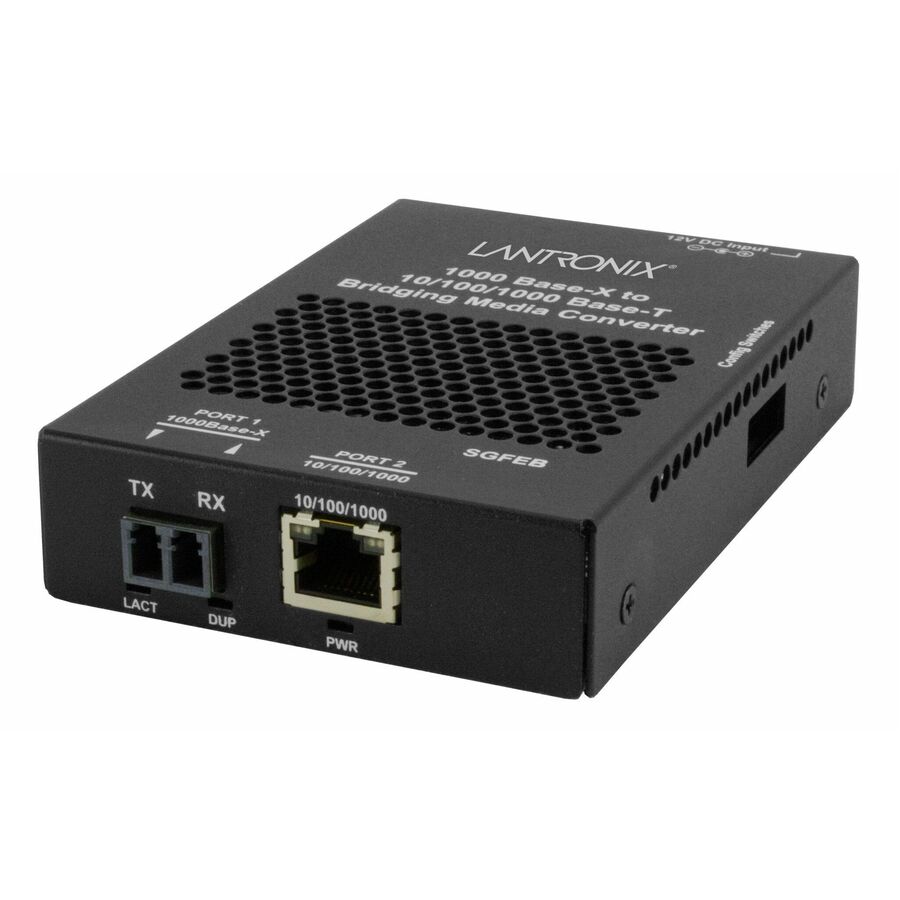

The Lantronix SGFEB Series is a stand-alone Gigabit Ethernet media and rate converter for 10/100/1000Base-T to 1000Base-SX/LX conversion. SGFEB1019-130-NA is the 1000Base-LX single-mode LC configuration with a North America power supply. It provides rate conversion while increasing transmission distances, with Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect. Status LEDs show power, fiber link/activity, RJ-45 link/activity/duplex, and speed. The converter supports IEEE 802.3az Energy Efficient Ethernet and carries a lifetime warranty. Its stand-alone, wall-mountable form factor is built for a dedicated copper-to-fiber handoff.
Ideal For
- Converting 10/100/1000Base-T copper ports to 1000Base-LX fiber
- Extending Gigabit Ethernet links over single-mode fiber
- Wall-mounted media conversion in wiring closets or equipment spaces
- Fiber-to-the-desk media conversion
Specifications
| Safety | Wall Mounted Power Supply: UL Listed; UL60950; CSA Certified |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3z; IEEE 802.3az |
| Warranty | Lifetime |
| Data Rate | 1 Gbps |
| Dimensions | 3.25” [82 mm] x 4.8” [122 mm] x 1″ [25 mm] |
| Fiber Port | 1 x LC Ports |
| Form Factor | Wall Mountable |
| Power Input | 7.5 to 24 VDC, Provided by wide input AC Wall Mount Adapter |
| Network Port | 1 x Network (RJ-45) |
| Certification | EN55022 Class A; EN55024; FCC Class A; CE Mark |
| Connector Type | LC |
| Max Frame Size | 10,260 byte Jumbo Frames |
| Copper Data Rate | 10/100/1000 Mbps |
| Power Consumption | 2.2 Watts |
| Network Technology | 10/100/1000Base-T to 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Filtering Addresses | 8K MAC addresses |
| Storage Temperature | -15°C to 65° C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 50°C |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What network conversion does SGFEB1019-130-NA provide?▾
It provides an interface between 10/100/1000Base-T copper ports and 1000Base-LX fiber ports.
Does this media converter use single-mode or multimode fiber?▾
This SKU is listed with single-mode fiber support and an LC connector.
How is the unit powered?▾
Power input is 7.5 to 24 VDC, provided by a wide input AC Wall Mount Adapter. This SKU is the North America power-supply configuration.
Which Ethernet standards are listed for the SGFEB Series?▾
The SGFEB Series lists IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, and IEEE 802.3az support.
