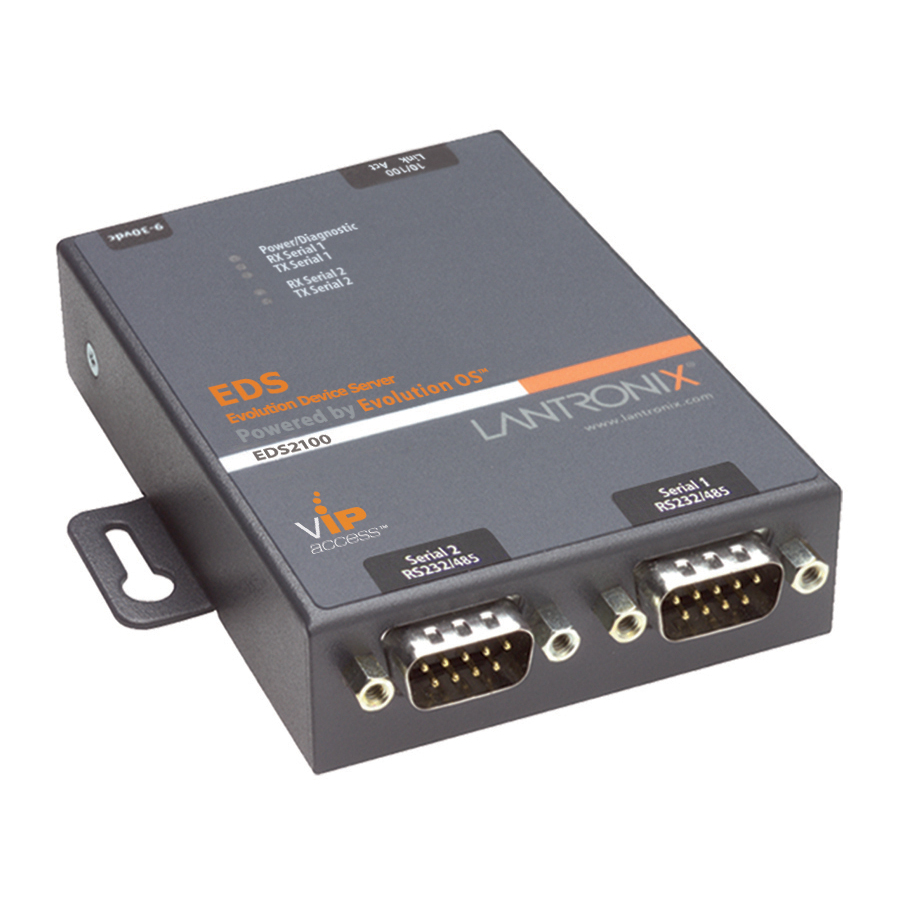

Lantronix EDS2100 with Linux two-port secure device server

Lantronix ED2100002-LNX-01 — EDS2100 w/ Linux with Device Server

Name: Lantronix ED2100002-LNX-01 — EDS2100 w/ Linux with Device Server
Brand: Lantronix
SKU: ED2100002-LNX-01
Price: 300.46 USD
Availability: BackOrder

Lantronix|

MPN: ED2100002-LNX-01

UPC: 783384234512

Available on Backorder

$300.46

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

Serial connectivity with 2 DB9M (DTE) serial connectors
Serial mode selection with software-selectable RS-232, RS-422 or RS-485 and 2- and 4-wire configurations supported
Serial data rates from 300 to 921kbps with standard and customizable settings
Network connectivity through 10BaseT and 100Base-TX Link
Secure access with SSL v3, SSH v2 Client & Server, and selectable 128/256/512/1024 Bit certificates
Encryption and authentication with AES, 3DES, RC4, SHA-1, MD5, and Base-64 User Access Lists
Management through Web, CLI, XML, and SNMP tools
Quickly connect any device with a serial port to the network using robust SSH or SSL enterprise-level security

Lantronix EDS2100 w/ Linux is a two-port, secure device server in the EDS1100 / EDS2100 series. It provides remote access to and management of IT/networking equipment or edge devices such as medical equipment, POS terminals or security equipment. It connects serial-port devices to a 10BaseT and 100Base-TX Link network through 2 x DB9M (DTE) serial connectors. Serial modes are software selectable RS232, RS422 or RS485, with 2- and 4-wire configurations supported. Security and management include SSL v3, SSH v2 Client & Server, selectable 128/256/512/1024 Bit certificates, AES, 3DES, RC4, SHA-1, MD5, and Base-64 User Access Lists. Management options include Internal Web Manager, CLI, XML Configuration Records, DeviceInstaller software, and SNMP. This SKU is the EDS2100 w/ Linux configuration and includes a 100-240 VAC International Power Supply.

Ideal For

Remote access to IT/networking equipment with serial ports
Remote management of edge devices over Ethernet
Network access for POS terminals
Remote monitoring and management of medical equipment or security equipment

Specifications

Parity	Odd, even, none
Firmware	Upgradeable via FTP, TFTP, Web, and Serial Port
Security	SSL v3, SSH v2 Client & Server, Selectable 128/256/512/1024 Bit certificates
Processor	32-bit processor
Protocols	HTTP, HTTPS, FTP, TFTP, Telnet, TCP/IP, UDP/IP, LPD,DHCP, SSHv2, SSLv3, SNMP v2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP, PPP, RFC2217
Stop Bits	1 or 2
Characters	7 or 8 data bits
Encryption	AES, 3DES, RC4
Flow Control	XON/XOFF (software), CTS/RTS (hardware)
Product Type	Device Server
Serial Modes	Software selectable RS-232, RS-422 or RS-485 (2- and 4-wire configurations supported)
Serial Ports	2
Product Model	EDS2100
Authentication	SHA-1, MD5, Base-64 User Access Lists
On-board Memory	8MB SDRAM/8MB Flash
Network Standard	10/100Base-TX
Network Interface	10BaseT and 100Base-TX Link
Serial Connectors	2 x DB9M (DTE)
Serial Data Rates	Standard and customizable serial data rates from 300 to 921kbps
Ethernet Technology	Fast Ethernet
Internal Web Server	Customizable with CGI
Management Software	DeviceInstaller software
Network RJ-45 Ports	1
Web Content Storage	Web content on local file system and updatable through ftp
Management Interface	Internal Web Manager (SSL Option for secure login)
Media Type Supported	Twisted Pair
Configuration Records	XML Configuration Records via CLI or FTP
Included Power Supply	100-240 VAC International Power Supply
Modem Control Signals	CTS, RTS, DTR/DCD
Command Line Interface	CLI (over Serial Ports, Telnet or SSH)

Documentation

Manufacturer Brochure

Product Brief

EDS1100 / EDS2100 Product Brief (A4)

Certificate of Compliance: RoHS and REACH- EDS1100_EDS 2100

External Product Comparison Matrix

Linux SDK – User Guide Rev F

Linux SDK – VMware Image Quick Start Guide

Frequently Asked Questions

Does this EDS2100 SKU include Linux?▾

Yes. ED2100002-LNX-01 is listed as the EDS2100 w/ Linux configuration.

How many serial connectors does this model have?▾

The EDS2100 dual-port configuration has 2 x DB9M (DTE) serial connectors.

Which serial interface modes are supported?▾

Serial modes are software selectable RS232, RS422 or RS485, with 2- and 4-wire configurations supported.

How can the device be configured and managed?▾

Management options include Internal Web Manager, CLI over Serial Ports, Telnet or SSH, XML Configuration Records via CLI or FTP, DeviceInstaller software, and firmware upgrades via FTP, TFTP, Web, and Serial Port.
