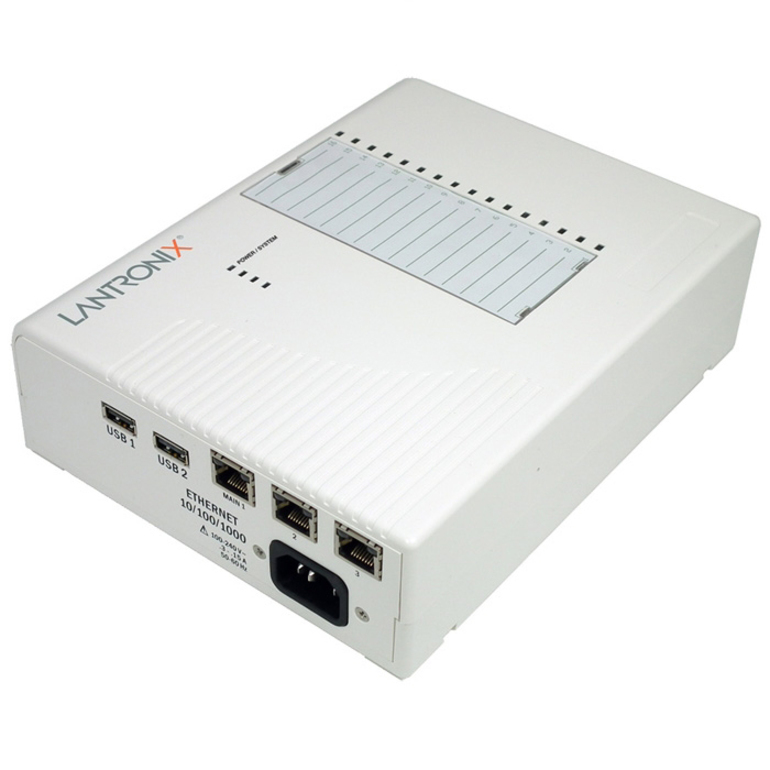

Lantronix EDSOR08P-01 — EDS-MD 8-Port Medical Device Server
$996.38$1,178.75
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 8 x Serial Port configuration for EDS-MD medical device connectivity
- RS-232 interface with data rates up to 921 Kbps
- Gigabit Ethernet with 10/100/1000Mbps
- Galvanic port isolation with UL and IEC-60601 compliance
- Percepxion™ management through a secure cloud and on-premise platform
- Web Browser, CLI, and XML Configuration Records for setup and configuration
- 2 USB Host ports with USB-A receptacle connectors
- UL and IEC-60601 compliance provides galvanic port isolation to protect connected medical devices
Lantronix EDS-MD EDSOR08P-01 is an 8-port wired IoT gateway for mission critical medical devices and equipment connectivity. It connects medical devices with serial interfaces to the network using RS-232 and Gigabit Ethernet. EDS-MD is specifically designed for the medical industry. UL and IEC-60601 compliance provides galvanic port isolation to protect connected medical devices, and the platform is built for local or remote access to medical assets and data. Management options include Percepxion, Web Browser, CLI, and XML Configuration Records. Secure Com Port Redirector™ virtualization software lets existing serial port applications work with EDS-MD without code modifications by mapping virtual COM ports to EDS-MD. The unit supports SSLv3, TLS1.0, TLS1.1 Client and Server with up to 4096-bit certificates, AES encryption, and SHA-1, MD5, and Base-64 authentication.
Ideal For
- Connect serial medical devices to an enterprise network
- Provide authorized IT staff with local or remote access to medical assets and data
- Map virtual COM ports to EDS-MD for existing serial port applications
- Centralize remote device management with Percepxion
Specifications
| Dram | 256 MB DRAM |
| Sd Card | 4 GB SD Card (internal only) |
| Security | SSLv3, TLS1.0, TLS1.1 Client and Server – up to 4096-bit certificates. |
| Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; USB 2.0 |
| IP Rating | 20 |
| Processor | 600MHz ARM 11 processor |
| Encryption | AES |
| Flash Memory | 8 MB Flash |
| Serial Ports | 8 x Serial Port |
| Authentication | SHA-1, MD5, Base-64 |
| CLI Management | CLI (over Serial Ports, Telnet or SSH) |
| Esd Protection | 15kV |
| Ethernet Speed | 10/100/1000Mbps |
| USB Host Ports | 2 USB Host ports – USB-A receptacle connectors |
| Web Management | Web Browser (SSL option for secure login) |
| Ethernet Duplex | Full/half duplex |
| Real Time Clock | Real Time Clock with Battery back-up |
| Serial Interface | RS-232 Interface |
| Ethernet Features | Autosensing MDI/MDIX |
| Serial Connectors | RJ-45 (DTE) |
| Serial Data Rates | Up to 921 Kbps |
| Ethernet Technology | Gigabit Ethernet |
| Management Platform | Percepxion™; secure cloud and on-premise platform for remote device management |
| Storage Temperature | -30°C to +80° C |
| Configuration Records | XML Configuration Records via CLI or FTP |
| Operating Temperature | 0°C to +50° C (32°F to 122°F) |
| USB Output Capability | 0.5A |
| Onboard Thermal Sensor | Onboard Thermal Sensor |
| Circuit And Port Isolation | 1.5KVAC |
| Relative Humidity Operating | 20% to 90% non-condensing |
Frequently Asked Questions
How many serial ports does EDSOR08P-01 have?▾
EDSOR08P-01 is the 8-PORT Device Server. The EDS-MD physical interface lists RJ45 (DTE) serial connectors and an RS-232 interface.
Is the EDS-MD designed for medical devices?▾
Yes. The EDS-MD is specifically designed for the medical industry and is listed as UL and IEC-60601 compliant.
How is the EDS-MD managed?▾
It supports Percepxion, Web Browser management with an SSL option for secure login, CLI over serial ports, Telnet or SSH, and XML Configuration Records via CLI or FTP.
What power input does this model use?▾
The power input is an IEC60320 C14 receptacle without a power switch and 100-240 VAC, 50/60 HZ, 0.4A.
