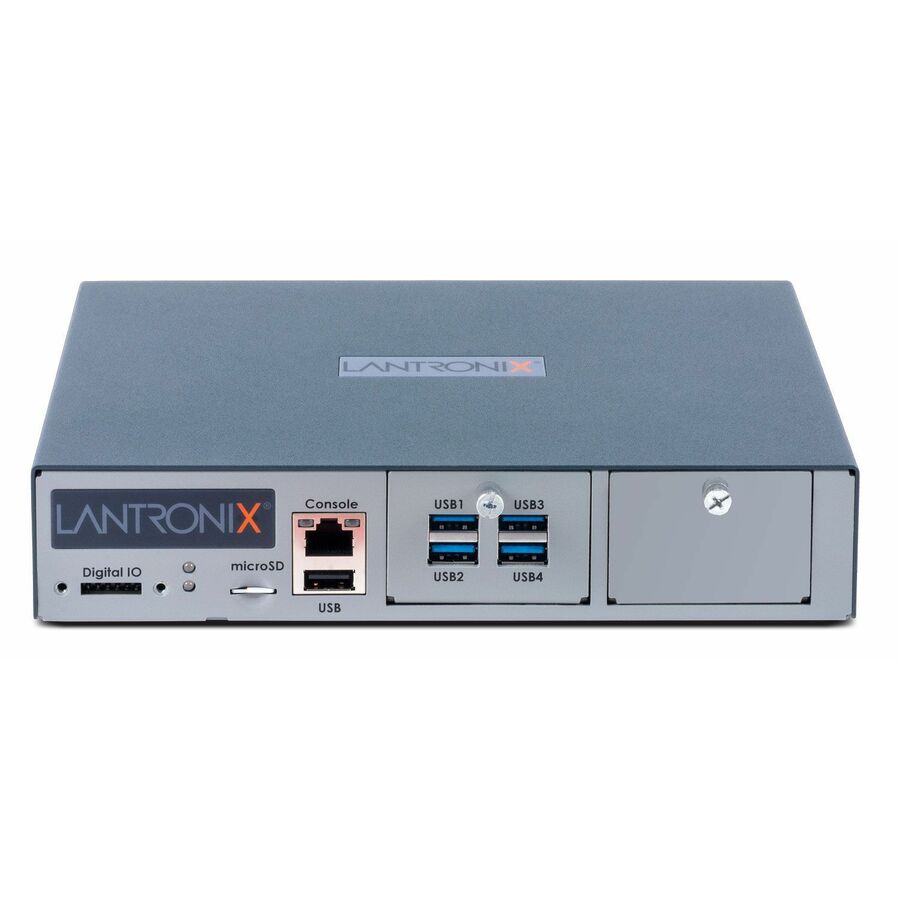

Lantronix EMG852000S — EMG8500 Edge Management Gateway 4-Port USB
$629.67$800.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4-port USB configuration for the EMG8500 Edge Management Gateway
- Remote access for Lights Out Management in branch offices, remote locations and retail stores
- Automatic fail-over/fail-back mechanism for congested or unresponsive primary network connections
- Secure administration through Telnet/SSH or a web browser-based console client without proprietary software
- Percepxion for Networking compatibility for centralized management and automated monitoring
- Port buffering with 256 KB per port and logging to local files, syslog, USB thumb drive, SD card and NFS share
- Rack Mount form factor with 1U dimensions
The Lantronix EMG 8500 Edge Management Gateway is an out-of-band solution for branch offices, remote locations, retail stores and other offsite network device gateway deployments where space is limited. EMG852000S is the USB 4-port configuration. The EMG 8500 provides remote access for Lights Out Management, helping administrators connect, monitor, manage and repair systems without requiring onsite personnel. Its modular design allows RJ45 serial, Ethernet and/or USB device ports to be added to existing and new infrastructure equipment. The platform includes an automatic fail-over/fail-back mechanism for primary network connections that are congested or unresponsive. Users can access EMG device ports via Telnet/SSH or a web browser-based console client, and the system includes firewall features and NIST-certified AES encryption. Percepxion for Networking provides centralized management and automated monitoring for deployed Lantronix edge management gateways and connected IT equipment.
Ideal For
- Branch-office Lights Out Management
- Remote-location network device gateway deployment
- Retail-store infrastructure access where space is limited
- Centralized management of deployed edge management gateways with Percepxion for Networking
Specifications
| Weight | 3.0 lbs. (1.36 kg) maximum, depending on options |
| Warranty | 3 Years |
| Compliance | CB; EU; FCC; IC; RCM; UKCA; UL RoHS |
| Dimensions | 212.6 x 167.68 x 43.21mm (8.37 x 6.60 x 1.70 in), 1U |
| Form Factor | Rack Mount |
| Power Inlet | External power, 9-30 VDC |
| Configuration | USB 4-port |
| Internal Dram | 1 GB |
| In-band Access | Two GbE (10/100/1000Mbps) ports on RJ-45 or 2 SFP Fiber port |
| Port Buffering | 256 KB per port |
| External Storage | MicroSD slot for up to 128 GB Flash |
| I O Module Slots | Two (2) customer replaceable IO module slots |
| Storage Humidity | 10 to 90% relative humidity, non-condensing |
| Operating Humidity | 30 to 90%RH, non-condensing |
| Out-of-band Access | 2 independent Ethernet uplink ports, internal POTS modem, external/internal cellular radio, Wi-Fi |
| Input Voltage Range | 9V DC to 30V DC |
| Internal Nand Flash | 1 GB |
| Storage Temperature | -20 to 80˚ C (-4 to 176˚ F) |
| Operating Temperature | 0 to 50˚ C (32 to 122˚ F) |
| USB Host Port Location | Front Panel |
| RS-232 Console Location | Front Panel |
| Back Panel Network Ports | Dual Gb Ethernet or Dual Gb fiber SFP ports |
| Connectivity Module Slots | Two (2) customer replaceable connectivity module slots |
| Microsd Sdhc Slot Location | Front Panel |
Frequently Asked Questions
What is the EMG852000S configuration?▾
EMG852000S is the EMG8500 Edge Management Gateway, USB 4-port configuration.
Where is the Lantronix EMG 8500 intended to be deployed?▾
It is designed for branch offices, remote locations, retail stores and other offsite network device gateway deployments where space is limited.
How do administrators access device ports remotely?▾
Users can access EMG device ports via Telnet/SSH or a web browser-based console client without proprietary software.
Does the EMG 8500 work with Percepxion for Networking?▾
Yes. The EMG 8500 is compatible with Lantronix Percepxion for Networking centralized management software.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
EMG852000S-L1Y1
$71.91 - 3-year technical support
EMG852000S-L1Y3
$209.74 - 5-year technical support
EMG852000S-L1Y5
$339.58 - 1-year extended warranty & technical support
EMG852000S-L2Y1
$127.84 - 3-year extended warranty & technical support
EMG852000S-L2Y3
$371.54 - 5-year extended warranty & technical support
EMG852000S-L2Y5
$599.25
