Lantronix EMG 8500 Edge Management Gateway Console Servers
The EMG 8500 is a compact modular console server for branch offices, retail stores and remote sites, giving out-of-band access to network gear over RS-232 or USB console ports with optional built-in LTE failover.
From $800.00
Overview

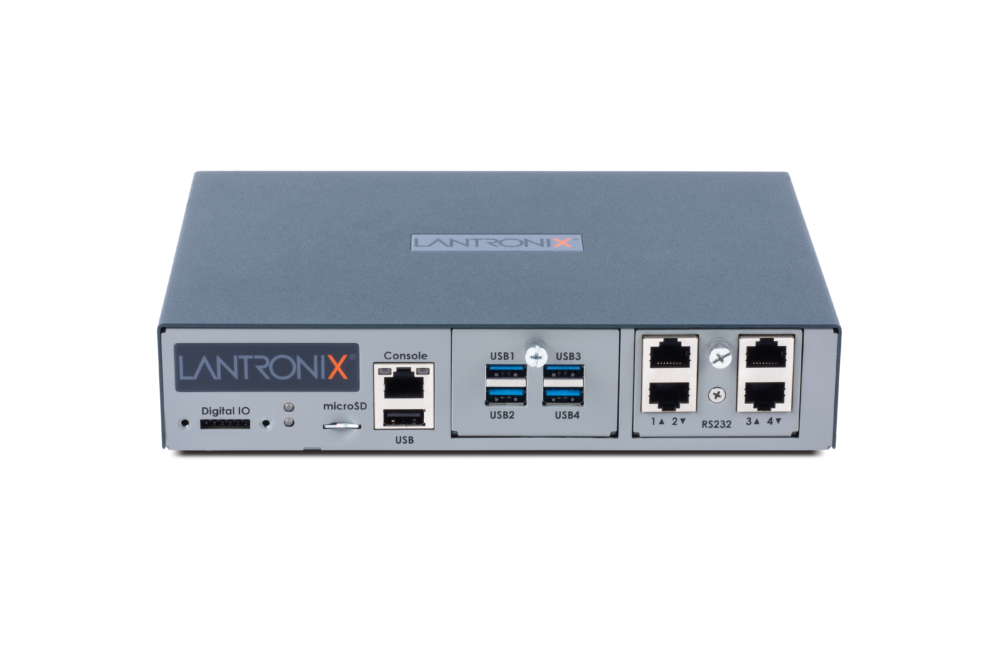

About the Lantronix EMG 8500

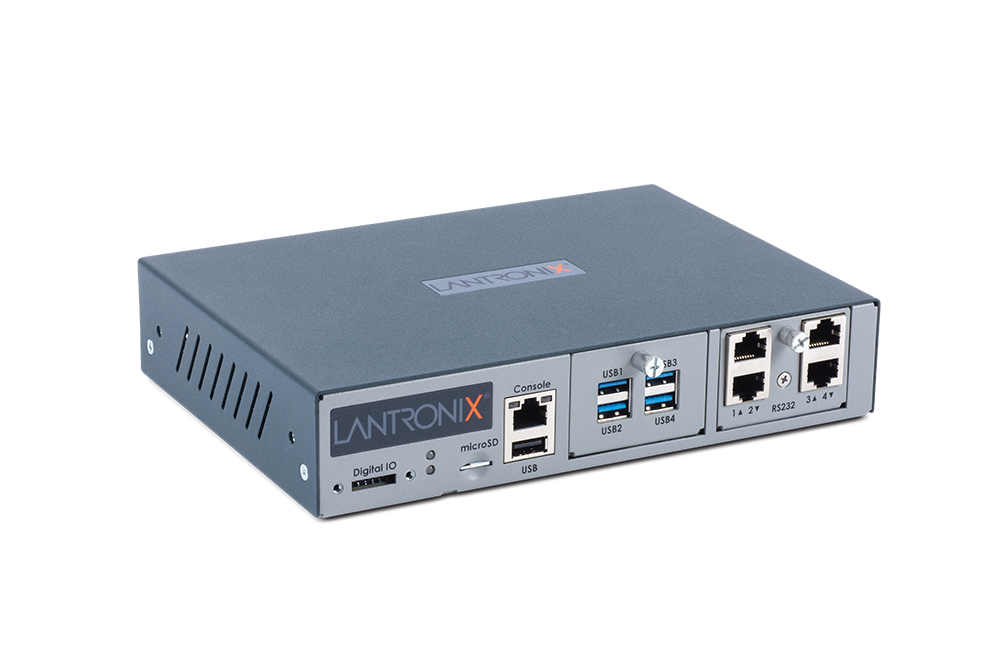

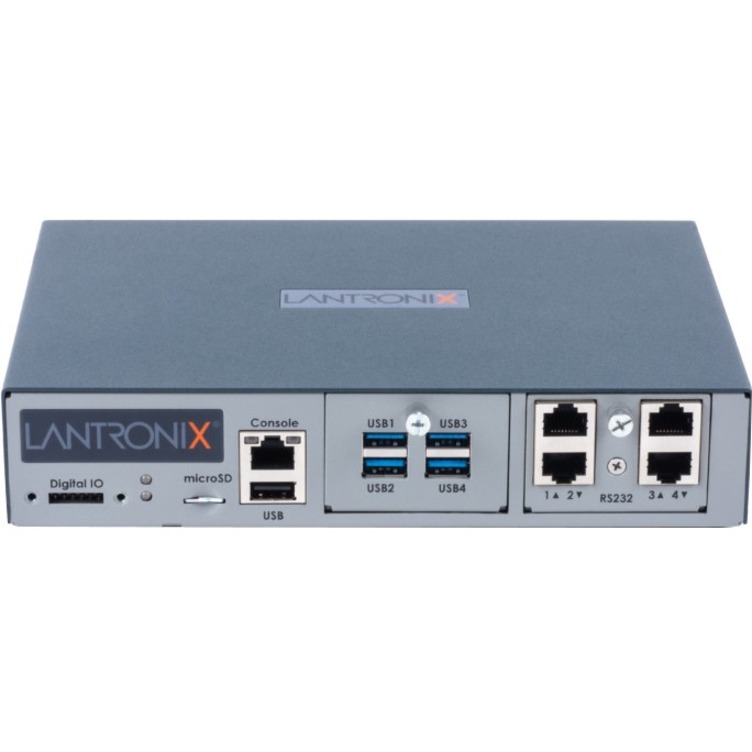

The EMG 8500 Edge Management Gateway (EMG8500) brings lights-out management to places that have no on-site IT staff and little rack space. It sits next to the routers, switches and firewalls at a branch or remote site and exposes their console ports over Telnet, SSH or an HTML5 web terminal, so administrators can troubleshoot, reconfigure and recover equipment without a truck roll. The chassis measures 8.37 x 6.60 x 1.70 in and weighs at most 3.0 lbs.

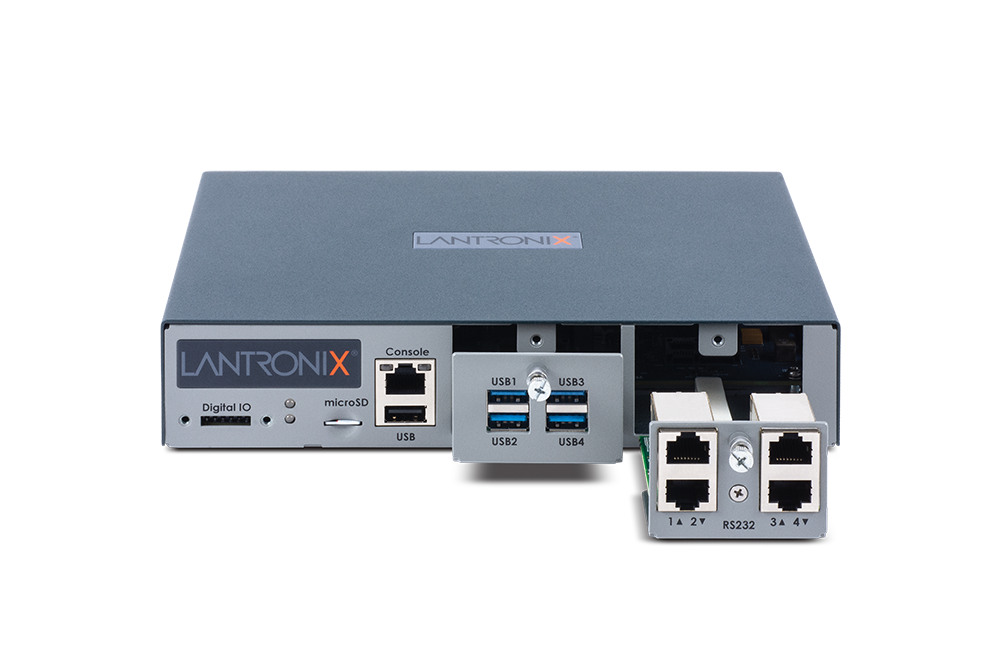

Two front slots take customer-replaceable modules: 4-port RS-232 RJ45 at 300 to 921600 bps, 4-port USB console, or a 4-port Ethernet switch. Two rear slots take LTE/4G cellular, Wi-Fi or dial-up modem modules for out-of-band paths. In-band networking is dual Gigabit Ethernet or dual Gb fiber SFP. Automatic failover and failback to LTE supports private APN, VPN and public or private IP addressing, and IPSLA traffic simulation monitors link performance. Each device port has a 256 KB buffer, and cryptography is FIPS 140-2 compliant (Certificate #2398).
The EMG 8500 controls PDUs and UPSs through remote power management, reads Sensorsoft environmental sensors and digital I/O, and runs a StrongSwan IPsec VPN client. It is managed centrally with Lantronix Percepxion for Networking, on-premise or cloud, with iOS and Android access. It runs from 9-30 VDC and operates from 0 to 50 C.
Key capabilities
- Built-in LTE failover
- Cellular models fail over automatically to 4G/LTE when the primary link is congested or down, then fail back, with private APN and VPN support.
- Swappable port modules

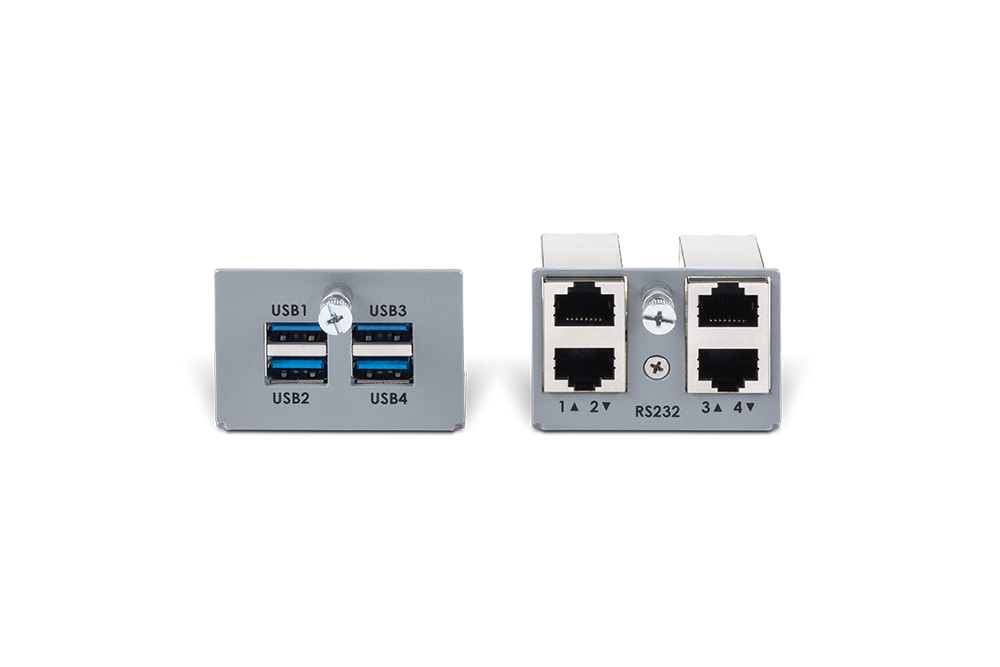

- Two front slots accept 4-port RS-232 RJ45, 4-port USB console or 4-port Ethernet switch modules, so device ports can change as site equipment changes.
- Small 1U footprint

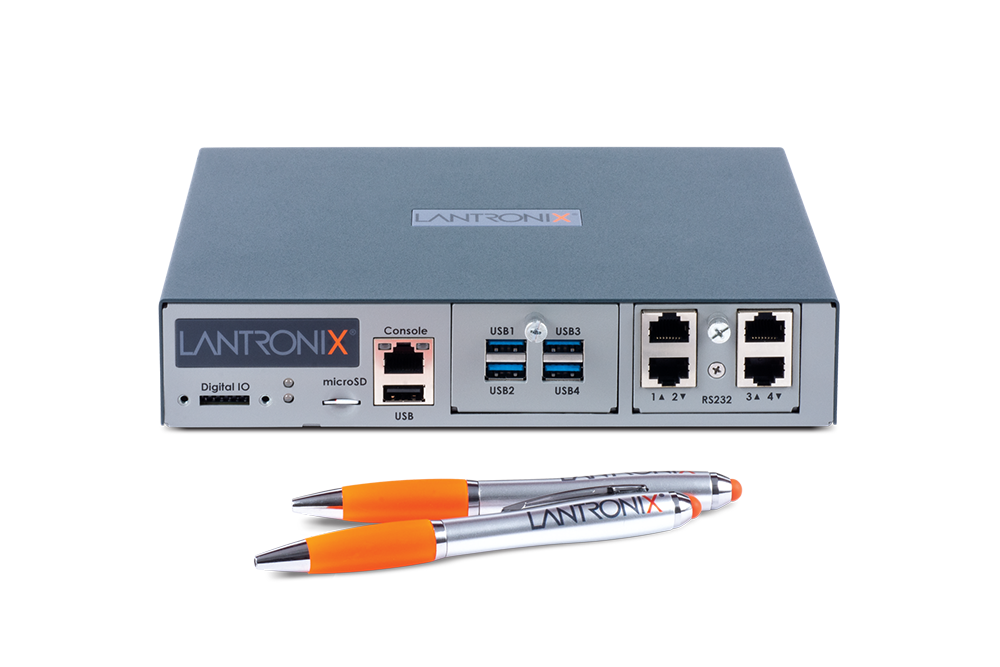

- At 8.37 x 6.60 x 1.70 in and 3.0 lbs maximum, it fits small branch racks or a desk, with single and dual joint rack mount kits available.
- Copper or fiber uplinks
- Dual 10/100/1000 RJ45 Ethernet or dual Gb fiber SFP in-band ports, plus Wi-Fi and dial-up modem modules for alternate out-of-band paths.
- Power and sensor control
- Remote power management for PDU and UPS devices, plus Sensorsoft sensor integration and digital inputs for temperature, humidity, power and dry-contact monitoring.
- FIPS 140-2 cryptography
- FIPS 140-2 compliant cryptography (Certificate #2398), TLS up to v1.3, packet filtering, per-port permissions and LDAP/AD, RADIUS, TACACS+ and Kerberos authentication.
How to choose the right EMG 8500 part number
EMG 8500 part numbers follow EMG85 plus three digits and an S suffix. The first digit is device port type (1 = RS-232 RJ45, 2 = USB), the second is port count (0 = 4 ports, 1 = 8 ports, RS-232 only), and the last two set cellular: 00 none, 10 LTE, 20 LTE APAC. EMG851000S is 4 RS-232 ports with no radio; EMG851110S is 8 RS-232 ports with LTE; EMG852020S is 4 USB ports with APAC LTE. Field modules EMGFF01, EMGFF02, EMGFF05 and EMGFR01 to EMGFR04 add ports, Ethernet, LTE, Wi-Fi or a modem later.
Configure & order
Find your EMG 8500 part number
Every orderable EMG 8500 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
EMG851000S
$800.00
Ships on backorder

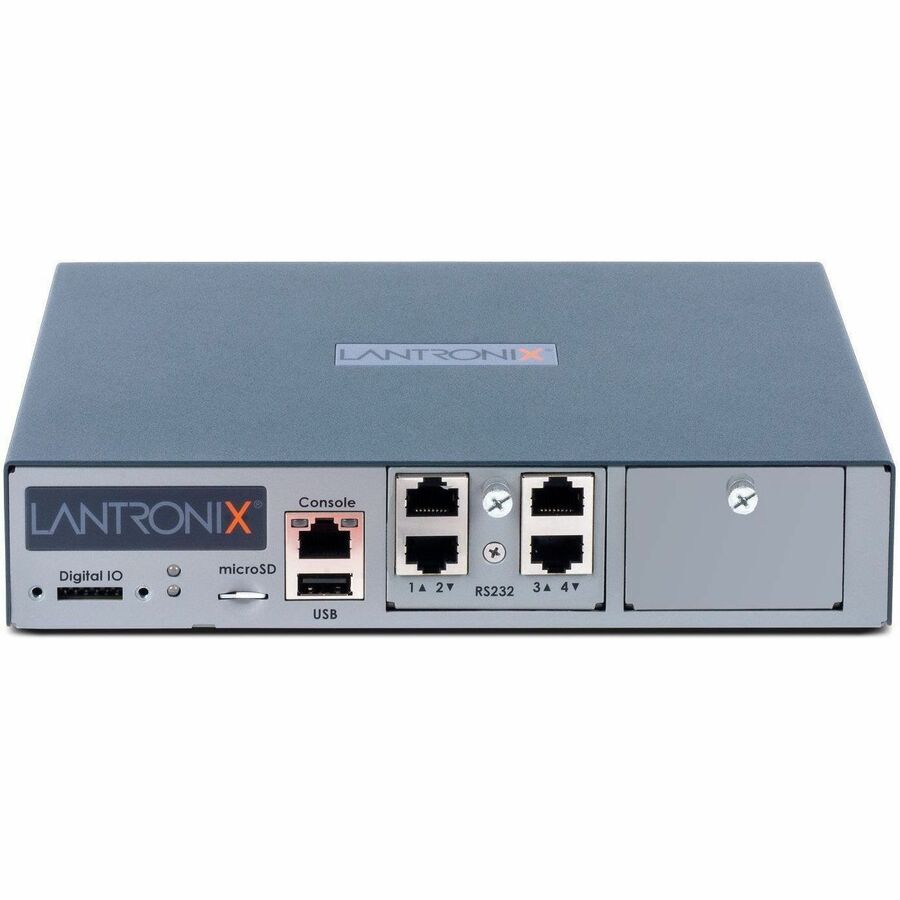

EMG851010S
$1,200.00
Ships on backorder
EMG851020S
$1,200.00
Ships on backorder
EMG851110S
$1,600.00
1 in stock

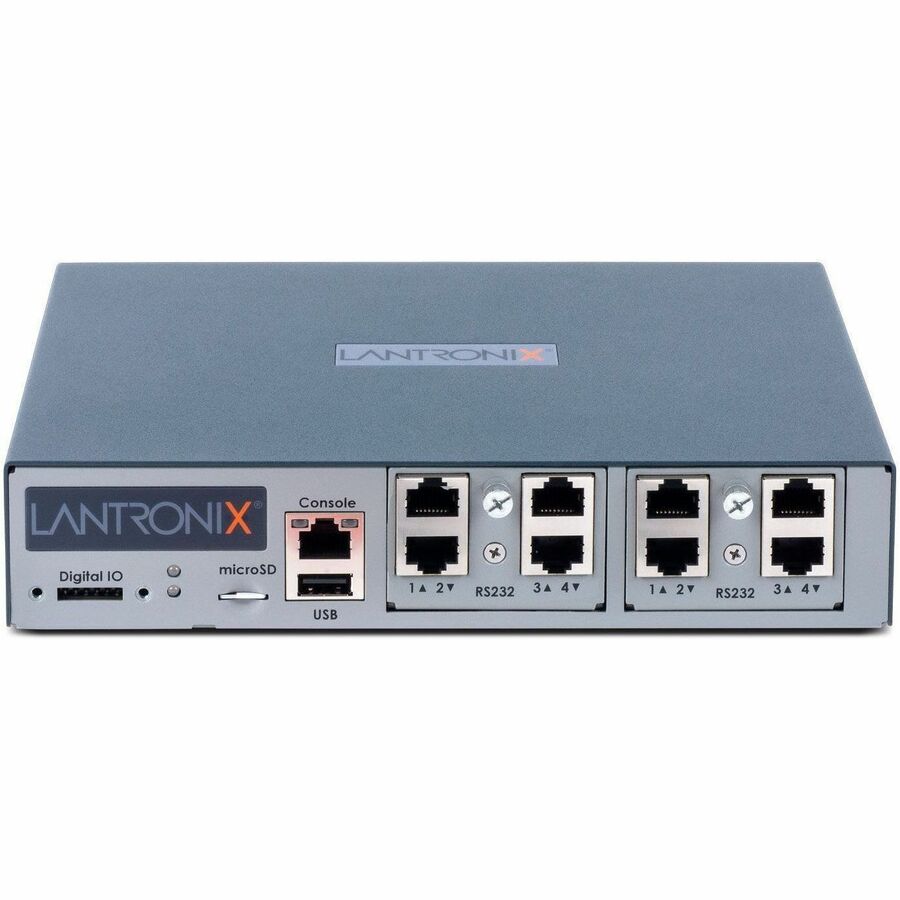

EMG851120S
$1,600.00
Ships on backorder
EMG852000S
$800.00
Ships on backorder
EMG852010S
$1,200.00
Ships on backorder

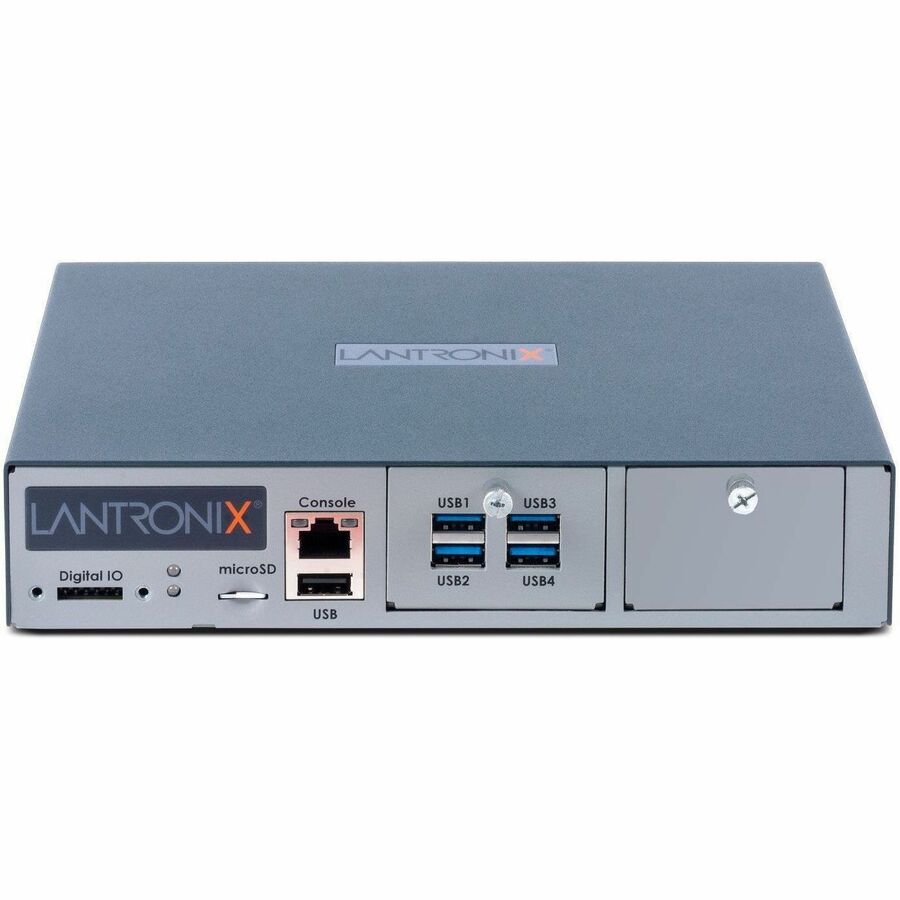

EMG852020S
$1,200.00
Ships on backorder
EMG851100S
$1,100.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the EMG 8500, organized by what it does — power, cables & adapters, mounting & enclosures, modules & option cards— each with why you'd add it.
Power
5 itemsACC-500-041-R
ACC-500-041-R
Shielded 5-15/C13 cordset rated 10A/125V. It is listed by Lantronix as an accessory for the EMG 8500 series.
$23.39
Ships on backorder
Power Supply
ACC-520-0164-00
Desktop 12 V DC, 100W power supply for EMG products.
$80.00
Ships on backorder
Power Cord, Israel
930-077-R
Standard Power Cord localized for Israel and listed for the Lantronix EDS-MD Medical Device Server. The Lantronix part description lists 250VAC 10A, 8FT, ROHS.
Power Cord, United Kingdom
930-075-R
United Kingdom standard power cord listed for the EDS-MD Medical Device Server.
Power Cord, Europe
930-074-R
European standard power cord for the Lantronix EDS-MD Medical Device Server.
Cables & adapters
4 items

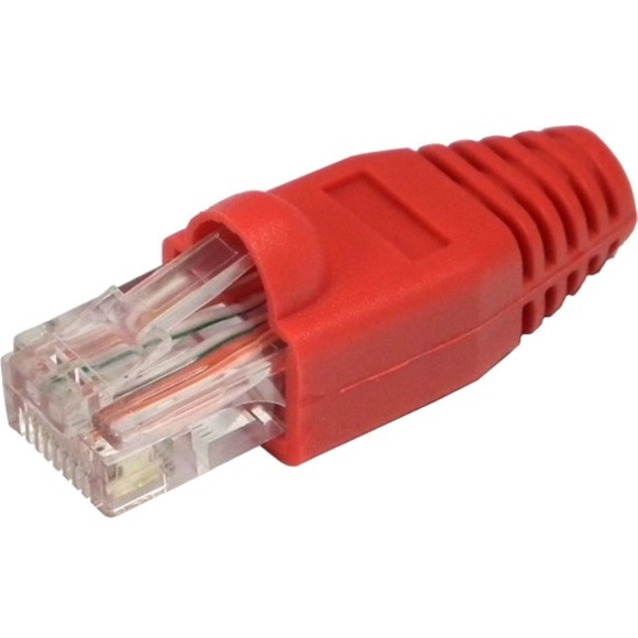

ACC-500-153
ACC-500-153
Loop-back cable accessory for SLC, with cable label P/N 460-347-051. It is listed in the Lantronix EMG 8500 Accessories group and carries a RoHS designation.
$7.00
Ships on backorder
ACC-200.0062
ACC-200.0062
EMG 8500 accessory described by Lantronix as an RJ45 to RJ45 CAT5 cable with LAN pinning and a 6.6 ft length.
$13.00
Ships on backorder
ACC-500-103
ACC-500-103
6 ft RJ-45/Serial network/data transfer cable. It connects from RJ-45 Network male to DB-9 Serial female for DTE devices including terminals, printers and console ports.
$14.25
Ships on backorder
Mounting & enclosures
2 itemsEMG8500 Single Unit Rack Mount
EMG-85SURM-KIT
Single unit rack mount kit for the EMG 8500 Edge Management Gateway. It is a Lantronix mounting bracket accessory for network gateway deployments.
$29.99
Ships on backorder
EMG8500 Dual Joint Rack Mount
EMG-85DJRM-KIT
The Lantronix EMG8500 Dual Joint Rack Mount Kit is a rack-mountable accessory for gateway application/usage. It is listed for the Lantronix EMG 8500 series.
$29.99
Ships on backorder
Modules & option cards
7 items

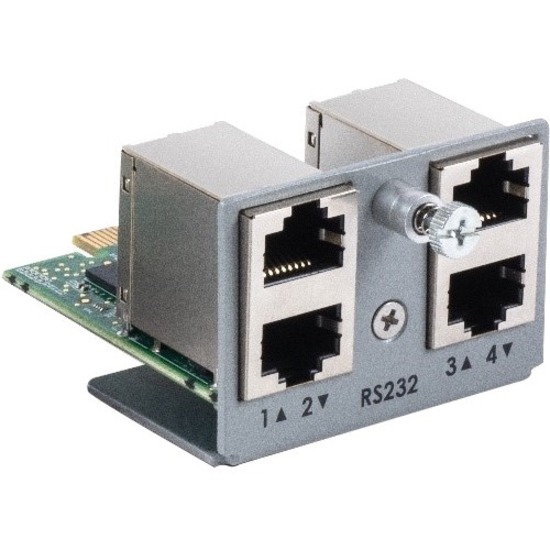

Device Port Module
EMGFF01
Field replaceable device port module for the Lantronix EMG 8500. It adds 4-port RS-232 serial (UART) device-port capability to an EMG 8500 deployment.
$199.00
Ships on backorder
Device Port Module
EMGFF02

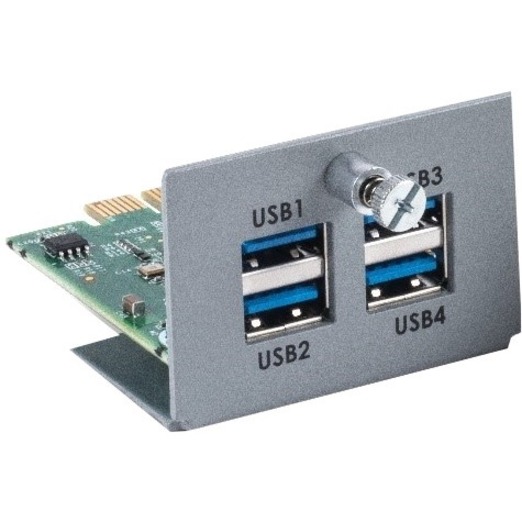

USB 4-Port Device Port Module for the EMG 8500 Edge Management Gateway. It is a field replaceable device module for EMG8500 deployments.
$249.00
Ships on backorder
Device Port Module
EMGFR01
EMG 8500 field-replaceable plug-in module described for LTE, US configurations. It is listed for the Lantronix Edge Management Gateway EMG8500.
$549.00
Ships on backorder
Device Port Module
EMGFR02
Listed as an EMG 8500 FRU, LTE, APAC, in the Field Replaceable Device Modules group. It is a 1-pack module for the Lantronix EMG 8500 Gateway.
$549.00
Ships on backorder
Device Port Module
EMGFR03
EMGFR03 is a Wi-Fi field replaceable module for the Lantronix EMG 8500 Edge Management Gateway.
$549.00
Ships on backorder
Device Port Module
EMGFR04
Dialup modem FRU for the Lantronix EMG 8500 Edge Management Gateway. It is listed by Lantronix as a Device Port Module for EMG 8500 deployments.
$599.00
Ships on backorder
Device Port Module
EMGFF05

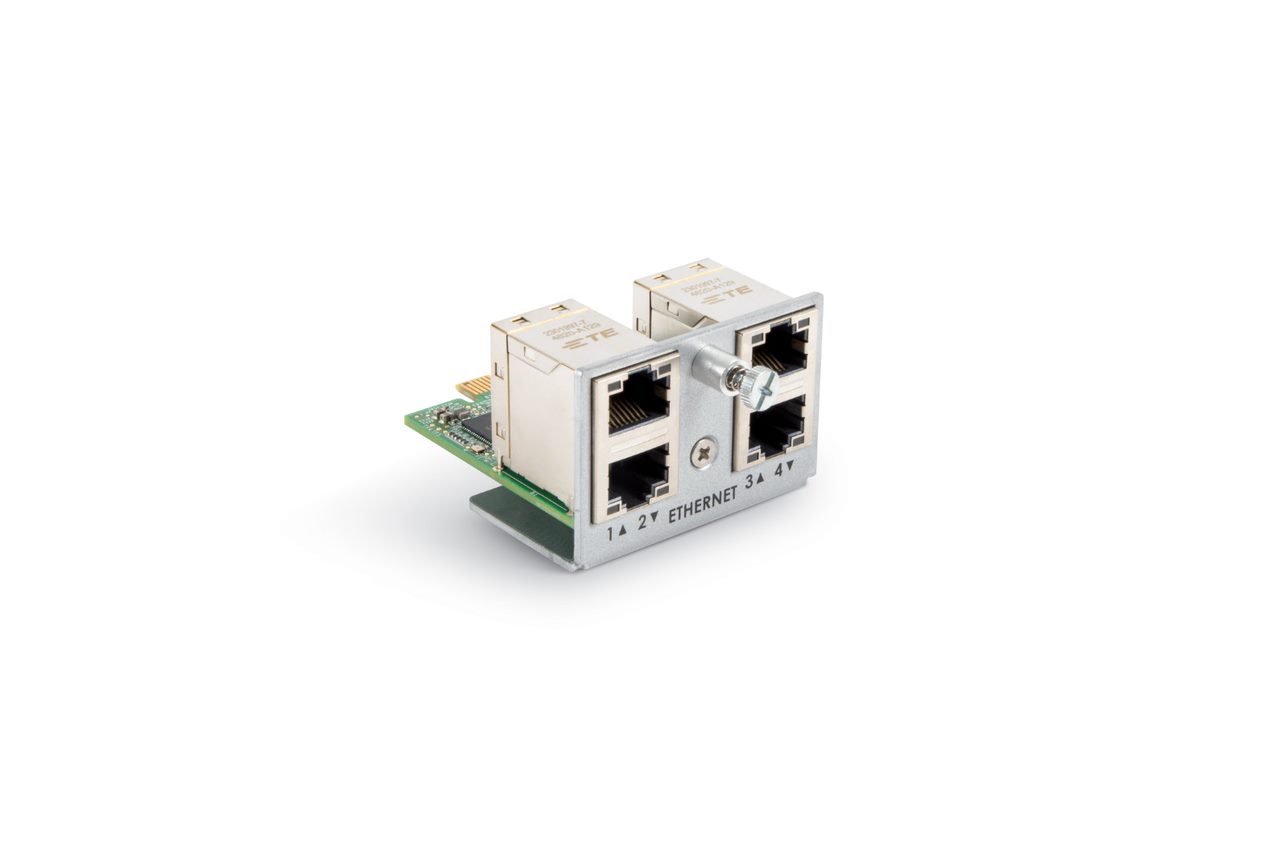

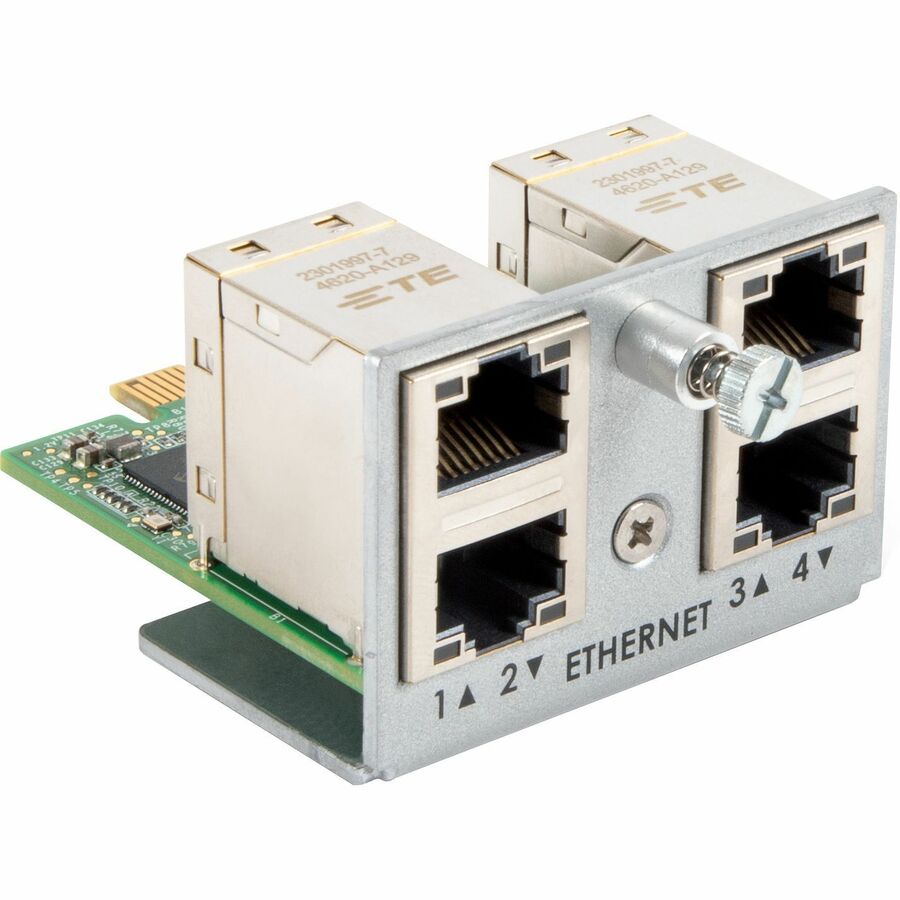

Field replaceable 4-port Ethernet device port module for the EMG 8500 Edge Management Gateway. It supports 10Base-T Ethernet over twisted pair media for data networking.
$599.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the EMG 8500. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the EMG 8500 is used
- Lights-out console access at branch offices and retail stores
- LTE out-of-band recovery when a site's WAN link fails
- Remote power cycling of PDUs and UPSs at unstaffed sites
- Environmental monitoring of small network closets
- Managing USB-console routers and switches at the edge
EMG 8500 datasheets & documentation
- Product BriefPDF
- Edge Management Gateway – EMG 8500 Product Brief (A4)PDF
- Edge Management Gateway – EMG8500 Quick Start GuidePDF
- Edge Management Gateway – EMG User Guide Rev TPDF
- NOTICE OF NETWORK COMPATIBILITY – EMG™ – Edge Management GatewayPDF
- Initial PTCRB Approval – EMG™ – Edge Management GatewayPDF
- AUS Letter of Authorization: Lantronix EMG8500PDF
- NZ Letter of Authorization: Lantronix EMG8500PDF
EMG 8500 FAQ
Does the EMG 8500 support Wi-Fi or dial-up as an out-of-band path?
Yes. Two rear connectivity slots take customer-replaceable modules for LTE/4G cellular (EMGFR01 US, EMGFR02 APAC), Wi-Fi (EMGFR03) or a dial-up POTS modem (EMGFR04). Two independent Ethernet uplink ports provide further out-of-band options alongside the in-band GbE or SFP ports.
Which EMG 8500 model do I need for LTE in Asia-Pacific?
Choose a part number ending in 20S, such as EMG851020S (4 RS-232 ports), EMG851120S (8 RS-232 ports) or EMG852020S (4 USB ports). Models ending in 10S carry the standard LTE radio, and 00S models have no cellular radio but accept EMGFR01 or EMGFR02 LTE modules later.
How is the EMG 8500 powered?
The EMG 8500 uses an external 9-30 VDC power inlet. Lantronix lists the ACC-520-0164-00 desktop 12V, 100W power supply as a compatible accessory, along with regional power cords for Europe, the UK and Israel.
Can the EMG 8500 be rack mounted?
Yes. It is 1U high with front, mid and rear mounting bracket positions. Lantronix offers the EMG-85SURM-KIT single unit rack mount and the EMG-85DJRM-KIT dual joint rack mount for installing two EMG 8500 units together.
How much storage does the EMG 8500 have for console logs?
It has 1 GB internal NAND flash and 1 GB DRAM, optional 128 GB internal flash, and a microSD slot for up to 128 GB. Port logs can also go to syslog, a USB thumb drive or an NFS share, with 256 KB of buffer per port.
