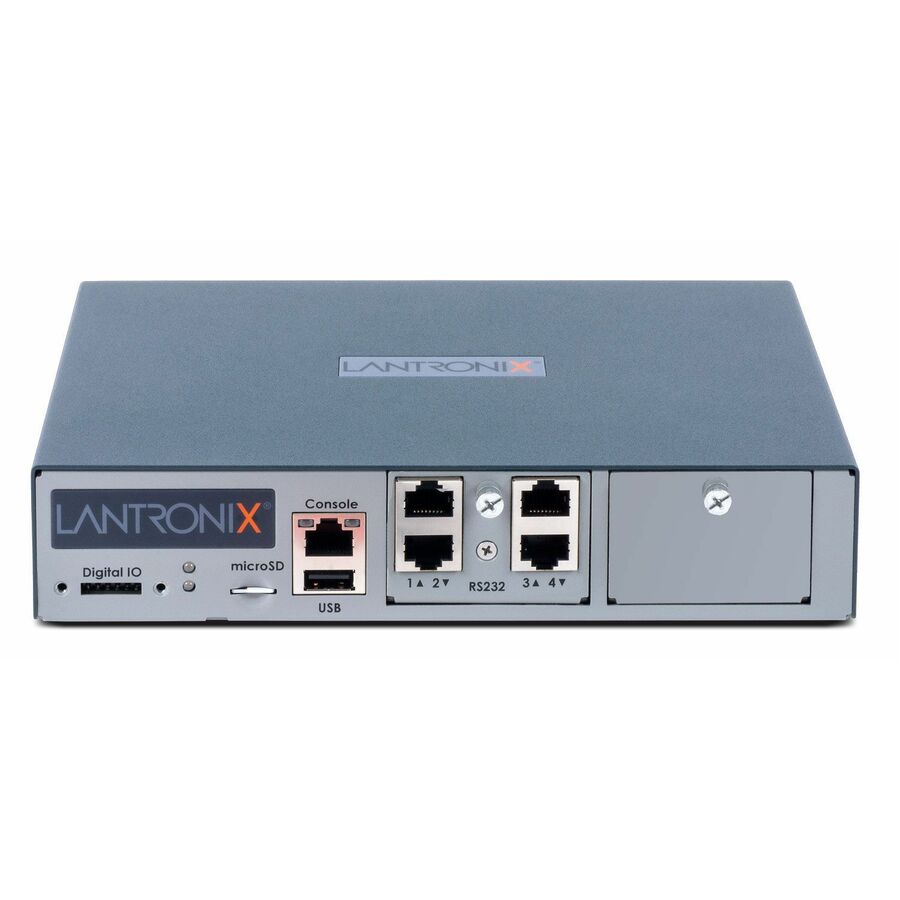

Lantronix EMG 8500 Edge Management Gateway with 4-port RS-232 serial configuration

Lantronix EMG851000S — EMG8500 Edge Management Gateway 4-Port RS-232

Name: Lantronix EMG851000S — EMG8500 Edge Management Gateway 4-Port RS-232
Brand: Lantronix
SKU: EMG851000S
Price: 800.00 USD
Availability: BackOrder

Lantronix|

MPN: EMG851000S

UPC: 783384239616

Available on Backorder

$800.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

4 RJ-45 RS-232 serial console ports provide remote access to connected IT equipment
1 USB 2.0 port is included in this EMG851000S configuration
2 GbE RJ-45 Ethernet ports provide in-band network access
Lights Out Management lets an administrator connect, monitor, manage and repair servers by remote control
Telnet/SSH and web browser-based console access work without proprietary software
Percepxion for Networking compatibility supports centralized management and automated monitoring
Firewall features reject or block unauthorized connection attempts

The Lantronix EMG 8500 Edge Management Gateway is built for branch offices, remote locations and retail stores where an offsite network device gateway is needed and space is limited. This EMG851000S configuration includes 4 RJ45 RS-232 serial ports, 1 USB 2.0 port, 2 GbE RJ45 Ethernet ports and single AC power. EMG 8500 provides Lights Out Management for remote access to connected infrastructure. Administrators can connect, monitor, manage and repair servers by remote control, reducing the need for onsite personnel and helping minimize downtime. Device ports can be accessed via Telnet/SSH or a web browser-based console client without proprietary software. Percepxion for Networking provides centralized management and automated monitoring for deployed Lantronix edge management gateways and connected IT equipment.

Ideal For

Lights Out Management for branch offices
Remote console access for offsite network equipment
Retail store edge management where space is limited
Centralized monitoring of deployed EMG gateways through Percepxion for Networking

Specifications

Power	Single AC Power
Weight	3.0 lbs. (1.36 kg) maximum, depending on options
USB Port	1 USB 2.0 port
Warranty	3 Years
Form Factor	Rack Mount
Serial Ports	4 x RJ-45 RS-232
Certifications	CB; EU; FCC; IC; RCM; UKCA; UL RoHS
Ethernet Ports	2 GbE RJ-45 Ethernet
Serial Pinouts	Software selectable
Serial Data Rate	300 to 921600 bps
Storage Humidity	10 to 90% relative humidity, non-condensing
Operating Humidity	30 to 90%RH, non-condensing
Storage Temperature	-20 to 80˚ C (-4 to 176˚ F)
Dimensions L X W X H	212.6 x 167.68 x 43.21mm (8.37 x 6.60 x 1.70 in)
Operating Temperature	0 to 50˚ C (32 to 122˚ F)

Documentation

Product Brief

Edge Management Gateway – EMG 8500 Product Brief (A4)

Edge Management Gateway- Environmental Certificate (MTBF)

NOTICE OF NETWORK COMPATIBILITY – EMG™ – Edge Management Gateway

Initial PTCRB Approval – EMG™ – Edge Management Gateway

CERTIFICATION, CB, 60950, EMG 8500 CB

Frequently Asked Questions

What port configuration does EMG851000S include?▾

EMG851000S includes 4 x RJ45 serial ports software selectable, 1 USB 2.0 port, 2 GbE RJ45 Ethernet and Single AC Power.

Is the EMG 8500 an Out-of-Band product?▾

Yes. Lantronix lists the EMG 8500 under Autonomous Out-of-Band and describes it as an Edge Management Gateway for branch offices, remote locations and retail stores.

How can administrators access device ports?▾

Administrators can access EMG device ports via Telnet/SSH, or through a web browser-based console client without proprietary software.

Does it work with Percepxion for Networking?▾

Yes. The EMG 8500 is compatible with Lantronix Percepxion for Networking centralized management software.
