Lantronix IONMM Series ION Chassis Management Modules
The IONMM is the slide-in management module for the Lantronix ION media conversion chassis, giving administrators remote configuration, monitoring and troubleshooting of every card in the chassis over web, CLI and SNMP.
From $506.00
Overview
About the Lantronix IONMM Series
An ION Management Module is required to use the full feature set of ION slide-in media converter cards. The IONMM (also written ION MM) connects to the chassis backplane and talks to each card, so a network administrator can configure, monitor and troubleshoot modules remotely instead of dispatching a technician. Only management traffic crosses the backplane; no end-user data does. Proactive traps and alerts shorten mean time to repair.
The module occupies a single chassis slot, leaving more slots for converter cards. It has two 10/100 Mbps RJ-45 Ethernet interfaces and supports management VLAN, TLS/SSL, SSH, IEEE 802.1X/RADIUS, SNMP v1, v2c and v3, ACL rules, multiple community strings and SNTP. Configuration files import and export in a human-readable, editable format, and TFTP handles firmware upgrade and backup of slide-in modules.
Access is by web browser, CLI over telnet or the local console port, or any standard SNMP NMS such as SNMPc or HPOV, since the platform is based on public MIBs. Lantronix also offers Focal Point, a free SNMP GUI with read and read/write access.
Key capabilities
- Single-slot chassis management
- One slot of an ION219, ION106 or ION002 chassis gives remote control of every installed slide-in converter card.
- Management-only backplane
- Only management traffic travels across the ION chassis backplane, so end-user data never passes through the management module.
- Secure access protocols
- SSH, TLS/SSL, IEEE 802.1X/RADIUS, SNMPv3, ACL rules and a management VLAN restrict who can reach and change chassis settings.
- Standard SNMP and public MIBs
- Public MIBs let SNMPc, HPOV or any standard NMS manage the chassis, and the free Focal Point GUI offers read/write control.
- TFTP upgrade and backup
- Slide-in module firmware is upgraded and backed up over TFTP, and configuration files export in a human-readable, editable format.
How to choose the right IONMM Series part number
The two module part numbers differ only in local console port. IONMM provides a USB Type-B CLI port plus a USB 2.0 host port that can supply 2.5 W to a device such as a flash drive. IONMM-232 replaces the USB host port with an RS-232 RJ-45 port for the CLI; the Cable-CCC-06 Cisco DB9 to RJ-45 console cable is listed as a compatible accessory. Both have two 10/100 RJ-45 ports. Chassis are separate: ION219 (19 slots), ION106 (6 slots) and ION002-AD (2 slots), with ION219-AAMB and ION106-AAMB bundling an IONMM and dual AC supplies.
Configure & order
Find your IONMM Series part number
Every orderable IONMM Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

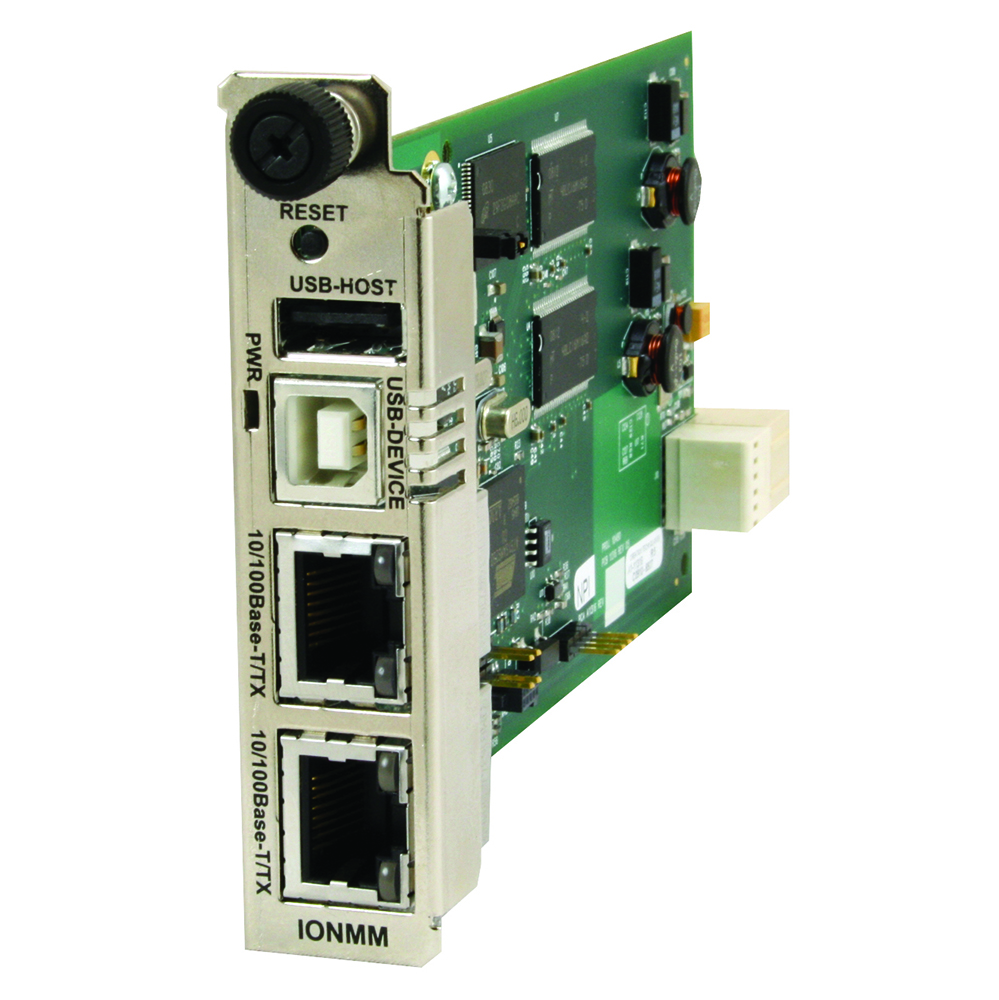

IONMM
$534.00
Ships on backorder

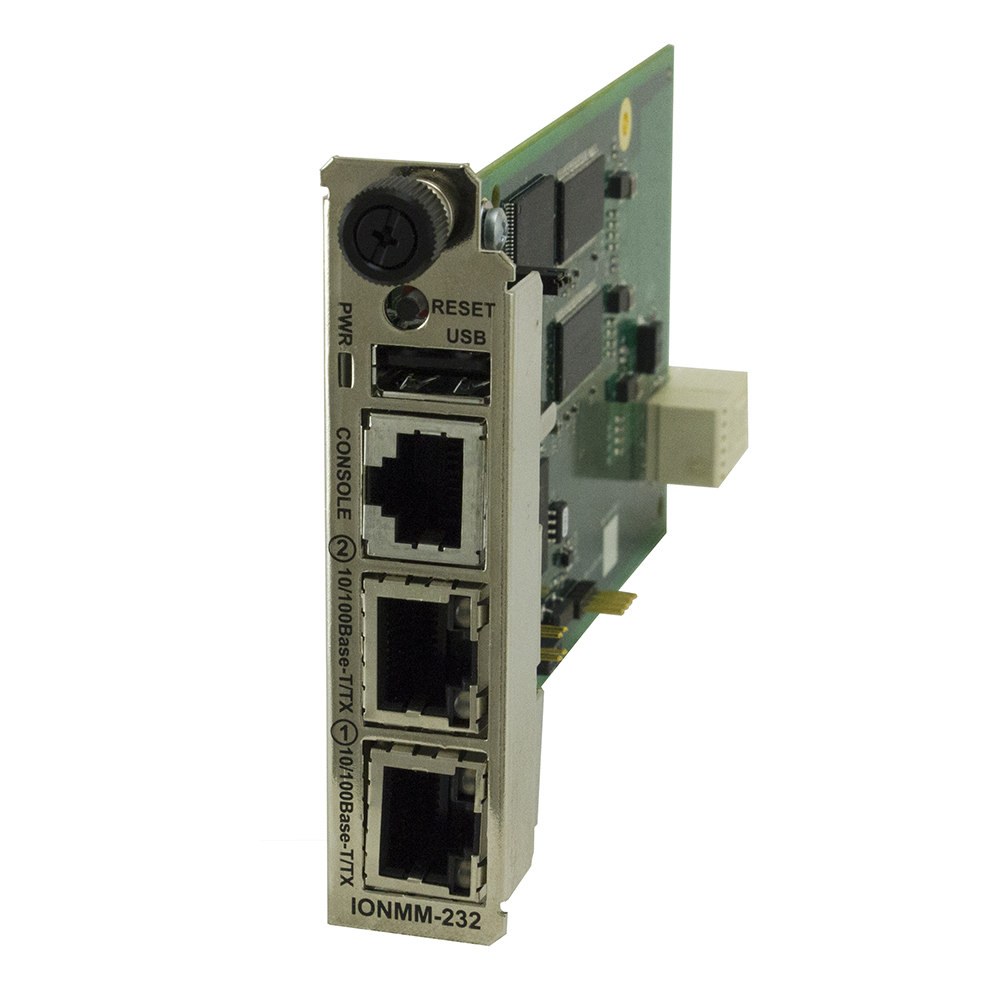

IONMM-232
$506.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the IONMM Series, organized by what it does — cables & adapters, chassis & shelves— each with why you'd add it.
Cables & adapters
1 itemCable-CCC-06
Cable-CCC-06
Blue Cisco DB9 to RJ-45 console cable for Lantronix network devices and modules. It is 6 ft long with DB-9 - Male and RJ-45 Network - Male connectors.
$18.00
Ships on backorder
Chassis & shelves
8 items
ION106 Series
ION106-A
6-slot ION Chassis with one AC power supply. It supports ION slide-in modules for copper and fiber integration in service provider, data center and core network applications.
$688.00
Ships on backorder
ION106 Series
ION106-D
6-slot ION Chassis with (1) DC power supply. It provides a 1U rack-mountable platform for ION slide-in modules.
$891.00
Ships on backorder
ION219 Chassis
ION219-D
19-slot chassis for ION Platform slide-in modules with (1) DC Power Supply.
$1,495.00
Ships on backorder
ION219 Chassis
ION219-A
19-slot chassis for the ION Platform with one AC power supply. It provides chassis capacity for ION slide-in modules and supports management through an ION Management Module.
ION219 Chassis
ION219-AAMB
19-slot chassis for the ION Platform with (2) AC power supplies and (1) ION Management Module.
ION106 Series
ION106-AAB
6-Slot ION Chassis for ION slide-in modules with (2) AC power supplies.
ION106 Series
ION106-AAMB
6-slot ION Chassis with (2) AC power supplies and (1) ION Management Module.
ION002-AD
ION002-AD
2-slot ION chassis for network edge deployments. It mounts 1 double-wide slide-in card or up to 2 single-wide ION slide-in cards, with AC or DC power input options.
Compatibility taken from the Lantronix part-number tables for the IONMM Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the IONMM Series is used
- Remote management of ION media converter chassis in data centers
- SNMP monitoring and traps for fiber links in a NOC
- Firmware backup and upgrade across ION slide-in cards
- RADIUS-authenticated administrator access to media converter chassis
IONMM Series datasheets & documentation
IONMM Series FAQ
Do I need an IONMM to use an ION chassis?
Lantronix states that an ION Management Module is required to take full advantage of the features and functions of the ION chassis. Without it, slide-in cards cannot be configured, monitored or troubleshot remotely through the backplane.
What is the difference between IONMM and IONMM-232?
Both have two 10/100 Mbps RJ-45 Ethernet ports and a USB 2.0 device port. The IONMM adds a USB 2.0 host port and uses a USB Type-B CLI port, while the IONMM-232 provides an RS-232 RJ-45 port for CLI access instead.
Which chassis are compatible with the IONMM module?
The IONMM installs in ION platform chassis, including the 19-slot ION219, the 6-slot ION106 and the 2-slot ION002-AD. ION219-AAMB and ION106-AAMB ship with dual AC power supplies and one ION Management Module already included.
How much power does the ION management module draw?
The IONMM draws 2 W under normal operation and up to 4.8 W when a USB host device, such as a flash drive, uses the full 2.5 W available from the USB host port. Operating range is 0 to 50 C, depending on the chassis.
