Lantronix M/GE-ISW-SFP-01-UTX — M/GE-UxX Series Media Converter
$312.29$462.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Unidirectional fiber transmission sends data to, or from, secure networks
- 10/100/1000Base-T RJ-45 copper port supports Auto-Negotiation
- 100/1000Base-X open SFP slot supports dual speed 100/1000Mbps SFP modules
- Transmit-only SFP operation uses the TX port on a duplex SFP while the RX port is deactivated
- Simplex communications require one strand of fiber cable
- Unit and port LEDs show power, fiber link/activity, and copper link/activity
- 12 – 48 VDC or 24 – 36VAC input supports -ISW power via a 2-pin terminal block
- Unidirectional data transmissions over fiber to, or from, secure networks

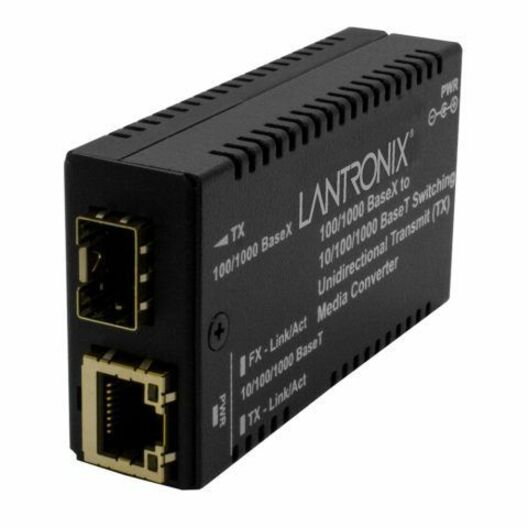

Lantronix M/GE-ISW-SFP-01-UTX is a hardened mini M/GE-UxX Series unidirectional media converter. It converts a 10/100/1000Base-T RJ-45 copper connection to a unidirectional 100/1000Base-X open SFP slot transmitting connection. Unidirectional media converters create a physically secure one-way communication channel over fiber between a secure network and an unsecure network. They are used where information must be directed only to, or from, the appropriate network. This transmitting converter uses the TX port on a duplex SFP while the RX port is deactivated. Applications require it to be paired with a receive-only converter, and simplex communications require one strand of fiber cable.
Ideal For
- Sending data from a classified, high-security area to a low-security area while preventing unsecure data from reentering
- Updating a secure network with data from an external source while keeping critical data inside the classified area
- Connecting copper-based networking equipment to fiber optic cabling with one-way communication
- Government agency and military network environments with different security classifications
Specifications
| MTBF | Greater than 41,680 hours (MIL‐HDBK‐217F); Greater than 114,580 hours (Bellcore7 V5.0) |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 to 10,000 ft |
| Standard | IEEE 802.3; IEEE 802.3z; IEEE 802.3u; IEEE 802.3ab |
| Warranty | Lifetime |
| Power LED | On = Power |
| SFP+ Slots | 1 x SFP Slots |
| Dimensions | 1.8″ [46 mm] x 3.3” [85 mm] x 0.85” [22 mm] |
| Power Input | 12 – 48 VDC or 24 – 36VAC via 2-pin terminal block (-ISW Versions) |
| Network Port | 1 x Network (RJ-45) |
| Power Supply | External AC/DC required, 12 VDC, 0.5A |
| Certifications | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada); FCC Class A, CISPR22 / EN55022 Class A, EN55034, CE Mark |
| Converter Type | 10/100/1000Base-T (RJ-45) to Unidirectional 100/1000Base-X Open SFP Slot Transmitting Converter |
| Fiber Interface | 100/1000Base-X Open SFP Slot |
| Copper Interface | 10/100/1000Base-T (RJ-45) |
| Power Consumption | 1.8 watts without the SFP module |
| Operating Humidity | 5% to 95% (non-condensing) |
| SFP+ Module Support | 100/1000Mbps SFP modules |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 75°C |
| Fiber Link Activity LED | On = Link, Flashing = Activity |
| Copper Link Activity LED | On = Link, Flashing = Activity |
Frequently Asked Questions
Does this transmitting converter need to be paired with another converter?▾
Yes. Applications require a transmit-only converter to be paired with a receive-only converter.
What SFP modules does it support?▾
It supports dual speed 100/1000Mbps SFP modules. It uses duplex SFP modules, but the transmitting converter only uses the TX port while the RX port is deactivated.
What power input does this SKU use?▾
This -ISW version uses 12 – 48 VDC or 24 – 36VAC via a 2-pin terminal block.
What operating temperature range is specified for this model group?▾
The M/GE-ISW-SFP-01-xx-UxX group is specified for operating temperature of -40°C to 75°C.
