Lantronix M/GE-UxX Series Unidirectional Gigabit Media Converters
The M/GE-UxX Series are mini Gigabit media converters that send data over fiber in one direction only, giving secure and classified networks a physical one-way link between copper Ethernet segments.
From $462.00
Overview
About the Lantronix M/GE-UxX Series
The M/GE-UxX Series (also written M-GE-UxX, as in M-GE-PSW-SFP-01-UTX) combines a copper-to-fiber media converter with unidirectional transmission, the function often called a data diode or unidirectional security gateway. It connects networks with different security classifications so data can flow from a classified, high-security area to a low-security one without anything flowing back, or so a secure network can receive external updates while its own data cannot leave. Every link needs a transmit-only converter paired with a receive-only converter.
Each unit converts a 10/100/1000Base-T RJ-45 port with auto-negotiation and auto-MDI/MDIX to an empty SFP slot that accepts dual-speed 100/1000 Mbps modules. Converters use standard duplex SFPs, but the transmitter activates only the SFP TX port and the receiver only the RX port, so simplex operation needs a single fiber strand. Jumbo frames are supported, and the unit draws 1.8 W without the SFP.
Commercial -PSW models run from 0 to 50 C on 4.5 to 14 VDC through a barrel connector. Hardened -ISW models run from -40 to 75 C on 12 to 48 VDC or 24 to 36 VAC via a terminal block, and -PD versions draw IEEE 802.3af PoE from the copper port. Unit and port LEDs show power, fiber link and copper link status.
Key capabilities
- Physical one-way link
- The transmitting converter disables the SFP receive side and the receiving converter disables transmit, so traffic cannot travel back across the fiber.
- Single strand of fiber
- Simplex operation means one fiber strand carries the link between the transmit-only and receive-only converters, reducing fiber required per connection.
- Open 100/1000 SFP slot
- Dual-speed 100/1000 Mbps SFP support lets the fiber type, wavelength and distance be set by whichever duplex SFP module is installed.
- Hardened and PoE options
- -ISW models operate from -40 to 75 C on a terminal-block DC or AC input, and -PD models are powered over 802.3af PoE.
- Small mini form factor
- Each converter measures 46 x 85 x 22 mm and fits Lantronix mini wall and DIN-rail brackets; non-hardened models also fit the M-MCR-01 chassis.
How to choose the right M/GE-UxX Series part number
Every part number ends in UTX (transmitting) or URX (receiving), and a link needs one of each. PSW models such as M/GE-PSW-SFP-01-UTX are commercial units, 0 to 50 C, powered by 4.5 to 14 VDC through a barrel connector. ISW models such as M/GE-ISW-SFP-01-URX are hardened for -40 to 75 C with a 2-pin terminal block for 12 to 48 VDC or 24 to 36 VAC. The -PD variants, M/GE-ISW-SFP-01-PD-UTX and -PD-URX, take IEEE 802.3af PoE through the RJ-45 port. All models ship with an empty SFP slot.
Configure & order
Find your M/GE-UxX Series part number
Every orderable M/GE-UxX Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
M/GE-PSW-SFP-01-UTX
M/GE-PSW-SFP-01-URX

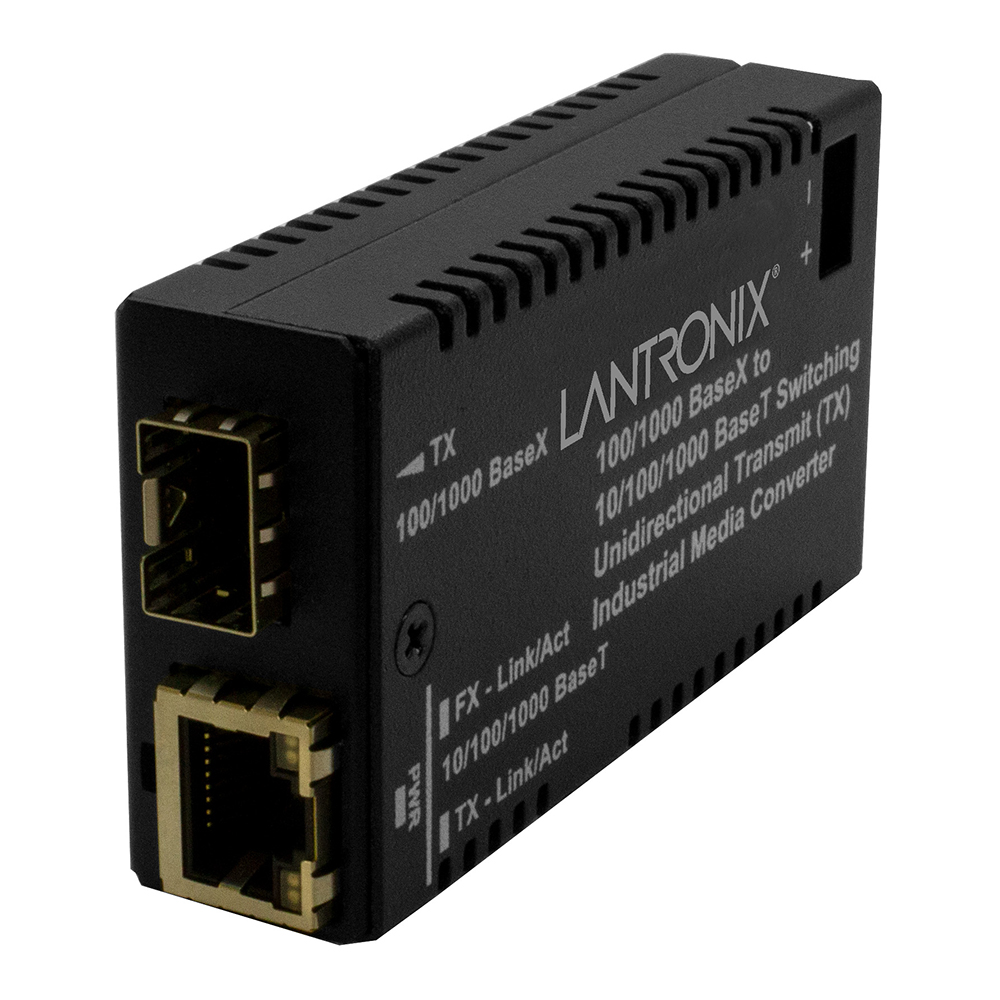

M/GE-ISW-SFP-01-UTX
$462.00
Ships on backorder

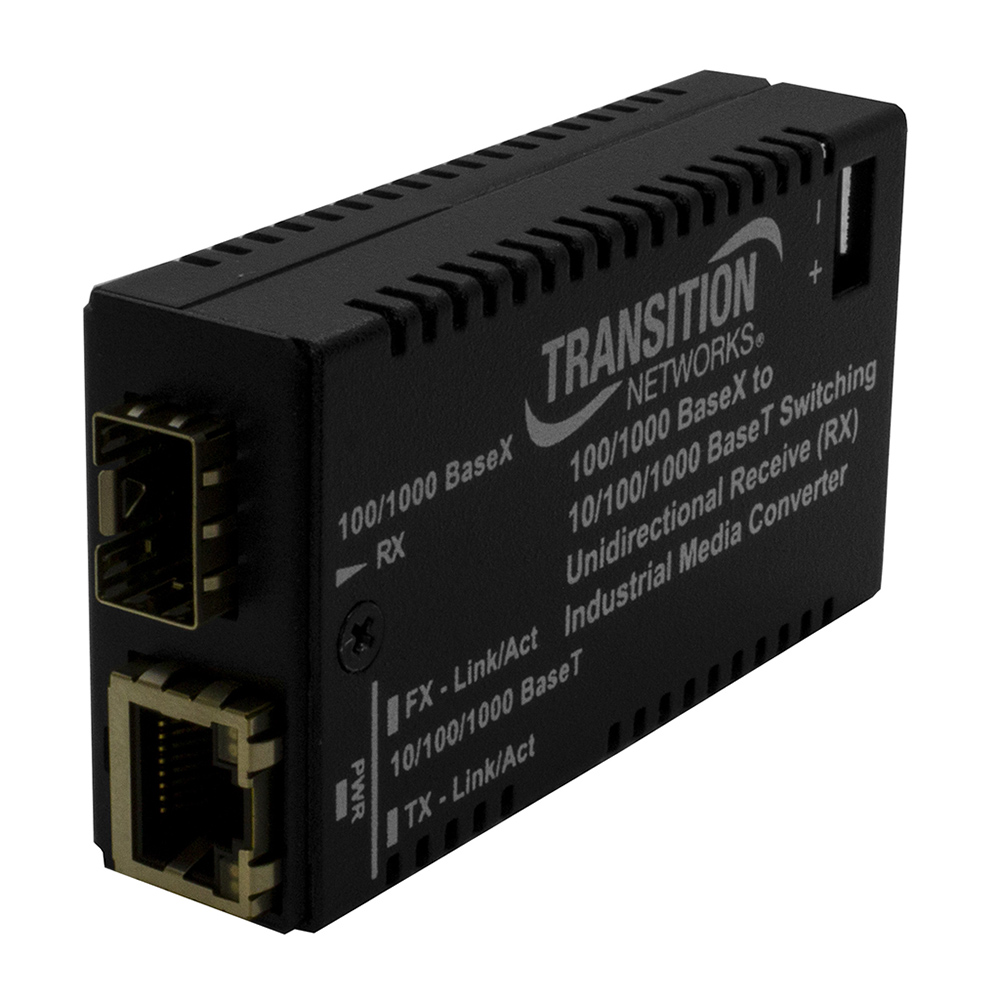

M/GE-ISW-SFP-01-URX
$462.00
Ships on backorder

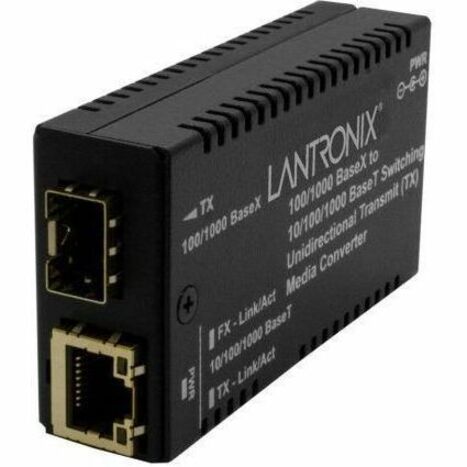

M/GE-ISW-SFP-01-PD-UTX
$545.00
Ships on backorder
M/GE-ISW-SFP-01-PD-URX
$545.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the M/GE-UxX Series, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
3 items

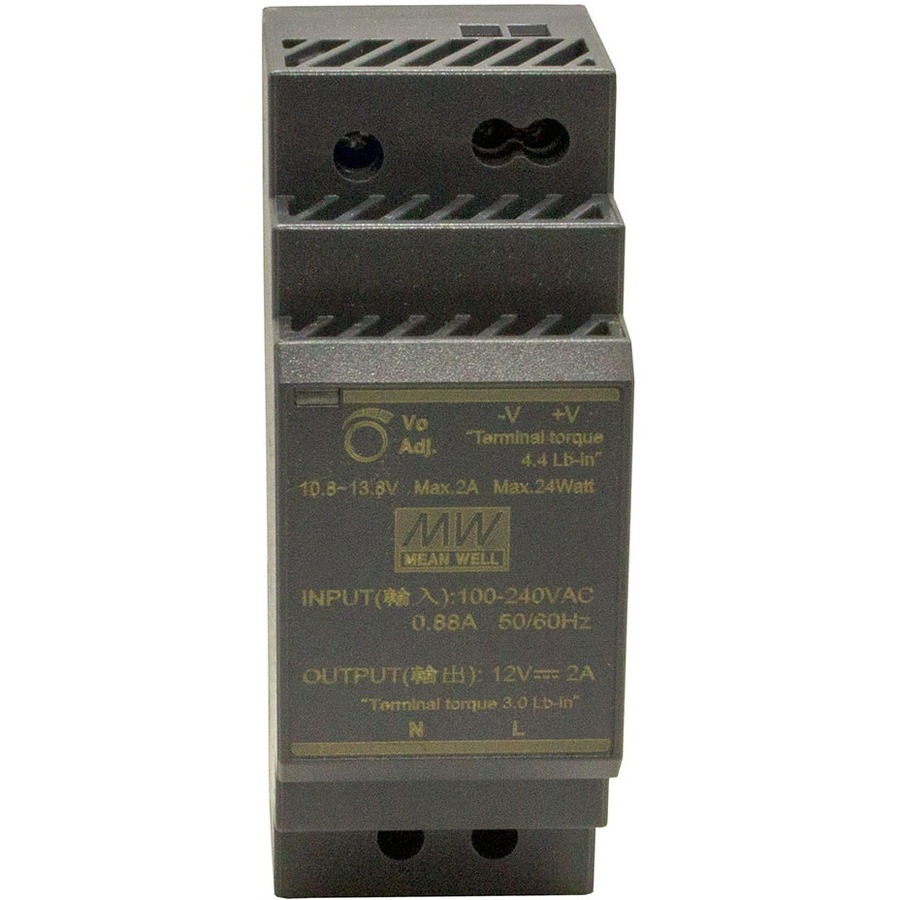

25165
25165
Industrial DIN rail mounted power supply with 12 V DC, 2 A output. It accepts 120 V AC or 230 V AC input and provides up to 24 W output power.
$65.00
Ships on backorder
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
SPS-UA12DHT
SPS-UA12DHT
AC power adapter with 90~264VAC input and 12VDC, 1.3A, 18 Watts output. It is listed with short circuit, overload, over voltage and overheating protection.
Mounting & enclosures
3 items
WMBM
WMBM
3.3” [84 mm] wall mount bracket kit for “Mini” Media Converters. It is listed as a compatible accessory for the M/GE-PSW-PSE-01 series.
$24.00
9 in stock
RMBM
RMBM
Rack mount bracket for mini media converters. It is used with E-MCR-05 and RMS19-SA4-02.
$28.00
Ships on backorder
DRBM
DRBM
3.3” [84 mm] DIN Rail Mount Bracket for “Mini” Media Converters. It fits all “Mini” Media Converters.
$28.00
Ships on backorder
Chassis & shelves
1 item
M-MCR-01
M-MCR-01
18-slot powered chassis for non-hardened Mini Media Converters. It includes 19″ rack mount ears and uses one AC power connection for multiple deployed Minis.
Compatibility taken from the Lantronix part-number tables for the M/GE-UxX Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the M/GE-UxX Series is used
- Exporting data from classified networks to lower-security networks
- Feeding external updates into an isolated secure network
- One-way fiber links in government and military facilities
- PoE-powered one-way links in harsh outdoor enclosures
M/GE-UxX Series datasheets & documentation
M/GE-UxX Series FAQ
How does a unidirectional media converter work?
A transmit-only converter (UTX) is paired with a receive-only converter (URX). Both use standard duplex SFP modules, but the transmitter uses only the SFP TX port with RX deactivated, and the receiver uses only RX with TX deactivated. Data can travel over the fiber in one direction only.
Do I need one fiber strand or two for the M/GE-UxX?
One. Because communication is simplex, a single strand of fiber connects the transmitting converter's SFP TX port to the receiving converter's SFP RX port. The unused port on each duplex SFP is deactivated.
Which SFP modules work with M/GE-UxX converters?
The open SFP slot accepts dual-speed 100/1000 Mbps duplex SFP modules. Fiber mode, wavelength and maximum distance are set by the module you install, so choose the SFP to match your fiber plant and link length.
What is the difference between PSW and ISW M/GE-UxX models?
PSW models are commercial units rated 0 to 50 C and powered at 4.5 to 14 VDC via a barrel connector. ISW models are hardened for -40 to 75 C and take 12 to 48 VDC or 24 to 36 VAC on a terminal block; ISW-PD models draw IEEE 802.3af PoE through the RJ-45 port.
How much power does the M/GE-UxX converter use?
Lantronix rates the converter at 1.8 watts without the SFP module installed. Commercial units use an external 12 VDC, 0.5 A supply; compatible supplies listed include SPS-UA12DHT for AC and the 25165 DIN-rail supply for industrial cabinets.
