Lantronix M/GE-PSW-LX-01-NA — 1000Base-LX SC Media Converter
$340.05$506.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Monday, Oct 19
New, with full manufacturer warranty
Key Features
- Conversion from 10/100/1000Base-T RJ-45 copper to 1000Base-LX fiber
- 1 RJ-45 network port and 1 SC port
- 10 km/6.2 mi. single-mode fiber distance
- 1310nm single-mode optics with 10.5 dB link budget
- Auto-Negotiation and Auto-MDI/MDIX
- Active Link Pass Through and Automatic Link Restoration
- Jumbo Frame support up to 10,240 Bytes
- Extend Gigabit connectivity using 10/100/1000Base-TX to 1000Base-BX conversion

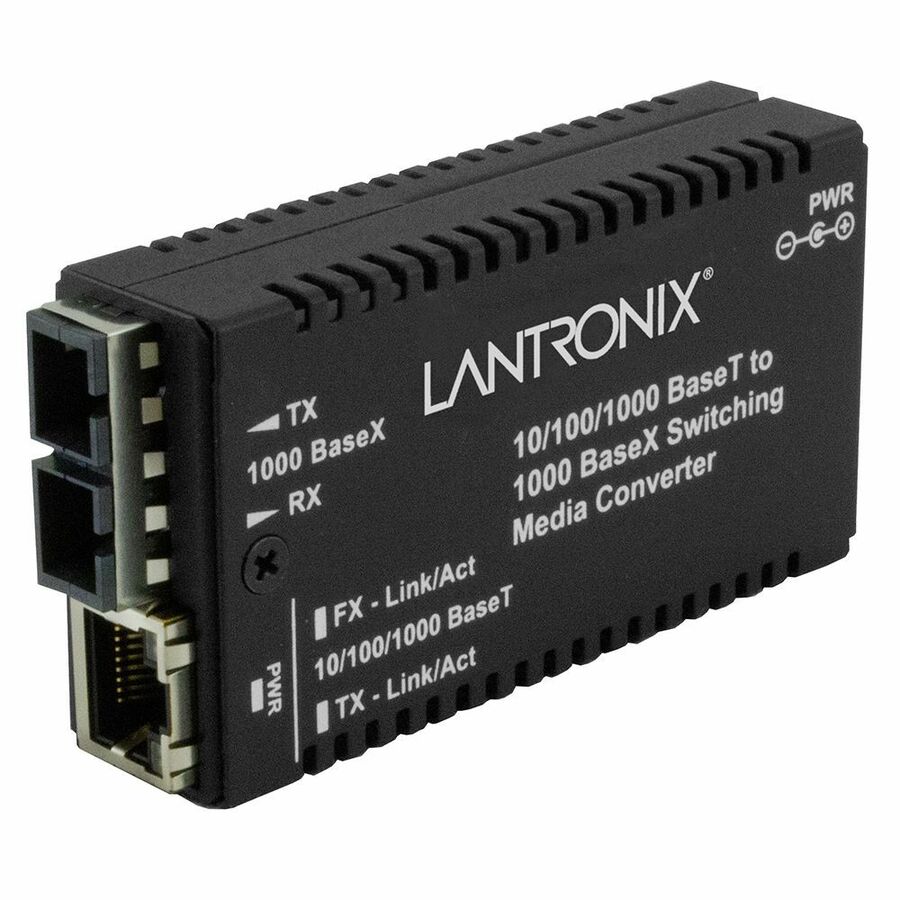

The Lantronix M/GE-PSW-LX-01-NA is an M/GE-PSW Series Mini Gigabit Ethernet Media Converter for converting 10/100/1000Base-T RJ-45 copper Ethernet to 1000Base-LX fiber. This configuration uses SC connectivity with 1310nm single-mode fiber and supports 10 km/6.2 mi. fiber distance. The part row lists a 10.5 dB link budget. The converter supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through, Automatic Link Restoration, and Jumbo Frame support up to 10,240 Bytes. It can be used as a standalone unit and is also listed as wall mountable, DIN Rail Mountable, and rack-mountable.
Ideal For
- Extend 10/100/1000Base-T Ethernet over single-mode fiber up to 10 km/6.2 mi
- Connect RJ-45 copper Ethernet equipment to a 1000Base-LX SC fiber link
- Connect an existing 10/100 Mbps device to 1000 Mbps devices
- Deploy a Mini Gigabit Ethernet Media Converter as a standalone, wall mountable, DIN Rail Mountable, or rack-mountable unit
Specifications
| Depth | 3.3" |
| Height | 0.9" |
| Sc Port | 1 x SC Ports |
| Mounting | Wall Mountable; DIN Rail Mountable; Rack-mountable |
| Warranty | Lifetime |
| Data Rate | 1 Gbps |
| Compliance | TAA Compliant |
| Fiber Type | Single-mode fiber |
| Wavelength | 1,310 nm |
| Form Factor | Standalone |
| Jumbo Frame | Up to 10,240 Bytes |
| Link Budget | 10.5 dB |
| Network Port | 1 x Network (RJ-45) |
| Power Adapter | AC Adapter |
| Fiber Distance | 10 km/6.2 mi. |
| Fiber Standard | 1000Base-LX |
| Copper Distance | 100 m/328 ft |
| Copper Standard | 10/100/1000Base-T |
| Fiber Connector | SC |
| Copper Connector | RJ-45 |
| Ethernet Technology | Gigabit Ethernet |
| Environmental Compliance | WEEE; RoHS; REACH |
Documentation
Frequently Asked Questions
What media does M/GE-PSW-LX-01-NA convert?▾
It converts between 10/100/1000Base-T RJ-45 copper Ethernet and 1000Base-LX fiber.
What fiber connector and fiber type does this model use?▾
It uses SC connectivity and supports single-mode fiber.
What is the supported fiber distance?▾
The Lantronix part row lists 10 km/6.2 mi. fiber distance with a 10.5 dB link budget.
Does this media converter support USB power?▾
Yes. Etilize lists a USB Power Option that requires the USBC-AM-DC USB to DC barrel connector cable.
