Lantronix SGFEB1013-130-NA — Sgfeb Series Media Converter
$355.12$528.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Tuesday, Oct 13
Order within 4h 17m to get it by Tuesday, Oct 13
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 1000Base-SX conversion for Gigabit Ethernet media and rate conversion
- 1 RJ-45 network port and 1 SC fiber port
- Multi-mode fiber support with 850 nm optics
- Auto Negotiation and Auto-MDI/MDIX
- Link Pass Through, Far End Fault (FEF), and Remote Fault Detect
- 7.5 to 24 VDC power input provided by wide input AC Wall Mount Adapter
- Standalone, Wall Mountable, Rail-mountable, and Rack-mountable form factors
- Convert copper edge traffic to fiber using 10/100/1000B-T to 1000BASE-X media conversion

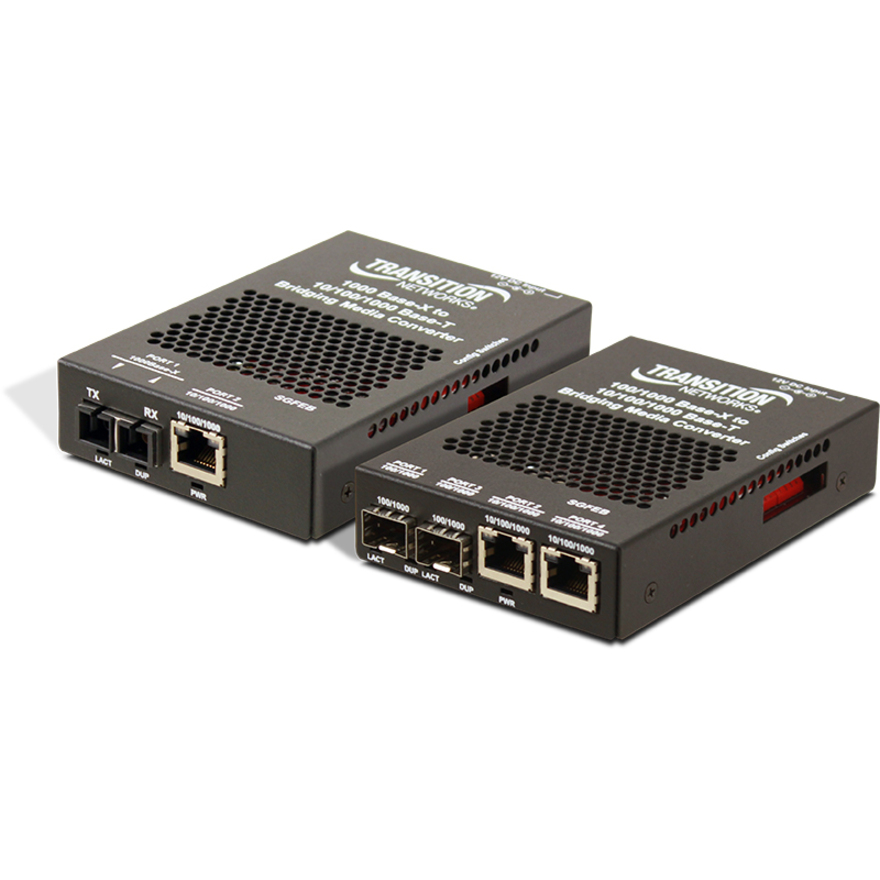

The Lantronix SGFEB Series SGFEB1013-130-NA is a stand-alone Gigabit Ethernet media and rate converter for 10/100/1000Base-T to 1000Base-SX/LX applications. This SKU pairs copper Ethernet with multimode SC fiber at 850 nm. It provides 1 x Network (RJ-45) and 1 x SC ports, with Gigabit Ethernet support and a listed fiber distance of 0.55 km. Series features include Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect. The converter supports wall-mountable, rail-mountable, rack-mountable, and standalone installation. This NA power supply configuration uses 7.5 to 24 VDC input provided by a wide input AC Wall Mount Adapter.
Ideal For
- Converting 10/100/1000Base-T copper Ethernet to multimode fiber
- Connecting RJ-45 copper equipment to an SC fiber link
- Adding Gigabit Ethernet media and rate conversion with Link Pass Through and fault detection
- Deploying a standalone, wall-mountable, rail-mountable, or rack-mountable media converter with an NA power supply
Specifications
| MTBF | Greater than 250,000 MIL-HDBK-217F Hours. Greater than 687,500 Bellcore Hours |
| Safety | Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Features | Auto Negotiation; Auto-MDI/MDIX; Link Pass Through; Far End Fault (FEF); Remote Fault Detect |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall Mountable, Rail-mountable, Rack-mountable |
| Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az |
| Dimensions | 3.25” [82 mm] x 4.8” [122 mm] x 1″ [25 mm] |
| Fiber Port | 1 x SC |
| Form Factor | Standalone |
| Power Input | 7.5 to 24 VDC, Provided by wide input AC Wall Mount Adapter |
| Network Port | 1 x Network (RJ-45) |
| Certifications | EN55022 Class A, EN55024, FCC Class A, CE Mark |
| Max Frame Size | 10,260 byte Jumbo Frames |
| Fiber Data Rate | 1000 Mbps |
| Copper Data Rate | 10/100/1000 Mbps |
| Limited Warranty | Lifetime |
| Maximum Distance | 0.55 km |
| Power Consumption | 2.2 Watts |
| Network Technology | 10/100/1000Base-T to 1000Base-SX |
| Ethernet Technology | Gigabit Ethernet |
| Filtering Addresses | 8K MAC addresses |
| Storage Temperature | -15°C to 65° C |
| Fiber Mode Supported | Multi-mode |
| Operating Temperature | 0°C to 50°C |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Optic Cable Core Cladding Specification | 50/125 µm; 62.5/125 µm |
Frequently Asked Questions
What media does SGFEB1013-130-NA convert?▾
It converts 10/100/1000Base-T copper Ethernet to 1000Base-SX multimode fiber through an SC fiber port.
What power configuration does this model include?▾
This SKU is listed with an NA power supply. The SGFEB Series power input is 7.5 to 24 VDC, provided by a wide input AC Wall Mount Adapter.
How can this media converter be mounted?▾
The input lists Standalone, Wall Mountable, Rail-mountable, and Rack-mountable form factors.
Which link and diagnostic features are supported?▾
The SGFEB Series features include Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect.
