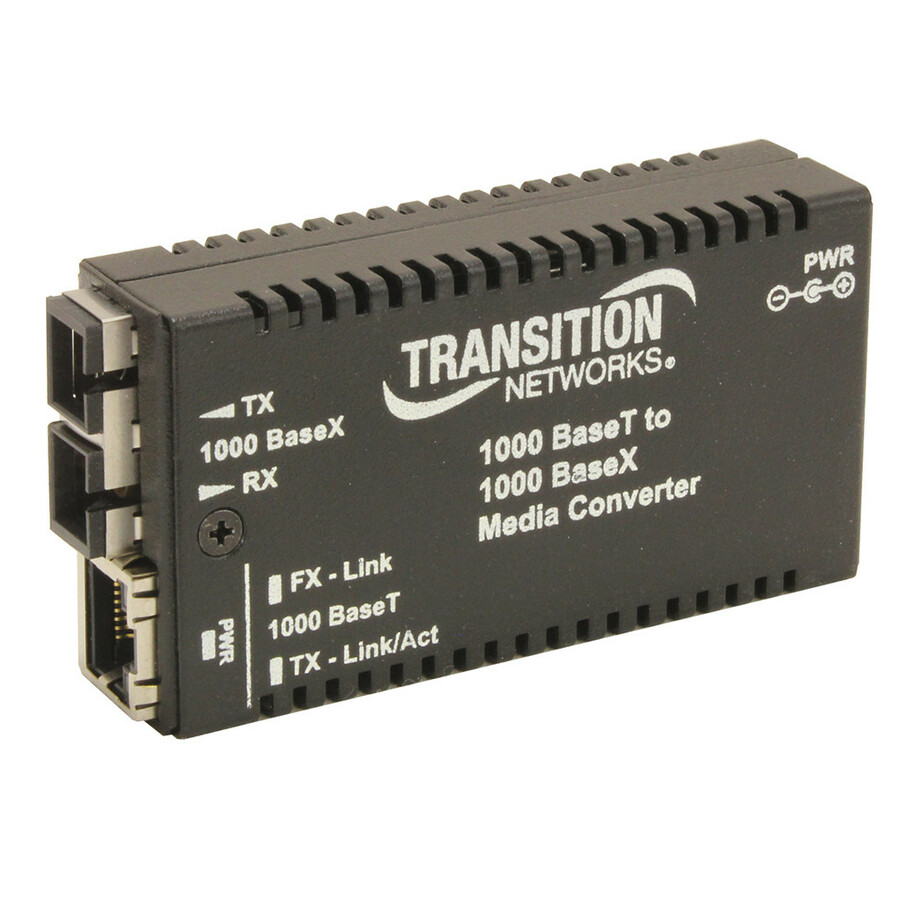

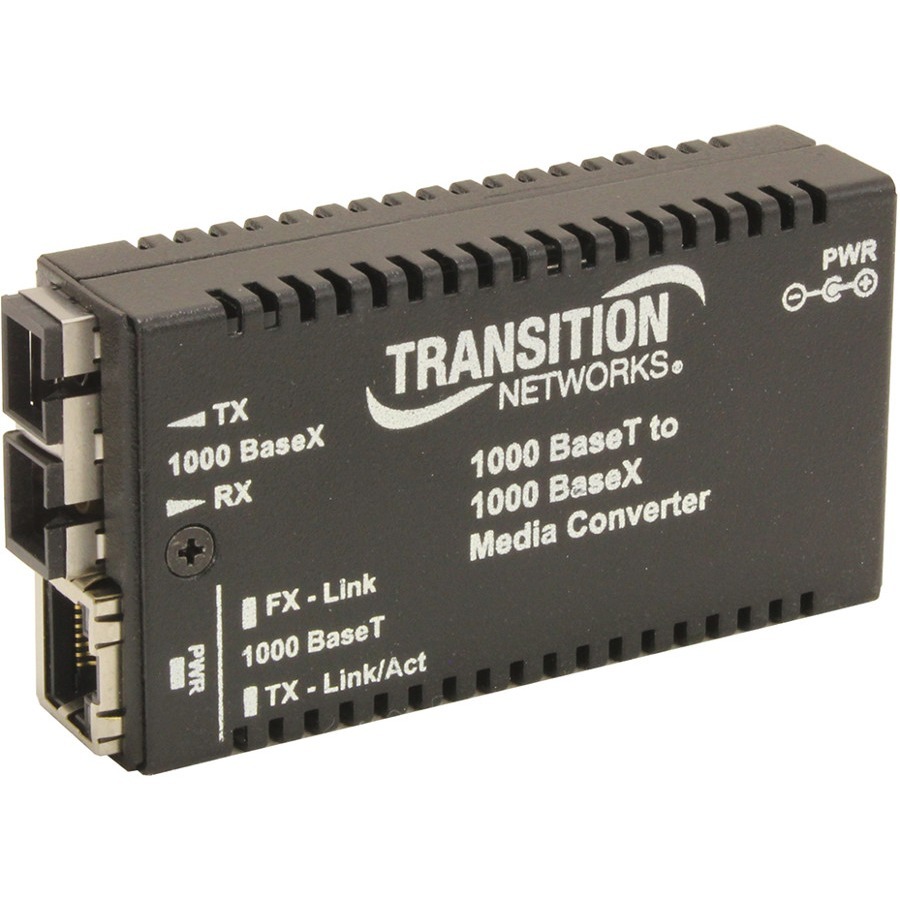

Lantronix M/GE-T-SX-01(LC)-NA — M/GE-T-SX-01-NA M/GE-T Series Media Converter
$225.98$336.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
-NA%20%E2%80%94%20M%2FGE-T-SX-01-NA%20M%2FGE-T%20Series%20Media%20Converter&mpn=M%2FGE-T-SX-01(LC)-NA&price=22598&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1053980043.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-T to 1000Base-SX conversion connects Gigabit Ethernet copper to fiber
- 1 x Network (RJ-45) and 1 x LC port support the listed copper and fiber interfaces
- Multi-mode fiber support with 50/125 µm and 62.5/125 µm cable core/cladding specifications
- 1000 Mbps data rate for Gigabit Ethernet links
- Auto-Negotiation and Auto-MDI/MDIX support copper-side link setup
- Status LEDs show power, fiber link/activity, and copper link/activity
- Jumbo Frames up to 13312bytes support larger Ethernet frames
- Convert 1000Base-T RJ-45 traffic to 1000Base-SX multimode fiber
Lantronix M/GE-T-SX-01(LC)-NA is a Mini Gigabit Ethernet Media Converter for 1000Base-T to 1000Base-SX. It provides 1 x Network (RJ-45) and 1 x LC port for multi-mode Gigabit Ethernet fiber. The M/GE-T Series features Auto-Negotiation, Auto-MDI/MDIX, Automatic Link Restoration, Fiber Link Pass Through, Low-Latency Design, and Status LEDs for easy monitoring. The series also supports Jumbo Frames up to 13312bytes. This model is listed as wall mountable, DIN Rail Mountable, Rack-mountable, and Standalone. Lantronix specifies 2.6 Watts power consumption and an external AC/DC supply; +12VDC, 0.5A.
Ideal For
- 1000Base-T RJ-45 copper to 1000Base-SX LC fiber conversion
- Gigabit Ethernet handoff to multi-mode fiber cabling
- Wall, DIN rail, rack, or standalone media-converter placement
- Network-distance extension using the listed 0.55 km distance
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3z; IEEE 802.3ab |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps |
| Compliance | TAA Compliant |
| Dimensions | 1.8” [46 mm] x 3.3” [85 mm] x 0.85″ [22 mm] |
| Fiber Port | 1 x LC Ports |
| Fiber Type | Multimode fiber |
| Copper Port | 1 x Network (RJ-45) |
| Form Factor | Mini media converter; Standalone; Rack-mountable; DIN Rail Mountable; Wall Mountable |
| Power Input | 7.5VDC to 13.9VDC |
| Jumbo Frames | Up to 13312bytes |
| Power Supply | External AC/DC required; +12VDC, 0.5A |
| Certification | UL Listed; CUL Listed (Canada); FCC Class A; CISPR22 / EN55022 Class A; EN55024; CE Mark |
| Connector Type | LC |
| Network Distance | 0.55 km |
| Power Consumption | 2.6 Watts |
| MTBF Unit Bellcore | Greater than 687,500 Hours |
| Network Technology | 1000Base-T to 1000Base-SX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -15°C to 65°C |
| Fiber Mode Supported | Multi-mode |
| Operating Temperature | 0°C to 50°C |
| MTBF Unit Mil-hdbk-217f | Greater than 250,000 Hours |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| MTBF With Power Supply Bellcore | Greater than 114,580 Hours |
| MTBF With Power Supply Mil-hdbk-217f | Greater than 41,660 Hours |
| Fiber Optic Cable Core Cladding Specification | 50/125 µm; 62.5/125 µm |
Frequently Asked Questions
Is this the 1000Base-SX or 1000Base-LX version?▾
This SKU is listed for 1000Base-T to 1000Base-SX with LC multi-mode fiber. The M/GE-T Series covers 1000Base-SX/LX configurations.
What ports are listed for this media converter?▾
The product data lists 1 x Network (RJ-45) and 1 x LC port.
What power input does it require?▾
The Lantronix specifications list an external AC/DC supply as required; +12VDC, 0.5A, with power input of 7.5VDC to 13.9VDC.
Can it be mounted on a DIN rail, wall, or rack?▾
Yes. The product data lists the unit as wall mountable, DIN Rail Mountable, Rack-mountable, and Standalone.
