Lantronix N-GXE-SC-02 — N-GXE-xx-02 Series 1000Base-SX SC PCIe NIC
$221.65$330.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-SX 850nm multimode SC fiber with 220 m/722 ft. reach on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber
- PCIe v2.1 x1 bus support for PCIe host systems
- 1000 Mbps network speed with up to 2000 Mbps full-duplex bandwidth capacity
- IEEE 802.1Q VLAN Support and Link Aggregation Control Protocol (LACP)
- Smart Load Balancing (SLB) and Failover with Full Wake-on-LAN Support
- Jumbo frames support up to 9014 bytes
- PXE and UEFI Boot with standard bracket attached and low-profile bracket included

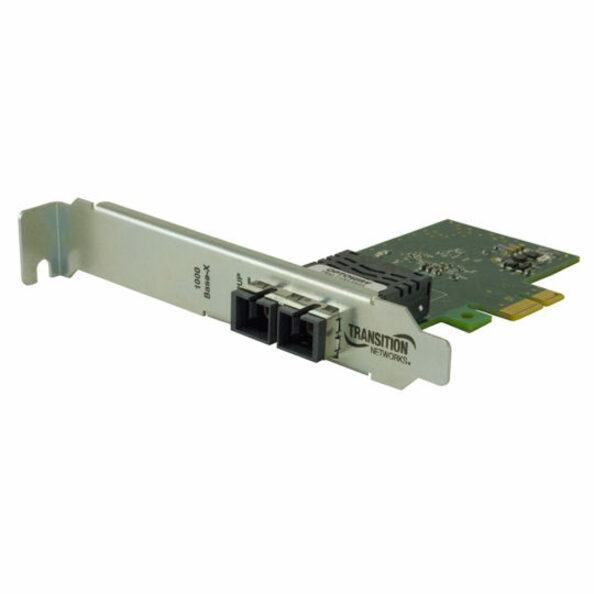

The Lantronix N-GXE-SC-02 is an N-GXE-xx-02 Series Fiber Gigabit Ethernet to PCIe bus adapter with 1000Base-SX 850nm multimode SC fiber. It supports 62.5/125 μm fiber at 220 m/722 ft. and 50/125 μm fiber at 550 m/1804 ft., with an 8.0 dB link budget. The adapter supports PCIe x1 and is compliant with PCIe Rev 2.1 Interface. The series provides 1000 Mbps network speed and up to 2000 Mbps full-duplex bandwidth capacity. Lantronix lists IEEE 802.1Q VLAN Support, Link Aggregation Control Protocol (LACP), Smart Load Balancing (SLB) and Failover, Full Wake-on-LAN Support, jumbo frames up to 9014 bytes, IPv4 and IPv6, PXE and UEFI Boot, RoHS Compliance, and a standard bracket attached with a low-profile bracket included.
Ideal For
- Adding 1000Base-SX fiber Gigabit Ethernet connectivity to systems with a PCIe x1 bus
- Connecting to 850nm multimode SC fiber runs listed up to 220 m/722 ft. or 550 m/1804 ft. by fiber type
- Deploying PCIe NICs in environments that use IEEE 802.1Q VLAN Support and Link Aggregation Control Protocol (LACP)
- Supporting boot environments that use PXE and UEFI Boot
Specifications
| Depth | 4.097” [104.064 mm] |
| Height | 2.175” [55.245 mm] |
| Series | N-GXE-xx-02 Series |
| Weight | 0.55 lbs. [0.25 kg] |
| Storage | -15°C to 65°C |
| Altitude | 0 – 10,000 ft |
| Bus Slot | PCIe v2.1 x1 |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Operating | 0°C to 50°C |
| Standards | IEEE 802.3, 2006 Edition; IEEE 802.3z; IEEE 802.3x; IEEE 802.1Q; IEEE 802.3ad |
| Link Budget | 8.0 dB |
| Status Leds | L/A; On = Communication link; Off = Link Fail; Flash = Link OK and Activity; Green = Full duplex, Yellow = Half duplex |
| Jumbo Frames | Up to 9014 bytes |
| Network Speed | 1000 Mbps |
| Certifications | EN55022 Class B, EN55024, CE Mark, RoHS |
| Fiber Distance | 62.5/125 μm fiber: 220 m/722 ft.; 50/125 μm fiber: 550 m/1804 ft |
| Fiber Interface | 1000Base-SX 850nm multimode (SC) |
| Software Support | Windows 7, 8, 8.1,10 Pro, Linux, Windows Server 2008, 2008 R2, FreeBSD,2012 |
| Power Requirement | 0.87 Watts (approximately), 264 mA @ 3.3 VDC |
| Bandwidth Capacity | Up to 2000 Mbps full-duplex |
| Boot Server Support | PXE and UEFI Boot |
Frequently Asked Questions
What fiber interface does N-GXE-SC-02 use?▾
It uses 1000Base-SX 850nm multimode fiber with an SC interface.
What multimode fiber distances are listed for this SKU?▾
Lantronix lists 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber.
Does this PCIe NIC support network boot?▾
Yes. The N-GXE-xx-02 Series features list PXE and UEFI Boot.
Is a low-profile bracket included?▾
Yes. Lantronix lists a standard bracket attached and a low-profile bracket included.
