Lantronix NM2-GXE-2230-LC-01 — NM2-GXE-01 Series M.2 Gigabit Ethernet Fiber NIC
$270.46$402.80
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 12h 37m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 1000Base-SX 850nm multimode LC fiber interface for Dell OptiPlex™ 7040/7050 and Wyse 7040/7050
- M.2 – ‘2230-D4-A-E’ bus slot with A + E keyed M.2 interface
- 1000 Mbps data rate in full duplex only operation
- 9014 bytes jumbo frame support
- Wake on LAN (WOL), UEFI, and PXE boot support
- LACP support (Teaming), Smart Load Balancing (SLB), and IPv6 capability

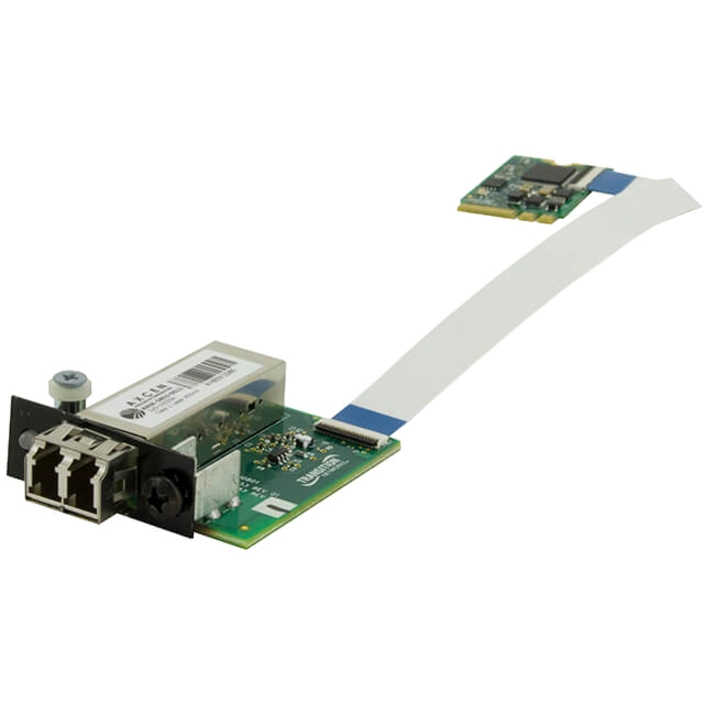

Lantronix NM2-GXE-2230-LC-01 provides a fiber optic interface for Dell OptiPlex™ 7040 and 7050 Micro PCs and Wyse 7040/7050 Series thin clients. This LC configuration uses 1000Base-SX 850nm multimode fiber with a link budget of 8.0 dB. The NM2-GXE-2230-xx-01 Series consists of an M.2 NIC that installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface, a fiber optic adapter that installs into the OptiPlex Micro PC’s Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The NM2-GXE-01 Series supports full duplex, flow control, Wake on LAN (WOL), Smart Load Balancing (SLB), LACP support (Teaming), IPv6, UEFI, PXE boot, and jumbo frame support 9014 bytes.
Ideal For
- Adding a 1000Base-SX multimode LC fiber interface to Dell OptiPlex™ 7040/7050 systems
- Adding fiber network connectivity to Wyse 7040/7050 thin clients
- Fiber-to-the-desk deployments using 1000Base-SX multimode LC
- Deployments that require PXE boot, UEFI support, Wake on LAN (WOL), and jumbo frame support 9014 bytes
Specifications
| Series | NM2-GXE-01 Series |
| Weight | 0.1 lbs. [0.05 kg] |
| Altitude | 0 – 10,000 ft |
| Bus Slot | M.2 – ‘2230-D4-A-E’ |
| Humidity | 5% to 95% (non-condensing) |
| Data Rate | 1000 Mbps (full duplex only) |
| Standards | IEEE 802.3-2012 |
| Status LED | LINK/ACT |
| Link Budget | 8.0 dB |
| M2 NIC Depth | 1.18” [30 mm] |
| M2 NIC Width | 0.87” [22 mm] |
| Power Source | M.2 interface connector: 3.3V (Refer to table 41 of M.2 Specification) |
| Certification | CE Mark |
| M2 NIC Height | 0.12” [3.08 mm] |
| Link LED State | ON = Link |
| Max Frame Size | 9014 bytes |
| Fiber Interface | 1000Base-SX 850nm multimode (LC) |
| Ffc Cable Length | 2.99” [76 mm] |
| Software Support | Windows 10, 8, 8.1, and 7 (32/64 bit); Linux |
| Power Consumption | LC: 250mA @ 3.3V (0.8 Watts typical) |
| Activity LED State | Flashing = Activity |
| Compatible Systems | Dell OptiPlex™ 7040/7050 & Wyse 7040/7050 |
| M2 NIC Form Factor | 2230-D4-A-E |
| Storage Temperature | -40°C to 85°C |
| Fiber Interface Depth | 2.05” [52 mm] |
| Fiber Interface Width | 1.65” [42 mm] |
| Operating Temperature | 0°C to +45°C |
| Fiber Interface Height | 0.51” [13 mm] |
| 50 125 μM Fiber Distance | 550 m/1804 ft |
| 625 125 μM Fiber Distance | 220 m/722 ft |
Frequently Asked Questions
Which systems is NM2-GXE-2230-LC-01 for?▾
It is listed for Dell OptiPlex™ 7040/7050 and Wyse 7040/7050 systems.
Is this the LC version or the SFP version?▾
This SKU is the LC configuration with 1000Base-SX 850nm multimode (LC). The related NM2-GXE-2230-SFP-01 is the 1000Base-X Open SFP Slot configuration.
What multimode fiber distances are specified?▾
The listed reach is 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber.
What operating systems are supported?▾
Software support is listed for Windows 10, 8, 8.1, and 7 (32/64 bit); Linux.
