Lantronix NM2-GXE-2230-SFP-01 — NM2-GXE-01 Series M.2 Gigabit Ethernet Fiber NIC
$209.96$312.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-X Open SFP Slot for Dell OptiPlex™ 7040/7050 and Wyse 7040/7050
- PCI Express M.2 compliance with A + E keyed M.2 interface
- 1000 Mbps data rate, full duplex only
- 9014-byte jumbo frame support
- Wake on LAN (WOL), Smart Load Balancing (SLB), and LACP support (Teaming)
- UEFI and PXE boot support
- Windows 10, 8, 8.1, and 7 (32/64 bit); Linux software support

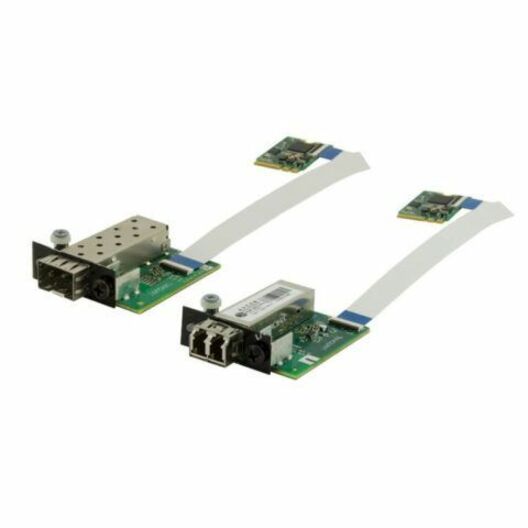

Lantronix NM2-GXE-2230-SFP-01 is an NM2-GXE-01 Series M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex™ 7040 and 7050 Micro PCs and Wyse 7040/7050 Series thin clients. The M.2 NIC installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface. A fiber optic adapter installs into the OptiPlex Micro PC’s Option port, and a 20-pin Flat Flex Cable (FFC) connects the NIC to the fiber adapter. This SKU uses a 1000Base-X Open SFP Slot. The SFP module is sold separately.
Ideal For
- Adding a fiber optic interface to Dell OptiPlex™ 7040 and 7050 Micro PCs
- Adding a fiber optic interface to Wyse 7040/7050 Series thin clients
- Deploying 1000Base-X connectivity with an open SFP slot
- Fiber-to-the-desk applications
Specifications
| Weight | 0.1 lbs. [0.05 kg] |
| Altitude | 0 – 10,000 ft |
| Bus Slot | M.2 – ‘2230-D4-A-E’ |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| Standard | IEEE 802.3-2012 |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps (full duplex only) |
| Emissions | EN55032, FCC Part 15 Class A |
| Status LED | LINK/ACT; ON = Link; Flashing = Activity |
| M2 Interface | A + E keyed M.2 interface |
| Power Source | M.2 interface connector: 3.3V (Refer to table 41 of M.2 Specification) |
| Certification | CE Mark |
| Max Frame Size | 9014 bytes |
| Fiber Interface | 1000Base-X Open SFP Slot |
| Ffc Cable Length | 2.99” [76 mm] |
| Software Support | Windows 10, 8, 8.1, and 7 (32/64 bit); Linux |
| M2 NIC Dimensions | 0.87” [22 mm] x 1.18” [30 mm] x 0.12” [3.08 mm] |
| Power Consumption | SFP: 120mA @ 3.3V (0.4 Watts typical without SFP module) |
| Host Compatibility | Dell OptiPlex™ 7040/7050 & Wyse 7040/7050 |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to +45°C |
| Fiber Interface Dimensions | 1.65” [42 mm] x 2.05” [52 mm] x 0.51” [13 mm] |
Frequently Asked Questions
Which systems is NM2-GXE-2230-SFP-01 designed for?▾
It is for Dell OptiPlex™ 7040/7050 Micro PCs and Wyse 7040/7050 Series thin clients.
Does this SKU include an SFP module?▾
No. This SKU uses a 1000Base-X Open SFP Slot, and the SFP module is sold separately.
What M.2 interface does it use?▾
The NIC installs into an M.2 “A or E keyed” interface and uses the M.2 – ‘2230-D4-A-E’ bus slot.
Which operating systems are listed?▾
Software support is listed for Windows 10, 8, 8.1, and 7 (32/64 bit); Linux.
