Lantronix NM2-GXE-2230-SFP-201 — NM2-GXE-201 Series M.2 Fiber NIC
$209.92$312.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-X open SFP interface for the NM2-GXE-2230-SFP-201 configuration
- OptiPlex 3060/5060/7060/7070, and 7080/7090 35W System support
- M.2 – ‘2230-D4-A-E’ bus slot with A + E keyed M.2 interface
- 1000 Mbps data rate, full duplex only
- 9014-byte jumbo frame support
- Wake on LAN (WOL), Smart Load Balancing (SLB), TSO, MSI, MSI-X and LACP support (Teaming)
- Windows 10, 8, 8.1, and 7 (32/64 bit); Linux software support

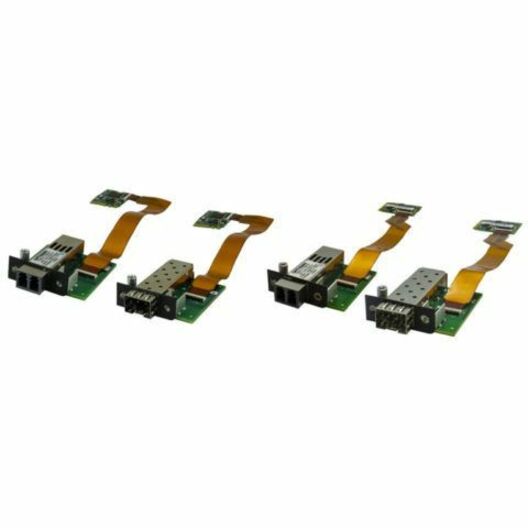

Lantronix NM2-GXE-2230-SFP-201 adds a 1000Base-X open SFP fiber interface to listed Dell OptiPlex™ Micro PCs. This SKU is listed for OptiPlex 3060/5060/7060/7070, and 7080/7090 35W Systems; the SFP module is sold separately. The NM2-GXE-2230-xx-201 Series consists of an M.2 NIC that installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface, a fiber optic adapter for the OptiPlex Micro PC’s Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The series supports PCI Express M.2 compliance, full duplex, flow control, Wake on LAN (WOL), Smart Load Balancing (SLB), TCP Segmentation Offload (TSO), Message Signaled Interrupts (MSI), Extended Message-Signaled Interrupts (MSI-X), LACP support (Teaming), IPv6, UEFI, PXE boot and 9014-byte jumbo frames.
Ideal For
- Adding a 1000Base-X optical fiber interface to listed Dell OptiPlex Micro PCs
- Fiber-to-the-desk deployments using supported OptiPlex Micro PCs
- Deployments that need an open SFP slot with the SFP module selected separately
- PXE boot workflows on systems supported by the NM2-GXE-201 Series
Specifications
| Weight | 0.1 lbs. [0.05 kg] |
| Altitude | 0 – 10,000 ft |
| Bus Slot | M.2 – ‘2230-D4-A-E’ |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbps (full duplex only) |
| Standards | IEEE 802.3-2012 |
| Status Leds | LINK/ACT; ON = Link; Flashing = Activity |
| Power Source | M.2 interface connector: 3.3V (Refer to table 41 of M.2 Specification) |
| Certifications | CE Mark; Emissions: EN55032, FCC Part 15 Class B; Immunity: EN55024 |
| Max Frame Size | 9014 bytes |
| Fiber Interface | 1000Base-X open SFP interface |
| Ffc Cable Length | 5.013” [127.33 mm] |
| Software Support | Windows 10, 8, 8.1, and 7 (32/64 bit); Linux |
| M2 NIC Dimensions | 0.87” [22 mm] x 1.18” [30 mm] x 0.12” [3.08 mm] |
| Power Consumption | SFP: 120mA @ 3.3V (0.4 Watts typical without SFP module) |
| Compatible Systems | OptiPlex 3060/5060/7060/7070, and 7080/7090 35W Systems |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to +45°C |
| Fiber Interface Dimensions | 1.65” [42 mm] x 2.05” [52 mm] x 0.51” [13 mm] |
Frequently Asked Questions
Which Dell OptiPlex systems is this version listed for?▾
This SKU is listed for OptiPlex 3060/5060/7060/7070, and 7080/7090 35W Systems.
Does this model include an LC connector or an SFP slot?▾
This configuration has a 1000Base-X Open SFP Slot. The SFP module is sold separately.
What M.2 interface does the NIC use?▾
The NIC installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface. The series bus slot is listed as M.2 – ‘2230-D4-A-E’.
Which operating systems are listed?▾
Software support is listed for Windows 10, 8, 8.1, and 7 (32/64 bit); Linux.
