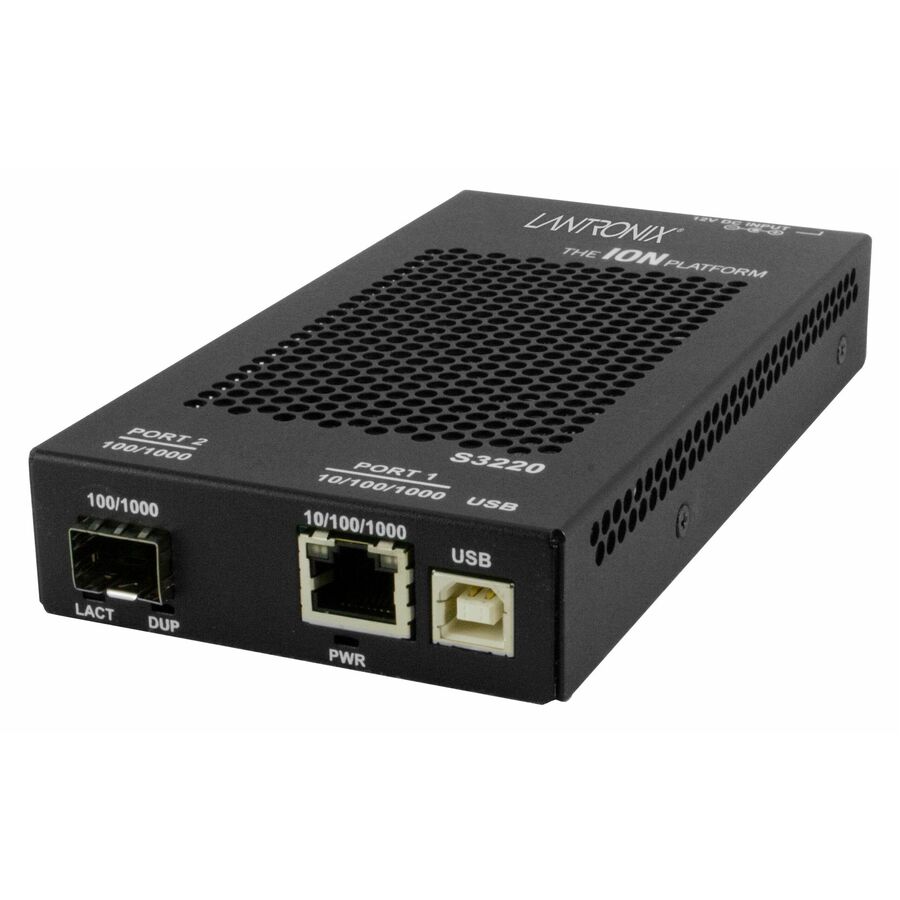

Lantronix S3220-1040-NA — 10/100/1000Base-T to 1000Base-X SFP Media Converter
$708.96$1,055.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000 Mbps copper data rate for Ethernet connections
- 1000 Mbps fiber data rate for 1000Base-X links
- 1 SFP slot for installed optical module selection
- IP-Based Remote Management for individual device management by IP address
- In-Band remote management over fiber when linked to a C3220 card in a managed ION chassis
- IEEE 802.3ah Link OAM support
- 10,240 bytes max frame size with 10K Jumbo Frame Support
- Convert copper Ethernet to fiber uplinks using 10/100/1000Base-T to 1000Base-X media conversion
Lantronix S3220-1040-NA is a stand-alone managed Network Interface Device (NID) for integrating fiber optic cabling into 10/100/1000 copper environments. It provides 10/100/1000Base-T copper connectivity and 1000Base-X fiber connectivity through an SFP slot. The S3220 can be managed individually via an IP address, or managed in-band over the fiber when linked to a C3220 card installed in a managed ION chassis. The S3220 Series includes IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support and bandwidth allocation. Fiber type, wavelength and maximum distance depend on the installed SFP module. That makes the S3220-1040-NA a managed standalone media converter for copper-to-fiber deployments where the optical module is selected for the link.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Managing a stand-alone S3220 individually via an IP address
- Managing the remote device in-band over fiber when linked to a C3220 card in a managed ION chassis
- Secure delivery of mobile backhaul applications
Specifications
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ah; IEEE 802.1p; IEEE 802.1Q |
| Warranty | Lifetime |
| Dimensions | 3.25” [82 mm] x 6.5” [165 mm] x 1″ [25 mm] |
| Fiber Type | Depends on installed SFP module |
| Wavelength | Depends on installed SFP module |
| Form Factor | Standalone converter |
| Power Input | 100-240 VAC,1A |
| Power Output | 12 VDC, 1.25A |
| Connector Type | SFP slot |
| Max Frame Size | 10,240 bytes |
| Fiber Data Rate | 1000 Mbps |
| Fiber Interface | 1000Base-X |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T |
| Network Technology | Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Filtering Addresses | 8K MAC Addresses |
| Storage Temperature | -25° to +85°C |
| Operating Temperature | 0°C to +50°C |
| Remote Management Mode | IP-Based Remote Management; In-Band (remote device managed by local peer) |
| Maximum Distance Supported | Depends on installed SFP module |
Frequently Asked Questions
What does the S3220-1040-NA convert?▾
It converts between 10/100/1000Base-T copper Ethernet and 1000Base-X fiber through an SFP slot.
Can this S3220 be managed remotely?▾
Yes. The S3220 can be managed individually via an IP address. It can also be managed in-band over the fiber when linked to a C3220 card installed in a managed ION chassis.
What fiber distance and wavelength does it support?▾
No fixed fiber distance is listed for this SKU. Maximum distance, fiber type and wavelength depend on the installed SFP module.
Which IEEE standards are listed for the S3220 Series?▾
The S3220 Series lists IEEE 802.3, IEEE 802.3ah, IEEE 802.1p and IEEE 802.1Q standards.
