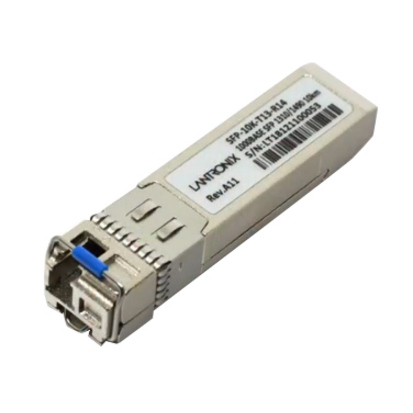

Lantronix SFP-10K-T13-R14 — SFP Transceiver BiDi 10km 1000BASE-BX
$118.65$129.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10km 1000BASE-BX optical link over single-mode fiber
- 1310nm transmit and 1490nm receive wavelengths
- Single-fiber Bi-Directional transmission
- 1 x 1000Base-BX network interface
- DOM support
- SLC 8000 compatibility for console managers with fiber SFP ports
- Recommended pairing with SFP-10K-T14-R13 on the other end of the fiber
Lantronix SFP-10K-T13-R14 is an SFP fiber transceiver for SLC 8000 console managers with fiber SFP ports. It supports Bi-Directional 1000BASE-BX transmission over single-mode optical fiber. This SKU uses 1310nm transmit and 1490nm receive wavelengths and is specified for 10km distance coverage. It provides a 1 x 1000Base-BX network interface for data networking and optical network use. Lantronix recommends using SFP-10K-T14-R13 on the other end of the fiber. The module also lists DOM Support.
Ideal For
- SLC 8000 console manager fiber SFP ports
- Single-mode optical fiber data networking
- Single-fiber Bi-Directional 1000BASE-BX links
- Optical network deployments using SFP-10K-T14-R13 at the far end
Specifications
| Distance | 10km |
| Interface | 1 x 1000Base-BX Network |
| Fiber Mode | Single-mode |
| Media Type | Optical Fiber |
| Application | Optical Network; Data Networking |
| Dom Support | Supported |
| Product Type | SFP (mini-GBIC) |
| Transmission | Single Fiber (Bi-Directional Transmission) |
| Compatibility | Lantronix SLC 8000: Advanced Console Manager |
| Recommended Pair | SFP-10K-T14-R13 |
| Network Technology | 1000Base-BX |
| Receive Wavelength | 1490nm |
| Ethernet Technology | Gigabit Ethernet |
| Transmit Wavelength | 1310nm |
Documentation
Frequently Asked Questions
What Lantronix product is this SFP for?▾
It is for Lantronix SLC 8000 console managers with fiber SFP ports.
What network technology and fiber mode does it support?▾
It supports 1000Base-BX over single-mode optical fiber with Bi-Directional transmission.
What SFP should be used at the far end of the link?▾
Lantronix recommends using SFP-10K-T14-R13 on the other end of the fiber.
Does this SFP support DOM?▾
Yes. The input data lists DOM Support for this SFP transceiver.
