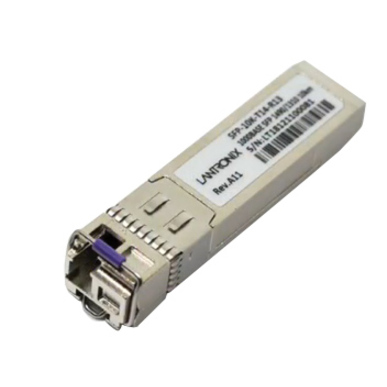

Lantronix SFP-10K-T14-R13 — SFP Transceiver 1000BASE-BX BiDi
$118.65$129.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000BASE-BX SFP transceiver for Gigabit Ethernet over optical fiber
- 10km single-mode fiber reach
- Bi-Directional single-fiber transmission
- 1490nm-TX/1310nm-RX wavelength configuration
- SLC 8000 compatibility for console managers with fiber SFP ports
- DOM Support
- SFP-10K-T13-R14 pairing recommended on the other end of the fiber
Lantronix SFP-10K-T14-R13 is an SFP Fiber Transceiver BiDi 10km 1000BASE-BX 1490nm-TX/1310nm-RX SM module for data networking and optical network use. It supports Gigabit Ethernet and 1000Base-BX over single-mode optical fiber. The module uses Bi-Directional single-fiber transmission and includes DOM Support. Lantronix lists compatibility with the SLC 8000 Advanced Console Manager. It is recommended to be used with SFP-10K-T13-R14 on the other end of the fiber.
Ideal For
- Adding a 1000Base-BX optical fiber connection to a Lantronix SLC 8000 console manager with fiber SFP ports
- Building a 10km single-mode fiber link using a Bi-Directional SFP
- Pairing with SFP-10K-T13-R14 on the other end of the fiber
- Data networking and optical network deployments using Gigabit Ethernet SFP modules
Specifications
| Distance | 10km |
| Product Type | SFP (mini-GBIC) |
| Compatibility | Lantronix SLC 8000: Advanced Console Manager |
| Application Usage | Data Networking; Optical Network |
| Transmission Type | Bi-Directional Transmission |
| Network Technology | 1000Base-BX |
| Receive Wavelength | 1310nm |
| Ethernet Technology | Gigabit Ethernet |
| Transmit Wavelength | 1490nm |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Interfaces Ports Details | 1 x 1000Base-BX Network |
Documentation
Frequently Asked Questions
Which Lantronix console manager is this SFP compatible with?▾
It is compatible with the Lantronix SLC 8000: Advanced Console Manager. Lantronix also describes its SFP transceivers as pluggable into SLC 8000 console managers with fiber SFP ports, with SKUs starting with SLC and ending with either 11S or 11G.
What network technology and fiber mode does it support?▾
It supports 1000Base-BX over optical fiber with single-mode fiber mode.
What module should be used on the far end of the fiber?▾
It uses 1490nm-TX/1310nm-RX and is recommended to be used with SFP-10K-T13-R14 on the other end of the fiber.
Does this SFP include DOM support?▾
Yes. The input data lists DOM Support for this SFP transceiver.
