Autonomous Out-of-Band
Lantronix SLC 8000 Advanced Modular Console Servers
The SLC 8000 is a 1U modular console manager for out-of-band access to switches, routers, servers, PDUs and UPSs through RS-232 RJ45 or USB console ports, sized from 8 to 48 device ports.
From $1,784.54
Overview
About the Lantronix SLC 8000
When a production network goes down, the console port is often the only way back into a switch, router or firewall. The SLC 8000 aggregates those console ports into one secure appliance that administrators reach over Telnet, SSH or an HTML5 web client, with no proprietary software. Lantronix describes the SLC 8000 (also written SLC8000) as the industry's first modular console server: field-swappable 16-port I/O modules let you mix RS-232 RJ45, USB and Ethernet device ports and move from serial to USB console at your own pace.
Each unit has dual 10/100/1000 RJ45 Ethernet and, on SFP models, dual 1 Gb fiber SFP ports with bonding and IP filtering. Device ports run from 300 to 230400 bps with software-reversible pins and Sun break-safe handling, and each port keeps a 256 KB buffer that can log to syslog, NFS, SD card or USB. Security covers SSH v2, TLS 1.0 to 1.3, packet filtering, per-port permissions, LDAP, RADIUS, TACACS+, Kerberos, Active Directory and NIS, plus FIPS 140-2 certified cryptography (Certificate #2398).
For secondary access, the SLC 8000 supports a 56K internal or USB modem and automatic failover and failback to LTE through the Lantronix G520 gateway. It integrates with Lantronix SLP and Server Technology PDUs, supports SNMP v1 to v3, and is managed centrally with Lantronix Percepxion. The chassis is 1U, draws less than 30W and operates from 0 to 50 C.
Key capabilities

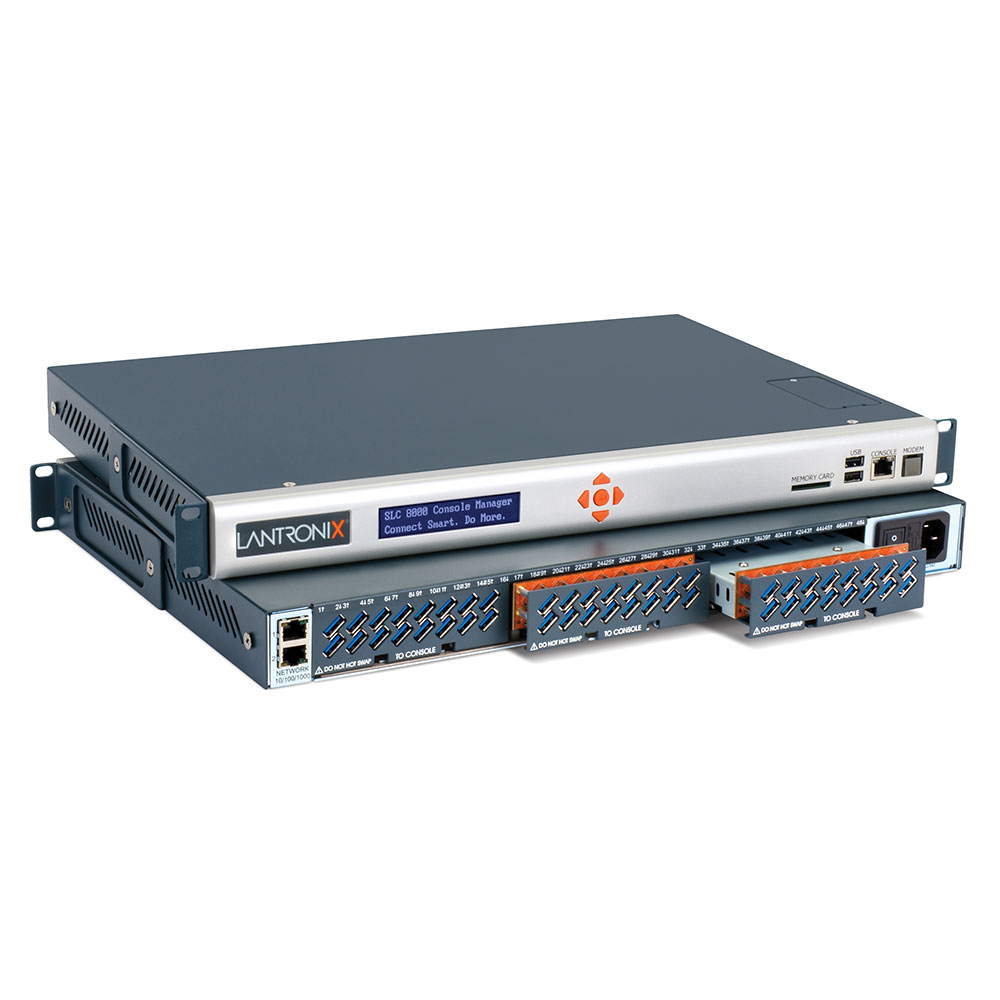

- Swappable I/O modules
- User-replaceable 16-port RJ45, USB and Ethernet modules let you add ports up to 48 or convert serial capacity to USB without replacing the chassis.
- Up to 48 USB consoles
- Lantronix states the SLC 8000 is the only solution supporting up to 48 high-density USB console ports, for USB-only gear from Cisco, Dell, HPE and others.
- Dual Gigabit plus SFP
- Dual 10/100/1000 RJ45 ports and, on SFP models, dual 1 Gb fiber SFP ports with bonding put the console server on copper and fiber management networks.
- FIPS 140-2 cryptography
- FIPS 140-2 compliant cryptography (Certificate #2398), NIST-certified AES, SSH v2 and TLS up to 1.3 for government and regulated deployments.
- Cellular and modem failover
- Automatic failover and failback to LTE via the Lantronix G520, or dial-up through a 56K internal modem, keeps out-of-band access alive during wireline outages.
- AC or DC power
- Choose single or dual 100-240 VAC supplies, or dual -20 to -72 VDC inputs for telecom and DC-powered facilities.
How to choose the right SLC 8000 part number
SLC 8000 part numbers encode the build. After SLC8, the first digit is port type (0 = RJ45, 1 = USB, 2 = mixed RJ45 and USB), the next two are port count (08, 16, 32, 48), then 1 or 2 for single or dual supplies and 2 for AC or 4 for DC. An ending of 01 means no SFP; 11 adds dual SFP uplinks. The S suffix is standard; G marks US-only TAA-compliant builds. SLC80162411S is 16 RJ45 ports, dual DC, with SFP; SLC81482201S is 48 USB ports on dual AC. FRUSB1601, FRRJ451601 and FRETH1601 are field-replaceable 16-port modules.
Configure & order
Find your SLC 8000 part number
Every orderable SLC 8000 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SLC80081201S
$1,784.54
92 in stock
SLC80082211S
$2,042.99
Ships on backorder

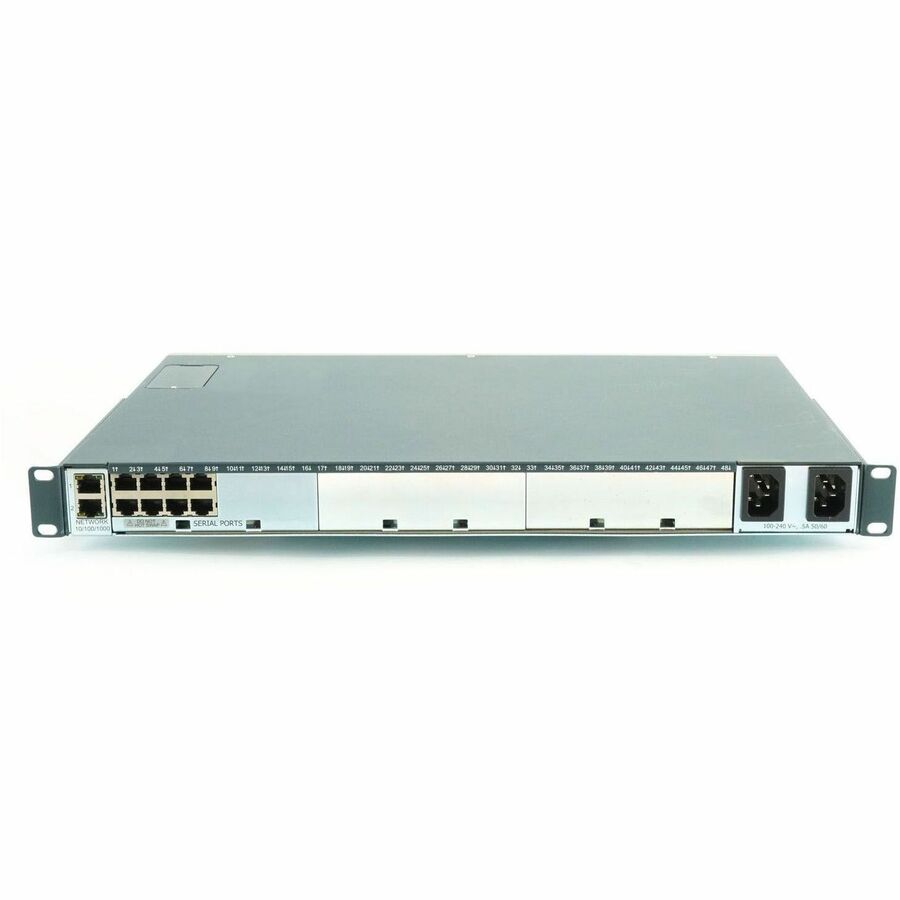

SLC80082201G
$2,117.62
Ships on backorder
SLC80161201S
$2,054.63
15 in stock
SLC81161201S
$2,053.95
Ships on backorder
SLC80162201S
$2,457.55
5 in stock
SLC80162401S
$3,064.48
40 in stock
SLC80162211S
$2,457.84
Ships on backorder

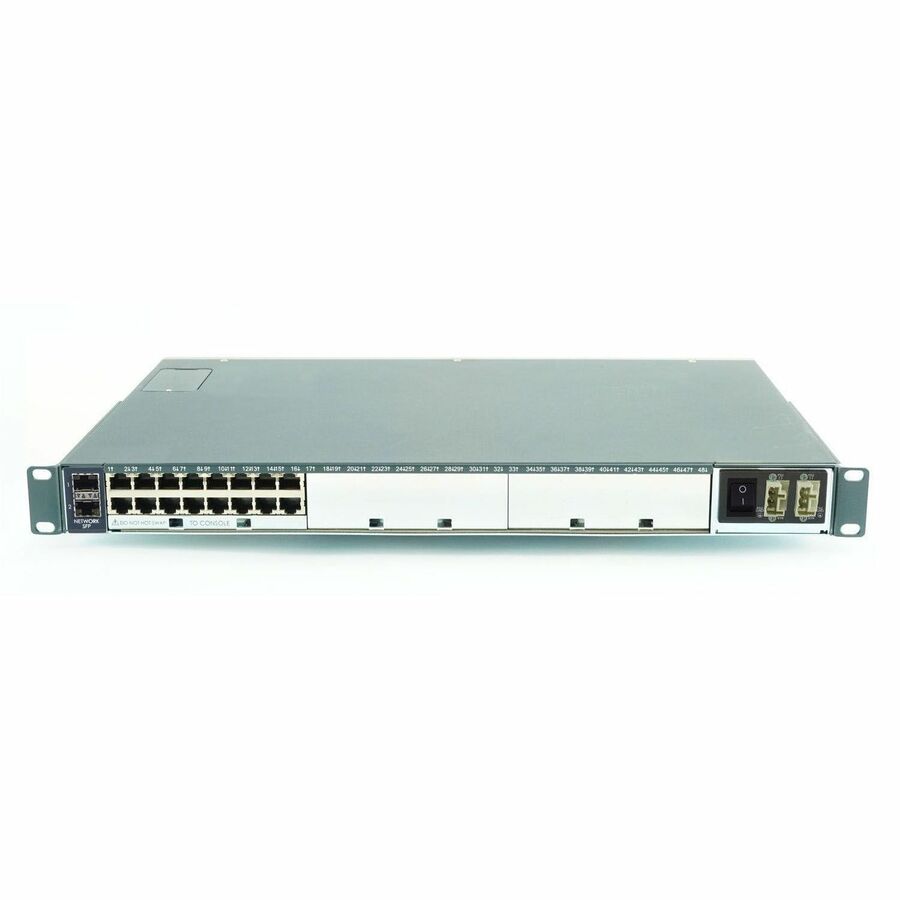

SLC80162411S
$3,064.43
Ships on backorder

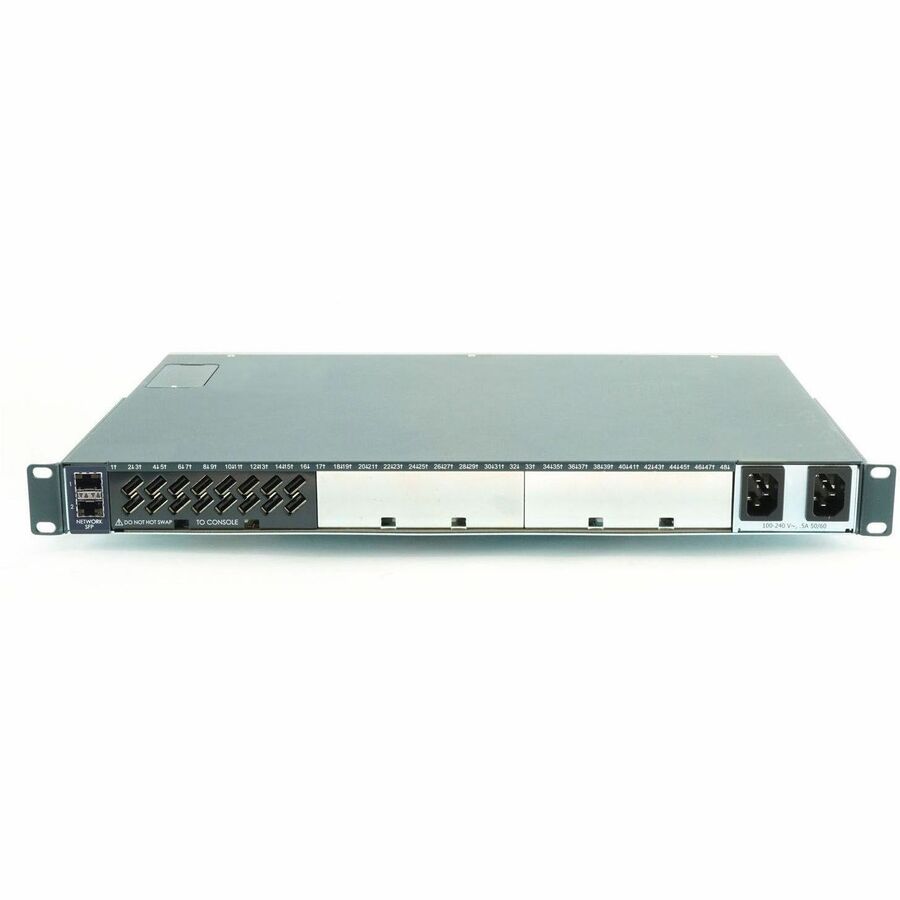

SLC81162211S
$2,458.38
Ships on backorder
SLC81162411S
$3,586.25
Ships on backorder
SLC82322201S
$3,179.90
Ships on backorder

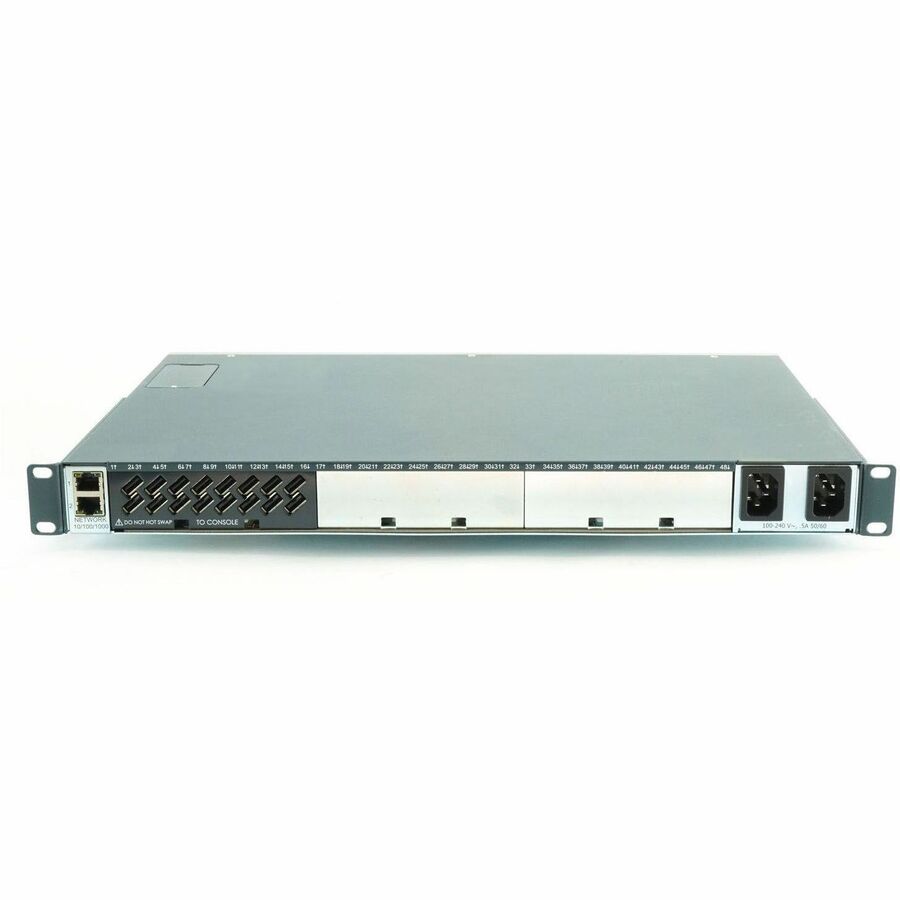

SLC81162201S
$2,458.19
Ships on backorder

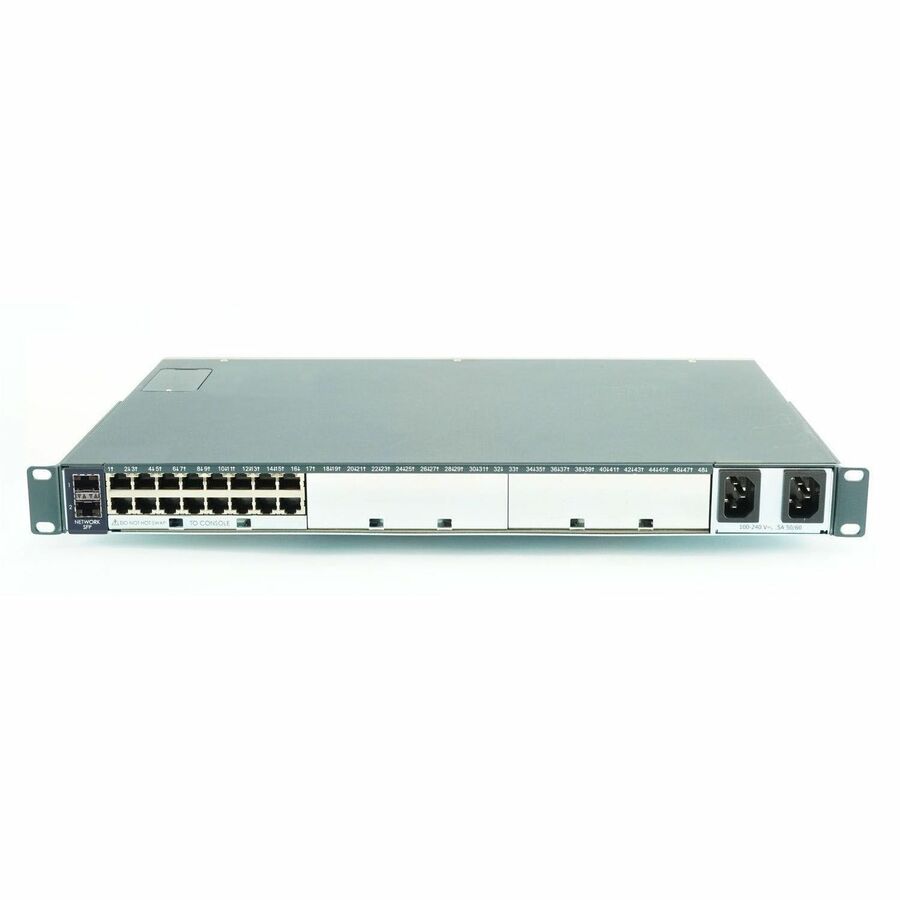

SLC80162211G
$2,559.97
Ships on backorder

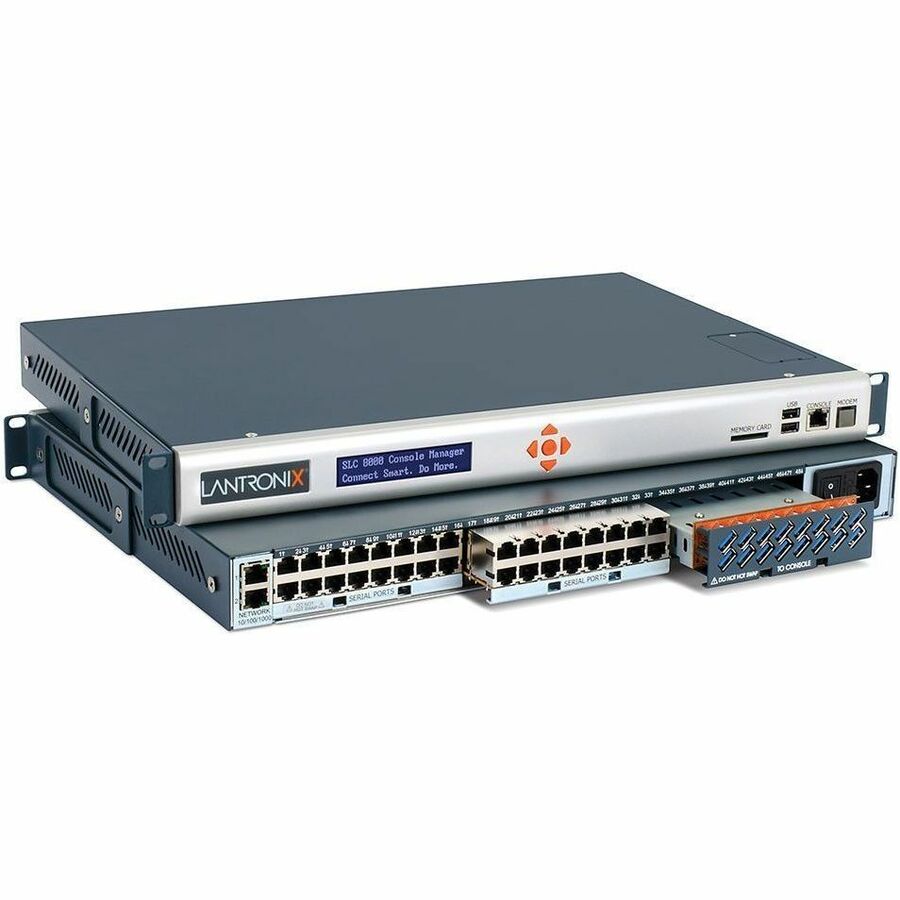

SLC80162401G
$3,754.04
Ships on backorder
SLC81161211S
$2,046.77
Ships on backorder

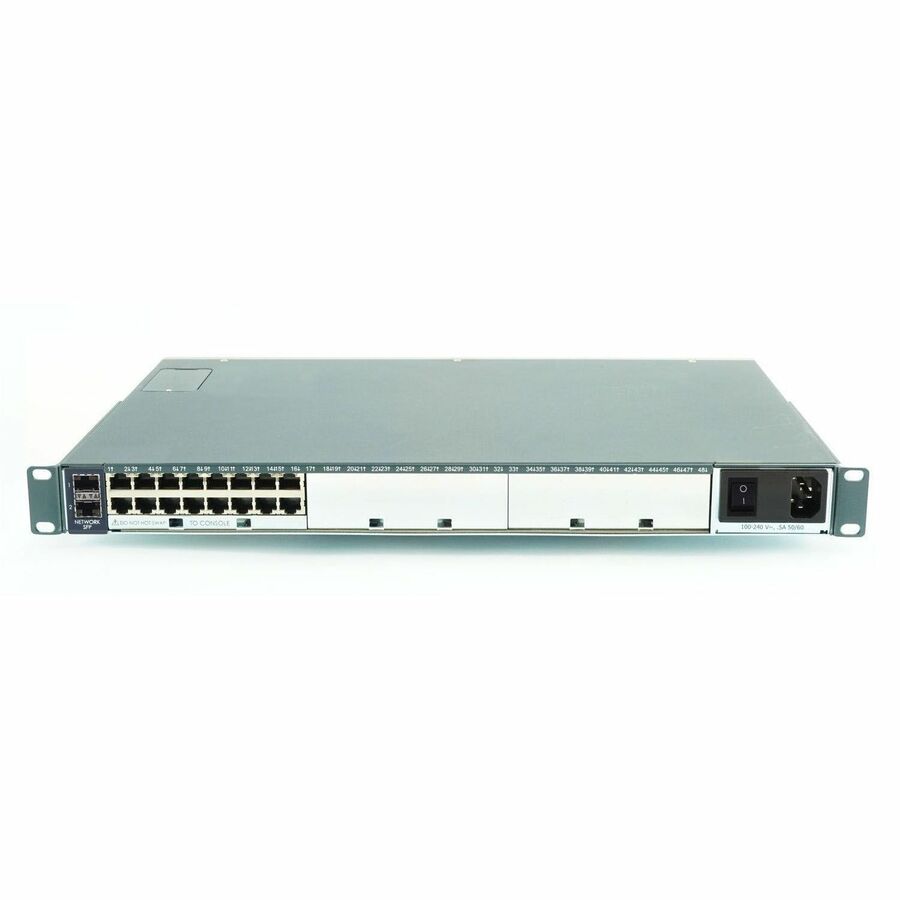

SLC80161211S
$2,046.77
Ships on backorder
SLC80321201S
$2,551.79
Ships on backorder
SLC80322201S
$3,178.71
13 in stock
SLC80322401S
$3,644.11
Ships on backorder
SLC80322211S
$3,179.31
Ships on backorder
SLC82321201S
$2,551.29
Ships on backorder

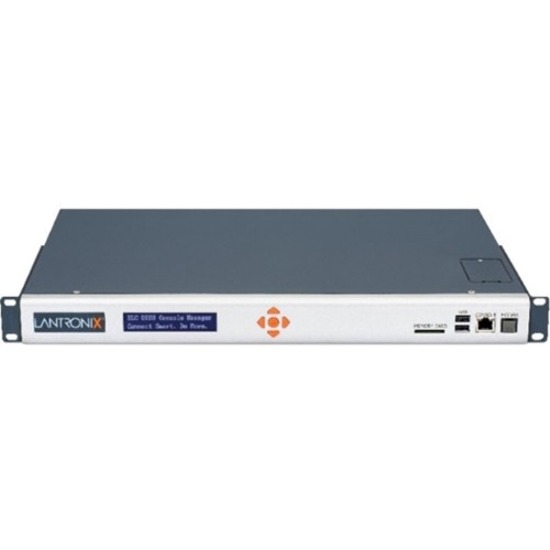

SLC81322201S
$3,179.61
Ships on backorder

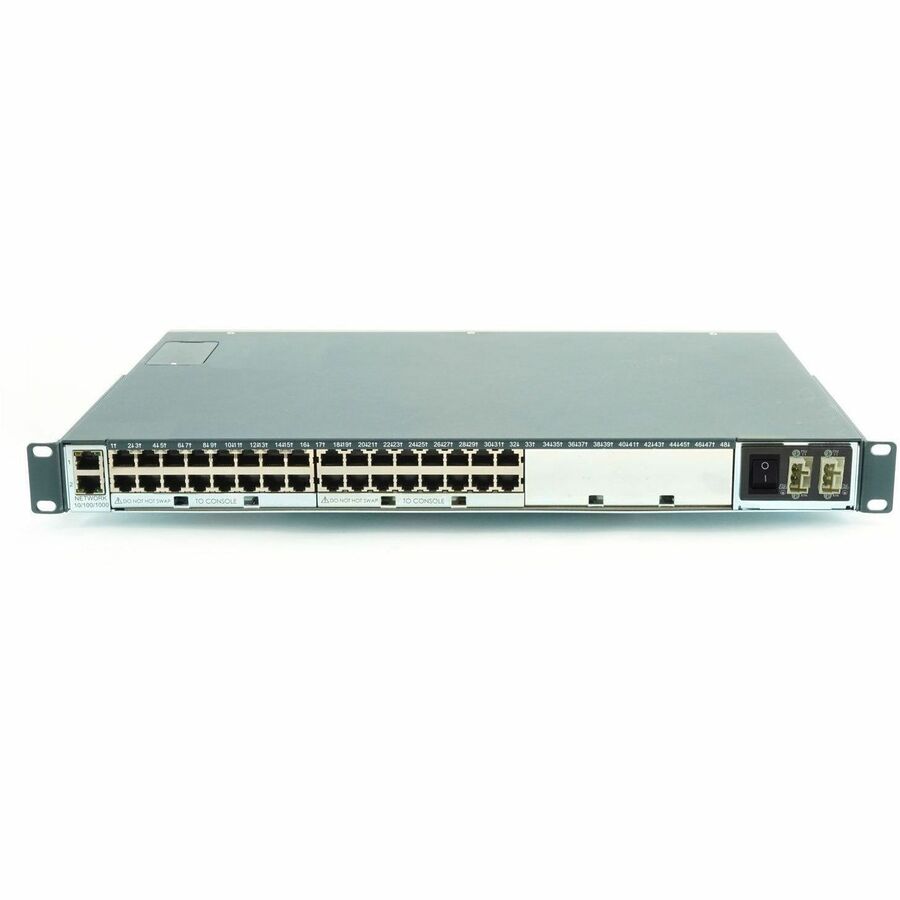

SLC80322401G
$3,800.57
Ships on backorder
SLC80322211G
$3,315.41
Ships on backorder

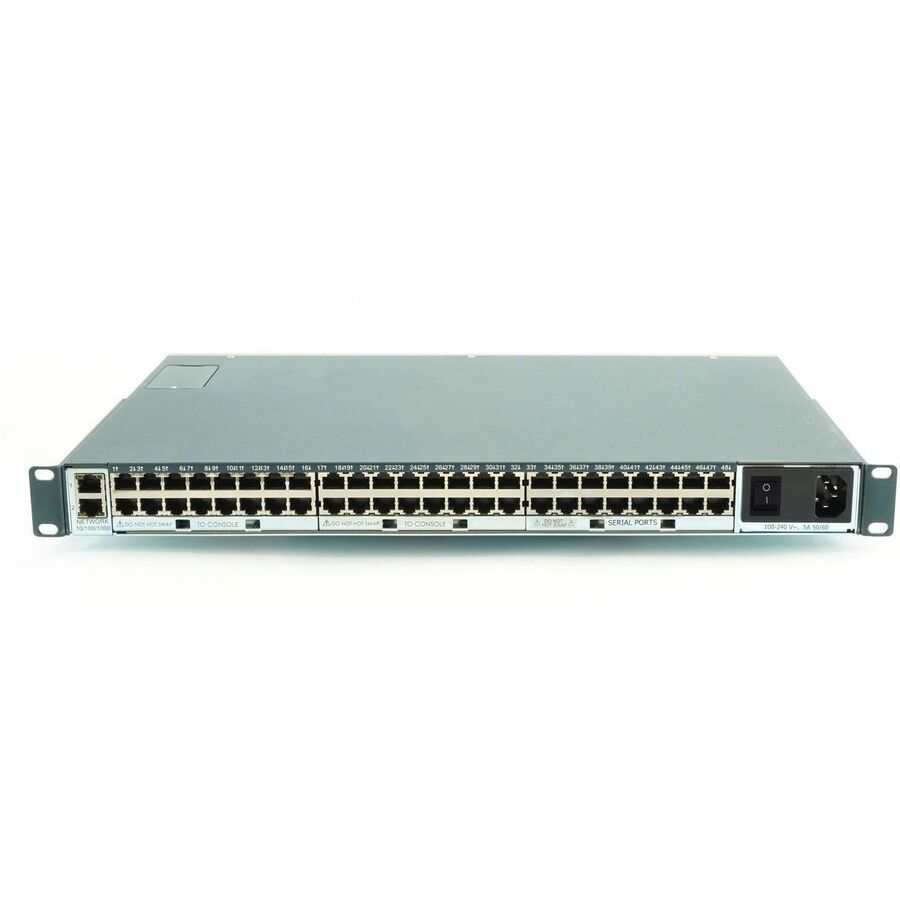

SLC80481201S
$3,229.36
Ships on backorder
SLC80482201S
$3,867.22
2 in stock
SLC80482401S
$4,242.44
1 in stock
SLC80482211S
$3,867.88
12 in stock

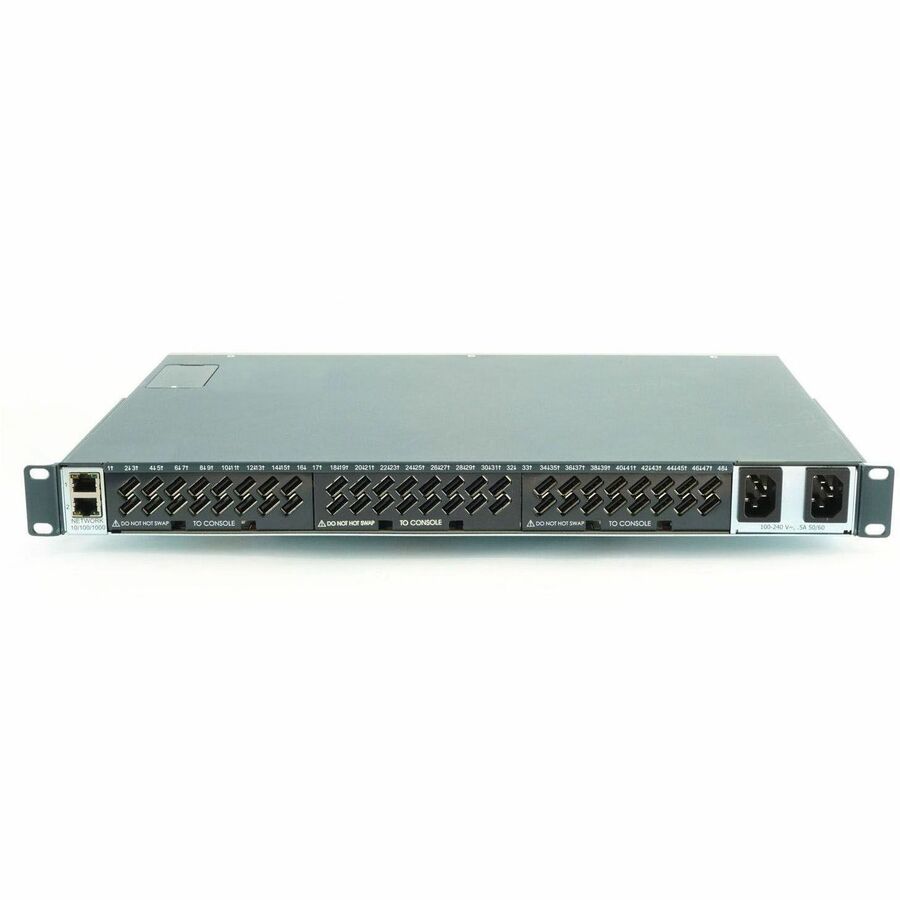

SLC81482201S
$3,867.43
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SLC 8000, organized by what it does — power, cables & adapters, modules & option cards, expansion modems & routers, transceivers & sfps, and more— each with why you'd add it.
Power
3 itemsPower Cord, United Kingdom
ACC-930-075-R
ACC-930-075-R is a Lantronix United Kingdom power cord for the Lantronix SLC 8000. It is rated 250VAC 10A and has an 8 ft cord length.
$59.86
Ships on backorder
Power Cord, Europe
ACC-930-074-R
European power cord listed as a compatible accessory for the Lantronix SLC 8000. It is rated 250VAC 10A, 8 ft, and RoHS.
$59.86
Ships on backorder
Power Cord, Israel
ACC-930-077-R
Packaged Lantronix Standard Power Cord for Israel, listed as a Compatible Accessories item for the Lantronix SLC 8000.
$60.69
Ships on backorder
Cables & adapters
1 item
ACC-500-103
ACC-500-103
6 ft RJ-45/Serial network/data transfer cable. It connects from RJ-45 Network male to DB-9 Serial female for DTE devices including terminals, printers and console ports.
$12.76
Ships on backorder
Modules & option cards
6 items
Internal Modem
56KINTMODEM-01
The Lantronix SLC 8000 56K V.92 Internal Modem adds 56 kbit/s dial-up out-of-band connectivity to the SLC 8000.
$103.66
Ships on backorder

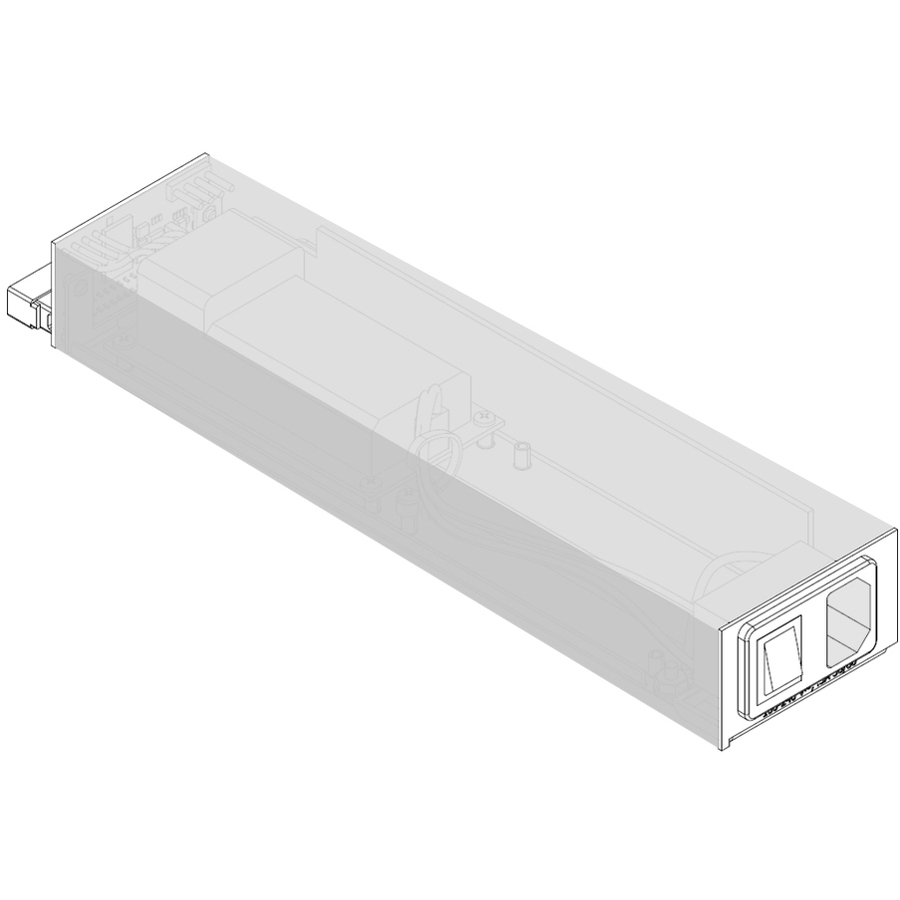

Power Supply Module
FR1ACPS01
Single 100-240 VAC power supply module for the SLC 8000 series. It is a field-replaceable device module for SLC 8000 inlet supply configurations.
$554.58
Ships on backorder

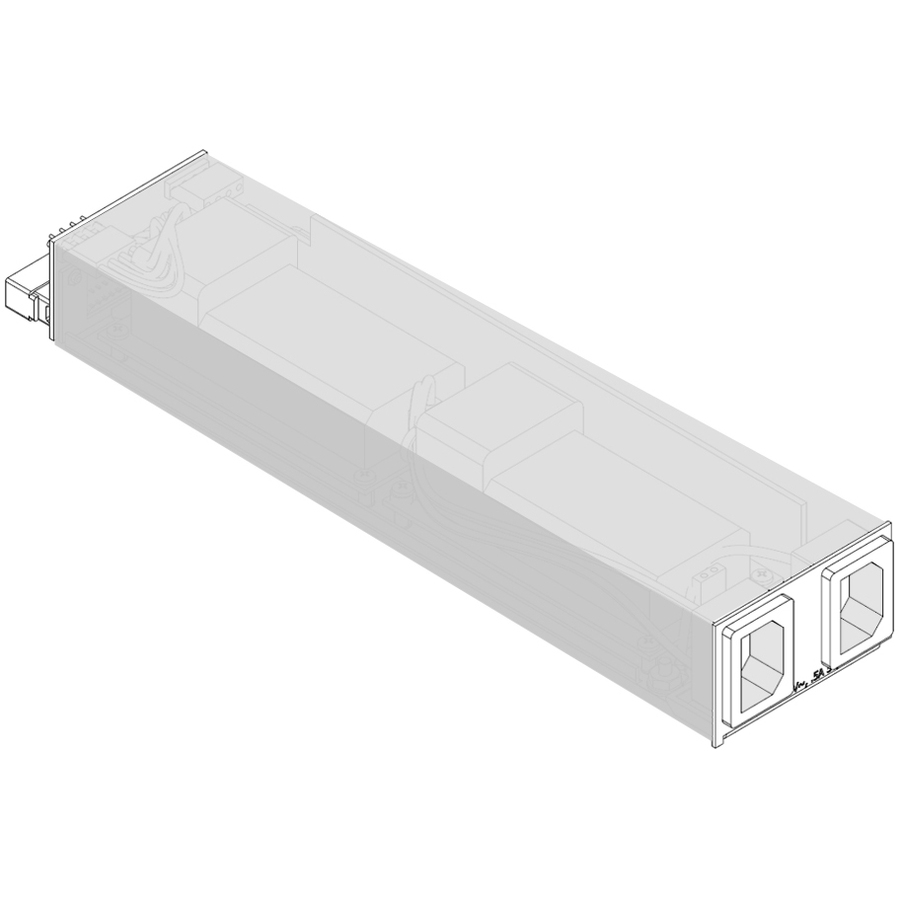

Power Supply Module
FR2ACPS01
100-240 VAC Dual Supply Module for the Lantronix SLC 8000. It enables administrators to upgrade or switch an SLC 8000 inlet supply configuration without replacing the console…
$811.86
Ships on backorder

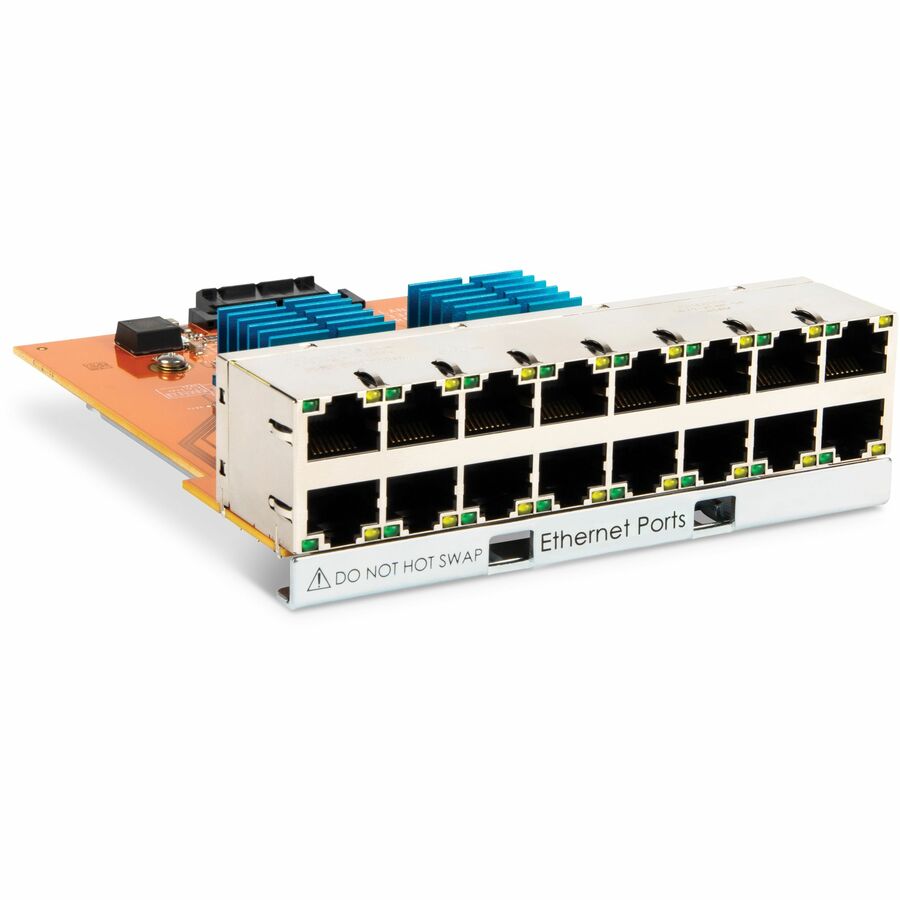

Device Port Module
FRETH1601
Field replaceable Ethernet I/O module for the Lantronix SLC 8000. It provides 16 RJ45 10/100/1000Base-T Network LAN ports for data networking.
$1,272.44
Ships on backorder

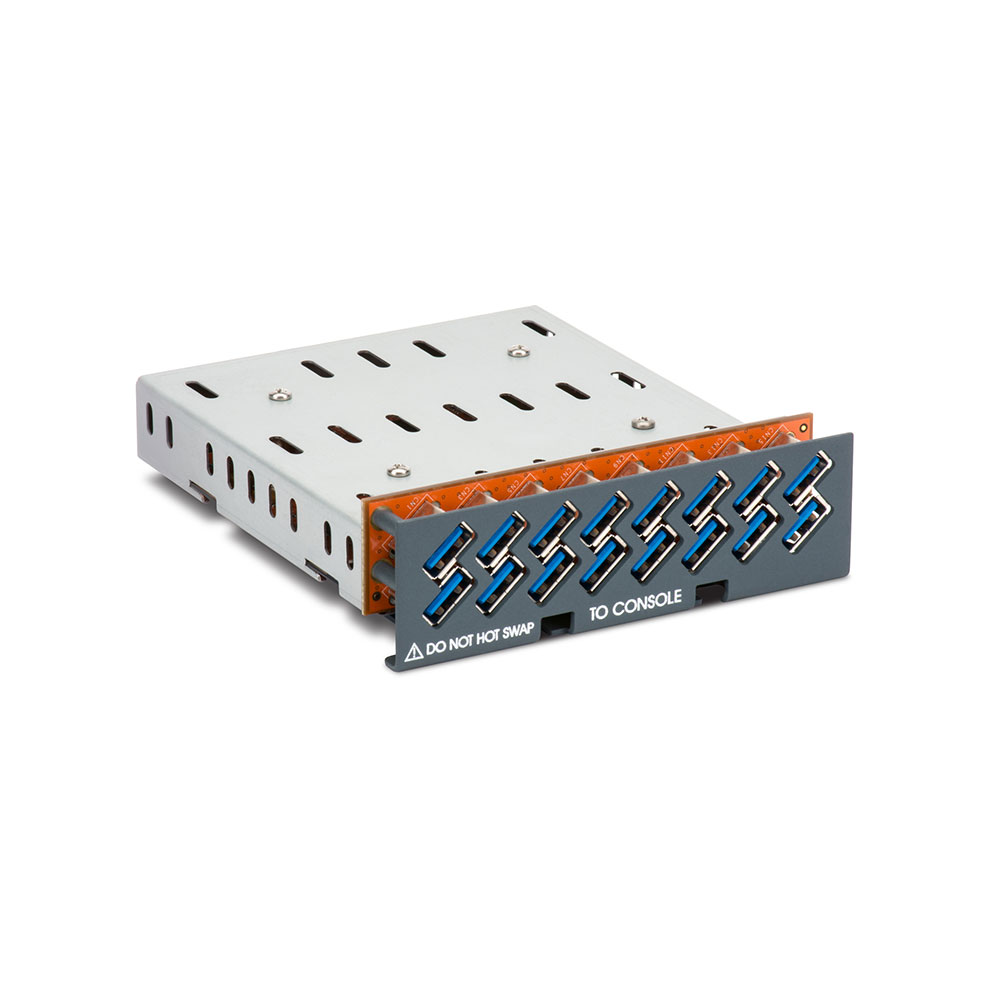

Device Port Module
FRUSB1601
16 Device Port USB I/O Module for the Lantronix SLC 8000 advanced modular console manager. It is a plug-in module listed under Field Replaceable Device Modules.
$1,292.38
Ships on backorder

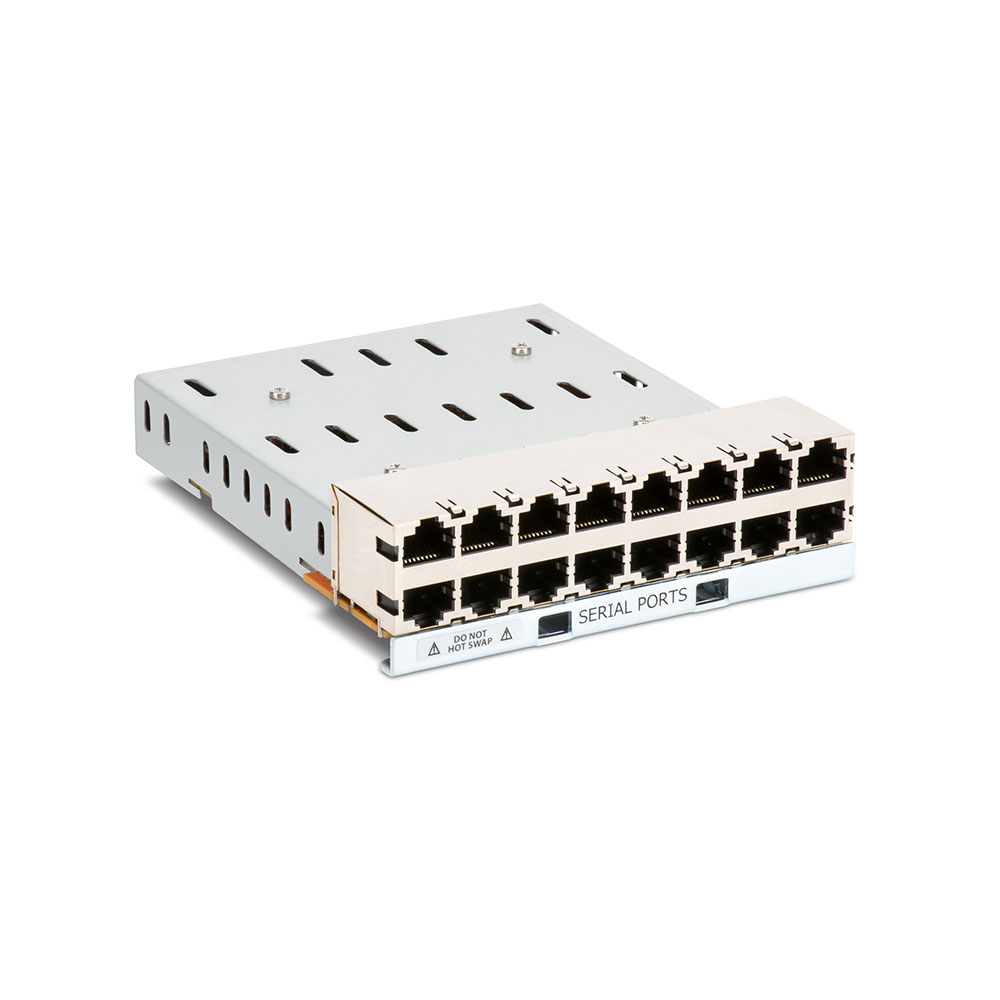

Device Port Module

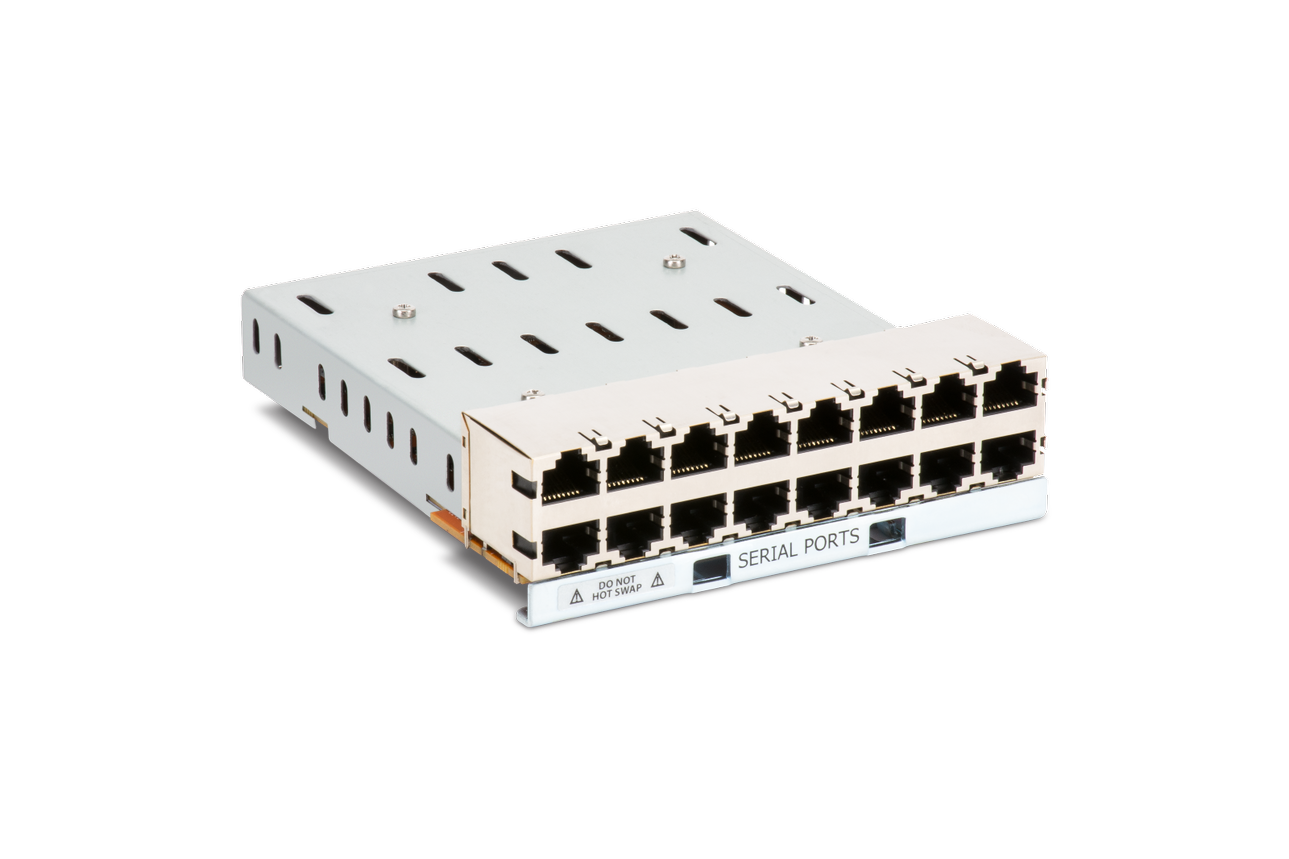

FRRJ451601
16-port RS-232 RJ45 serial I/O module for the SLC 8000 Advanced Console Manager. It expands device port density and is automatically detected once installed.
$1,292.39
Ships on backorder
Expansion modems & routers
2 items

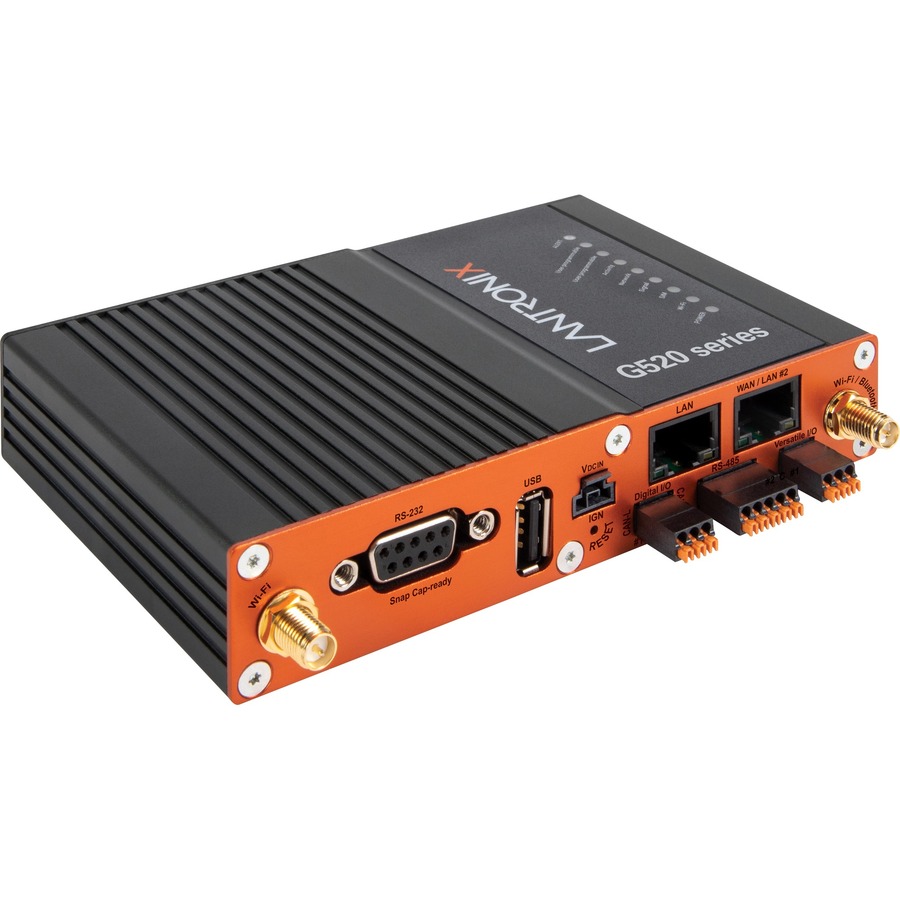

G520 LTE Connectivity Kit - North America
G526GP1AS1B01
G520 LTE Connectivity Kit - North America is a secondary connectivity accessory for the Lantronix SLC 8000.
$304.82
145 in stock
G520 LTE Connectivity Kit - EMEA
G526GP12SB01
G520 LTE Connectivity Kit - EMEA for Lantronix SLC 8000. It adds a G520 G526GP12S Industry Pack LTE Cat 4 router for cellular fail-over.
$316.65
Ships on backorder
Transceivers & SFPs
7 items
SFP Transceiver
SFP-100M-COPPER
SFP Copper RJ-45 100m 1000BASE-T transceiver for data networking. It plugs into Lantronix SLC 8000 console managers with fiber SFP ports.
$90.68
2 in stock
SFP Transceiver
SFP-550M-DUPL
Duplex 1000BASE-SX SFP fiber transceiver for SLC 8000 console managers with fiber SFP ports. It supports 850nm multi-mode optical fiber with 550m distance coverage.
$90.68
Ships on backorder
SFP Transceiver

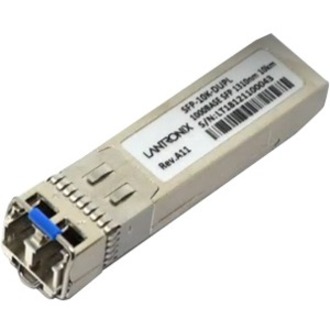

SFP-10K-DUPL
Duplex 10km 1000BASE-LX/LH 1310nm single-mode SFP transceiver. It plugs into Lantronix SLC 8000 console managers with fiber SFP ports.
$118.65
Ships on backorder

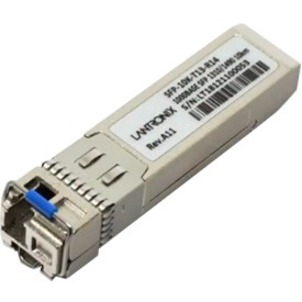

SFP Transceiver
SFP-10K-T13-R14
SFP fiber transceiver for SLC 8000 console managers with fiber SFP ports.
$118.65
Ships on backorder
SFP Transceiver

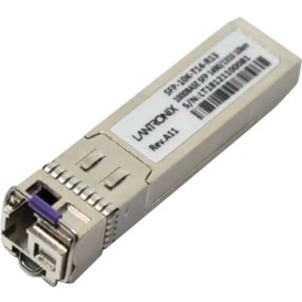

SFP-10K-T14-R13
1000BASE-BX BiDi SFP transceiver for 10km single-mode fiber links. It uses 1490nm-TX/1310nm-RX and is compatible with Lantronix SLC 8000 console managers with fiber SFP ports.
$118.65
Ships on backorder
SFP Transceiver
SFP-2K-DUPL
SFP-2K-DUPL is a Lantronix duplex 2km 1000BASE-SX 1310nm single-mode SFP transceiver. It plugs into SLC 8000 console managers with fiber SFP ports.
$201.43
10 in stock
SFP Transceiver

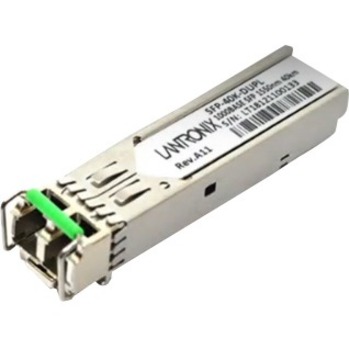

SFP-40K-DUPL
Duplex SFP fiber transceiver for 1000BASE-EX single-mode optical fiber at 40km and 1550nm. It plugs into SLC 8000 console managers with fiber SFP ports.
$302.09
Ships on backorder
Other add-ons
3 items
SGX 5150 - Japan
SGX5150000JS
SGX 5150 Japan wireless IoT gateway for out-of-band connectivity, with 802.11a/b/g/n/ac wireless, USB and 10/100 Ethernet.
$400.56
Ships on backorder
SGX 5150 - US
SGX5150000US
SGX 5150 is an out-of-band connectivity Wireless IoT Gateway for SLC 8000 deployments. This US model supports 802.11a/b/g/n/ac wireless, USB, and 10/100 Ethernet.
$400.67
Ships on backorder

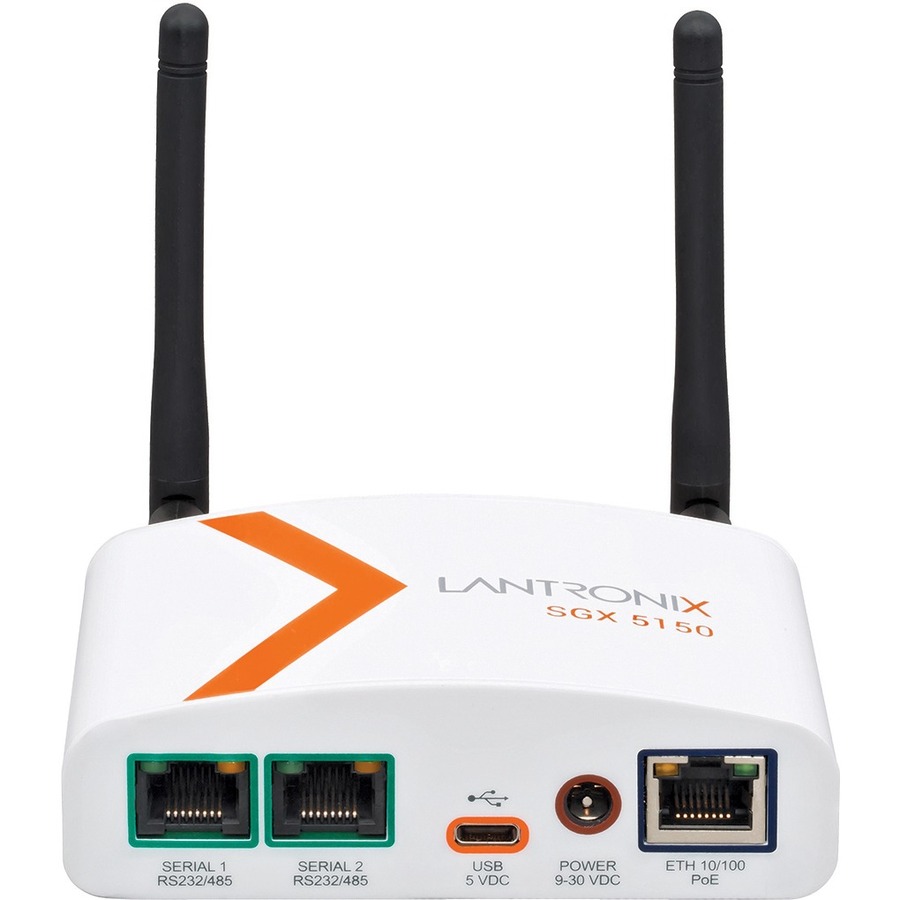

SGX 5150 - EU
SGX5150000ES
SGX 5150 EU wireless IoT gateway for out-of-band connectivity with 802.11a/b/g/n/ac wireless, USB and 10/100 Ethernet.
$400.69
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SLC 8000. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SLC 8000 is used
- Out-of-band console access to data center switches and routers
- Managing USB-console servers and network gear in high-density racks
- Branch and edge sites with LTE failover via the G520
- Government networks requiring FIPS 140-2 and TAA-compliant hardware
- Telecom facilities running on -48 VDC power
SLC 8000 FAQ
Can I add USB or more ports to an SLC 8000 after installation?
Yes. The chassis accepts user-swappable 16-port I/O modules: FRRJ451601 for RS-232 RJ45, FRUSB1601 for USB and FRETH1601 for Ethernet. You can expand up to 48 device ports, mix serial and USB, and move from a single to dual power supply with the FR1ACPS01 and FR2ACPS01 supply modules.
What is the difference between SLC 8000 S and G part numbers?
Part numbers ending in S are the standard builds. Those ending in G, such as SLC80162211G and SLC80322401G, are TAA-compliant versions that Lantronix lists as US only. Port count, power and SFP options otherwise follow the same numbering.
Does the SLC 8000 support cellular failover?
Yes. Paired with the Lantronix G520 LTE gateway, the SLC 8000 fails over automatically to cellular when the wireline network goes down and fails back when it returns. Kits G526GP1AS1B01 (US and Canada) and G526GP12SB01 (EMEA) bundle the G520 for SLC use.
What authentication methods does the SLC 8000 console server support?
Remote authentication through LDAP, RADIUS, Kerberos, TACACS+, Active Directory and NIS, plus local username and password. Access can be restricted with per-port user permissions, custom groups and the built-in packet filtering firewall.
What power options and operating temperature does the SLC 8000 have?
AC models accept 100-240 VAC at 50 to 60 Hz with single or dual supplies; DC models take dual -20 to -72 VDC inputs. Power consumption is under 30W, and the 1U unit operates from 0 to 50 C at 30 to 90% non-condensing humidity.
