Lantronix SGFEB1014-130-NA — Sgfeb Series Media Converter
$499.45$743.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1 RJ-45 network port for 10/100/1000Base-T copper Ethernet
- 1 SC fiber port for 1000Base-LX single-mode fiber
- 10 km maximum distance over single-mode fiber
- Auto Negotiation and Auto-MDI/MDIX support
- Link Pass Through, Far End Fault (FEF), and Remote Fault Detect support
- 2.2 Watts power consumption
- Wall Mountable, Rail-mountable, Rack-mountable, and Standalone form factors
- Convert copper Ethernet to fiber using 10/100/1000Base-T to 1000Base-SX/LX

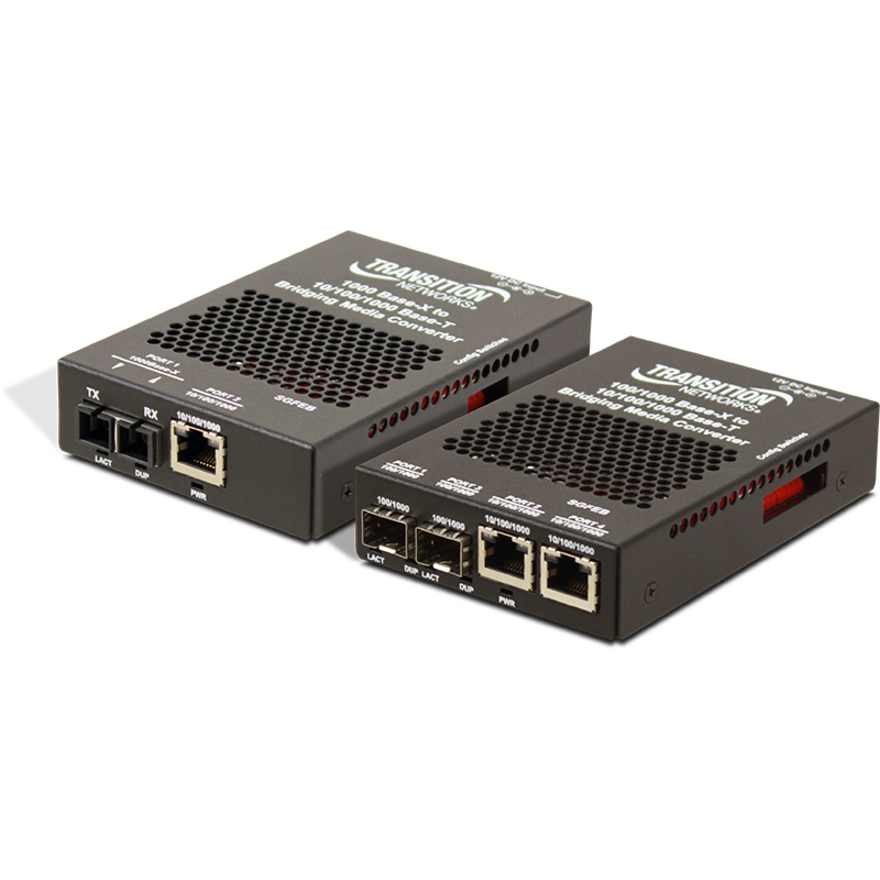

The Lantronix SGFEB1014-130-NA is a stand-alone Gigabit Ethernet media and rate converter for 10/100/1000Base-T copper to 1000Base-LX fiber. This SKU provides 1 RJ-45 network port and 1 SC port for single-mode fiber links up to 10 km. The SGFEB Series feature set includes Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect. It provides rate conversion while also increasing transmission distances. The unit is listed as Wall Mountable, Rail-mountable, Rack-mountable, and Standalone. Power input is 7.5 to 24 VDC, provided by a wide input AC Wall Mount Adapter.
Ideal For
- Extending 10/100/1000Base-T copper Ethernet onto single-mode fiber
- Connecting an RJ-45 Ethernet device to a 1000Base-LX SC fiber link
- Adding media and rate conversion for fiber runs up to 10 km
- Deploying a standalone, wall, rail, or rack-mounted conversion point
Specifications
| Safety | Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 1000 Mbit/s |
| Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az |
| Dimensions | 3.25” [82 mm] x 4.8” [122 mm] x 1″ [25 mm] |
| Fiber Mode | Single-mode |
| Fiber Ports | 1 x SC Ports |
| Form Factor | Standalone, Rack-mountable, Rail-mountable, Wall Mountable |
| Power Input | 7.5 to 24 VDC, Provided by wide input AC Wall Mount Adapter |
| Network Ports | 1 x Network (RJ-45) |
| Certifications | EN55022 Class A, EN55024, FCC Class A, CE Mark |
| Max Frame Size | 10,260 byte Jumbo Frames |
| Fiber Interface | 1000Base-LX |
| Copper Interface | 10/100/1000Base-T |
| Maximum Distance | 10 km |
| Power Consumption | 2.2 Watts |
| Ethernet Technology | Gigabit Ethernet |
| Filtering Addresses | 8K MAC addresses |
| Storage Temperature | -15°C to 65° C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What ports are on SGFEB1014-130-NA?▾
It provides 1 x Network (RJ-45) and 1 x SC Ports.
What fiber type and distance does this model support?▾
This SKU supports single-mode fiber and is listed for 10 km distance.
Does the SGFEB Series include link fault features?▾
Yes. The SGFEB Series feature set includes Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect.
How can this media converter be mounted?▾
It is listed as Wall Mountable, Rail-mountable, Rack-mountable, and Standalone.
