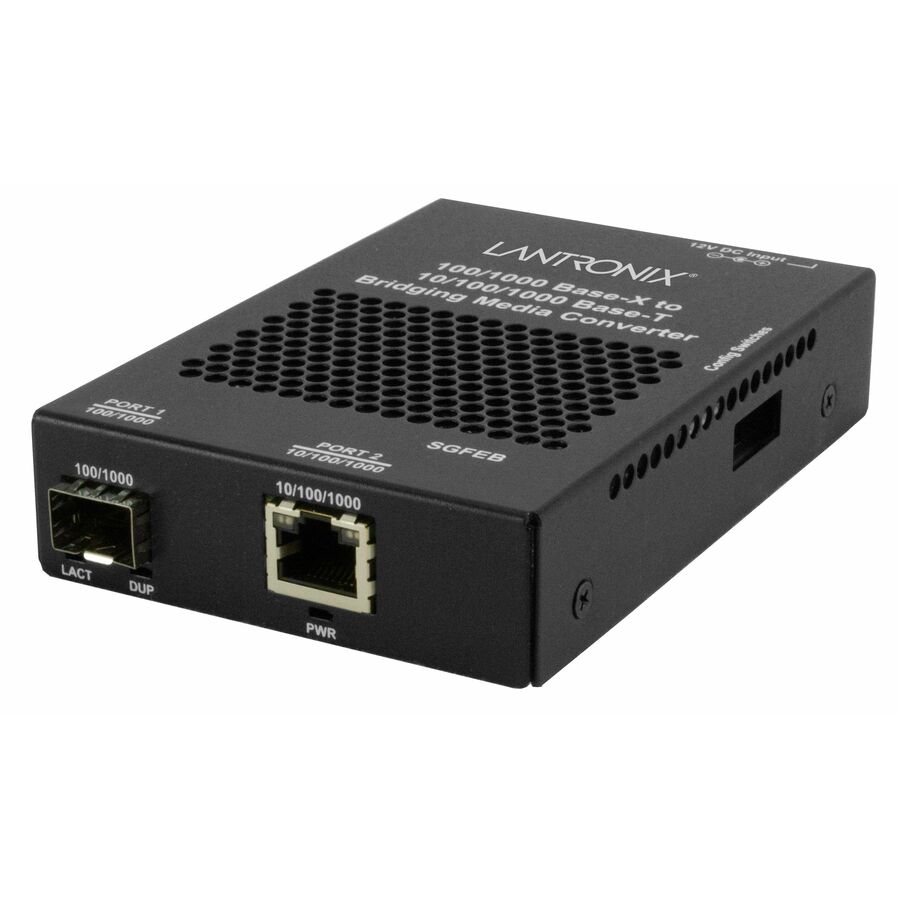

Lantronix SGFEB1040-130-NA — Sgfeb Gigabit Media Converter
$310.91$462.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Monday, Oct 19
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T to 1000Base-BX media conversion
- Single SFP slot for modular fiber optics
- Gigabit Ethernet support with copper 10/100/1000 Mbps and fiber 1000 Mbps data rates
- Auto Negotiation and Auto-MDI/MDIX support
- Link Pass Through, Far End Fault (FEF), and Remote Fault Detect
- 7.5 to 24 VDC power input via wide input AC wall mount adapter
- Standalone, wall-mountable, rail-mountable, and rack-mountable form factors
- Convert copper Ethernet to fiber using 10/100/1000Base-T to 1000Base-BX media conversion
Lantronix SGFEB1040-130-NA is an SGFEB Series stand-alone Gigabit Ethernet media and rate converter for 10/100/1000Base-T to 1000Base-BX conversion. It provides one RJ-45 network port and one SFP slot, with copper 10/100/1000 Mbps data rates and fiber 1000 Mbps data rate. The SFP port also supports 100 Mbps. SGFEB Series features include Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), Remote Fault Detect, and IEEE 802.3az Energy Efficient Ethernet support. This NA configuration is listed with a power supply.
Ideal For
- Adding fiber cabling to 10/100/1000 copper Ethernet links
- Media and rate conversion at the network edge
- Single-mode fiber uplinks using 1000Base-BX and an SFP interface
- Deployments that need Link Pass Through, Far End Fault (FEF), or Remote Fault Detect
Specifications
| Series | SGFEB Series |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3z; IEEE 802.3az |
| Warranty | Lifetime |
| Data Rate | 1 Gbps |
| SFP+ Slots | 1 x SFP Slots |
| Dimensions | 3.25” [82 mm] x 4.8” [122 mm] x 1″ [25 mm] |
| Form Factor | Standalone; Rack-mountable; Rail-mountable; Wall Mountable |
| Power Input | 7.5 to 24 VDC, Provided by wide input AC Wall Mount Adapter |
| Product Type | Media Converter |
| Certification | EN55022 Class A; EN55024; FCC Class A; CE Mark |
| Network Ports | 1 x Network (RJ-45) |
| Connector Type | Single SFP |
| Max Frame Size | 10,260 byte Jumbo Frames |
| TAA Compliance | TAA Compliant |
| Fiber Data Rate | 1000 Mbps, 100 Mbps also supported via SFP port |
| Copper Data Rate | 10/100/1000 Mbps |
| Power Consumption | 2.2 Watts |
| Network Technology | 10/100/1000Base-T to 1000Base-BX |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Filtering Addresses | 8K MAC addresses |
| Storage Temperature | -15°C to 65° C |
| Fiber Mode Supported | Single-mode |
| Safety Certification | UL Listed; UL60950; CSA Certified |
| Operating Temperature | 0°C to 50°C |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What network media does SGFEB1040-130-NA convert?▾
It converts 10/100/1000Base-T copper Ethernet to 1000Base-BX fiber through a single SFP interface.
Does this SKU include a power supply?▾
The SKU is listed with a NA power supply. The SGFEB Series power input is 7.5 to 24 VDC, provided by a wide input AC wall mount adapter.
What mounting options are listed?▾
The listed form factors are standalone, wall-mountable, rail-mountable, and rack-mountable.
Which link diagnostic features are supported?▾
SGFEB Series features include Link Pass Through, Far End Fault (FEF), and Remote Fault Detect.
