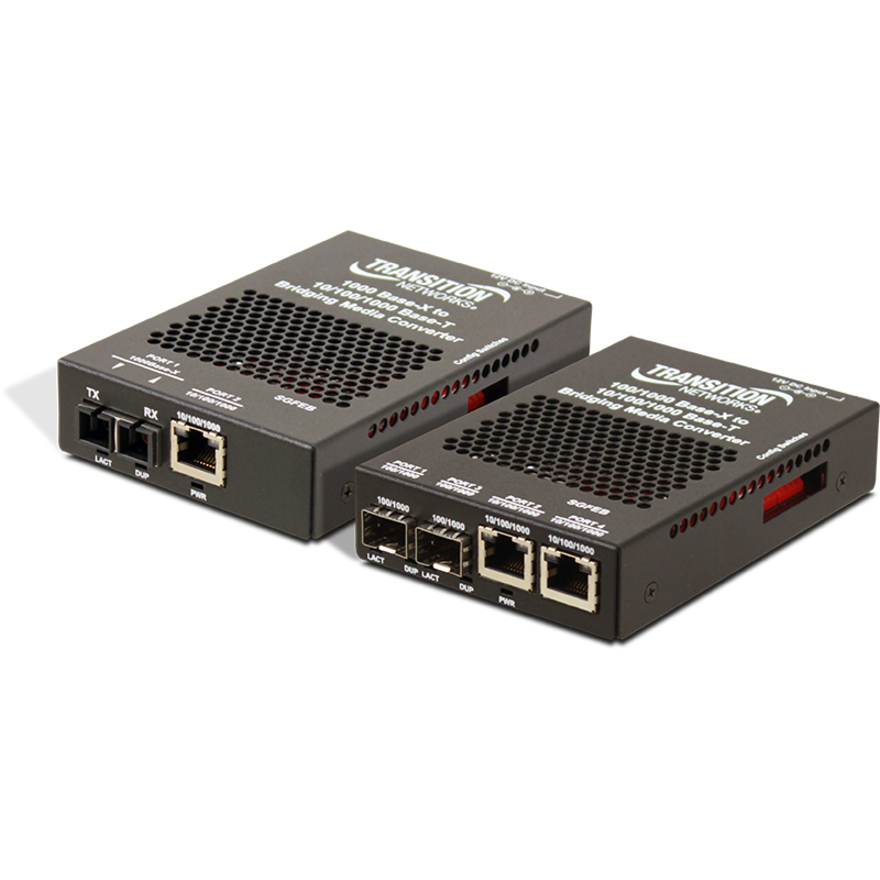

Lantronix SGFEB1040-330-NA — Sgfeb Series Media Converter
$381.30$567.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 12h 59m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 2 RJ-45 network ports for 10/100/1000Base-T copper links
- 2 SFP slots for 100/1000Base-X fiber links
- 1000 Mbps fiber data rate with 100 Mbps also supported via SFP port
- Auto Negotiation and Auto-MDI/MDIX support
- Link Pass Through, Far End Fault (FEF), and Remote Fault Detect
- 7.5 to 24 VDC power input provided by a wide input AC wall mount adapter
- Wall mountable, rail-mountable, rack-mountable, and standalone installation
- Extend Gigabit connectivity using dual 10/100/1000BT to dual 1000BX SFP conversion
Lantronix SGFEB1040-330-NA is an SGFEB Series stand-alone Gigabit Ethernet media and rate converter. It provides an interface between 10/100/1000Base-T copper Ethernet ports and SFP fiber ports for integrating fiber optic cabling into copper Ethernet networks. This configuration has 2 x Network (RJ-45) ports and 2 x SFP slots. The SFP ports support 100/1000/SGMII, and the series supports Auto Negotiation, Auto-MDI/MDIX, Link Pass Through, Far End Fault (FEF), and Remote Fault Detect. The unit includes a North America power supply and uses 7.5 to 24 VDC power input provided by a wide input AC wall mount adapter. It supports standalone, wall, rail, and rack mounting.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper Ethernet networks
- Extending Ethernet links with modular SFP optics
- Adding a copper-to-fiber handoff in a standalone, wall, rail, or rack installation
- Using Link Pass Through, Far End Fault (FEF), and Remote Fault Detect in media conversion deployments
Specifications
| MTBF | Greater than 250,000 MIL-HDBK-217F Hours. Greater than 687,500 Bellcore Hours |
| Safety | Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall Mountable, Rail-mountable, Rack-mountable |
| Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az |
| Dimensions | 3.25” [82 mm] x 4.8” [122 mm] x 1″ [25 mm] |
| Form Factor | Standalone |
| Power Input | 7.5 to 24 VDC, Provided by wide input AC Wall Mount Adapter |
| Network Ports | 2 x Network (RJ-45) |
| Certifications | EN55022 Class A, EN55024, FCC Class A, CE Mark |
| Max Frame Size | 10,260 byte Jumbo Frames |
| TAA Compliance | TAA Compliant |
| Expansion Slots | 2 x SFP Slots |
| Fiber Data Rate | 1000 Mbps, 100 Mbps also supported via SFP port |
| Fiber Interface | 100/1000Base-X |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T |
| Limited Warranty | Lifetime |
| Power Consumption | 2.2 Watts |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Filtering Addresses | 8K MAC addresses |
| Storage Temperature | -15°C to 65° C |
| Operating Temperature | 0°C to 50°C |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What does this SGFEB media converter connect?▾
It provides an interface between 10/100/1000Base-T copper Ethernet ports and SFP fiber ports.
How many network and SFP ports does it have?▾
This configuration has 2 x Network (RJ-45) ports and 2 x SFP slots.
What speeds do the SFP ports support?▾
The SFP ports support 100/1000/SGMII. The fiber data rate is 1000 Mbps, with 100 Mbps also supported via the SFP port.
What mounting options are supported?▾
It is listed as standalone, wall mountable, rail-mountable, and rack-mountable.
