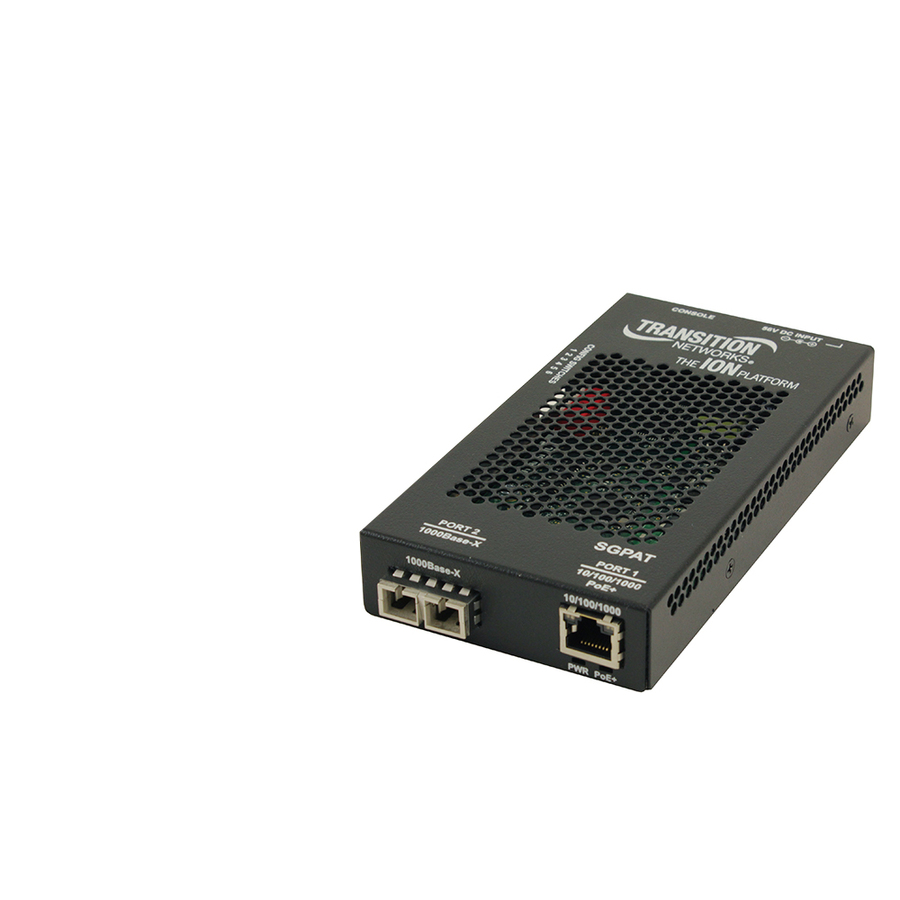

Lantronix SGPAT1013-105-NA — SGPAT Series PoE+ SC Media Converter
$420.74$625.00
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Wednesday, Oct 21
Order within 12h 28m to get it by Wednesday, Oct 21
New, with full manufacturer warranty
Key Features
- 2-port 10/100/1000 copper-to-fiber media conversion with IEEE 802.3at PoE+ on the copper port
- 1000BASE-SX multimode fiber interface with fixed SC connector
- 1 x RJ-45 PoE+ copper port and 1 x SC fiber port
- 30 Watts of power supported to each twisted pair port
- Active Link Pass Through, Auto-Negotiation, Auto-MDI/MDIX, and Remote Fault Detection support
- External AC/DC power supply included
- Wall mount, DIN Rail, or table top installation
- Extend Gigabit edge links using 10/100/1000 PoE+ to 1000BASE-SX conversion
Lantronix SGPAT1013-105-NA is an SGPAT Series stand-alone Fast & Gigabit Ethernet PoE / PoE+ media converter. It converts 10/100/1000Base-T PoE+ PSE copper to 1000BASE-SX multimode fiber through a fixed SC interface. As Power Sourcing Equipment, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device over twisted pair cabling. The series complies with IEEE 802.3af PoE and IEEE 802.3at PoE+ and supports full 30 Watts of power to each twisted pair port. Operational features include Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through, and Remote Fault Detection. During a Link Pass Through event, Auto Power Reset re-sets power to the end PD device so it is ready when the LPT event is corrected.
Ideal For
- Converting 10/100/1000Base-T PoE+ copper links to 1000BASE-SX multimode fiber
- Providing PoE+ power and Ethernet data to a Powered Device over twisted pair cabling
- Access-layer extensions where fiber cabling connects network segments
- Installations that require wall mount, DIN Rail, or table top placement
Specifications
| Depth | 4.8″ [122 mm] |
| Width | 3.25” [82 mm] |
| Height | 1” [25 mm] |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 – 10,000 ft. (with de-rating) |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall mount, DIN Rail, or table top |
| Warranty | Lifetime |
| Data Rate | 1 Gbps |
| PoE++ Power | 30 Watts |
| Fiber Mode | Multimode |
| Form Factor | Standalone media converter |
| Power Source | External AC/DC 56VDC power adapter |
| Certification | EN55022 Class A; EN55024; CE Mark |
| Fiber Interface | 1 x SC |
| Max Packet Size | 10,000 bytes |
| Copper Interface | 1 x RJ-45 PoE+ |
| Maximum Distance | 0.55 km |
| Max Mac Addresses | 8k |
| Network Technology | 10/100/1000 PoE+ to 1000BASE-SX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Shared Buffer Memory | 1Mbit |
| Operating Temperature | 0°C to +45°C |
| MTBF With Power Supply | 42000 Hrs. (MIL-HDBK 217F) 115000 Hrs. (Bellcore) |
| Environmental Compliance | WEEE; RoHS; REACH |
| MTBF Without Power Supply | 163000 Hrs. (MIL-HDBK 217F) 450000 Hrs. (Bellcore) |
| Power Supply Certification | UL listed |
| Fiber Optic Cable Core Cladding Specification | 50/125 µm; 62.5/125 µm |
Frequently Asked Questions
What fiber interface does this media converter use?▾
It uses a 1000BASE-SX multimode fiber interface with an SC connector.
Does it provide PoE+ power on the copper port?▾
Yes. The SGPAT Series is Power Sourcing Equipment and provides power and data to a Powered Device over twisted pair cabling while complying with IEEE 802.3af PoE and IEEE 802.3at PoE+. The series supports full 30 Watts of power to each twisted pair port.
How can it be mounted?▾
The SGPAT Series supports wall mount, DIN Rail, or table top installation.
Is a power supply included?▾
Yes. The listed features state that an external AC/DC power supply is included, and the power source is an external AC/DC 56VDC power adapter.
