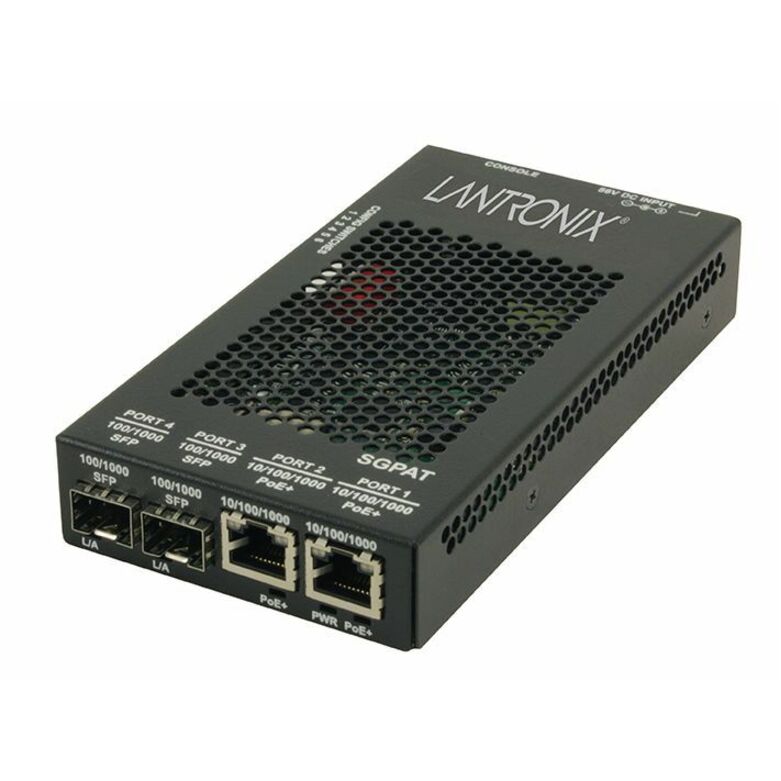

Lantronix SGPAT1040-305-NA — PoE+ Media Converter
$499.30$742.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4 ports: 2 10/100/1000 PoE+ RJ-45 ports and 2 open dual-speed SFP ports
- 30 Watts of power to each twisted pair port
- 100Base-FX, 1000Base-X, or SGMII based SFP module support in the SFP slots
- Active Link Pass Through (ALPT) and Remote Fault Detection support
- 4-port switch or two independent PoE+ media converters in one housing
- Wall mount, DIN Rail, or table top installation
- External AC/DC 56VDC power adapter included
- Extend powered Ethernet endpoints using 10/100/1000 PoE+ RJ-45 access
Lantronix SGPAT1040-305-NA is an SGPAT Series stand-alone Fast & Gigabit Ethernet PoE / PoE+ media converter for 10/100/1000Base-T PoE+ PSE to 1000Base-X deployments. This configuration has 2 10/100/1000 PoE+ RJ-45 ports and 2 open dual-speed SFP ports. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with IEEE 802.3af PoE and IEEE 802.3at PoE+. The 4-port version can be configured as a 4-port switch with or without redundant fiber, or as two independent PoE+ media converters in one housing. Active Link Pass Through (ALPT), Remote Fault Detection, PD signature sensing, power monitoring, over-current protection, under-current protection and fault protection input are supported. Wall mount, DIN Rail, or table top installation and an included external AC/DC power supply support flexible placement.
Ideal For
- Connecting 10/100/1000Base-T PoE+ twisted pair devices to a 1000Base-X fiber link
- Using open SFP slots for mixed 100Base-FX, 1000Base-X, or SGMII based SFP deployments
- Configuring one unit as two independent PoE+ media converters in one housing
- Deploying a 4-port switch with or without redundant fiber
Specifications
| Series | SGPAT Series |
| Weight | 2 lbs. [0.9 kg] |
| Altitude | 0 – 10,000 ft. (with de-rating) |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall mount, DIN Rail, or table top |
| Warranty | Lifetime |
| Data Rate | 1 Gbps |
| PoE++ Power | 30 Watts to each twisted pair port |
| SFP+ Ports | 2 x open dual speed SFP |
| Dimensions | 3.25” [82 mm] x 4.8″ [122 mm] x 1” [25 mm] |
| Port Count | 4 ports |
| Device Type | Media Converter |
| PoE++ Standard | IEEE 802.3at PoE+; IEEE 802.3af PoE |
| Power Source | External AC/DC 56VDC power adapter |
| TAA Compliant | Yes |
| Certifications | EN55022 Class A, EN55024, CE Mark, Power Supply is UL listed |
| Connector Type | RJ-45 and SFP |
| Power Consumption | 56VDC, 1.17A, 65.5 Watts (assumes both PoE ports are delivering the full 30 Watts) |
| Network Technology | 10/100/1000 PoE+ to dual SFP media conversion |
| SFP+ Module Support | 100Base-FX, 1000Base-X, or SGMII based (MSA compliant) |
| Twisted Pair Ports | 2 x 10/100/1000 PoE+ RJ-45 |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Packet Size | 10,000 bytes |
| Storage Temperature | -40°C to 85°C |
| Shared Buffer Memory | 1Mbit |
| Maximum Mac Addresses | 8k |
| Operating Temperature | 0°C to +45°C |
| Environmental Compliance | WEEE, RoHS, REACH |
Frequently Asked Questions
What ports does SGPAT1040-305-NA include?▾
It has 2 10/100/1000 PoE+ RJ-45 ports and 2 open dual-speed SFP ports.
How much PoE+ power does it support?▾
The SGPAT Series supports full 30 Watts of power to each twisted pair port.
Can this model operate as more than a media converter?▾
Yes. The 4-port version can be configured as a 4-port switch with or without redundant fiber, or as two independent PoE+ media converters in one housing.
How can it be mounted?▾
It supports wall mount, DIN Rail, or table top installation, and an external AC/DC power supply is included.
