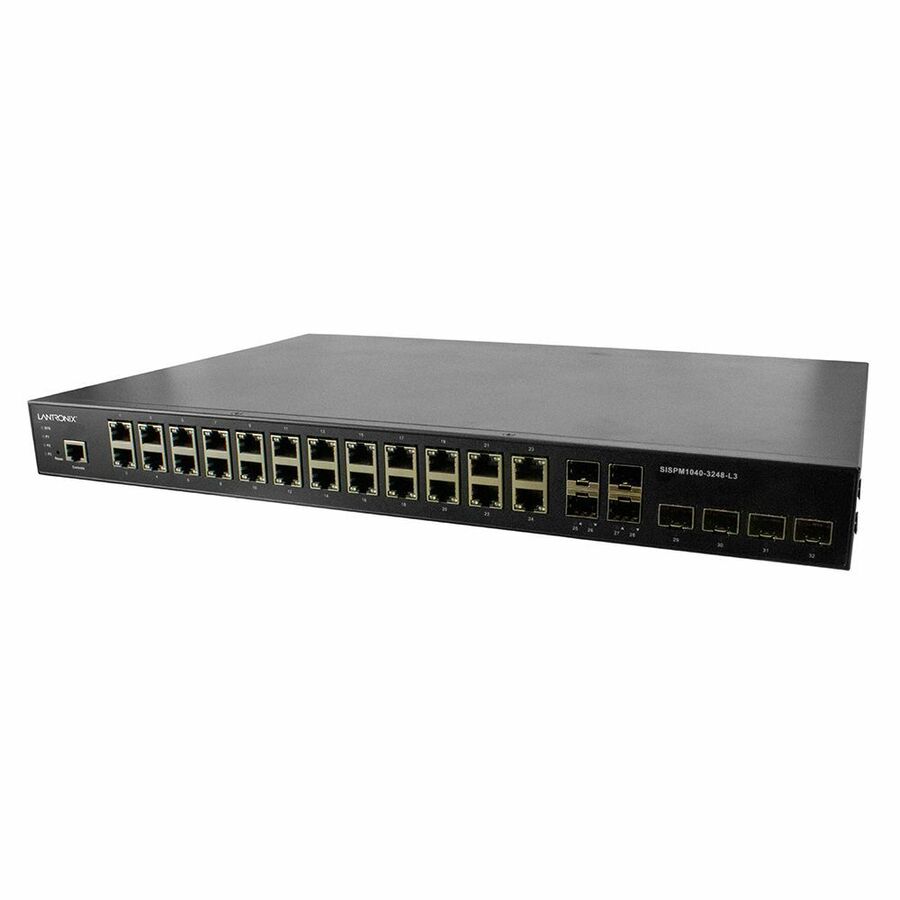

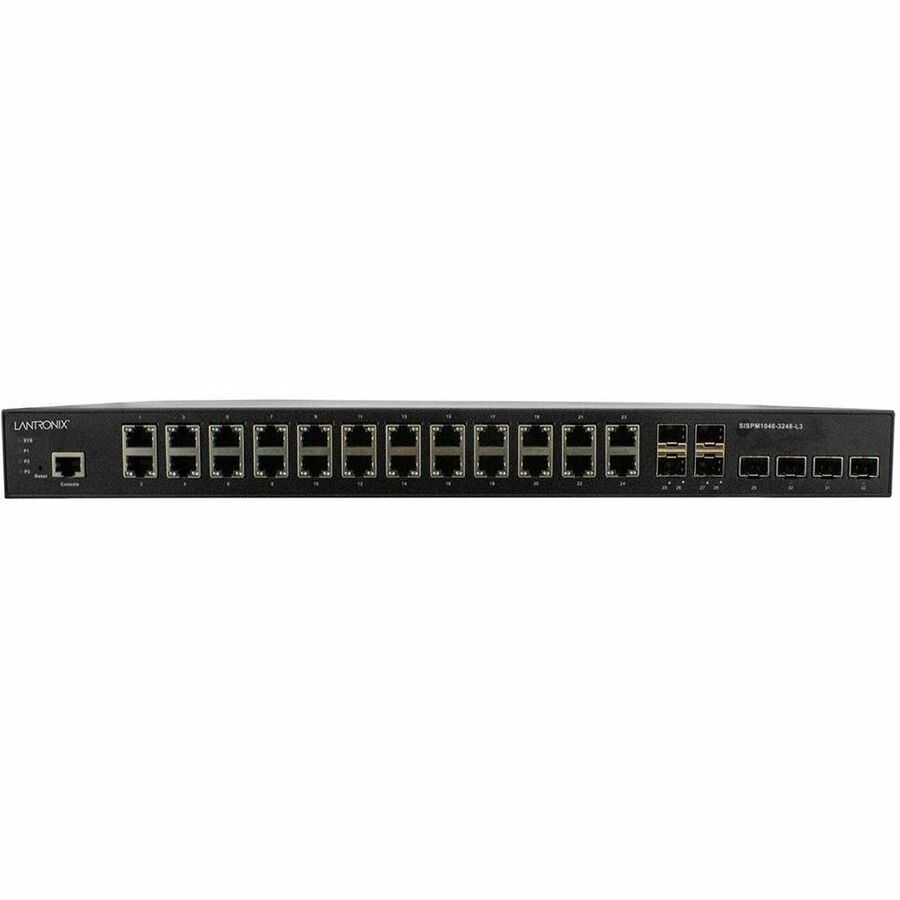

Lantronix SISPM1040-3248-L3-JP — Layer 3 Managed Hardened PoE+ Switch
$2,236.49
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T PoE+ ports for copper PoE+ switching
- 4 100/1000Base-X SFP slots for additional network connectivity
- 4 1G/10GBase-X SFP+ slots for 10 Gigabit Ethernet connectivity
- Layer 3 routing with IPv4/IPv6 static routing, RIP v1/v2 and OSPF v2/v3
- Security and access control with RADIUS, TACACS+, SSH v1/v2, IP Source Guard and Port Security
- Network protection features including ITU-T G.8031 ELPS, ITU-T G.8032 ERPS and Rapid Ring
- 370 W PoE budget with 52V - 57 VDC or 100V - 250 VAC input
The Lantronix SISPM1040-3000-L3 Series provides Layer 3 managed hardened PoE+ switching with copper PoE+, SFP and SFP+ connectivity. The SISPM1040-3248-L3-JP configuration includes 24 10/100/1000Base-T PoE+ ports, four 100/1000Base-X SFP slots and four 1G/10GBase-X SFP+ slots. Layer 3 features include IPv4/IPv6 static routing plus RIP v1/v2 and OSPF v2/v3 dynamic routing. Management and security features listed for the series include RADIUS, TACACS+, SSH v1/v2, DHCP Relay, DHCP Snooping, DHCP Server, DHCP Client, L2/L3/L4 ACLs, IP Source Guard and Port Security. Network features include LACP, LLDP/CDP Aware, ITU-T G.8031 ELPS, ITU-T G.8032 ERPS, Rapid Ring, Storm Control, Port Mirroring, SNMP Traps/Syslog/SMTP and jumbo frames up to 10K bytes. This SKU supports 52V - 57 VDC or 100V - 250 VAC input and includes a Japan power cord.
Ideal For
- Layer 3 PoE+ access switching with 24 10/100/1000Base-T PoE+ ports
- Networks requiring 100/1000Base-X SFP and 1G/10GBase-X SFP+ connectivity in the same switch
- Deployments using RIP v1/v2 or OSPF v2/v3 Dynamic Routing
- Japan installations requiring the included Japan power cord
Specifications
| SSH | V1/v2 |
| Depth | 11.8" |
| Height | 1.7" |
| SFP+ Slots | (4) 100/1000Base-X |
| Manageable | Yes |
| PoE++ Ports | (24) 10/100/1000Base-T |
| PoE++ Budget | 370 W |
| SFP+ Slots | (4) 1G/10GBase-X |
| Jumbo Frame | Up to 10K bytes |
| Authentication | RADIUS, TACACS+ |
| Static Routing | IPv4/IPv6 Layer 3 |
| Dynamic Routing | RIP v1/v2, OSPF v2/v3 |
| AC Input Voltage | 100V - 250 VAC |
| DC Input Voltage | 52V - 57 VDC |
| Limited Warranty | 5 Year |
| Power Consumption | 15 W |
| Ethernet Technology | 10 Gigabit Ethernet |
| Included Power Cord | Japan power cord |
| Environmental Compliance | WEEE; RoHS; REACH |
Documentation
Frequently Asked Questions
How many PoE+ ports does SISPM1040-3248-L3-JP include?▾
It includes 24 10/100/1000Base-T PoE+ ports.
What SFP connectivity is included?▾
It includes four 100/1000Base-X SFP slots and four 1G/10GBase-X SFP+ slots.
What power input does this SKU support?▾
This SKU supports 52V - 57 VDC or 100V - 250 VAC input and includes a Japan power cord.
Which routing features are listed for this switch?▾
The listed Layer 3 routing features include IPv4/IPv6 Layer 3 Static Routing plus RIP v1/v2 and OSPF v2/v3 Dynamic Routing.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SISPM1040-3248-L3-JP-L1Y1
$299.08 - 3-year technical support
SISPM1040-3248-L3-JP-L1Y3
$872.32 - 5-year technical support
SISPM1040-3248-L3-JP-L1Y5
$1,412.32 - 1-year extended warranty & technical support
SISPM1040-3248-L3-JP-L2Y1
$432.01 - 3-year extended warranty & technical support
SISPM1040-3248-L3-JP-L2Y3
$1,246.17 - 5-year extended warranty & technical support
SISPM1040-3248-L3-JP-L2Y5
$1,993.86
