Lantronix SISPM1040-3248-L3-SA — SISPM1040-3000-L3 Series Managed Hardened PoE+ Switch
$2,496.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T PoE+ ports for powered Ethernet connections
- 4 100/1000Base-X SFP slots for fiber connections
- 4 1G/10GBase-X SFP+ slots for 10 Gigabit Ethernet connections
- IPv4/IPv6 Layer 3 static routing with RIP v1/v2 and OSPF v2/v3 dynamic routing
- 370 W PoE budget for connected PoE devices
- 52V - 57 VDC or 100V - 250 VAC input power with South Africa power cord
- Management and security features including RADIUS, TACACS+, SSH v1/v2, DHCP Snooping, L2/L3/L4 ACLs, and SNMP Traps/Syslog/SMTP

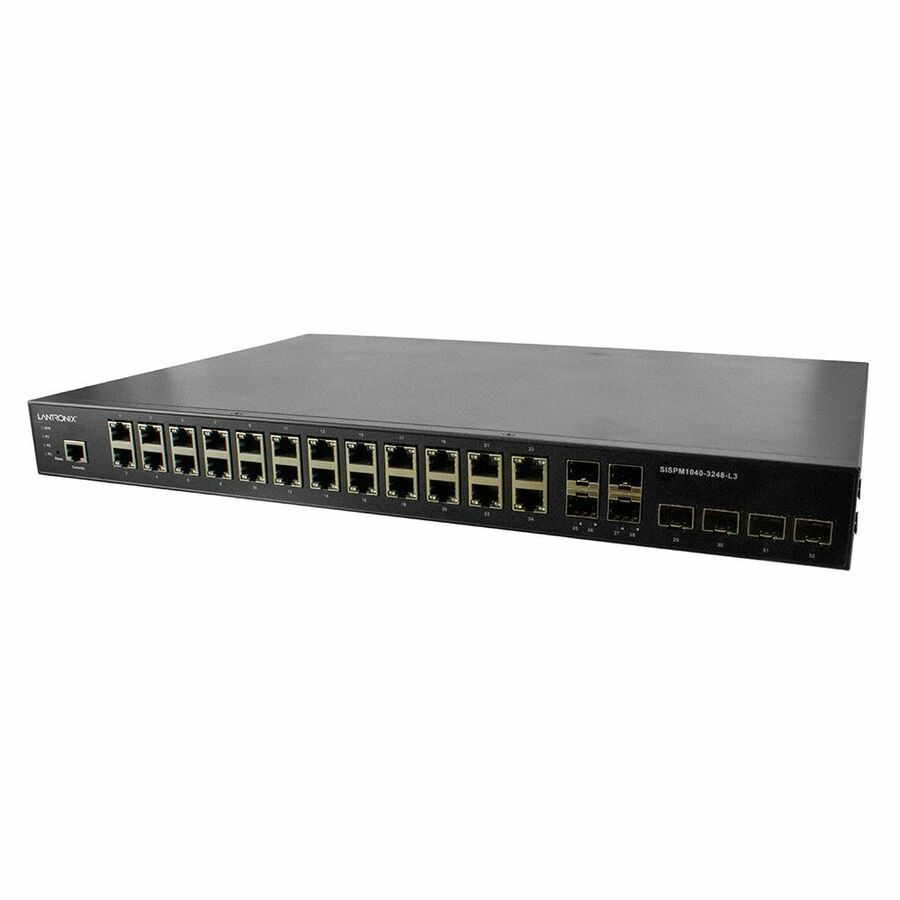

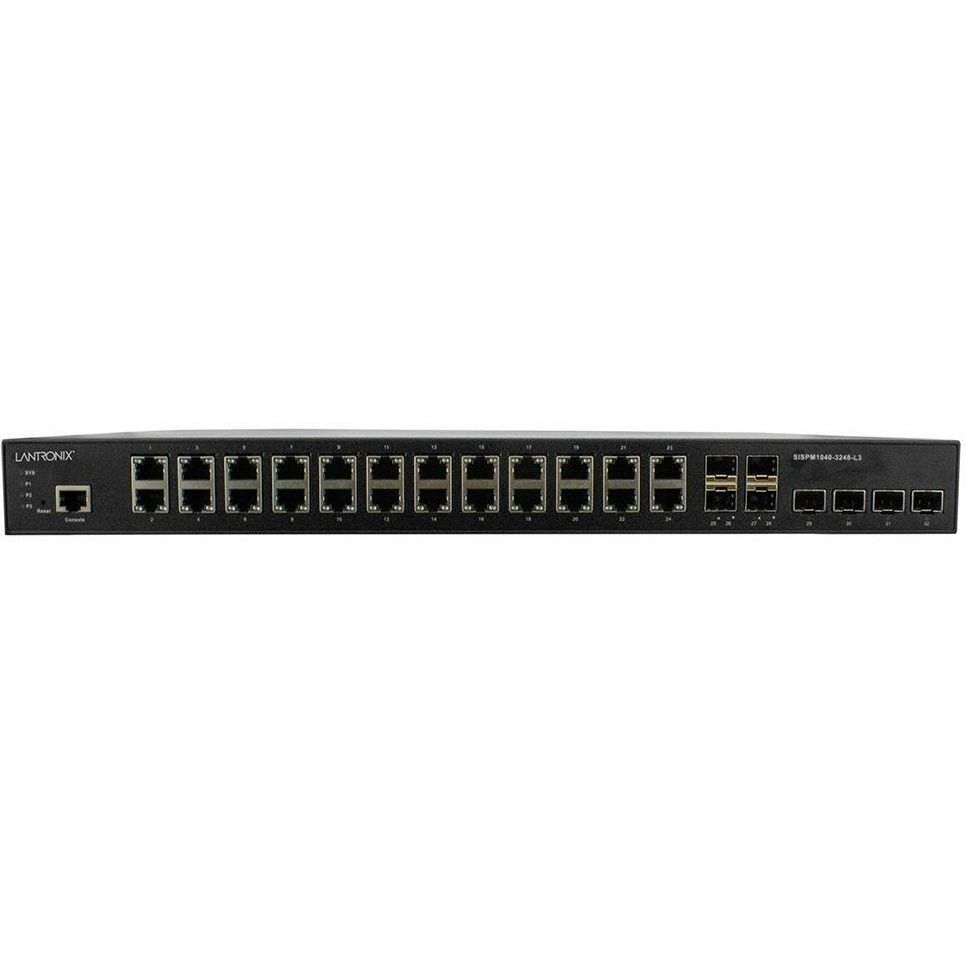

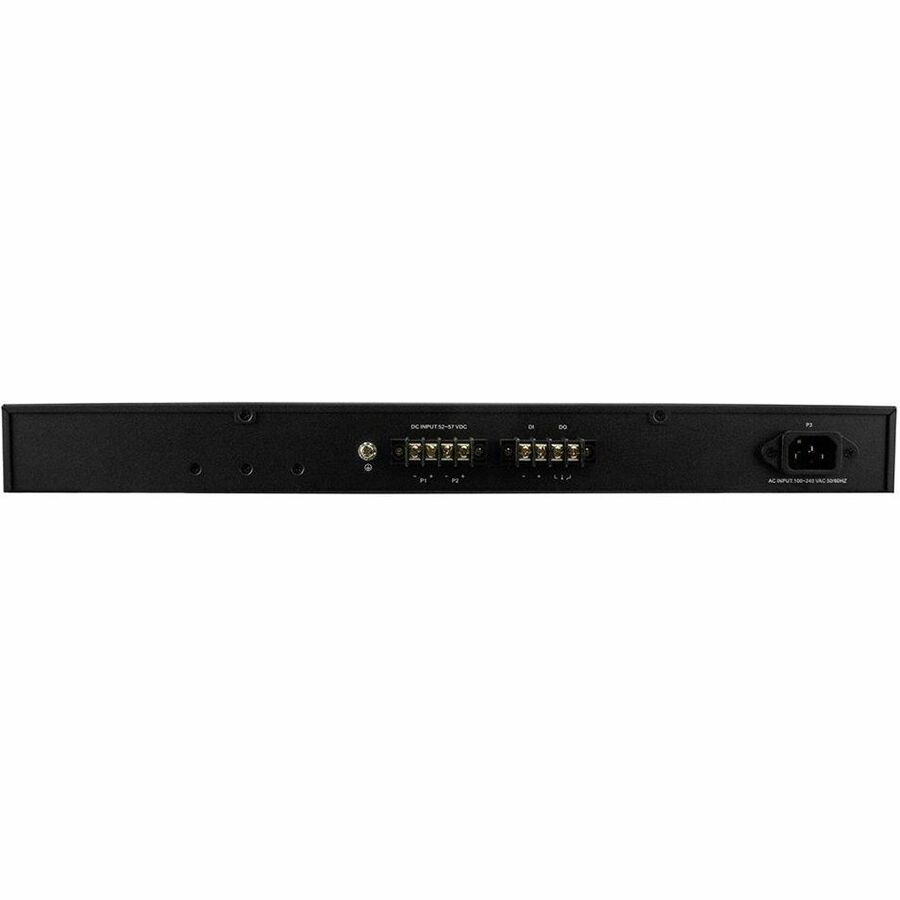

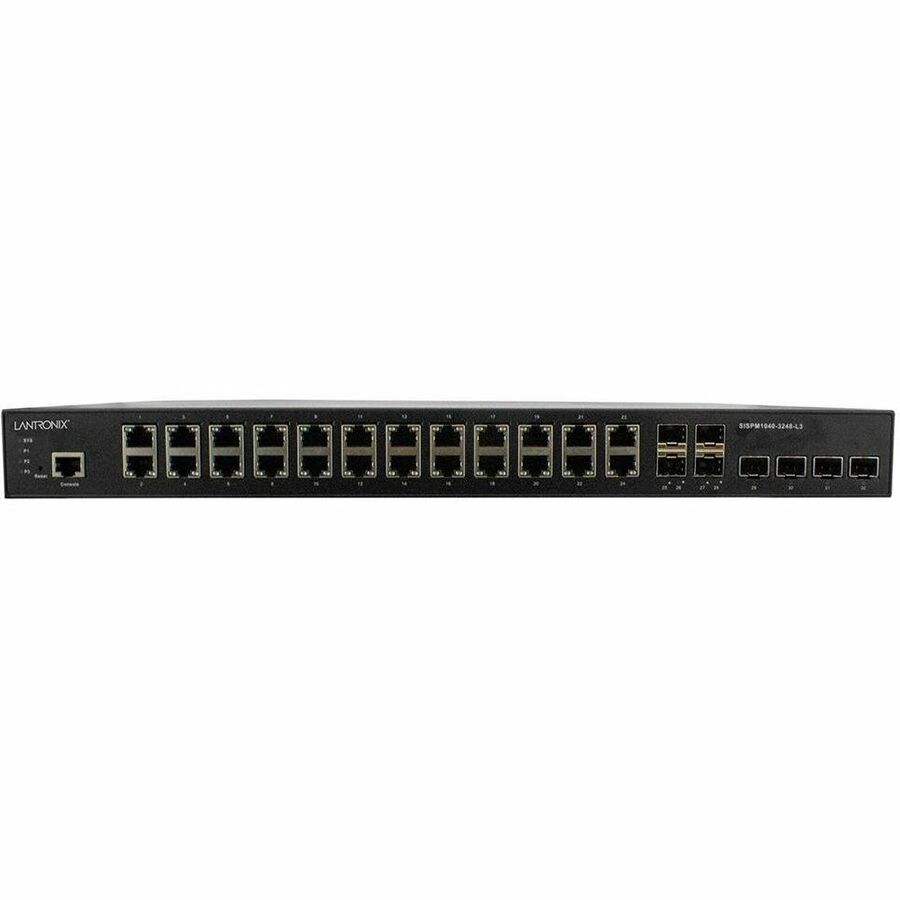

The Lantronix SISPM1040-3248-L3-SA is a SISPM1040-3000-L3 Series managed hardened PoE+ switch with (24) 10/100/1000Base-T PoE+ ports, (4) 100/1000Base-X SFP slots, and (4) 1G/10GBase-X SFP+ slots. It supports IPv4/IPv6 Layer 3 static routing, RIP v1/v2, OSPF v2/v3, Jumbo Frame up to 10K bytes, LACP, LLDP/CDP Aware, ITU-T G.8031 ELPS, ITU-T G.8032 ERPS, and Rapid Ring. The switch lists a 370 W PoE budget and 15 W power consumption. This SA configuration accepts 52V - 57 VDC or 100V - 250 VAC and includes a South Africa power cord.
Ideal For
- Layer 3 managed switching for networks that need PoE+ access ports and SFP/SFP+ connections
- Connecting PoE devices through 10/100/1000Base-T PoE+ ports
- Using SFP and SFP+ slots for fiber and 10 Gigabit Ethernet connections
- Deployments that require 52V - 57 VDC or 100V - 250 VAC input power with a South Africa power cord
Specifications
| SSH | V1/v2 |
| DHCP | DHCP Relay; DHCP Snooping; DHCP Server; DHCP Client |
| LACP | Link Aggregation Control Protocol |
| Depth | 11.8" |
| Height | 1.7" |
| Lldp Cdp | LLDP/CDP Aware |
| SFP+ Slots | (4) 100/1000Base-X SFP slots |
| Manageable | Yes |
| PoE++ Ports | (24) 10/100/1000Base-T PoE+ ports |
| PoE++ Budget | 370 W |
| SFP+ Slots | (4) 1G/10GBase-X SFP+ slots |
| Jumbo Frame | Up to 10K bytes |
| Authentication | RADIUS; TACACS+ |
| Static Routing | IPv4/IPv6 Layer 3 |
| Dynamic Routing | RIP v1/v2; OSPF v2/v3 |
| Layer Supported | 4 |
| AC Input Voltage | 100V - 250 VAC |
| DC Input Voltage | 52V - 57 VDC |
| Limited Warranty | 5 Year |
| Energy Efficiency | IEEE 802.3az |
| Power Consumption | 15 W |
| Ethernet Technology | 10 Gigabit Ethernet |
| Included Power Cord | South Africa power cord |
| Environmental Compliance | WEEE; RoHS; REACH |
| Ethernet Ring Protection Switching | ITU-T G.8032 |
| Ethernet Linear Protection Switching | ITU-T G.8031 |
Documentation
Frequently Asked Questions
How many PoE+ ports does the SISPM1040-3248-L3-SA have?▾
It has (24) 10/100/1000Base-T PoE+ ports.
What fiber and SFP+ slots are included?▾
It has (4) 100/1000Base-X SFP slots and (4) 1G/10GBase-X SFP+ slots.
What input power does this switch support?▾
The part table lists 52V - 57 VDC or 100V - 250 VAC input power.
Does this SKU include a power cord?▾
Yes. This SKU description states that it includes a South Africa power cord.
