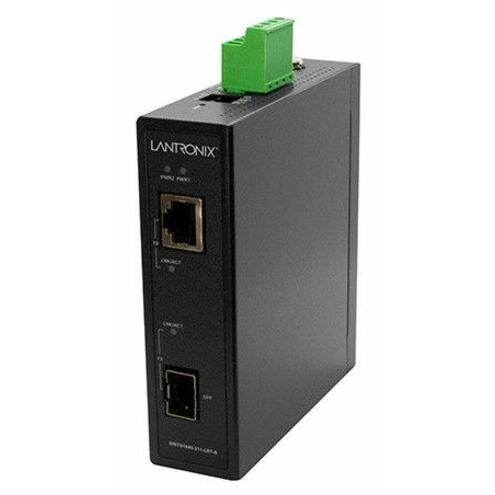

Lantronix SISTG1040-211-LRT-B — SISTG-211 Series SFP Media Converter
$397.50
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T RJ-45 copper port with 100 m/328 ft. reach
- 100/1000Base-X SFP slot supplied empty for SFP module selection
- Extended operating temperature from -40°C to +75°C
- Dual, redundant 12-48 VDC power inputs with reverse polarity protection
- Auto-Negotiation and Auto-MDI/MDIX for copper connectivity
- Link Pass Through with dip-switch enable/disable control
- DIN Rail Mounting Brackets Included
The Lantronix SISTG1040-211-LRT-B is an unmanaged hardened Gigabit Ethernet media converter in the SISTG-211 Series. This SKU converts a 10/100/1000Base-T RJ-45 copper connection to a 100/1000Base-X SFP slot supplied empty. The SFP version provides flexibility to choose the appropriate SFP module to match communication and distance needs. Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, and jumbo frame support are listed for the series. It operates from -40°C to +75°C and uses dual, redundant 12-48 VDC power inputs with reverse polarity protection. The series is Class 1, Div 2 Certified and includes DIN rail mounting brackets.
Ideal For
- Extending Ethernet service over fiber with a selected 100/1000Base-X SFP module
- Connecting 10/100/1000Base-T copper equipment to SFP-based fiber infrastructure
- Deploying media conversion in Oil & Gas, manufacturing, and chemical industry environments
- DIN rail mounting in hardened network installations
Specifications
| Depth | 3.86” [98 mm] |
| Width | 1.2” [30 mm] |
| Height | 4.25” [108 mm] |
| Weight | 0.97 lbs. [0.44 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Warranty | 5 Years |
| Power Input | 12 to 48 VDC |
| Certification | UL Class 1, Div 2 for hazardous environments; CISPR/EN55022 Class A; FCC Class A; CE Mark; EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6; IEC60068-2-32 (Free fall); IEC60068-2-27 (Shock); IEC60068-2-6 (Vibration) |
| SFP+ Data Rate | 100/1000 Mbps |
| SFP+ Interface | 100/1000Base-X SFP slot (empty) |
| MTBF At 2500 C | 1,628,265 Hrs |
| MTBF At 7500 C | 248,741 Hrs |
| Copper Data Rate | 10/100/1000 Mbps |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m/328 ft.] |
| Power Consumption | 3.4 Watts (max) |
| Ingress Protection | IP30 |
| Power Input Current | 0.2A-0.5A |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to +75°C |
Frequently Asked Questions
What interfaces does SISTG1040-211-LRT-B provide?▾
It includes a 10/100/1000Base-T RJ-45 port rated for 100 m/328 ft. and a 100/1000Base-X SFP slot supplied empty.
Does this media converter include an SFP module?▾
No. The Lantronix part-table row describes this SKU as a 100/1000Base-X SFP slot (empty).
What operating temperature range is specified?▾
The operating temperature is -40°C to +75°C.
Are DIN rail mounting brackets included?▾
Yes. The SISTG-211 Series features list DIN Rail Mounting Brackets Included.
