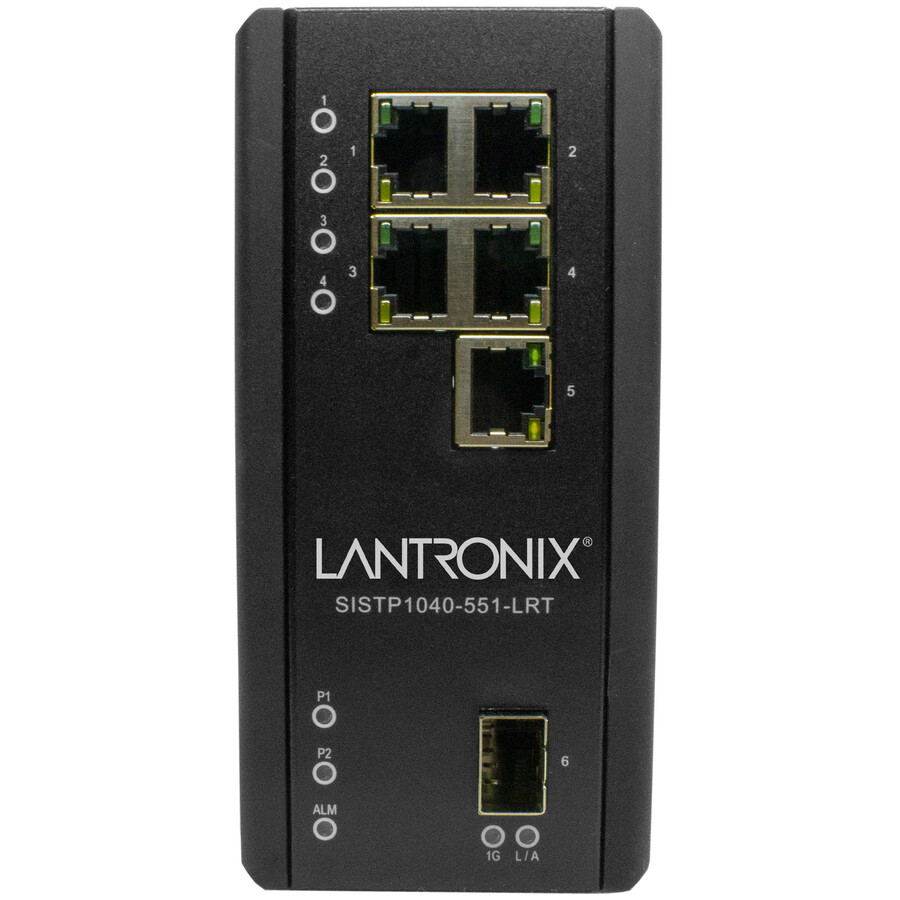

Lantronix SISTP1040-551-LRT — Hardened Gigabit PoE++ Switch
$505.15$750.60
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 4 10/100/1000Base-T PoE++ ports deliver 90 Watts on all 4 ports simultaneously
- 1 10/100/1000Base-T RJ-45 port adds non-PoE Gigabit Ethernet connectivity
- 1 100/1000Base-X SFP slot supports fiber uplink connectivity
- 360 Watts total PoE budget powers PoE lighting, high powered IP cameras and digital signage
- Power over HDBaseT (PoH) mode is enabled by DIP switch
- -40°C to +75°C operating temperature range supports hardened installations
- DIN rail and wall mount options support industrial mounting
The Lantronix SISTP1040-551-LRT is an unmanaged full Gigabit Ethernet hardened PoE++ switch with (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port and (1) 100/1000 dual speed SFP slot. It complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. It can deliver up to 90 Watts on each PoE++ port simultaneously and supports Power over HDBaseT (PoH) mode when enabled by DIP switch. The switch can be used to power PoE lighting, high powered IP cameras and digital signage. Redundant input power connections support operation in temperatures between -40°C and +75°C.
Ideal For
- Powering PoE lighting
- Powering high powered IP cameras
- Powering digital signage
- Hardened Ethernet switching in -40°C to +75°C environments
Specifications
| Emi | CE, FCC Part 15 |
| MTBF | > 25 years |
| Depth | 4.1” [105 mm] |
| Width | 2.4” [62 mm] |
| Height | 5.1″ [130 mm] |
| Safety | EN62368-1, UL62368-1 |
| Weight | 2.10 lbs [0.95 kg] |
| Humidity | 5% to 95% (non-condensing) |
| SFP+ Slot | (1) 100/1000Base-X SFP slot |
| Warranty | 5 Years |
| PoE++ Ports | (4) 10/100/1000Base-T PoE++ [100 m/328 ft.] ports |
| Mac Address | 2K MAC address table |
| Power Input | 48-57 VDC; Redundant input; reverse power protection; 54 – 57VDC for PoE++ |
| RJ-45 Ports | (5) 10/100/1000Base-T RJ-45 ports |
| Total PoE++ Budget | 360 Watts |
| Power Consumption | 5 Watts (without PoE) |
| Ingress Protection | IP30 |
| Switching Capacity | 12 Gbps |
| Power Over Ethernet | 90 Watts on all 4 ports simultaneously |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +75°C |
Frequently Asked Questions
What ports does the SISTP1040-551-LRT include?▾
It has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port, and (1) 100/1000Base-X SFP slot.
How much PoE power can it provide?▾
It can deliver 90 Watts on all 4 PoE++ ports simultaneously, with a total PoE budget of 360 Watts.
Does this switch support Power over HDBaseT?▾
Yes. The switch supports Power over HDBaseT (PoH) mode when enabled by DIP switch.
What operating temperature range does it support?▾
The operating temperature range is -40°C to +75°C.
Support & warranty plans
Lantronix LEVEL coverage for this part. Add a plan at the time of purchase to lock in the term from the ship date.
- 1-year technical support
SISTP1040-551-LRT-L1Y1
$67.56 - 3-year technical support
SISTP1040-551-LRT-L1Y3
$197.04 - 5-year technical support
SISTP1040-551-LRT-L1Y5
$319.01 - 1-year extended warranty & technical support
SISTP1040-551-LRT-L2Y1
$97.58 - 3-year extended warranty & technical support
SISTP1040-551-LRT-L2Y3
$281.48 - 5-year extended warranty & technical support
SISTP1040-551-LRT-L2Y5
$450.36
