Lantronix SISTP1040-551-LRT Unmanaged Hardened Gigabit PoE++ Switch
The SISTP1040-551-LRT is an unmanaged, fanless DIN-rail switch with four 90 W PoE++ ports, one Gigabit RJ-45 port and one 100/1000 SFP slot, built to power lighting, high-power cameras and signage from -40 °C to +75 °C.
From $750.60
Overview
About the Lantronix SISTP1040-551-LRT
The SISTP1040-551-LRT (also written SISTP1040551LRT) is a plug-and-play way to power high-wattage devices in harsh locations. Its 360 W budget delivers a full 90 W to all four PoE++ ports at once under IEEE 802.3bt, and a DIP switch enables Power over HDBaseT (PoH) mode at 95 W per port. Lantronix cites PoE lighting, high-powered IP cameras and digital signage as typical loads, devices that draw more than the 30 W a PoE+ port supplies.
Ports are four 10/100/1000Base-T PoE++, one non-PoE 10/100/1000Base-T and one 100/1000Base-X SFP slot for a fiber uplink. Switching capacity is 12 Gbps with a 2K MAC table. DIP switches control the power alarm, broadcast storm limiting, 9K jumbo frames, PoH versus 802.3bt mode and PSE link pass-through. Being unmanaged, it needs no configuration to deploy.

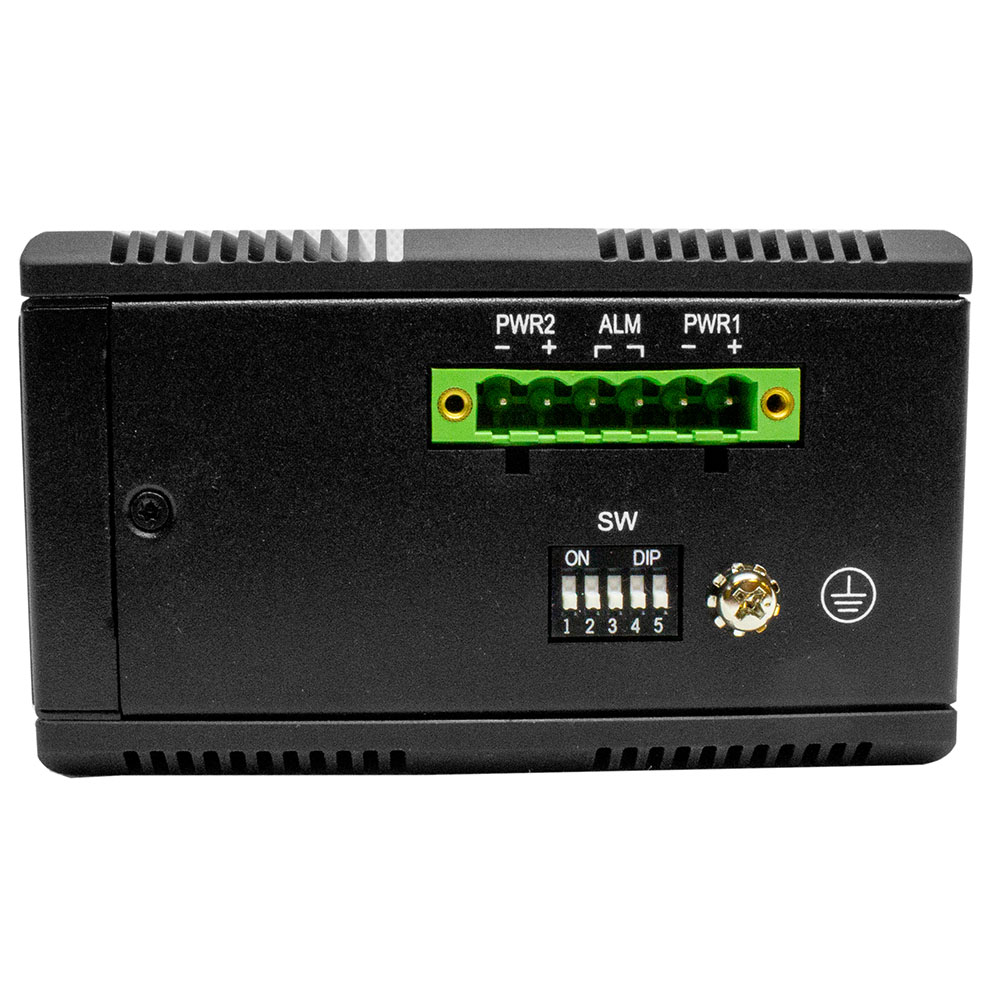

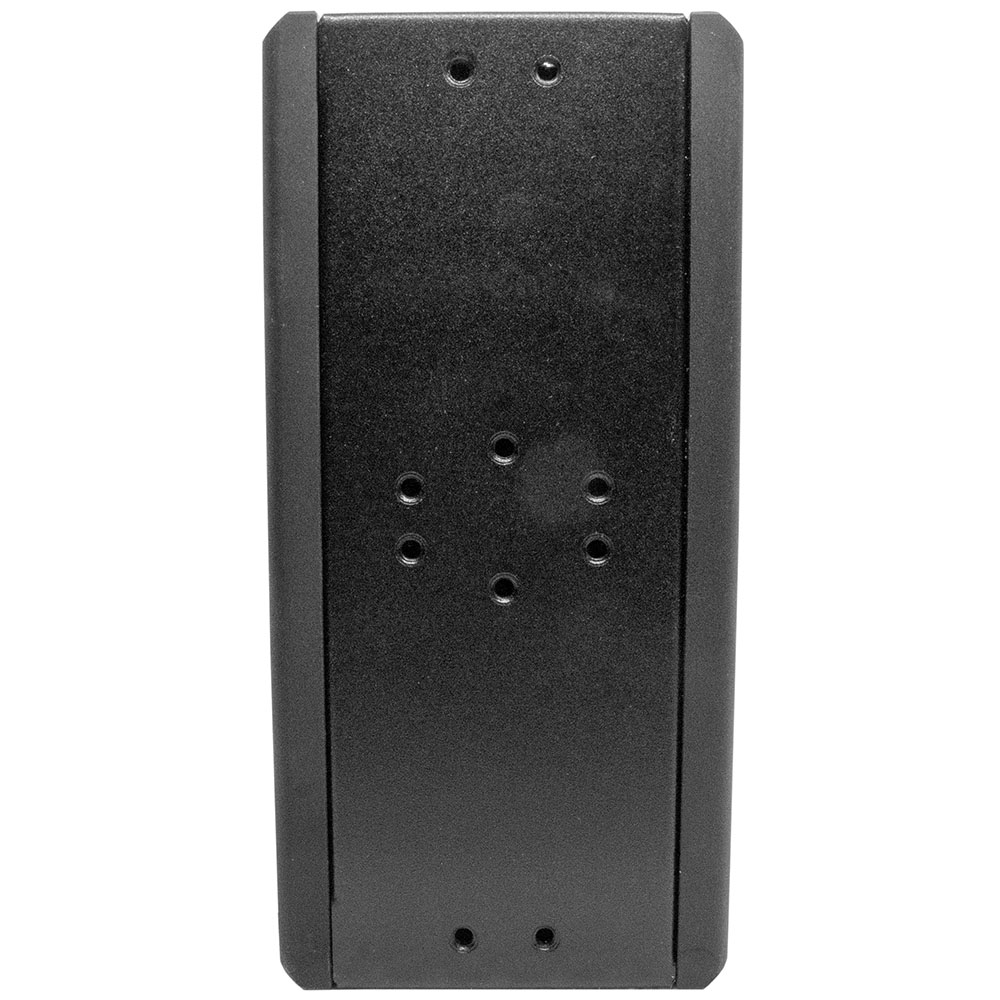

Power input is 48-57 VDC on redundant inputs with reverse-polarity protection, with 54-57 VDC required for full PoE++ output. The fanless metal enclosure is IP30, includes a DIN-rail bracket with a wall-mount option, and operates from -40 °C to +75 °C. Safety certification covers UL 62368-1 and EN 62368-1, and Lantronix quotes an MTBF of more than 25 years.
Key capabilities
- 90 W on four ports
- A 360 W budget delivers the full IEEE 802.3bt 90 W to all four PoE++ ports simultaneously, with no per-port derating.
- 95 W PoH mode
- Flip DIP switch SW4 to Power over HDBaseT mode for 95 W per port, for equipment designed to be powered over HDBaseT.
- No configuration needed
- Unmanaged Layer 2 wire-speed switching with DIP-switch settings for storm control, jumbo frames and link pass-through.
- Fiber uplink slot
- A dual-speed 100/1000Base-X SFP slot accepts Fast Ethernet or Gigabit fiber modules to reach distant aggregation switches.
- Hardened and fanless
- Fanless IP30 metal enclosure operates from -40 °C to +75 °C, with redundant DC inputs and a power alarm.
How to choose the right SISTP1040-551-LRT part number
The switch has one orderable part number, SISTP1040-551-LRT, which ships with a DIN-rail bracket and an empty SFP slot. Plan the power supply for full PoE++ load: inputs must be 54-57 VDC to deliver 90 W per port, and Lantronix lists the 25160 supply (48-55 VDC, 10 A, 480 W) and the PS-DC-DUAL-5624T (345 W, 56 VDC and 24 VDC outputs) as compatible. The OCA-P181610 outdoor cabinet and Lantronix SFP modules complete an outdoor installation.
Configure & order
Find your SISTP1040-551-LRT part number
Every orderable SISTP1040-551-LRT configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SISTP1040-551-LRT
6 total ports · 5 copper ports · 1 GbE · 1 SFP uplink
$750.60
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SISTP1040-551-LRT, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
2 items
25160
25160
Hardened DIN rail mounted power supply with 90-264 VAC or 127-370 VDC input and 48 ~ 55 VDC, 10A, 480 Watts output.
$517.00
3 in stock
PS-DC-DUAL-5624T
PS-DC-DUAL-5624T
Stand-alone hardened 345 Watt power supply with 56VDC and 24VDC dual output. It supports a compact Stand-Alone or DIN Rail form factor.
$860.20
Ships on backorder
Mounting & enclosures
1 item
OCA-P181610
OCA-P181610
18 x 16 x 10” polycarbonate outdoor cabinet assembly for Lantronix outdoor switches.
$948.75
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SISTP1040-551-LRT. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SISTP1040-551-LRT is used
- Powering PoE lighting fixtures in commercial buildings
- High-powered IP cameras in outdoor installations
- Digital signage and HDBaseT displays using PoH
- Fiber-fed PoE++ edge switching in roadside cabinets
SISTP1040-551-LRT datasheets & documentation
SISTP1040-551-LRT FAQ
How much PoE power does the SISTP1040-551-LRT provide?
The total PoE budget is 360 W, enough for 90 W on all four PoE++ ports simultaneously under IEEE 802.3bt. In Power over HDBaseT (PoH) mode, enabled by DIP switch, it supports 95 W per port. It is also compatible with 802.3af and 802.3at devices.
What input voltage does the SISTP1040-551-LRT need?
It accepts 48-57 VDC on redundant inputs with reverse power protection, but 54-57 VDC is required to deliver full PoE++ output. Without PoE load the switch consumes 5 W.
Is the SISTP1040-551-LRT managed?
No. It is an unmanaged Layer 2 switch with a wire-speed store-and-forward engine. Functions such as broadcast storm limiting, jumbo frames, the power alarm, PoH mode and link pass-through are set with DIP switches.
What is the SISTP1040-551-LRT operating temperature?
It operates from -40 °C to +75 °C and stores from -40 °C to +85 °C at 5% to 95% non-condensing humidity. The fanless metal housing is IP30 rated and certified to UL 62368-1 and EN 62368-1.
