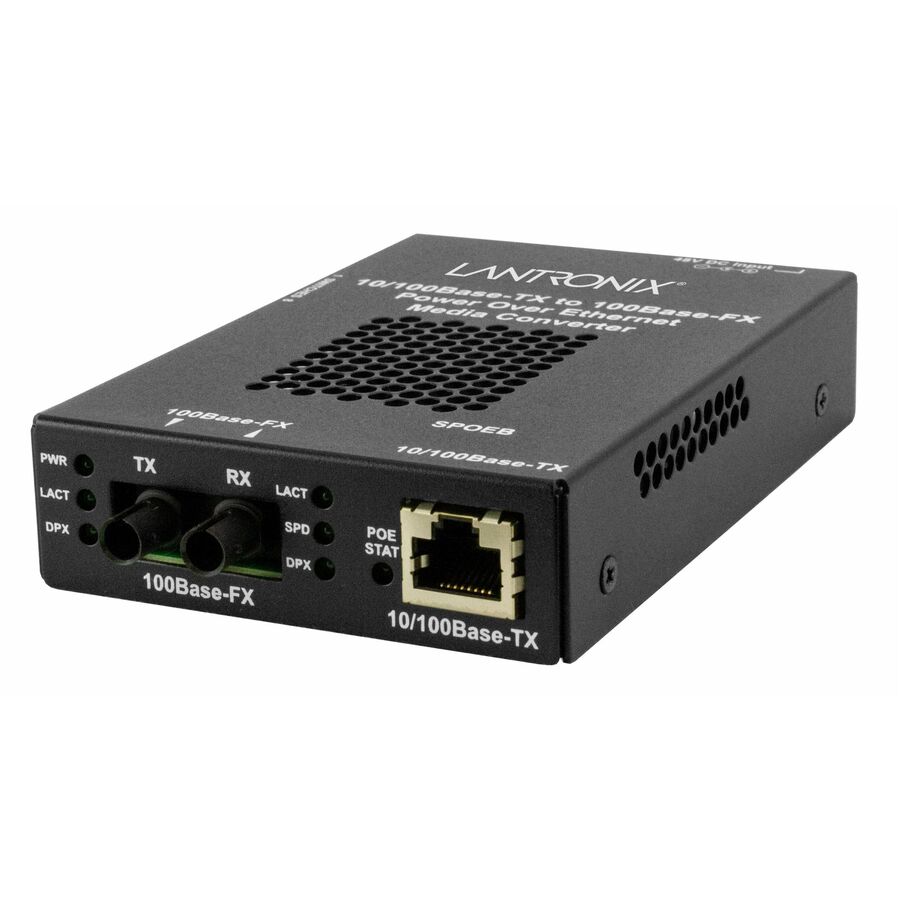

Lantronix SPOEB1011-105-NA — Spoeb Series PoE Media Converter
$242.50$360.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100Base-TX PoE RJ-45 to 100Base-FX media conversion
- 100Base-FX 1300nm multimode ST fiber interface with 2 km/1.2mi reach
- IEEE 802.3af Power-over-Ethernet compatibility with 48 VDC PSE output voltage
- Powered Device Reset when the PSE/LPT switch is enabled
- Switch-selectable port settings for auto-negotiation, speed, duplex, Link Pass Through and PSE
- Link Pass Through (LPT), Far-End-Fault (FEF) and Automatic Link Restoration
- External AC power supply
- Extend PoE Ethernet links using 10/100/1000BTX RJ45 to 100BASE-FX conversion
Lantronix SPOEB1011-105-NA is a stand-alone Fast Ethernet PoE media converter for 10/100Base-TX PoE RJ-45 to 100Base-FX fiber. This configuration uses 1300nm multimode ST fiber with 2 km/1.2mi reach and an 11.0 dB link budget. The SPOEB Series enables enterprises to provide power to network devices over an existing CAT5 data connection. Lantronix AC powered PoE media converters combine data received over a fiber optic link with power for Data Terminal Equipment Power Devices over unshielded twisted pair cable. This model is Power Sourcing Equipment and is compatible with Powered Devices that comply with IEEE 802.3af. It includes PD detection signature, power monitoring, Over-Current Protection, Under-Current Detection, Minimum Load Sensing and Fault Protection Input. Switch-selectable settings cover copper auto-negotiation, forced speed, duplex, Link Pass Through and PSE control. Status LEDs indicate power, fiber link/activity/duplex, copper link/activity/speed/duplex and PoE status.
Ideal For
- Extending 10/100Base-TX PoE connections over 100Base-FX 1300nm multimode ST fiber
- Providing IEEE 802.3af power to Powered Devices over an existing CAT5 data connection
- Connecting Data Terminal Equipment Power Devices through a fiber optic link and unshielded twisted pair cable
- Fiber-to-the-desk network deployments
Specifications
| Depth | 4.8” [121.92 mm] |
| Width | 3.25” [82.55 mm] |
| Height | 1″ [25 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 90% (non-condensing) |
| Standard | IEEE 802.3 |
| Warranty | Lifetime |
| Data Rate | 10/100 Mbps |
| Fiber Mode | Multimode |
| Link Budget | 11.0 dB |
| PoE++ Standard | IEEE 802.3af |
| Bellcore MTBF | 132,144 Hours |
| Certification | EN55022:1994+A1:1996+A2:1997 Class A; FCC Part 15 Subpart B; UL 1950 |
| Mil217f2 MTBF | 49,981 Hours |
| Fiber Distance | 2 km/1.2mi. |
| Max Frame Size | 1600 bytes |
| TAA Compliance | TAA Compliant |
| Copper Distance | 100 m/328 ft |
| Fiber Connector | ST |
| Fiber Interface | 100Base-FX |
| Copper Interface | 10/100Base-TX PoE (RJ-45) |
| Fiber Wavelength | 1300nm |
| Power Consumption | 20 Watts (max) |
| Pse Output Voltage | 48 VDC |
| Storage Temperature | -25° to +85°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What fiber connector does this model use?▾
It uses an ST connector for 100Base-FX 1300nm multimode fiber.
Does it support IEEE 802.3af PoE?▾
Yes. The SPOEB Series is IEEE 802.3af Power-over-Ethernet compatible and provides a 48 VDC PSE output voltage.
What is the supported fiber distance?▾
The listed fiber distance for this model is 2 km/1.2mi.
How can it be mounted?▾
The source data lists Wall Mountable, DIN Rail Mountable, Shelf Mount and Standalone form factors.
