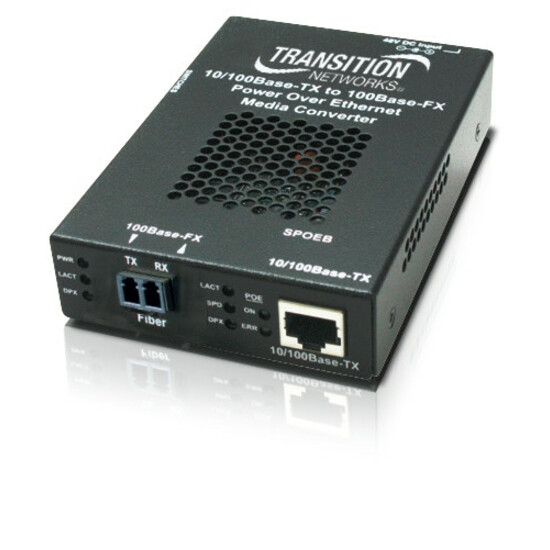

Lantronix SPOEB1013-105-NA — (North America) SPOEB Series SC PoE Media Converter
$242.53$360.00
Ships from and sold by A5 IT
%20SPOEB%20Series%20SC%20PoE%20Media%20Converter&mpn=SPOEB1013-105-NA&price=24253&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1032323473.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 10/100Base-TX PoE (RJ-45) to 100Base-FX conversion
- 1300nm multimode SC fiber interface
- 2 km/1.2mi. fiber reach
- IEEE 802.3af Power-over-Ethernet compatibility
- 48 VDC PSE output voltage
- Link Pass Through (LPT), Far-End-Fault (FEF), and Automatic Link Restoration
- Switch selectable port settings
- Extend PoE-enabled Ethernet using 10/100Base-TX RJ45 to 100Base-FX conversion
The Lantronix SPOEB Series is a stand-alone Fast Ethernet PoE media converter for 10/100Base-TX PoE PSE to 100Base-FX connections. This SPOEB1013-105-NA configuration uses 1300nm multimode fiber with an SC connector and supports a 2 km/1.2mi. fiber link. Lantronix AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power, providing power to DTE Powered Devices over unshielded twisted pair cable. The converter is IEEE 802.3af Power-over-Ethernet compatible and includes PD signature sensing and power monitoring features per the IEEE 802.3af standard. Operational features include Over-Current Protection, Under-Current Detection, Fault Protection Input, Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Far-End-Fault, and Automatic Link Restoration. With the PSE/LPT switch enabled, loss of Fiber RX disables PSE power output on the UTP port for 2 seconds to allow the remote device to re-initialize.
Ideal For
- Providing power to network devices over an existing CAT5 data connection
- Converting 10/100Base-TX PoE RJ-45 links to 100Base-FX multimode fiber
- Fiber-to-the-desk deployments
- Security and surveillance network links
Specifications
| MTBF | 49,981 MIL217F2 Hours; 132,144 Bellcore Hours |
| Depth | 4.8” [121.92 mm] |
| Width | 3.25” [82.55 mm] |
| Height | 1″ [25 mm] |
| Weight | 2 lbs. [0.90 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 90% (non-condensing) |
| Mounting | Wall Mountable; DIN Rail Mountable; Shelf Mount |
| Warranty | Lifetime |
| Data Rate | 10/100 Mbps |
| Standards | IEEE 802.3 |
| Fiber Type | Multimode |
| Wavelength | 1300nm |
| Form Factor | Standalone |
| Link Budget | 11.0dB |
| PoE++ Standard | IEEE 802.3af |
| Power Supply | External AC power supply |
| Certifications | EN55022:1994+A1:1996+A2:1997 Class A, FCC Part 15 Subpart B, UL 1950 |
| Fiber Distance | 2 km/1.2mi. |
| Max Frame Size | 1600 bytes |
| Copper Distance | 100 m/328 ft |
| Fiber Connector | SC |
| Fiber Interface | 100Base-FX |
| Copper Interface | 10/100Base-TX PoE (RJ-45) |
| Power Consumption | 20 Watts (max) |
| Pse Output Voltage | 48 VDC |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -25° to +85°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What copper-to-fiber connection does this model support?▾
It converts 10/100Base-TX PoE (RJ-45) to 100Base-FX 1300nm multimode fiber with an SC connector.
Is this media converter IEEE 802.3af compatible?▾
Yes. The SPOEB Series is IEEE 802.3af Power-over-Ethernet compatible and provides 48 VDC PSE output voltage.
What is the fiber distance for this SC multimode model?▾
The listed fiber reach for SPOEB1013-105 is 2 km/1.2mi.
How can this media converter be mounted?▾
The source data lists wall mountable, DIN rail mountable, shelf mount, and standalone form factors.
