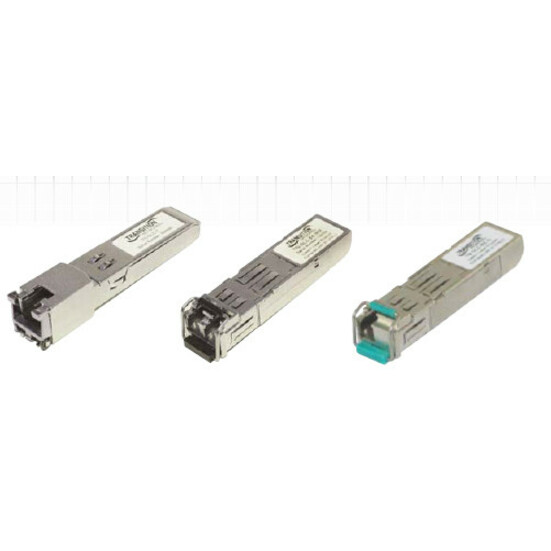

Lantronix TN-GLC-FE-100EX-RGD — TN-GLC-FE-100xX Series 100Base-FX LC SFP
$206.37$307.40
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-FX connectivity: 1310nm single-mode LC optical transceiver
- 40 km/24.9 mi. reach: listed distance for this SKU
- 25.0 dB link budget: specified in the Lantronix part row
- Hot-pluggable SFP footprint: duplex LC optical transceiver
- DMI: included in the TN-GLC-FE-100EX-RGD description
- 3.3V power input: 1.0 Watts power consumption
- -40°C to 85°C operation: RGD operating temperature range
Lantronix TN-GLC-FE-100EX-RGD is a Cisco compatible 100Base-FX SFP module in the TN-GLC-FE-100xX Series. It provides 1310nm single-mode LC fiber connectivity with DMI, 40 km/24.9 mi. distance, and a 25.0 dB link budget. The module uses a hot-pluggable SFP footprint with a duplex LC optical transceiver. It is compliant with the SFP Multi-Sourcing Agreement (MSA), 100Base-FX, and Intermediate-Reach SONET OC-3/SDH STM-1 (S-1.1). Applications include Fast Ethernet Switches & Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching. It can be used on Optical Line Converter xFMFF4040-100.
Ideal For
- Fast Ethernet Switches & Routers
- Fiber Channel Switch Infrastructure
- xDSL Applications
- Metro Edge Switching
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3; IEEE 802.3ah |
| Warranty | Lifetime |
| Wavelength | 1310nm |
| Form Factor | Hot-pluggable |
| Link Budget | 25.0 dB |
| Power Input | 3.3V |
| Connector Type | LC |
| Network Interface | 1 x LC Duplex 100Base-FX Network |
| Power Consumption | 1.0 Watts |
| Digital Monitoring | DMI |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -40°C to 100°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | -40°C to 85°C |
| Maximum Distance Supported | 40 km |
Frequently Asked Questions
What distance does TN-GLC-FE-100EX-RGD support?▾
The Lantronix part row lists 40 km/24.9 mi. and a 25.0 dB link budget for TN-GLC-FE-100EX-RGD.
Is this SFP single-mode or multimode?▾
It is listed as a 100Base-FX 1310nm single-mode LC SFP.
Does this part include DMI?▾
Yes. The TN-GLC-FE-100EX-RGD description lists the module with DMI.
What operating temperature range is listed for this RGD SFP?▾
For TN-GLC-xxx-RGD parts, the listed operating range is -40°C to 85°C and the storage range is -40°C to 100°C.
