SFPs / Transceivers
Lantronix TN-GLC-FE-100xX Series 100Base-FX SFP Transceivers
The TN-GLC-FE-100xX Series are 100Base-FX SFP transceivers with duplex LC connectors, which Lantronix markets as Cisco-compatible, for Fast Ethernet fiber ports on switches, routers and media converters, in commercial and hardened -40°C versions.
From $39.22
Overview
About the Lantronix TN-GLC-FE-100xX Series
The TN-GLC-FE-100xX Series (individual models such as TN-GLC-FE-100FX and TN-GLC-FE-100LX-RGD) fills 100 Mbps SFP ports. Lantronix lists applications in Fast Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL and metro edge switching. The modules are MSA-compliant and hot-pluggable, and Lantronix notes they can be used in its xFMFF4040-100 optical line converter. They also comply with intermediate-reach SONET OC-3/SDH STM-1 (S-1.1).
Multimode models run at 1300 nm to 2 km with an 8.5 dB link budget. Single-mode models run at 1310 nm to 10 km with a 19.0 dB budget, or to 40 km with 25.0 dB. Commercial versions operate from 0°C to 70°C. The -RGD versions are hardened to -40°C to 85°C, store to 100°C and add DMI digital diagnostics. Modules draw 1.0 W from 3.3 V.
Two commercial part numbers, TN-GLC-FE-100FX and TN-GLC-FE-100LX, are UL Listed. All modules meet IEC-60825 and CFR 1040.10/1040.11 laser safety requirements, comply with IEEE 802.3 and 802.3ah, and measure 13 x 55 x 8 mm. Match the wavelength and fiber type at both ends of the link, since the multimode and single-mode models will not interoperate.
Key capabilities
- Hardened RGD versions
- The -RGD models operate from -40°C to 85°C and store to 100°C for industrial cabinets and outdoor enclosures.
- 40 km single-mode option
- TN-GLC-FE-100EX-RGD reaches 40 km at 1310 nm with a 25.0 dB link budget for long Fast Ethernet runs.
- DMI on RGD models
- Digital diagnostics on the hardened models let the host monitor optical and operating values for proactive maintenance.
- OC-3/STM-1 compliant
- Beyond 100Base-FX, the modules comply with the intermediate-reach SONET OC-3/SDH STM-1 (S-1.1) optical specification for telecom links.
- UL Listed options
- TN-GLC-FE-100FX and TN-GLC-FE-100LX carry UL listing for projects that require it, in addition to standard laser safety compliance.
How to choose the right TN-GLC-FE-100xX Series part number

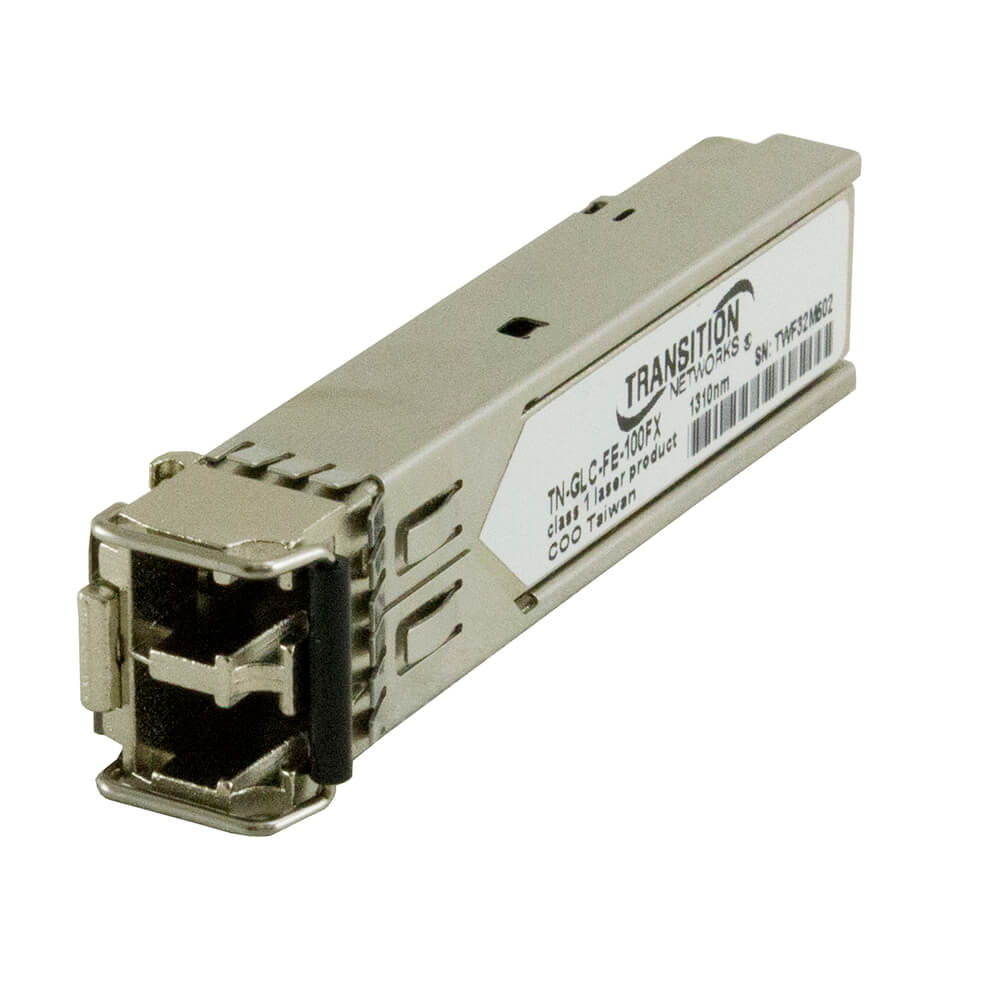

Choose by fiber, distance and temperature. Multimode 1300 nm, 2 km: TN-GLC-FE-100FX (UL Listed), TN-GLC-GE-100FX (same optics, no UL listing noted) and TN-GLC-FE-100FX-RGD (hardened with DMI). Single-mode 1310 nm, 10 km: TN-GLC-FE-100LX (UL Listed) or TN-GLC-FE-100LX-RGD (hardened, DMI, listed as TAA compliant). Single-mode 40 km: TN-GLC-FE-100EX-RGD. The -RGD suffix always means -40°C to 85°C with DMI; models without it are 0°C to 70°C without diagnostics.
Configure & order
Find your TN-GLC-FE-100xX Series part number
Every orderable TN-GLC-FE-100xX Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

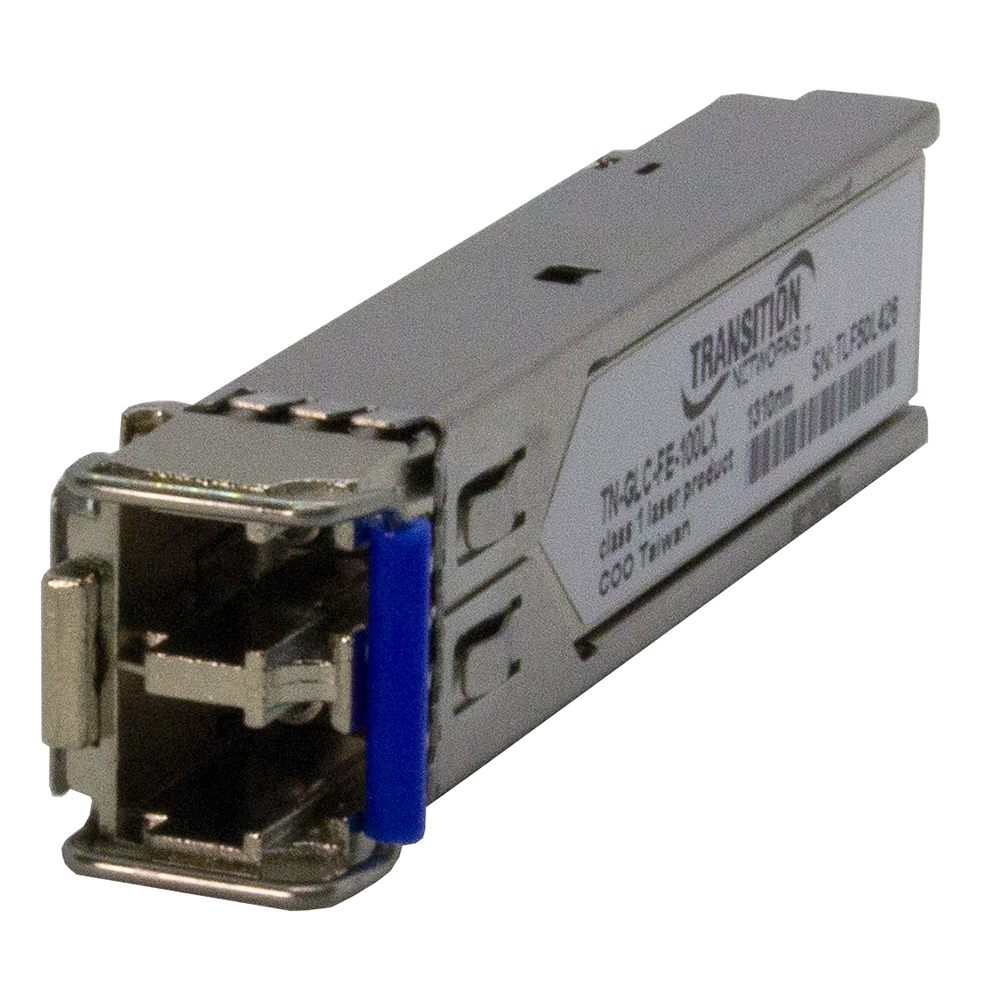

TN-GLC-FE-100LX
$100.70
Ships on backorder

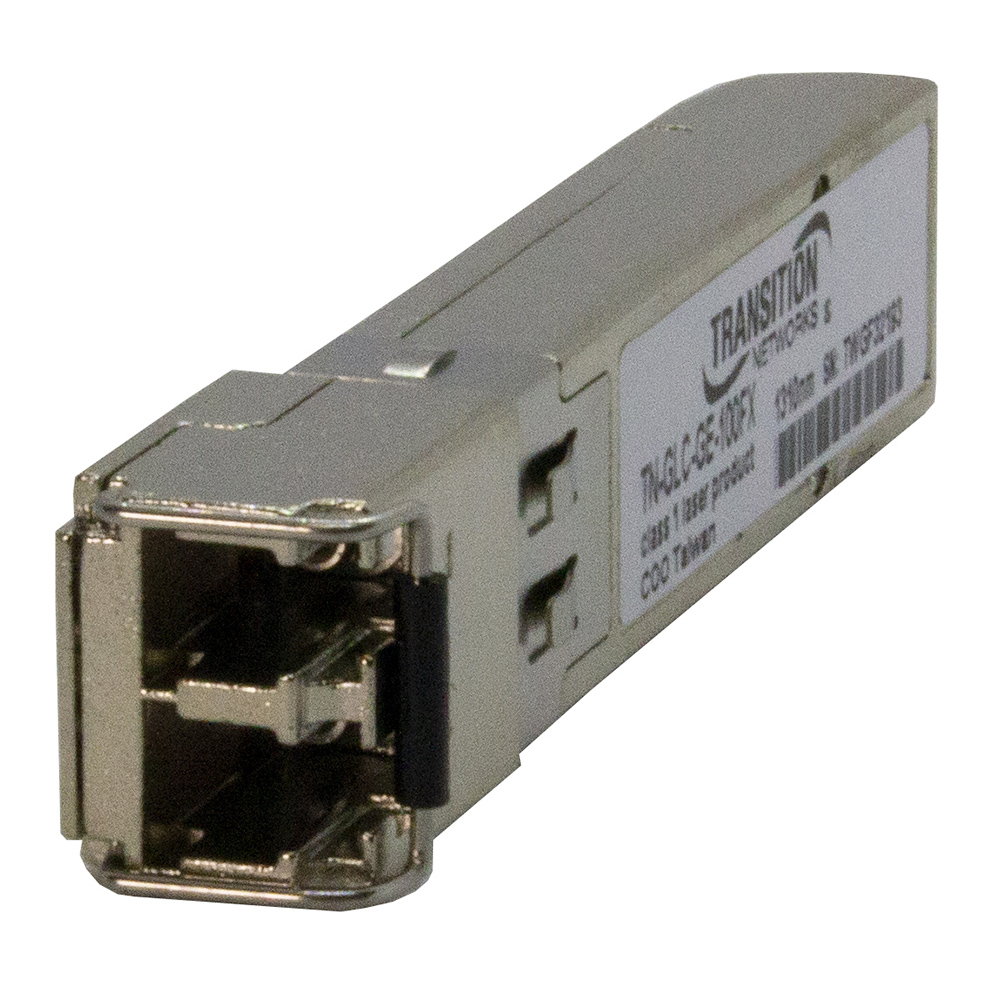

TN-GLC-GE-100FX
$153.70
Ships on backorder

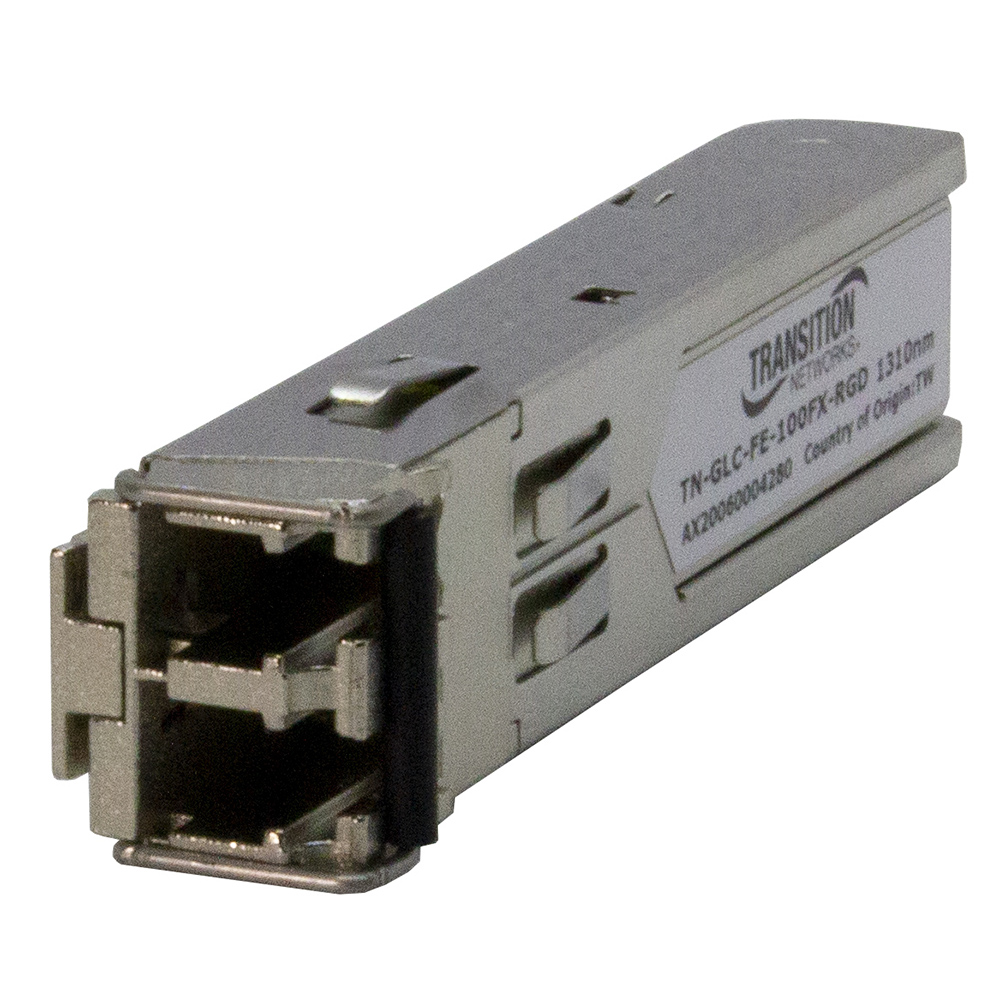

TN-GLC-FE-100FX-RGD
$159.00
Ships on backorder

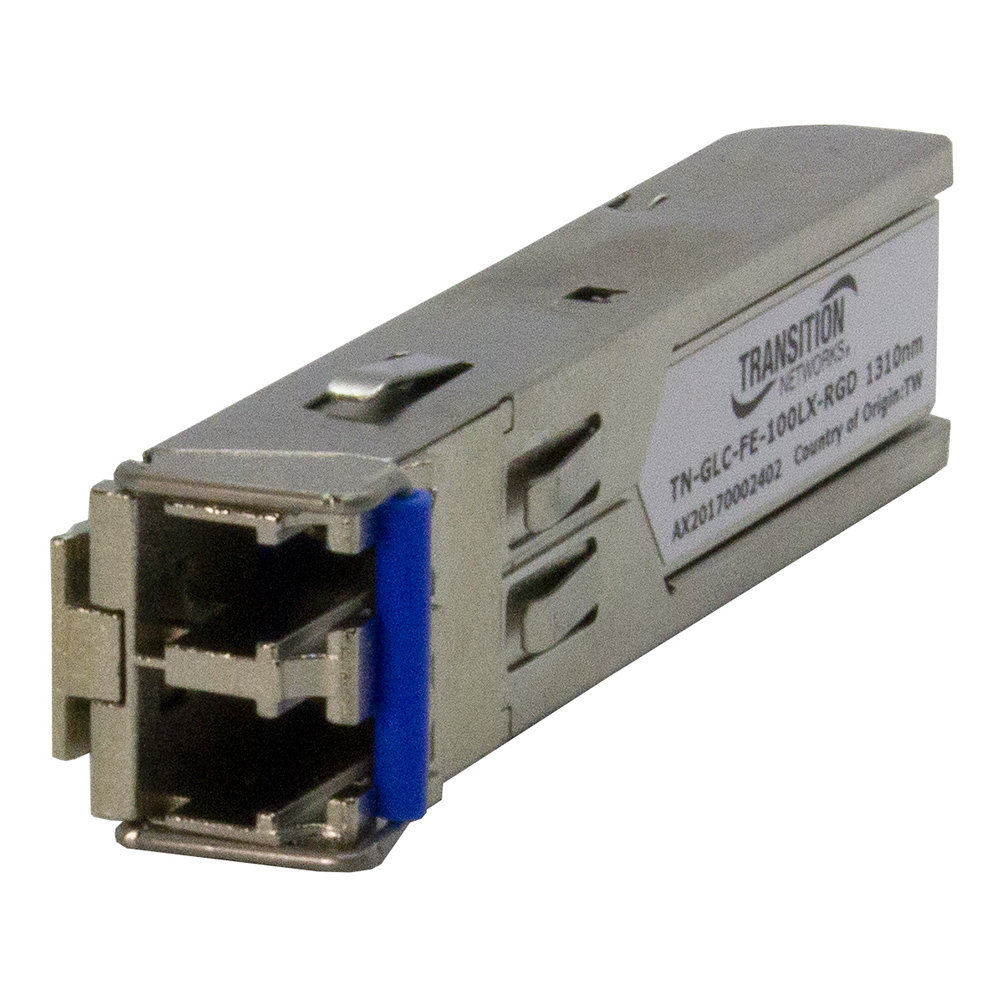

TN-GLC-FE-100LX-RGD
$217.30
Ships on backorder

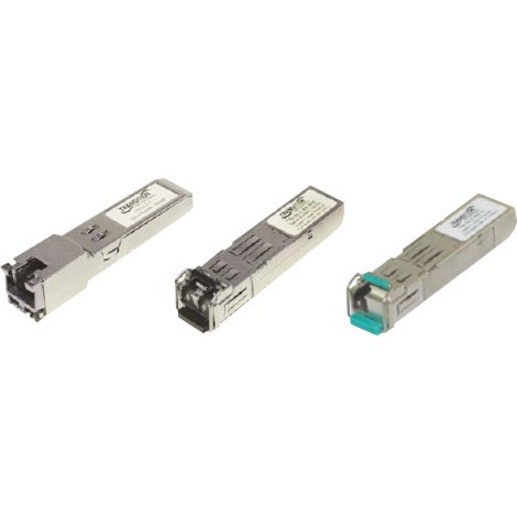

TN-GLC-FE-100EX-RGD
$307.40
Ships on backorder
Where the TN-GLC-FE-100xX Series is used
- Fast Ethernet fiber ports on switches and routers
- Industrial switches in unconditioned cabinets using -RGD optics
- Metro edge switching over single-mode fiber to 40 km
- Replacing failed 100Base-FX SFPs in legacy equipment
TN-GLC-FE-100xX Series datasheets & documentation
TN-GLC-FE-100xX Series FAQ
Are TN-GLC-FE-100xX modules Cisco compatible?
Lantronix markets the series as Cisco-compatible 100Base SFP modules. They are MSA-compliant, hot-pluggable duplex LC transceivers that comply with 100Base-FX, for Fast Ethernet SFP ports on switches and routers.
What does RGD mean in TN-GLC-FE-100FX-RGD?
RGD marks the hardened versions. They operate from -40°C to 85°C and store from -40°C to 100°C, versus 0°C to 70°C for commercial models, and add DMI digital diagnostics.
How far does a 100Base-FX SFP reach?
In this series, 2 km over multimode fiber at 1300 nm, 10 km over single-mode at 1310 nm (LX models, 19.0 dB budget), and 40 km over single-mode with TN-GLC-FE-100EX-RGD (25.0 dB budget).
Can these SFPs be used in Lantronix media converters?
Lantronix states they can be used on the xFMFF4040-100 optical line converter. They fit any device with a 100 Mbps SFP port that accepts MSA-compliant modules.
