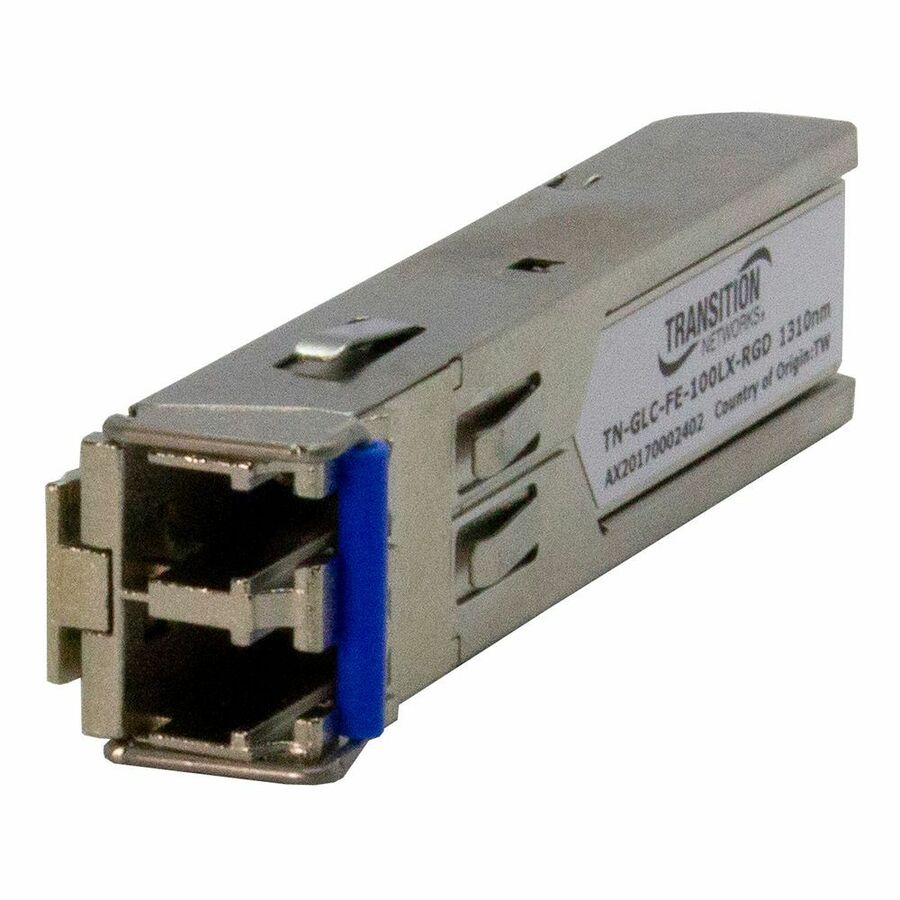

Lantronix TN-GLC-FE-100LX-RGD — TN-GLC-FE-100xX Series 100Base-FX LC SFP
$145.90$217.30
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100Base-FX 1310nm single-mode fiber support over LC
- 10 km/6.2 mi. maximum distance with 19.0 dB link budget
- DMI support listed for TN-GLC-FE-100LX-RGD
- Hot-pluggable SFP footprint with duplex LC optical transceiver
- MSA compliance with SFP Multi-Sourcing Agreement
- 3.3V power input with 1.0 Watts power consumption
- RGD temperature ratings of -40°C to 85°C operating and -40°C to 100°C storage
Lantronix TN-GLC-FE-100LX-RGD is a Cisco compatible TN-GLC-FE-100xX Series 100Base-FX SFP module for 1310nm single-mode fiber over LC. The Lantronix part row specifies DMI, 10 km/6.2 mi. reach and a 19.0 dB link budget. The module uses a hot-pluggable SFP footprint duplex LC optical transceiver. It is compliant with SFP Multi-Sourcing Agreement (MSA), 100Base-FX and Intermediate-Reach SONET OC-3/SDH STM-1 (S-1.1). Applications include Fast Ethernet Switches & Routers, Fiber Channel Switch Infrastructure, xDSL Applications and Metro Edge Switching. It can be used on Optical Line Converter xFMFF4040-100. As a TN-GLC-xxx-RGD SKU, the listed operating range is -40°C to 85°C, with storage from -40°C to 100°C. Power input is 3.3V and power consumption is 1.0 Watts.
Ideal For
- Fast Ethernet Switches & Routers
- Fiber Channel Switch Infrastructure
- xDSL Applications
- Metro Edge Switching
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3; IEEE 802.3ah |
| Warranty | Lifetime |
| Fiber Mode | Single-mode |
| Wavelength | 1310nm |
| Form Factor | Hot-pluggable |
| Link Budget | 19.0 dB |
| Power Input | 3.3V |
| Connector Type | LC |
| SFP+ Compliance | SFP Multi-Sourcing Agreement (MSA) |
| TAA Compliance | TAA Compliant |
| Connector Format | Duplex |
| Maximum Distance | 10 km/6.2 mi. |
| Network Standard | 100Base-FX |
| Compatible Device | Optical Line Converter xFMFF4040-100 |
| Power Consumption | 1.0 Watts |
| Digital Monitoring | DMI |
| Ethernet Technology | Fast Ethernet |
| Storage Temperature | -40°C to 100°C |
| Sonet Sdh Compliance | Intermediate-Reach SONET OC-3/SDH STM-1 (S-1.1) |
| Operating Temperature | -40°C to 85°C |
Frequently Asked Questions
What fiber type and connector does TN-GLC-FE-100LX-RGD use?▾
It uses 100Base-FX 1310nm single-mode fiber over LC.
What distance does this SFP support?▾
Lantronix lists 10 km/6.2 mi. reach and a 19.0 dB link budget for this SKU.
Does this model include DMI?▾
Yes. The Lantronix part-row description for TN-GLC-FE-100LX-RGD specifies DMI.
What applications is this SFP intended for?▾
Applications include Fast Ethernet Switches & Routers, Fiber Channel Switch Infrastructure, xDSL Applications and Metro Edge Switching. It can also be used on Optical Line Converter xFMFF4040-100.
