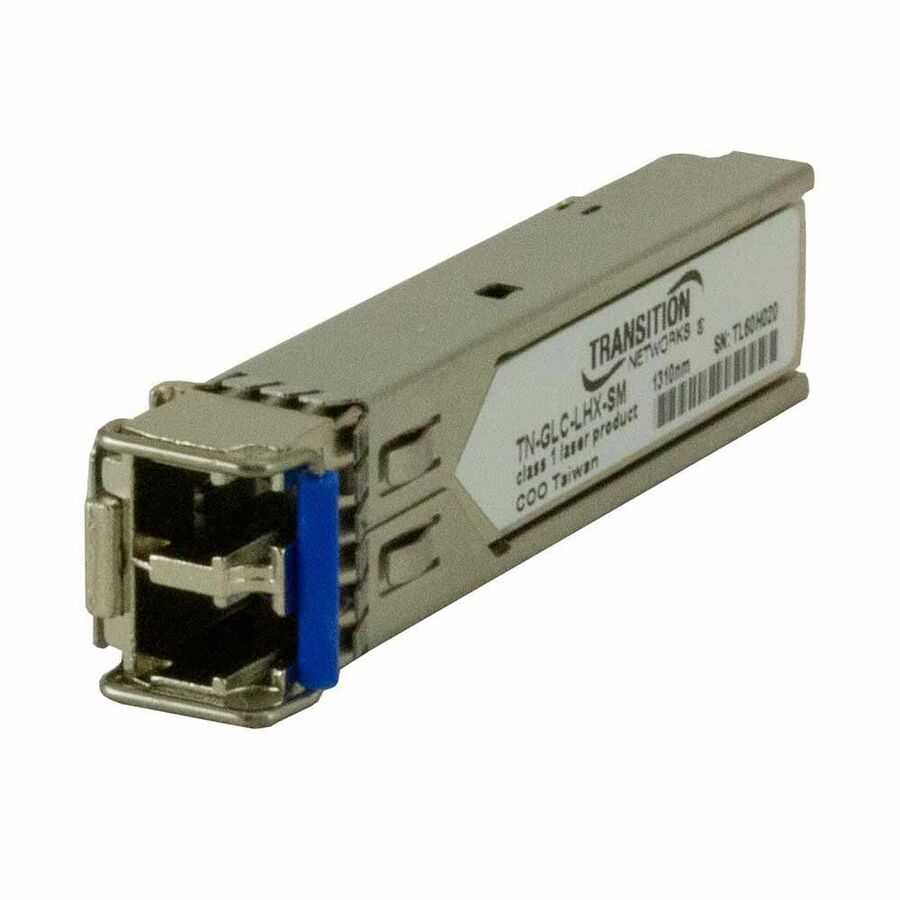

Lantronix TN-GLC-LHX-SM — TN-GLC-LH-SM Series 1000Base-LX LC SFP
$174.36$259.70
Ships from and sold by A5 IT
Free 2-3 Day ShippingArrives by Thursday, Oct 15
New, with full manufacturer warranty
Key Features
- 1000Base-LX Gigabit Ethernet optical networking
- 1310nm single-mode LC fiber connection
- 40 km/24.9 mi. maximum distance
- 22.0 dB link budget
- 3.3V power input
- 0.66 Watts power consumption
- UL Listed SKU
The Lantronix TN-GLC-LHX-SM is a Cisco Compatible Gigabit SFP Module in the TN-GLC-LH-SM Series. It supports 1000Base-LX over single-mode fiber with an LC connection. This SKU is listed for 40 km/24.9 mi. distance at 1310nm, with a 22.0 dB link budget. It uses 3.3V power input and has 0.66 Watts power consumption. The module measures 0.52” [13 mm] wide, 2.18” [55 mm] deep, and 0.33” [8 mm] high. The listed operating temperature is 0°C to 70°C, with storage from -40°C to 85°C.
Ideal For
- 1000Base-LX Gigabit Ethernet fiber links
- Single-mode LC optical network connections
- Cisco compatible SFP deployments
- 40 km/24.9 mi. fiber runs
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Listing | UL Listed |
| Warranty | Lifetime |
| Standards | IEEE 802.3 |
| Wavelength | 1310nm |
| Link Budget | 22.0 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Interfaces Ports Details | 1 x LC 1000Base-LX Network |
| Maximum Distance Supported | 40 km |
Frequently Asked Questions
What distance does the TN-GLC-LHX-SM support?▾
The TN-GLC-LHX-SM supports 40 km/24.9 mi. maximum distance.
What fiber type and connector does this SFP use?▾
It is a 1000Base-LX SFP for single-mode fiber with an LC connector.
What is the operating temperature range?▾
The listed operating temperature is 0°C to 70°C.
What warranty is listed for this series?▾
The Lantronix TN-GLC-LH-SM Series specs list a Lifetime warranty.
