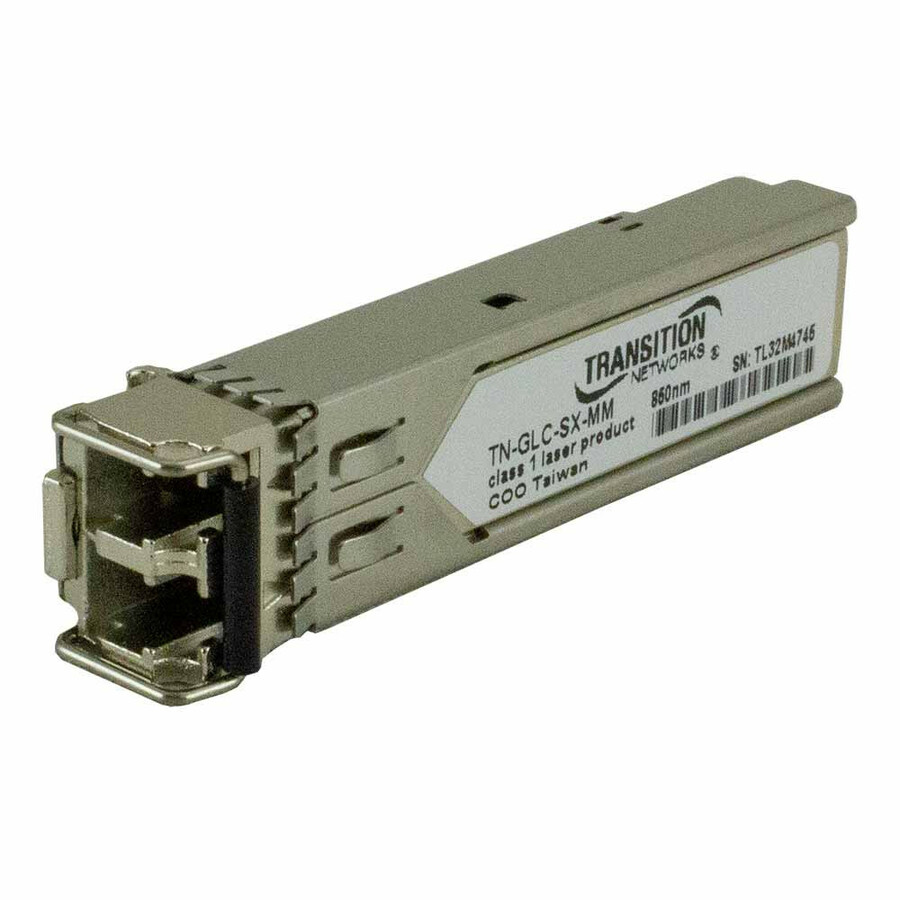

Lantronix TN-GLC-SX-MM-PK — TN-GLC-SX-MM Series 1000Base-SX LC SFP 20-Pack
$744.11$1,107.70
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 20-pack configuration includes TN-GLC-SX-MM 1000Base-SX SFP modules
- Cisco compatible Gigabit SFP design supports 1000Base-SX multimode LC fiber
- 850nm multimode operation supports 62.5/125 μm links up to 220 m/722 ft
- 50/125 μm multimode support reaches 550 m/1804 ft
- 8.5 dB link budget is listed for the TN-GLC-SX-MM-PK part row
- 3.3V power input with 0.66 Watts power consumption
Lantronix TN-GLC-SX-MM-PK is the 20-pack configuration of the TN-GLC-SX-MM Series. It provides Cisco Compatible Gigabit SFP Modules for 1000Base-SX multimode fiber with LC connectivity. The part row lists 850nm operation, 8.5 dB link budget, 220 m/722 ft. reach on 62.5/125 μm fiber, and 550 m/1804 ft. reach on 50/125 μm fiber. Series specifications list IEEE 802.3, 3.3V power input, 0.66 Watts power consumption, 0°C to 70°C operating temperature, and Lifetime warranty.
Ideal For
- Stocking 20 identical 1000Base-SX multimode LC SFP modules for deployment
- Gigabit Ethernet optical network links over 50/125 μm fiber up to 550 m/1804 ft
- Gigabit Ethernet optical network links over 62.5/125 μm fiber up to 220 m/722 ft
- Cisco compatible SFP deployments requiring TN-GLC-SX-MM Series modules
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3 |
| Wavelength | 850nm |
| Link Budget | 8.5 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Connector Type | LC |
| Product Series | TN-GLC-SX-MM |
| Limited Warranty | Lifetime |
| Packaged Quantity | 20 |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-SX |
| 50 125 μM Distance | 550 m/1804 ft |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| 625 125 μM Distance | 220 m/722 ft |
| Fiber Mode Supported | Multi-mode |
| Operating Temperature | 0°C to 70°C |
Frequently Asked Questions
What is included in TN-GLC-SX-MM-PK?▾
TN-GLC-SX-MM-PK is a pack of 20 TN-GLC-SX-MM 1000Base-SX 850nm multimode LC SFP modules.
What multimode fiber distances does this SFP support?▾
The part row lists 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber.
Does this 20-pack include DMI SFP modules?▾
The TN-GLC-SX-MM-PK part row does not list DMI. The sibling TN-GLC-SX-MMD and TN-GLC-SX-MM-RGD rows list “with DMI”.
What is the operating temperature range?▾
The series specifications list Operating: 0°C to 70°C for non-RGD modules. The -40°C to 85°C operating range is listed for TN-GLC-SX-MM-xx-RGD modules.
