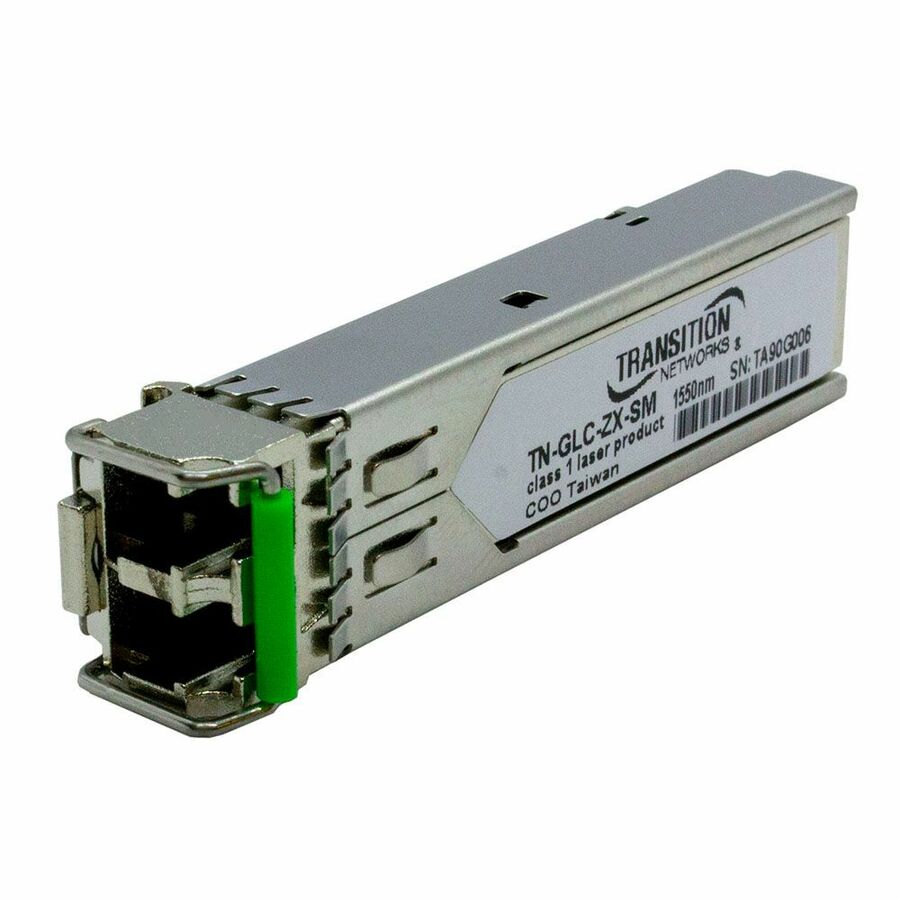

Lantronix TN-GLC-ZX-SM — Series 1000Base-LX Single-Mode LC SFP
$273.25$407.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-LX Gigabit Ethernet optical networking
- 1550nm single-mode LC interface with DMI
- 80 km/49.7 mi. maximum distance
- 24.0 dB link budget
- 3.3V power input
- 0.66 Watts power consumption
- Cisco compatible SFP module
Lantronix TN-GLC-ZX-SM is a Cisco compatible Gigabit SFP module for 1000Base-LX single-mode fiber links. It uses an LC optical interface and includes DMI. This model is listed for 80 km/49.7 mi. reach with a 24.0 dB link budget. It supports Gigabit Ethernet over optical fiber for data networking and optical network applications. TN-GLC-ZX-SM operates from 0°C to 70°C, uses 3.3V power input, and has 0.66 Watts power consumption. The series specifications list IEEE 802.3, IEC-60825, FDA 21, CFR 1040.10 and 1040.11, and a lifetime warranty.
Ideal For
- 1000Base-LX Gigabit Ethernet optical fiber links
- Single-mode LC fiber connections up to 80 km/49.7 mi
- Cisco compatible SFP deployments
- Data networking and optical network applications
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standards | IEEE 802.3 |
| Wavelength | 1550nm |
| Link Budget | 24.0 dB |
| Power Input | 3.3V |
| Product Type | SFP (mini-GBIC) |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Limited Warranty | Lifetime |
| Power Consumption | 0.66 Watts |
| Network Technology | 1000Base-LX |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Operating Temperature | 0°C to 70°C |
| Total Number Of Ports | 1 |
| Environmental Compliance | WEEE; RoHS; REACH |
| Maximum Distance Supported | 80 km |
Frequently Asked Questions
What fiber type and connector does TN-GLC-ZX-SM use?▾
It supports single-mode optical fiber with an LC interface for 1000Base-LX networking.
What distance does this SFP support?▾
The Lantronix part row lists 80 km/49.7 mi. maximum distance and a 24.0 dB link budget.
Does this module include DMI?▾
Yes. The Lantronix description states 1000Base-LX 1550nm single mode (LC) with DMI.
Is this the extended-temperature version?▾
TN-GLC-ZX-SM operates from 0°C to 70°C. The -40°C to +85°C operating range is listed for the TN-GLC-ZX-SM-RGD module only.
