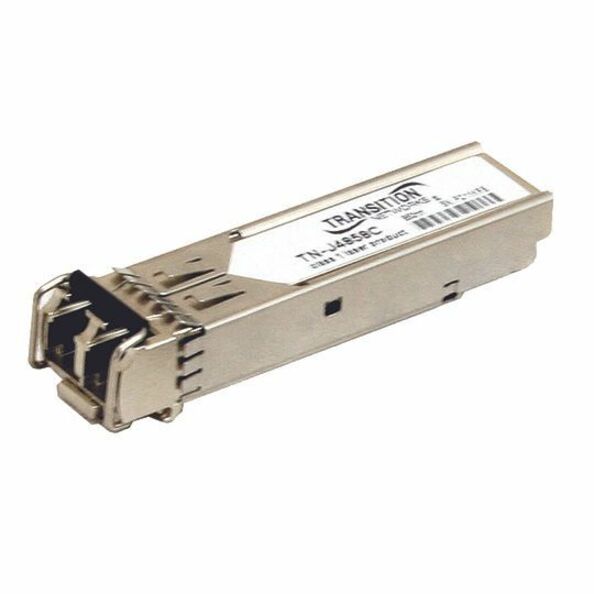

Lantronix TN-J4858C — TN-J48xxC Series 1000Base-SX SFP Transceiver
$70.19$104.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1000Base-SX 850nm LC multimode connectivity with 9.0 dB link budget
- 220 m/722 ft. reach on 62.5/125 μm fiber
- 550 m/1804 ft. reach on 50/125 μm fiber
- Hot-pluggable SFP optical transceiver with Duplex LC connector
- MSA compliant SFP design for router, switch, data networking, xDSL application and optical network use
- 3.3V power input with 0°C to 70°C operating range
TN-J4858C is the 1000Base-SX member of the Lantronix TN-J48xxC Series of HP compatible SFP modules. It provides 850nm LC multimode fiber connectivity with a 9.0 dB link budget. The module supports 220 m/722 ft. links on 62.5/125 μm fiber and 550 m/1804 ft. links on 50/125 μm fiber. Applications include Gigabit Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL applications and Metro Edge Switching. The TN-J48xxC Series is hot-pluggable, uses a Duplex LC connector, and is compliant with the SFP Multi-Sourcing Agreement (MSA). The series lists IEEE 802.3z and IEEE 802.3 standards, 3.3V power input, and a lifetime warranty.
Ideal For
- Gigabit Ethernet switches and routers
- Fiber Channel switch infrastructure
- xDSL applications
- Metro Edge Switching
Specifications
| Depth | 2.2” [56 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Series | TN-J48xxC Series |
| Storage | -40°C to 85°C |
| Standard | IEEE 802.3z |
| Warranty | Lifetime |
| Operating | 0°C to 70°C |
| Wavelength | 850nm |
| Form Factor | Hot-pluggable |
| Link Budget | 9.0 dB |
| Power Input | 3.3V |
| Compatibility | MSA Compliant |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Network Technology | 1000Base-SX |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE); Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Interfaces Ports Details | 1 x LC Duplex 1000Base-SX Network |
| 50 125 μM Fiber Distance | 550 m/1804 ft |
| 625 125 μM Fiber Distance | 220 m/722 ft |
| Maximum Distance Supported | 0.55 km |
Frequently Asked Questions
Is TN-J4858C the 1000Base-SX or 1000Base-LX version?▾
TN-J4858C is the 1000Base-SX module in the TN-J48xxC Series.
What fiber type and connector does TN-J4858C use?▾
It supports multimode fiber with a Duplex LC connector.
What distance does TN-J4858C support?▾
The Lantronix part row lists 220 m/722 ft. on 62.5/125 μm fiber and 550 m/1804 ft. on 50/125 μm fiber.
Is TN-J4858C hot-pluggable?▾
Yes. The TN-J48xxC Series features list a hot-pluggable SFP optical transceiver with Duplex LC connector.
