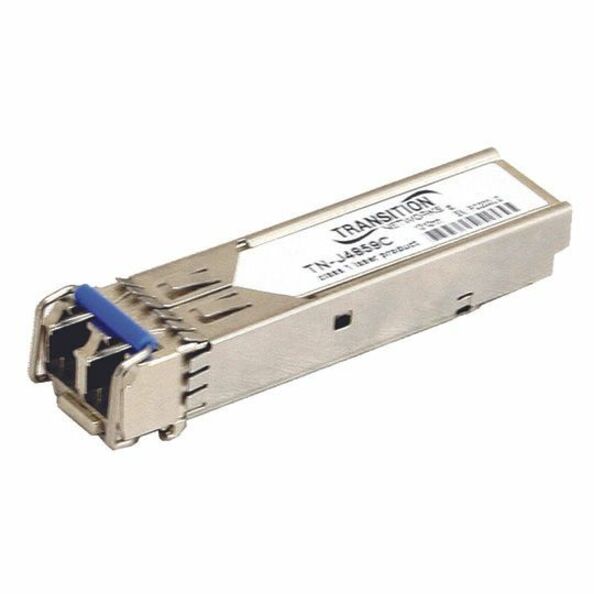

Lantronix TN-J4859C TN-J48xxC Series 1000Base-LX HP Compatible SFP module with LC connector

Lantronix TN-J4859C — TN-J48xxC Series 1000Base-LX SFP Module

Name: Lantronix TN-J4859C — TN-J48xxC Series 1000Base-LX SFP Module
Brand: Lantronix
SKU: TN-J4859C
Price: 103.41 USD
Availability: BackOrder

Lantronix|

MPN: TN-J4859C

UPC: 648177027095

Available on Backorder

$103.41$154.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

1000Base-LX 1310nm optics for single-mode fiber
20 km/12.4 mi. distance with 16.0 dB link budget
Duplex LC connector in a hot-pluggable SFP optical transceiver
HP Compatible TN-J48xxC Series module for Gigabit Ethernet switches and routers
SFP Multi-Sourcing Agreement (MSA) compliance
3.3V power input
0°C to 70°C operating temperature

TN-J4859C is the 1000Base-LX member of the Lantronix TN-J48xxC Series of HP Compatible SFP Modules 1000Base-X (LC). It is a hot-pluggable SFP optical transceiver with a Duplex LC connector and SFP Multi-Sourcing Agreement (MSA) compliance. The module operates at 1310nm over single-mode fiber and lists 20 km/12.4 mi. distance with a 16.0 dB link budget. It uses 3.3V power input. Applications include Gigabit Ethernet switches and routers, Fiber Channel switch infrastructure, xDSL applications, and Metro Edge Switching. The series lists IEEE 802.3z and IEEE 802.3 standards, IEC-60825 and FDA 21, CFR 1040.10 and 1040.11 certifications, and a lifetime warranty.

Ideal For

Gigabit Ethernet switches and routers
Fiber Channel switch infrastructure
xDSL applications
Metro Edge Switching

Specifications

Depth	2.2” [56 mm]
Width	0.52” [13 mm]
Height	0.33” [8 mm]
Distance	20 km/12.4 mi.
Standard	IEEE 802.3z
Warranty	Lifetime
Compliance	TAA Compliant
Wavelength	1310nm
Form Factor	Hot-pluggable
Link Budget	16.0 dB
Port Detail	1 x LC Duplex 1000Base-LX Network
Power Input	3.3V
Certification	IEC-60825; FDA 21, CFR 1040.10 and 1040.11
Connector Type	LC
Network Technology	1000Base-LX
Ethernet Technology	Gigabit Ethernet
Storage Temperature	-40°C to 85°C
Fiber Mode Supported	Single-mode
Media Type Supported	Optical Fiber
Operating Temperature	0°C to 70°C
Environmental Compliance	WEEE; RoHS; REACH

Documentation

Additional pdf1

TN-J48xxC Series Datasheet (262.42 KB)

TN-J48xxC User Guide Rev C

Frequently Asked Questions

Is TN-J4859C HP compatible?▾

Yes. The series is identified as HP Compatible SFP Modules 1000Base-X (LC), and TN-J4859C is the 1000Base-LX model in the TN-J48xxC Series. The supplied data does not list specific HP switch models.

What connector does this SFP use?▾

TN-J4859C uses a Duplex LC connector. The port detail is listed as 1 x LC Duplex 1000Base-LX Network.

What fiber type and distance does TN-J4859C support?▾

TN-J4859C is the 1000Base-LX 1310nm model for single-mode fiber, with 20 km/12.4 mi. distance and a 16.0 dB link budget.

What standards, certifications, and warranty are listed?▾

The TN-J48xxC Series lists IEEE 802.3z and IEEE 802.3 standards, IEC-60825 and FDA 21, CFR 1040.10 and 1040.11 certifications, and a lifetime warranty.
