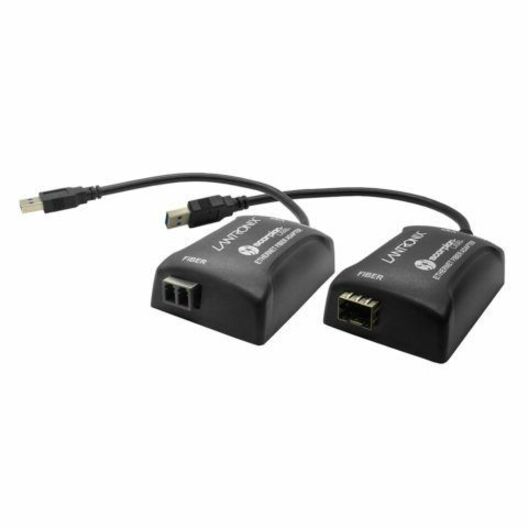

Lantronix TN-USB3-SFP-01 — USB 3.0 to 100/1000Base-X SFP Adapter
$217.96$324.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 100/1000Base-X open SFP slot supports dual speed 100/1000Mbps SFP Modules
- USB 3.0 interface connects a PC, laptop or tablet to a fiber-based Ethernet network
- USB bus power requires no external power supply
- IEEE 802.1Q VLAN tagging support
- USB Speed / Activity and fiber Link / Activity LEDs
- Plastic ABS enclosure with a 9” pigtail to USB type-A connector
- Software support for Windows 7, 8, 8.1, 10, 11, Linux, Ubuntu 22.04, 24.04 and Macintosh 10.6 to 10.11
Lantronix TN-USB3-SFP-01 is a Scorpion-USB™ 3.0 Gigabit Ethernet Fiber Adapter with a USB 3.0 to Ethernet 100/1000Base-X Open SFP Slot. It creates an EMI-secure data connection between a USB port on a PC, laptop or tablet and an Ethernet fiber port on a switch. It is designed for fiber-rich networking environments where wireless transmission is not the preferred technology or where copper lacks the bandwidth, distance or security for sharing data-intensive files. The adapter is USB bus powered and includes LEDs for USB Speed / Activity and fiber Link / Activity. Install the driver, connect through the USB port, and the fiber-based Ethernet connection is ready.
Ideal For
- Adding a fiber-based Ethernet connection to a PC, laptop or tablet through USB 3.0
- Connecting in fiber-rich networking environments without a built-in fiber port
- Using a wired fiber connection where wireless transmission is not the preferred technology due to security concerns
- Sharing data-intensive files where copper lacks the bandwidth, distance or security
Specifications
| MTBF | Greater than 5,800,000 hours Telcordia SR-332 (Issue 4) |
| Weight | 0.35 lbs. [0.16 kg] |
| Altitude | 0 – 10,000 ft. (with derating) |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3-2008; IEEE 802.1Q; USB 3.0 |
| Warranty | Lifetime |
| Dimensions | 2.09” [56 mm] x 12.25″ [233 mm] x 1″ [20 mm] |
| Fiber Port | 100/1000Base-X SFP |
| Power Source | USB Bus |
| Certification | EN55032 Class A; EN55024; FCC Part 15, Subpart B, Class A; CE Mark |
| USB Data Rate | 625 MBps (5000 mbps) |
| Host Interface | USB 3.0 |
| Max Frame Size | 1518 bytes (untagged) |
| Fiber Data Rate | 125 MBps (1000 mbps) |
| USB Status Leds | Speed / Activity Green: ON – USB 3.0 Yellow: ON – USB 2.0 Green & Yellow: OFF – USB Down |
| Software Support | Windows 7, 8, 8.1, 10, 11, Linux, Ubuntu 22.04, 24.04 and Macintosh 10.6 to 10.11 |
| Fiber Status Leds | Speed / Activity Green – Link @ 1000Mbps, Yellow – Link @ 100Mbps, Flashing – Activity |
| Power Consumption | 3.15 Watts max (SFP: MSA compliant supporting up to a 1 Watt module) |
| Storage Temperature | -20°C to +80°C |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What fiber interface does TN-USB3-SFP-01 provide?▾
It provides a USB 3.0 to Ethernet 100/1000Base-X Open SFP Slot. The SFP version supports dual speed 100/1000Mbps SFP Modules.
Does this adapter need an external power supply?▾
No. The adapter is a USB bus powered device, so no external power supply is needed.
Which operating systems are supported?▾
Software support is listed for Windows 7, 8, 8.1, 10, 11, Linux, Ubuntu 22.04, 24.04 and Macintosh 10.6 to 10.11.
Is an SFP module included?▾
The input identifies this SKU as an open SFP slot. It does not state that an SFP module is included.
