Lantronix TN-USB3 Series USB 3.0 to Gigabit Ethernet Fiber Adapters
The TN-USB3 Series, branded Scorpion-USB, is a bus-powered adapter that connects a laptop, tablet or PC's USB 3.0 port directly to a Gigabit Ethernet fiber network, for secure links where Wi-Fi or copper is not acceptable.
From $324.50
Overview
About the Lantronix TN-USB3 Series
Secure facilities often run fiber to the desk but issue laptops and tablets with no fiber port. The TN-USB3 Series, also sold as the TN-USB3-SX-01 and Scorpion-USB adapter, closes that gap: plug it into a USB 3.0 Type-A port, install the driver, and the computer has a 1000 Mbps fiber connection to a switch. Fiber gives an EMI-secure link where wireless is ruled out for security reasons or copper lacks the bandwidth, distance or security for data-intensive files.
The adapter is bus powered, drawing 2.1 W typical with LC optics, 2.18 W with SC and up to 3.15 W with an SFP module of up to 1 W, so no external supply is needed. Fixed-optic models use 1000Base-SX 850 nm multimode, reaching 220 m on 62.5/125 μm or 550 m on 50/125 μm fiber. The SFP model accepts dual-speed 100/1000 Mbps SFP modules. IEEE 802.1Q VLAN tagging is supported.
Drivers cover Windows 7 through 11, including Windows 11 ARM64, plus Linux, Ubuntu 22.04 and 24.04, and macOS 10.6 to 10.11. The ABS enclosure has a 9-inch pigtail to the USB Type-A connector, and LEDs show USB speed and fiber link speed and activity. The adapter operates from 0°C to 50°C, weighs 0.16 kg and carries FCC Part 15 Class A, EN55032 Class A and CE marks, with MTBF above 5,800,000 hours under Telcordia SR-332.
Key capabilities
- Fiber link from USB
- Connects a USB 3.0 port on a laptop, notebook or tablet to a 1000 Mbps Ethernet fiber port on a switch, with no internal card required.
- EMI-secure connection
- Fiber avoids the interception risk of wireless and the EMI of copper, suiting secure networks that deploy fiber to the desk.
- Bus powered
- The adapter runs entirely from the USB bus, drawing 2.1 W typical on the LC model and 3.15 W maximum with an SFP installed.
- Fixed or SFP optics
- Choose 1000Base-SX multimode with LC or SC connectors, or an open SFP slot that accepts dual-speed 100/1000 Mbps modules for other fiber types.
- Broad OS support
- Drivers are available for Windows 7, 8, 8.1, 10 and 11 including ARM64, Linux, Ubuntu 22.04 and 24.04, and macOS 10.6 to 10.11.
How to choose the right TN-USB3 Series part number
Choose by fiber connector and type. TN-USB3-SX-01(LC) is 1000Base-SX 850 nm multimode with LC connectors, reaching 220 m on 62.5/125 μm or 550 m on 50/125 μm with a 7.0 dB link budget. TN-USB3-SX-01(SC) is the SC version with a 7.5 dB budget and is a Last Time Buy opportunity, so new deployments should use the LC model. TN-USB3-SFP-01 has an open 100/1000Base-X SFP slot, letting you match single-mode, long-reach or 100 Mbps fiber with the appropriate SFP module.
Configure & order
Find your TN-USB3 Series part number
Every orderable TN-USB3 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

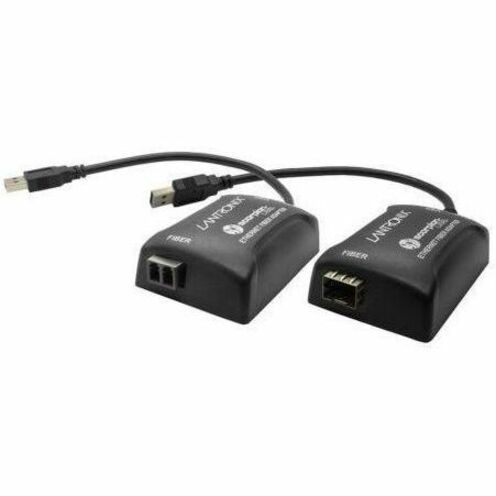

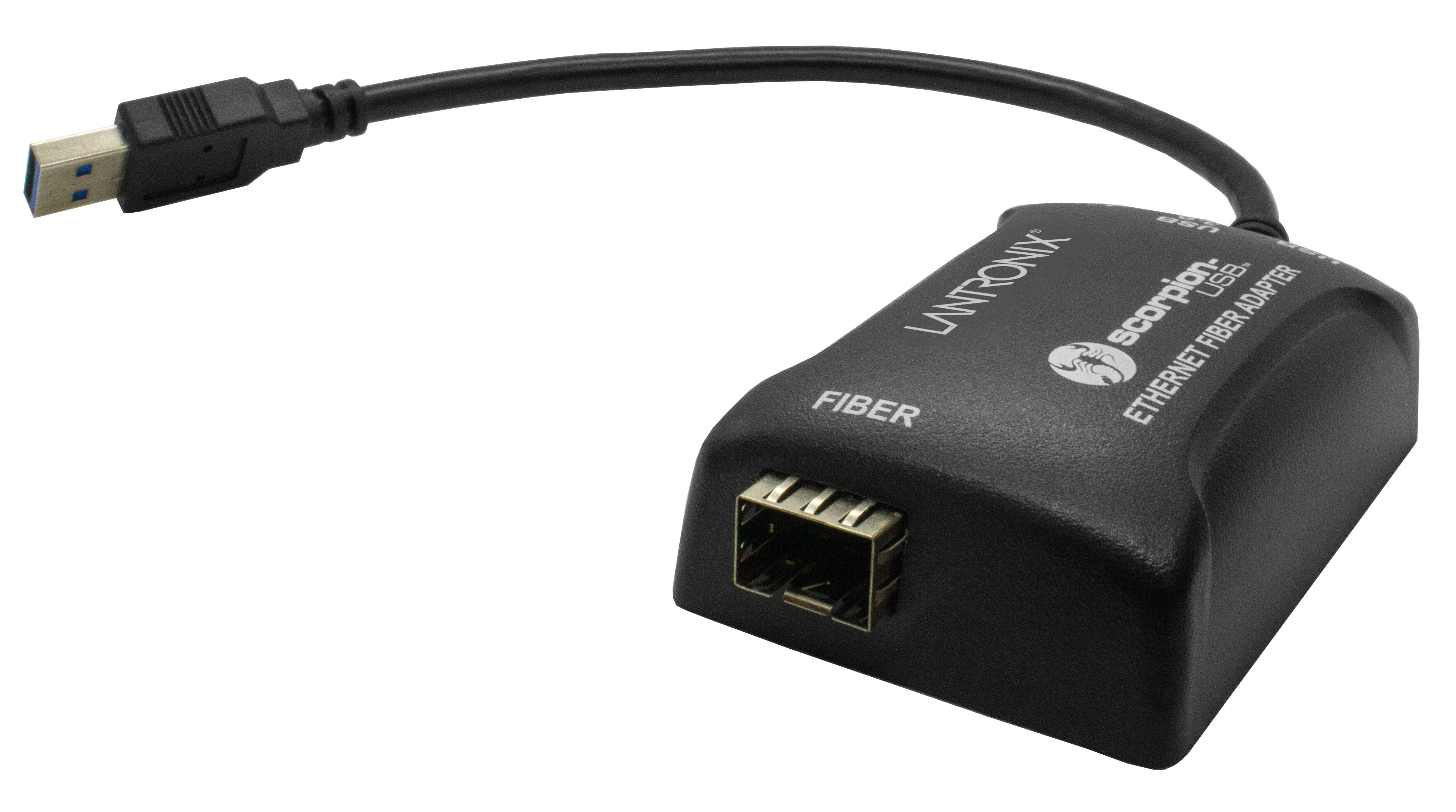

TN-USB3-SFP-01
$324.50
Ships on backorder

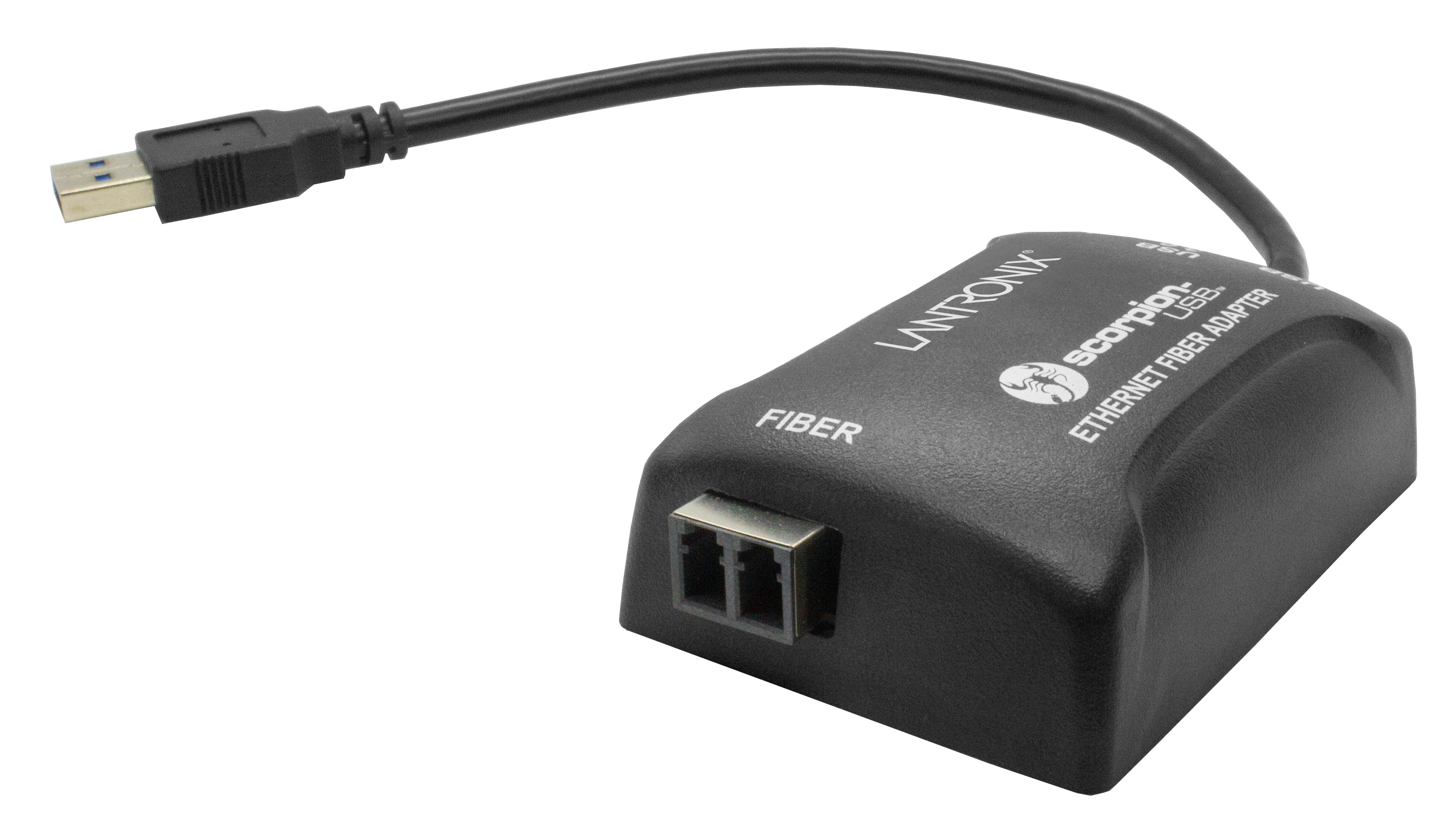

TN-USB3-SX-01(LC)
$418.00
14 in stock

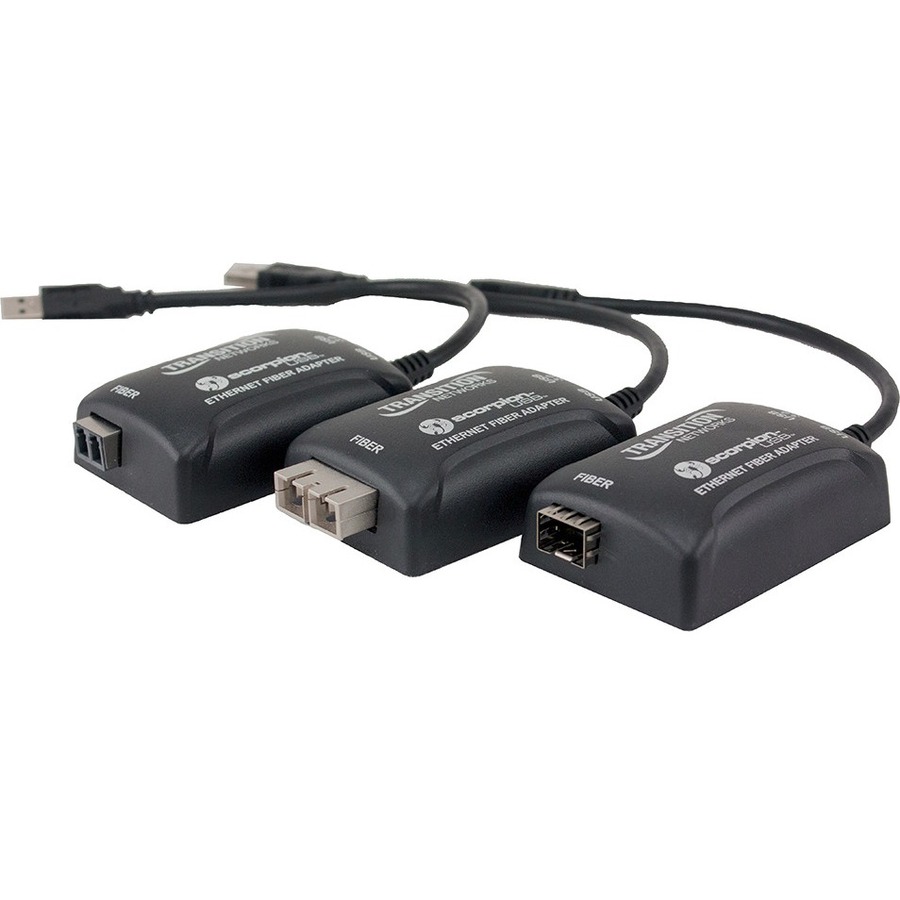

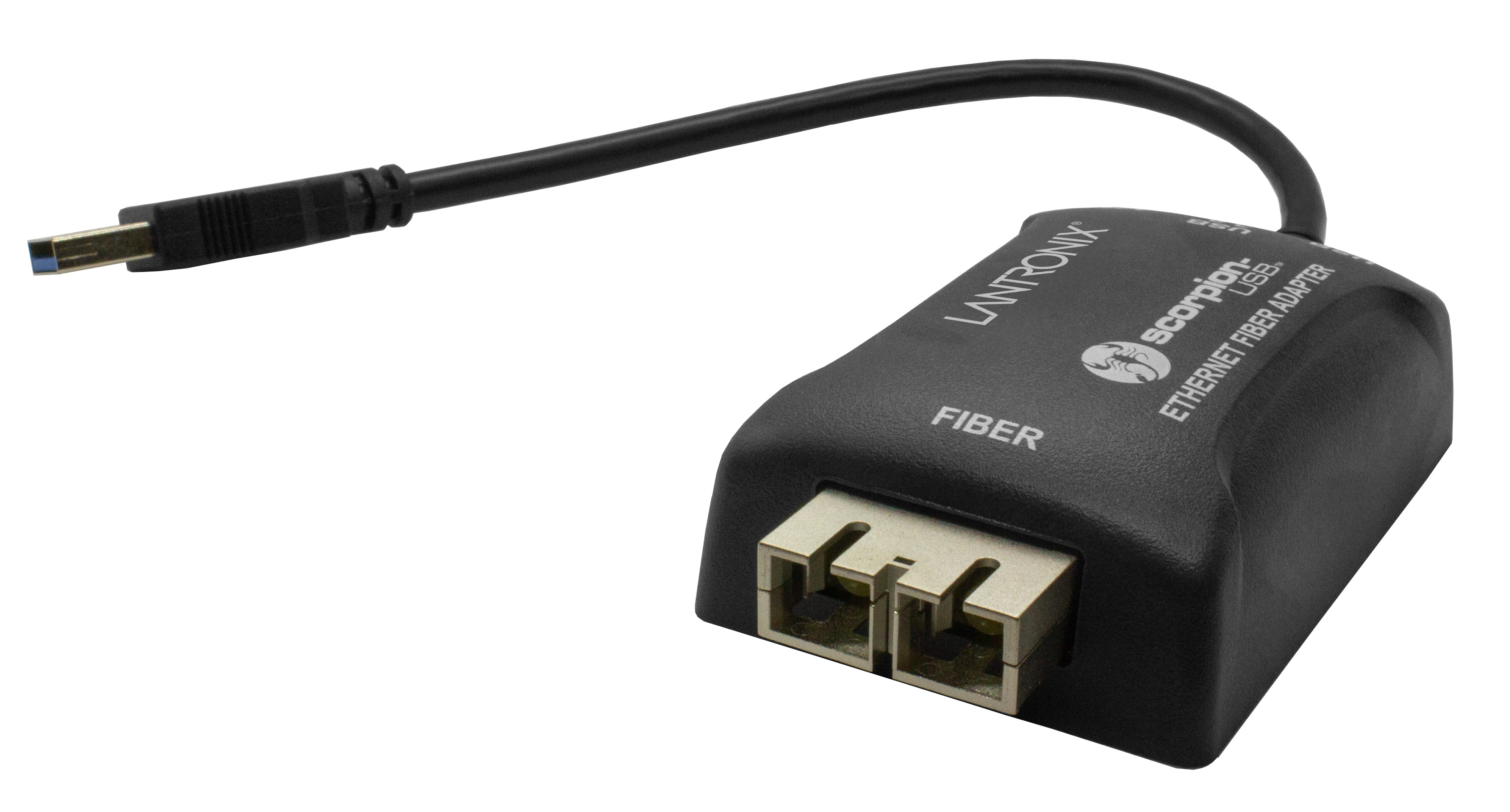

TN-USB3-SX-01(SC)
$340.00
Ships on backorder
Where the TN-USB3 Series is used
- Fiber-to-the-desk laptop connections in secure facilities
- Field technicians connecting tablets to fiber switch ports
- Data transfers in EMI-sensitive or wireless-restricted areas
- Temporary fiber workstations without opening the PC chassis
TN-USB3 Series FAQ
What operating systems support the TN-USB3 fiber adapter?
Lantronix provides drivers for Windows 7, 8, 8.1, 10 and 11, including Windows 11 x64 and ARM64 HLK/WHCK certified drivers, as well as Linux, Ubuntu 22.04 and 24.04, and Macintosh 10.6 to 10.11.
Does the TN-USB3-SX-01 need external power?
No. All TN-USB3 models are bus powered from the USB port. Typical consumption is 2.1 W for the LC model and 2.18 W for the SC model, and the SFP model draws up to 3.15 W with a 1 W SFP.
How far can the TN-USB3-SX-01 reach over fiber?
The 1000Base-SX models reach 220 m on 62.5/125 μm multimode fiber or 550 m on 50/125 μm fiber. For longer distances or single-mode fiber, use the TN-USB3-SFP-01 with a suitable SFP module.
Will the TN-USB3 work in a USB 2.0 port?
The USB LED shows yellow when connected to a USB 2.0 port and green for USB 3.0, so it reports which port type it detected. Lantronix designs the adapter for USB 3.0, whose 5000 Mbps rate exceeds the 1000 Mbps fiber link.
