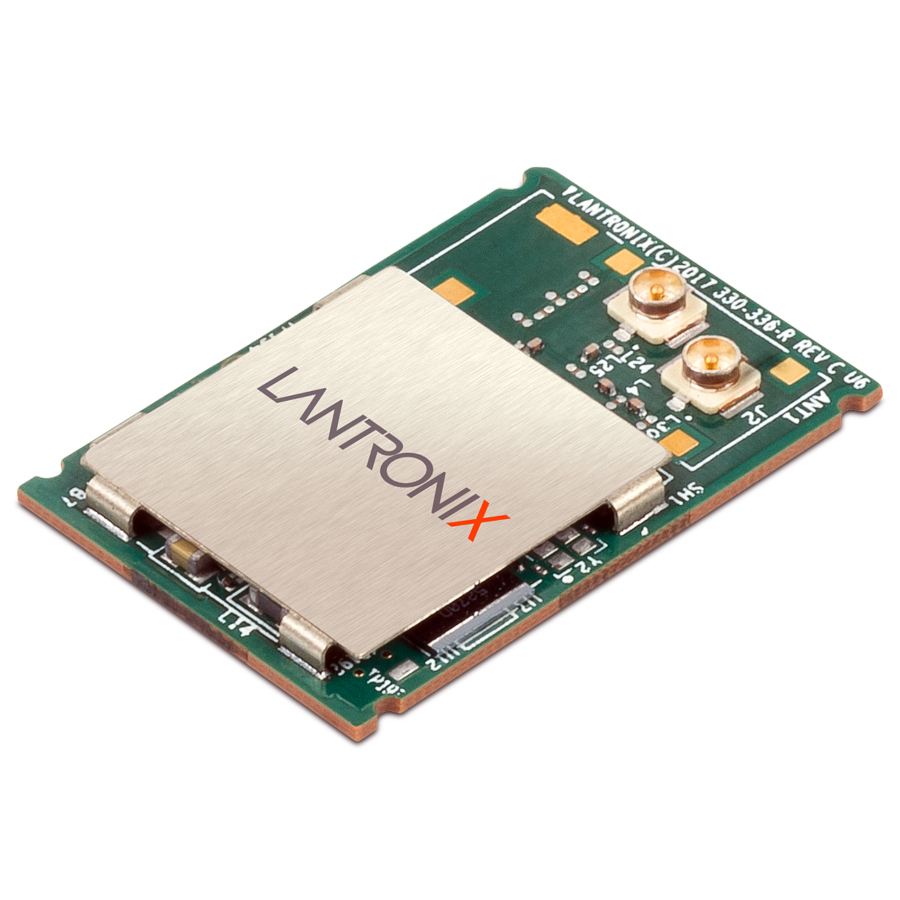

Lantronix XPC270100B — xPico 270 Wi-Fi Bluetooth LGA Module
$38.10$39.92
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Dual-band Wi-Fi: IEEE 802.11 a/b/g up to 54 Mbps, 802.11 n (1×1) up to 150 Mbps and 802.11AC up to 433 Mbps
- Ethernet: IEEE 802.3 MAC with 10Base-T and 100Base-TX (RMII)
- Bluetooth: Bluetooth Core Specification version 4.2 with BR/EDR/Bluetooth LE
- Concurrent wireless modes: Concurrent Soft AP + STA (Client), Client and Soft AP
- Management: Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT and Internal Web Server (HTTP/HTTPS)
- Security: Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, SSL/TLS and HTTPS
- LGA configuration: 17mm x 25mm x 2mm with Tape and Reel, MSL 3 packaging
- Dual-band Wi-Fi (802.11 a/b/g/n/ac) and Ethernet
XPC270100B is the LGA, tape-and-reel configuration of the Lantronix xPico 270 Embedded IoT Gateway. It delivers Ethernet, dual-band 802.11ac Wi-Fi and Bluetooth/Bluetooth LE 4.2 connectivity in a 17mm x 25mm x 2mm LGA module. Lantronix positions xPico 270 for OEM smart connected products. It enables operation as a network co-processor or wireless MCU and supports automatic network connection management, Concurrent Soft AP + STA mode and Ethernet to Wi-Fi Client Bridge (Single Host Mode). Security and management are built in. The module supports Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates, Secure Key Storage, Encrypted Configuration, role-based access control, WPA2 Enterprise and WPA3-Enterprise Transition Mode and WPA3-Personal with firmware v5.0.0.0 or later. Management interfaces include Lantronix Percepxion™, REST, MQTT, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status.
Ideal For
- Adding dual-band 802.11AC Wi-Fi, Ethernet and Bluetooth connectivity to OEM smart connected products
- Using the xPico 270 as a network co-processor for embedded application development
- Using the module as a wireless MCU with the provided SDK
- Providing remote device management through Lantronix Percepxion™
Specifications
| Ethernet | IEEE 802.3 MAC, 10Base-T and 100Base-TX (RMII) |
| Security | Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates; Secure Key Storage, Encrypted Configuration |
| System Pins | RESET, DEFAULT, WAKE |
| Fast Roaming | 802.11r fast roaming |
| Storage Temp | -40°C to + 85°C |
| Wireless LAN | IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps; 802.11AC up to 433 Mbps |
| Wpa3 Support | WPA3-Enterprise Transition Mode and WPA3-Personal (requires firmware v5.0.0.0 or later) |
| Channel Width | 20, 40 and 80 MHz channel width with optional SGI |
| Client Bridge | Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID |
| Input Voltage | 3.3VDC |
| Frequency Band | Dual Band 2.4 GHz and 5 GHz |
| Lga Dimensions | 17mm x 25mm x 2mm |
| Operating Temp | -40°C to +85°C |
| Web Management | Serial Port, Internal Web Server (HTTP/HTTPS) |
| Bluetooth Roles | Bluetooth LE Central and Peripheral Roles |
| Concurrent Mode | Up to 4 in Concurrent Mode |
| Control Signals | DTR/DCD; Flow Control: RTS/CTS; XON/XOFF |
| Host Interfaces | USB (Host) 12 Programmable I/O Pins (GPIOs) |
| Protocol Support | DHCP Client, Server (Soft AP), HTTP Server/Client; IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS; SNMP v1/v2; IPv6 |
| Wi-Fi Encryption | AES/CCMP and TKIP encryption, WPA/WPA2 Personal |
| Serial Data Rates | 9600 bps to 4 Mbps (software selectable) |
| Wireless Features | Concurrent Soft AP + STA (Client), Client, Soft AP |
| Bluetooth Profiles | Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile, Serial Port Profile (SPP) |
| Bluetooth Standard | Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE) |
| Discovery Protocol | Lantronix Discovery Protocol (77FE) |
| Edge Card Dimensions | 22mm x 35.5mm x 2.73 mm |
| Management Interfaces | Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT |
| Configuration Interfaces | XML Configuration and XML Status (CLI, API) |
| Enterprise Authentication | WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST) |
| Max Current Consumption Boot Peak | 600 mA |
Frequently Asked Questions
Does XPC270100B support both Wi-Fi and Bluetooth?▾
Yes. XPC270100B supports dual-band IEEE 802.11 a/b/g/n/ac Wi-Fi and Bluetooth Core Specification version 4.2 (BR/EDR/Bluetooth LE).
What form factor and packaging does this SKU use?▾
This SKU is the LGA configuration. The LGA dimensions are 17mm x 25mm x 2mm, and the packaging is Tape and Reel, MSL 3.
How is the xPico 270 managed?▾
Management interfaces include Lantronix Percepxion™ cloud-based IoT edge solution, REST, MQTT, Lantronix Discovery Protocol (77FE), Serial Port, Internal Web Server (HTTP/HTTPS), XML Configuration and XML Status, Secure Firmware Upgrade via HTTPS and remote management with Percepxion™.
What power input does the module require?▾
The input voltage is 3.3VDC. Max Current Consumption (Boot Peak) is 600 mA.
